  • Page 3 Installation Installation Installation Installazione Instalación Installatie Instalacja Instalace Inštalácia P108 Namestitev P121 Instalação P134 Telepítés P147 Instalare P160 Instalacija P173 Installation P186 Asennus P199 Installasjon P212 Installation P225 Original Instructions Übersetzung der Originalbetriebsanleitung Traduction de l’instruction originale Traduzione dell’istruzione originale Traducción del manual original Vertaling van de oorspronkelijke gebruiksaanwijzing Tłumaczenie oryginalnej instrukcji...
  • Page 4 Border management Landroid is programmed to mow the grass along the perimeter of your lawn twice a week on Monday and Friday. If you want to change this pre-set, you can modify it via your smartphone or by using the control panel in “Work time-Customize Work time” menus.See detailed instructions at the end of this manual.
  • Page 5: Cutting Height

    Cutting Height Before starting your Landroid for the first time, make sure your grass is no longer than 10cm. If longer, use a regular mower to cut it before operating Landroid. If you want to drastically shorten the height of your grass, it is recommended that you do so progressively, by adjusting the cutting height in steps.
  • Page 6: What's In The Box

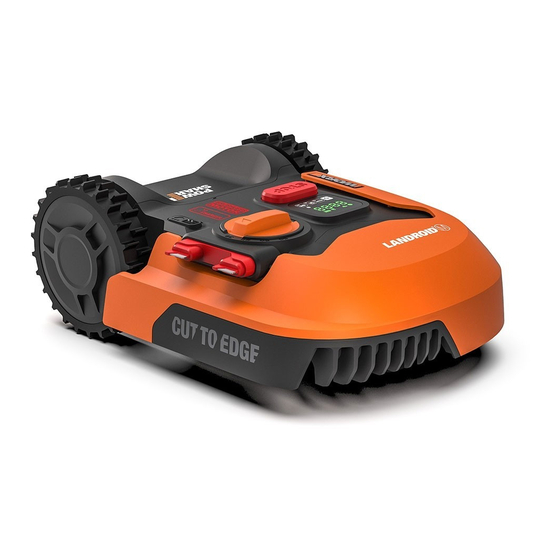

    WHAT’S IN THE BOX The picture is only for reference Worx Landroid Wire pegs Wire repair connectors Power supply Spare blades kits Boundary wire Hex key 20V battery Charging pile Boundary wire distance gauges Charging base Bertelsen ruler Screws Manuals...
  • Page 7: Installation

    EVERY MINUTE SPENT IN PLANNING SAVES YOU 10 MINUTES IN EXECUTION Installing Landroid is even easier if you have made a clear idea of what you need to do. Proper planning will also help you avoid mistakes or having to rework the installation once it’s done.
  • Page 8 (no steps). To enter the station, Landroid needs at least 80cm straight path in front. On the exit side, it needs at least 30cm straight path before a left turn (fig. 1). If the turn is to the right, there is no need for a straight path (fig. 2).
  • Page 9 PATROL YOUR LAWN Landroid is designed to manage the most complex of lawns. Carry out a visual inspection of your lawn so you are prepared for a trouble-free installation of the boundary wire. 1. Identify forbidden areas You don’t want your robot mower to mow flowers, dive into a water feature, or shred tree roots that emerge from the ground.
  • Page 10 NOW ROLL YOUR SLEEVES UP. WHEN IT’S DONE IT’S DONE! Now that you have planned the installation in every detail, you are ready to take action. Before starting, you may want to use your old mower for the last time to clean up your lawn and make the installation easier. 1.
  • Page 11 6. Bertelsen method: how to make perfect 90° angles with corners facing the lawn If there are 90 degree corners that face the inside of your lawn, use the Bertensen ruler to help Landroid make perfect turns (and remove the risk that Landroid hits an obstacle on the border of the lawn whilst doing this maneuver).
  • Page 12: Final Steps

    D. Open the rear of Landroid and insert the PowerShare battery into the slot until it clicks (fig.13) E. Place Landroid on charge by making sure a deep contact is established with the base (fig. 14). The LED will blink green; once the battery is fully charged, the LED will turn solid green.
  • Page 13 9. Joining up the boundary wire Landroid box includes two small, waterproof boundary wire connectors. They can be used for the following: A. When your lawn has a very long perimeter and you need extra boundary wire to complete the installation. Please do not exceed 300m of boundary wire: this is the maximum length of the boundary wire perimeter B.
  • Page 14 Despite its minimalistic design, you can set several advanced functions through the built-in control panel. However, for the best user experience we recommend you use the free Landroid app to do this, given its much richer and intuitive interface. 1. Setting A.
  • Page 15: Navigation Page

    F. Next, clockwise rotate to select start time “hour/minute” and short press to enter setting. Selected number will be blinking. G. Rotate the to select the start time you want your LANDROID to mow on a Monday 6h30min Monday 6h30min Monday 6h30min particular day and short press to confirm.
  • Page 16 If your lawn has multiple areas connected to each other by a corridor, it should be at least 0.6m wide. If the corridor is narrower than 0.6m, Landroid will have difficulty travelling between. In this case, it is recommended to set up a main area and a secondary area in your lawn. The boundary wire should be placed as illustrated in the picture.
  • Page 17 C. Make sure the distance between your Landroid, smartphone and your router is as close as possible during connection when Landroid moves to an area of your lawn with poor or no Wi-Fi signal, instructions sent from the app will only be Tip: executed when Landroid returns to an area with good signal.
  • Page 18 LANDROID APP NOT A SIMPLE REMOTE CONTROL Don’t think at it as a remote control. The app is an integral part of the Worx Landroid advanced ecosystem based on cloud computing and artificial intelligence. Thanks to the app’s augmented reality feature, you can measure the exact area of your lawn. It’s as easy as taking a walk along its border.
  • Page 19 Im nächsten Abschnitt möchten wir Ihnen die Funktionsweise des Landroid näher bringen. Der Landroid ist ein autonomes Gerät, das in der Lage ist, selbstständig zu arbeiten. Das Gerät weiß, wenn es zu seiner Ladestation gehen muss, kann erkennen, wann es regnet, hält selbstständig an wenn er ein Problem erkennt, oder umfährt selbstständig Hindernisse, auf die er trifft.
  • Page 20 Schnitthöhe Bevor Sie den Landroid das erste Mal starten, gehen Sie bitte sicher, dass das Gras nicht höher als 10 cm ist. Wenn es doch länger sein sollte, verwenden Sie einen normalen Rasenmäher, bevor Sie den Landroid einsetzen. Wenn Sie Ihren Rasen stark kürzen wollen, wird empfohlen, dass Sie dies in Schritten (Anpassung der Schnitthöhe) machen.
  • Page 21 DAS IST IM LIEFERUMFANG ENTHALTEN Die Abbildung dient nur als Referenz Worx Landroid Heringe Begrenzungsdraht-Reparaturadapter Netzteil Sätze Ersatzklingen Begrenzungskabel Innensechskantschlüssel 20V Akku Ladestapel Begrenzungsdraht-Lineale Ladestation Bertelsen ruler Schrauben Handbuch...
  • Page 22 INSTALLATION Die Installation Ihres Worx Landroid ist einfach, wenn Sie diesen Anweisungen sorgsam folgen. Im Endeffekt ist es nur das Aufstellen der Ladestation und die Verlegung des Begrenzungsdrahts um Ihren Rasen herum. Zusätzlich zu dieser Bedienungsanleitung können Sie die Get Started Anleitung, die sich in der Box befindet, verwenden und alle Video-Tutorials auf unserem YouTube-Kanal* ansehen.
  • Page 23 Oberfläche auf gleicher Höhe liegen (keine Stufen). Auf der Eingangsseite der Station muss der Landroid mindestens 80 cm geraden Weg vor sich haben. Auf der Ausgangsseite muss das Gerät mindestens 30 cm geraden Weg vor sich haben, bevor eine Linksdrehung erfolgen kann (Abb. 1) Wenn eine Drehung nach rechts stattfindet, ist kein Mindestabstand nötig (Abb.
  • Page 24 Wenn Ihr Rasen mehrere Hindernisse und Bäume in der Nähe zu einander aufweist, empfehlen wir Ihnen die ACS Funktion des Landroid zu kaufen. Dies ist ein intelligenter Ultraschall-Autopilot, der Ihren Landroid um Hindernisse fahren lässt, anstatt das Gerät in sie...
  • Page 25 JETZT GEHT‘S LOS. WAS GESCHAFFT IST, IST GESCHAFFT! Da Sie jetzt die Installation detailliert geplant haben, sind Sie bereit anzufangen. Vor dem Start möchten Sie aber vielleicht Ihren alten Rasenmäher nochmals verwenden, um Ihren Rasen „aufzuräumen“ und die Installation einfacher zu machen. 1.
  • Page 26 C. Halten Sie dabei stets einen Abstand von 26cm ein und verlegen Sie den Begrenzungsdraht im Uhrzeigersinn D. Verlegen Sie den Draht immer im Uhrzeigersinn. Falls der Draht nicht korrekt verlegt wird, kann es sein, dass der Landroid in den abgegrenzten Bereich fährt...
  • Page 27 Klicken einrastet. (Abb. 13) E. Positionieren Sie den Landroid in der Ladestation und stellen Sie sicher, dass ein fester Kontakt mit der Basis hergestellt wurde (Abb. 14). Die LED wird grün blinken; sobald der Akku vollständig aufgeladen ist, wird die LED dauerhaft grün leuchten.
  • Page 28 9. Reparieren des Begrenzungsdrahts Die Landroid-Box enthält zwei kleine, wasserdichte Begrenzungsdrahtadapter. Sie können für folgendes verwendet werden: A. Wenn Ihr Rasen eine sehr große Fläche aufweist und Sie zusätzlichen Begrenzungsdraht für den Abschluss der Installation benötigen. Überschreiten Sie bitte nicht eine Länge von 300m Grenzkabel: dies ist die maximal mögliche Begrenzungsdrahtlänge B.
  • Page 29 Erweiterte Funktionen über das eingebaute Bedienfeld Trotz des minimalistischen Designs können Sie mehrere erweiterte Funktionen durch das eingebaute Bedienfeld einstellen. Allerdings empfehlen wir Ihnen für das beste Benutzererlebnis, die kostenlose Landroid-App zu verwenden, da es eine viel umfassendere und intuitivere Schnittstelle darstellt.
  • Page 30: Datum & Zeit Einstellen

    Minute“ auszuwählen, und drücken Sie kurz, um die Einstellung aufzurufen. Die ausgewählte Nummer blinkt. G. Drehen Sie die Taste , um die Startzeit auszuwählen, zu der Ihr LANDROID an einem bestimmten Tag mähen soll, und drücken Sie zur Bestätigung kurz. Verwenden Sie dieselbe Methode, um die Stoppzeit zu vervollständigen.
  • Page 31 Wenn Ihr Rasen mehrere Bereiche hat, die durch einen Korridor miteinander verbunden sind, sollte er mindestens 0,6 m breit sein. Wenn der Korridor schmaler als 0,6 m ist, hat Landroid Schwierigkeiten, zwischen den beiden zu reisen. In diesem Fall wird empfohlen, einen Hauptbereich und einen Nebenbereich in Ihrem Rasen einzurichten.
  • Page 32 A. Landroid arbeitet ausschließlich mit einem 2,4 GHz WLAN-Signal B. Stellen Sie sicher, dass sich Ihr Landroid in derselben Router-Umgebung wie Ihr Smartphone befindet C Stellen Sie sicher, dass der Abstand zwischen Ihrem Landroid, dem Smartphone und Ihrem Router bei der Einrichtung so kurz wie möglich ist Tipp: Wenn sich Ihr Landroid zu einem Bereich Ihres Rasens mit schlechtem oder keinem WLAN-Signal bewegt, können...
  • Page 33 Signal auf bis zu 300m Reichweite erweitert. Alternativ können Sie auch das Find My Landroid Modul kaufen, mit welchem Sie nicht nur Ihrend Landroid durch die eingebaute SIM-Karte überall mit dem Internet verbinden können, sondern durch GPS auch geschützt vor Diebstahl sind.
