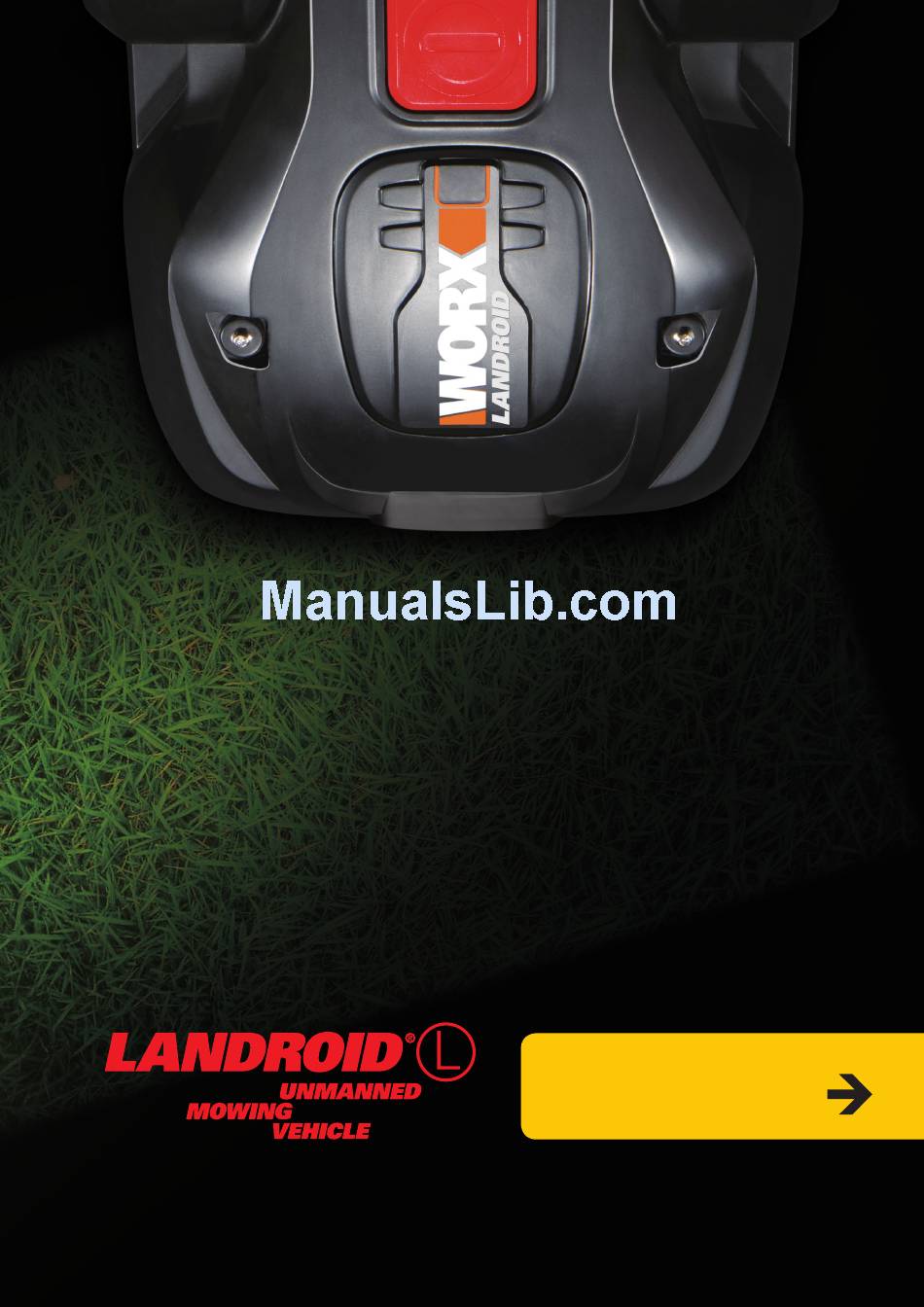

- Page 1 INSTALLATION GUIDE...
- Page 2 How to install your Landroid ® The installation of the Landroid L is easy. Depending on the size of your garden, the entire process only takes ® a short amount of time. If your are like us, you hate having to waste your precious free time mowing your lawn. The Landroid L will prove to be your best investment eliminating the need to mow your lawn ever again.
- Page 3 Preparation In the box Charging base Landroid ® Base Spare blades Boundary retention wire reel pegs Power cord Wire pegs with AC/DC transformer Owner’s manual Installation guide Distance gauge Hex key Programming and Warranty trouble shooting statement guide From your shed Scissors Hammer...
- Page 4 Landroid L's new home-your garden ® Let's start by having a closer look at Landroid L's new home—your lawn—highlighting the areas where it can safely ® go and areas it’s best for Landroid L to avoid. ® Obstacles that can be hit When hitting any obstacle that’s rigid, stable and taller than 15cm—such as a wall or a fence—your Landroid L will simply...
- Page 5 Depressions and bumps In the case of large bumps or dips, please consider if the blades could touch the ground; if this is the case, either make the inclines smoother or exclude those areas from your Landroid L ’s ® operation.
- Page 6 Marking out Landroid L’s ® territory within your garden Your Landroid L needs to know where to mow. This is why you have to mark its working area with a boundary ® wire that will form an invisible fence. This wire will also guide your Landroid L to its charging base.
- Page 7 If your lawn has two or more separate areas connected to each other by means of a corridor, this should be at least 1 meters wide. If your lawns are not connected by a corridor that's wide enough, then you'll have to pick your Landroid L up and move ®...
-
Page 8: Installation
Installation Pegging your boundary wire We recommend that you first mow the lawn where the wire is to be laid using a normal lawn mower or a grass trimmer. This ensures that the wire is laid as close to the ground as possible so the Landroid L does ®... - Page 9 When laying the boundary wire, use the distance gauge to keep a 45cm* space between the wire and the boundary. However, in the case of an obstacle that is level with ground and safe for the L to run over, such as a Landroid ®...
- Page 10 Connect the base to the boundary wire Cut the two ends of the wire to a length that’s appropriate convenient for reaching the clamps. Strip the two ends of the wire. When connecting to the charging base there will be an IN-wire and an OUT-wire, as shown.
- Page 11 You can now permanently fix the charging base on the ground by tightening the supplied Base Retention Pegs with the supplied Hex key. NOTE: Make sure the IN-wire is running straight through the tunnel underneath the charging base. Connect the power cord to the transformer and then to the AC electrical socket, the LED on the charging base will turn on.
- Page 12 Open the keypad window by pressing the large red button on the top of your Landroid ® Press and hold down the Power ON/OFF until the Landroid L turns on. ® Input the default PIN 0000 Press the key and close the keypad window: your Landroid L will now find its...
- Page 13 Programming Having finished the installation, it is now time to program the Landroid L when you want it to go to work by using the keypad ® display shown below. Please refer to the Programming and Troubleshooting Guide included in the packaging. Ready to go? The Landroid L is designed for maintaining your grass at a perfect length during the season, but is not designed for deforesting a...
-
Page 14: Keep It Sharp
Each cutting blade will last up to 4 months when it is programmed to mow every day. When the cutting blades are dull and worn out, they should be replaced with the spare blades provided with your Landroid L. Spare blades are also available at your nearest WORX retailer ® Maintenance Your Landroid L is engineered and built to stay outdoor regardless of adverse conditions.
