3 609 929 B65/2008-09 | IMmtcp

Disassembly and replacement

Required tools

• TX9 screwdriver

Disassembling

CAUTION

Disconnecting the IMmtcp

interface module while under

voltage

Damage to the IMmtcp interface

module!

Make sure that the relevant

system components are not

under voltage before removing

the IMmtcp interface module.

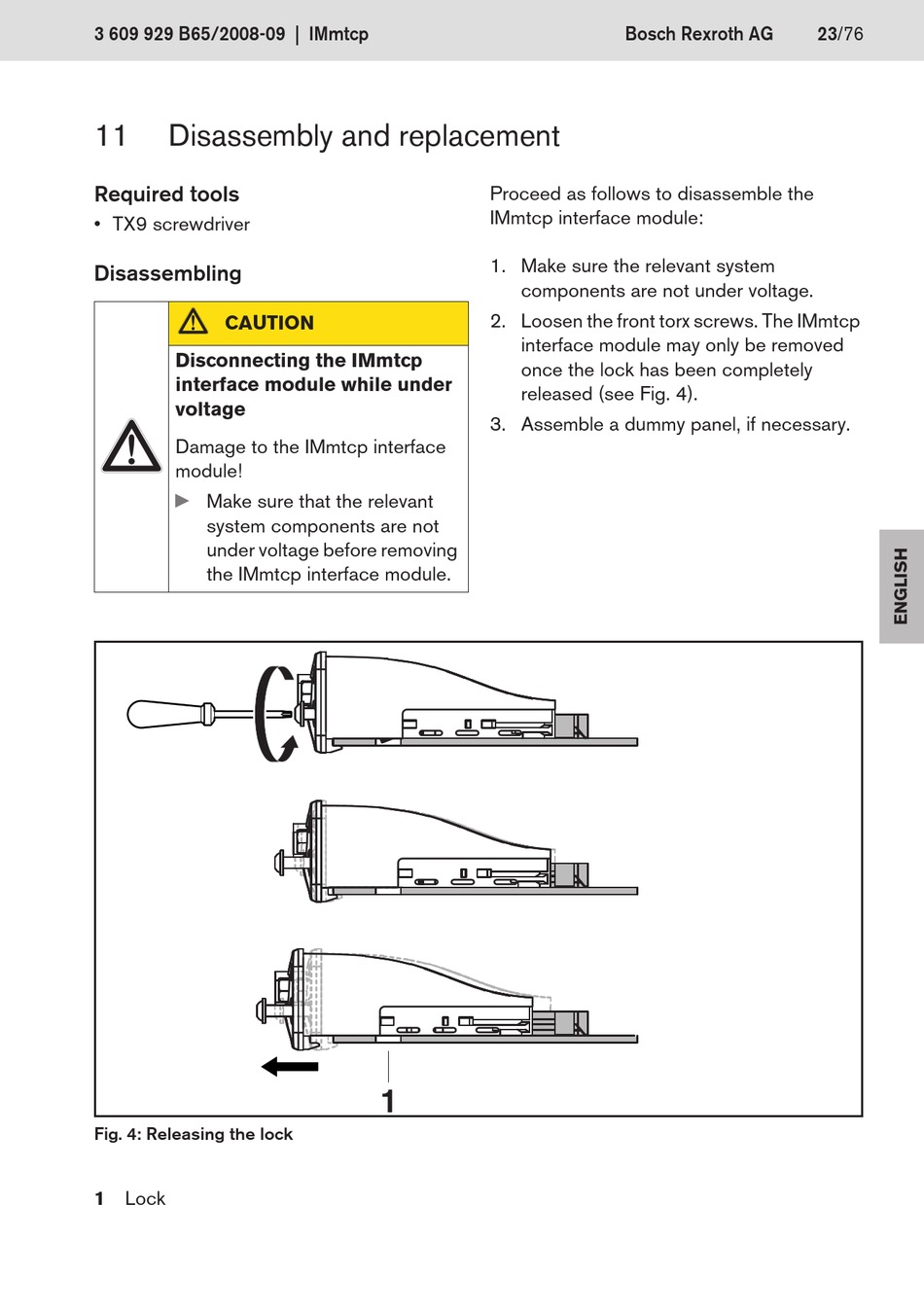

Fig. 4: Releasing the lock

1 Lock

Proceed as follows to disassemble the

IMmtcp interface module:

1. Make sure the relevant system

components are not under voltage.

2. Loosen the front torx screws. The IMmtcp

interface module may only be removed

once the lock has been completely

released (see Fig. 4).

3. Assemble a dummy panel, if necessary.

Bosch Rexroth AG

23/76
