Summary of Contents for Bosch Rexroth IMenip

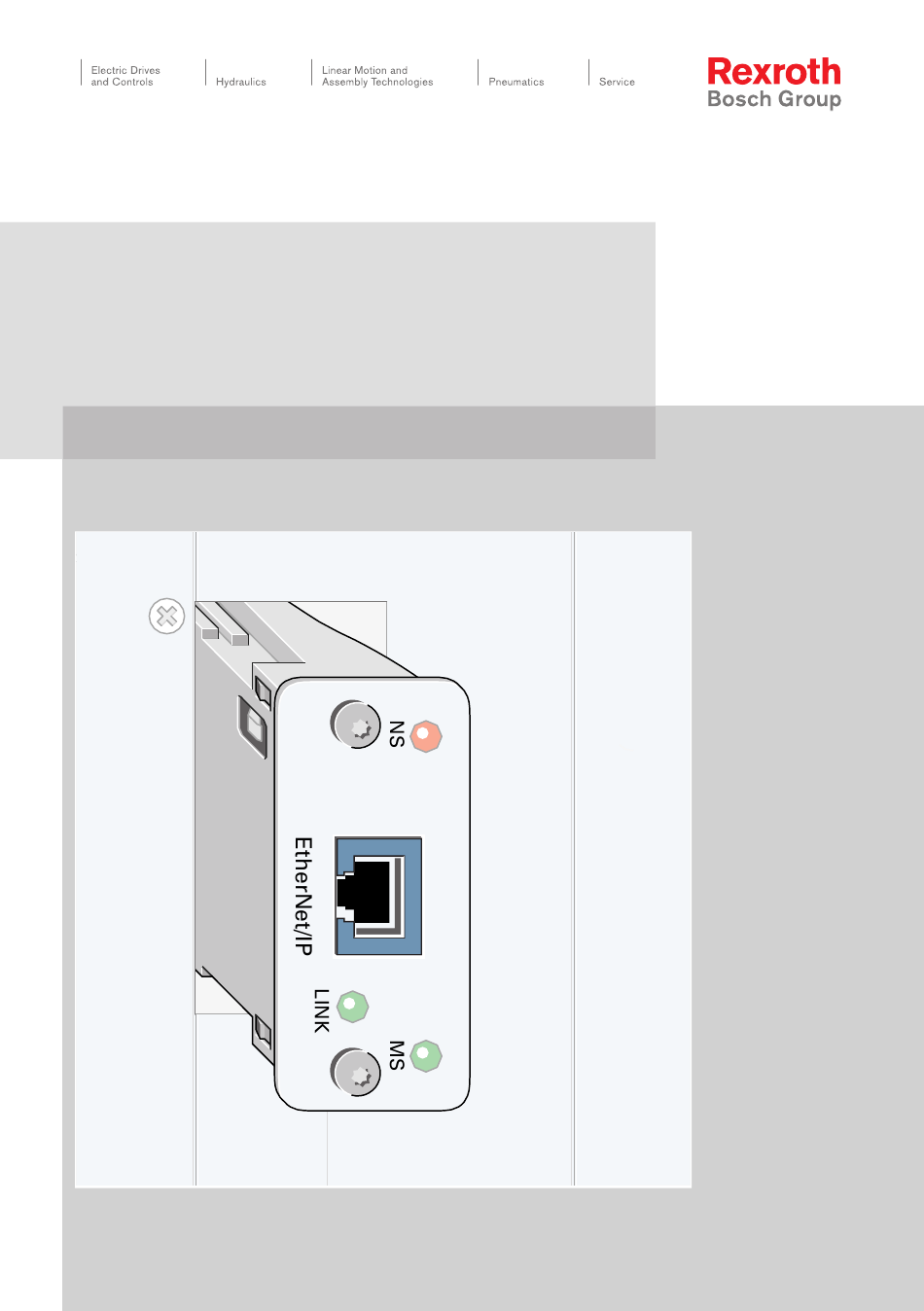

- Page 1 IMenip 3 609 929 B63/ 2008-09...
-
Page 2: Table Of Contents
Maintenance and repair ....22 specifications and other information set forth in it, are the exclusive property of Bosch Decommissioning ....22 Rexroth AG. -
Page 3: About This Document
16/76 Bosch Rexroth AG IMenip | 3 609 929 B63/2008-09 About this document • Always include the operating instructions when you pass the IMenip interface This manual contains important information module on to third parties. on the safe and appropriate assembly,... - Page 4 3 609 929 B63/2008-09 | IMenip Bosch Rexroth AG 17/76 Qualified personnel are those who can This warning symbol cautions recognize possible hazards and institute the against dangers to your health. appropriate safety measures due to their Observe all the safety instructions...
-
Page 5: Delivery Contents
18/76 Bosch Rexroth AG IMenip | 3 609 929 B63/2008-09 Only use the product within the performance Never use solvents or aggressive detergents. Only clean the product using a slightly damp, range provided in the technical data. lint-free cloth. Only use water to do this and, Persons who assemble, operate, if necessary, a mild detergent. - Page 6 3 609 929 B63/2008-09 | IMenip Bosch Rexroth AG 19/76 Device description Suitable connection plugs Use connection plugs in accordance with Transfer rates of 10 MBit/s or 100 MBit/s are standard IEC 61158. supported. Display elements The NS LED indicates the Ethernet status.
-
Page 7: Transport And Storage
20/76 Bosch Rexroth AG IMenip | 3 609 929 B63/2008-09 The MS LED indicates the interface module Assembling the IMenip interface module status. Table 4 MS CAUTION LED display Meaning Risk of damage to persons and property! No voltage or not initialized... - Page 8 3 609 929 B63/2008-09 | IMenip Bosch Rexroth AG 21/76 1. Always switch off the power supply to the relevant system component before assembling the IMenip interface module. 2. Insert the IMenip interface module into the appropriate slot on the system component until it catches (example in Fig.
-
Page 9: Commissioning
22/76 Bosch Rexroth AG IMenip | 3 609 929 B63/2008-09 Commissioning Maintenance and repair CAUTION Risk of damage to persons Cleaning and care and property! CAUTION Commissioning of the IMenip interface module requires basic Any dirt or liquids penetrating mechanical and electrical the device lead to knowledge. -
Page 10: Disassembly And Replacement
3 609 929 B63/2008-09 | IMenip Bosch Rexroth AG 23/76 Disassembly and replacement Required tools Proceed as follows to disassemble the IMenip interface module: • TX9 screwdriver 1. Make sure the relevant system Disassembling components are not under voltage. 2. Loosen the front torx screws. The IMenip... -
Page 11: Disposal
Therefore dispose of the device in accordance with the currently applicable Table 5 NS regulations in your country. LED display Meaning You can also send the device to Bosch Double IP address or Rexroth for disposal. blocking error Flashing red Timeout reached in one or... -
Page 12: Technical Data
3 609 929 B63/2008-09 | IMenip Bosch Rexroth AG 25/76 Technical data Table 7 General data IMenip Order number 0 608 830 271 Dimensions (width x height x depth) 50.1 x 22.3 x 56.8 mm Weight 30 g Operating temperature range...
