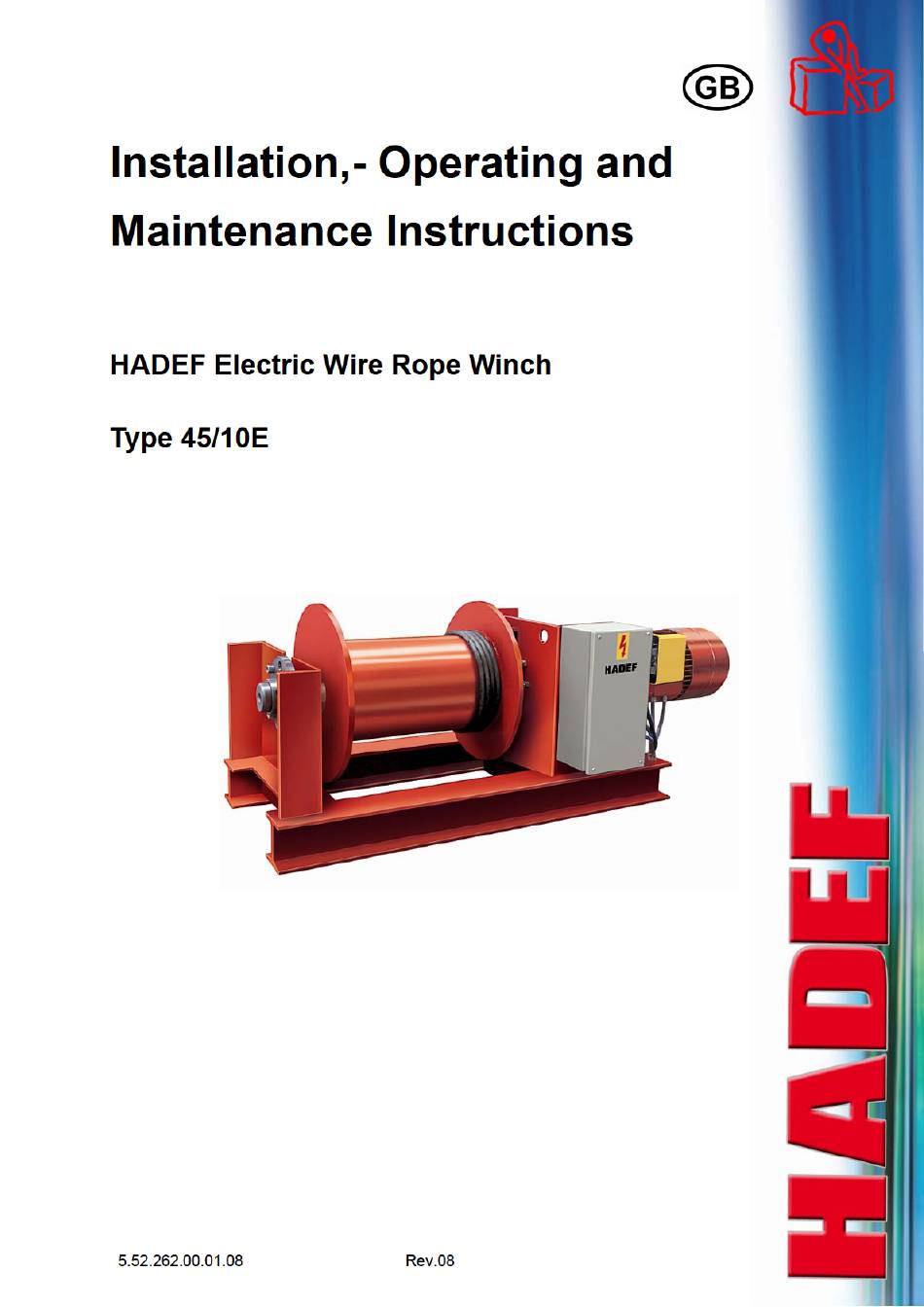

HADEF 45/10E Installation, Operating And Maintenance Instructions

Electric wire rope winch
Hide thumbs Also See for 45/10E:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 45/10E and is the answer not in the manual?

Questions and answers

Related Manuals for HADEF 45/10E

Summary of Contents for HADEF 45/10E

  • Page 2: Table Of Contents

    Heinrich de Fries GmbH Heinrich de Fries GmbH, Gauss Str. 20, D-40235 Düsseldorf Heinrich De Fries GmbH will be named HADEF in the following text. Original operating- and maintenance instructions in German language. Translation in other languages is made of the German original.

  • Page 3: Information

    9.4  Wire rope .......................... 16  9.5  Limit switch for wire rope path (as option) ..............17  9.6  Slack rope switch (as option) ..................17  9.7  Pressure roller (as option) ....................17  9.8  Rope guiding device (Optional) ..................17  Safety check ..................17  ...

  • Page 8: Design

    ADEF electri c wire rope w winches Typ e 45/10 E ve been de veloped for st tationary us able frame fi tted with ass sembly hole erial winch wi ith ungroove d drum. ooved drum as option. Wire rope exit or winches w ith ungroove ed drum and...
  • Page 9 Overload protection by current cut-off ▫ Serially fitted with electronic overload protection for units of 1000 kg and up. ▫ Electronic overload protection for units up to 1000 kg available as option. The overload protection is adjusted by the manufacturer according to the regulations that apply. The overload protection prevents lifting a load that is too heavy by switching off the hoisting motor.

  • Page 10: Technical Data

    Technical data FEM 9.511 group – 1Bm 2000 3200 4000 5000 6300 8000 10000 12500 16000 20000 1750 2800 3500 4400 5500 7050 8800 11000 14000 17500 Capacity 1550 2500 3100 3900 4950 6300 7800 9900 12500 15500 1400 2250 2800 3600 4450...

  • Page 12: Wire Rope Fastening

    astening with h retainer ke ush the wire rope through h the hub of t the flanged wheel and through the k key pocket. ull some cen timeters out. rap it compl etely round th he retainer k ey (1) d place it ba ck into the k ey pocket.

  • Page 13: Wire Rope Deflection

    Wire rope deflection Wire rope pulleys must be installed in a position centrically to the rope drum. In order to ensure correct winding up of the wire rope on the drum, the max. wire rope deflection angle must not be exceeded. maximum wire rope deflection angle 4°...

  • Page 14: Operation

    Operation Only people that are familiar with the operation of the lifting devices and cranes may be entrusted with their operation. They must be authorized by the employer for the operation of the equipment. The employer must ensure that the operating instructions are available near the equipment and that they are accessible for the operating personnel.
  • Page 17 Limit switch for wire rope path (as option) The limit switch (if exist) must be adjusted before commissioning and after maintenance work has been made. Intermediate checks for correct function are necessary. The switching point for the upper load position must be set in such a way that even in case of unfavourable cable winding the permitted highest load position is not overrunned.
  • Page 19 1 Unscrew the screws of the cover and remove the cover. 2 Loosen the central screw (1) 3 Set the switching point of every cam disc (A,B…and possibly other) with set screw (2A,2B…and possibly other). 4 Tighten the central screw (1) again. Illustration 17 5 Install the cover again and make sure the rubber seal is placed correctly.
  • Page 21 12.8.3 Tensioning of the roller chain It is necessary, to ensure correct functioning and due to wear, that the roller chain is checked in regular intervals tensioned again, necessary. The roller chain must be tensioned until it is guaranteed that the chain runs smoothly, wear elongation is compensated and the chain cannot jump over.
  • Page 25 Remedy Problem* Unit Cause Remedy No main power Check connection to mains supply Unit cannot be switched on Electric Hoists exchange 2 phases Phase sequence not correct (with low voltage control) (see waring note at the plug) Fuse burnt out Replace the fuse Defective switching unit in the control button switch Replace the switching unit...
