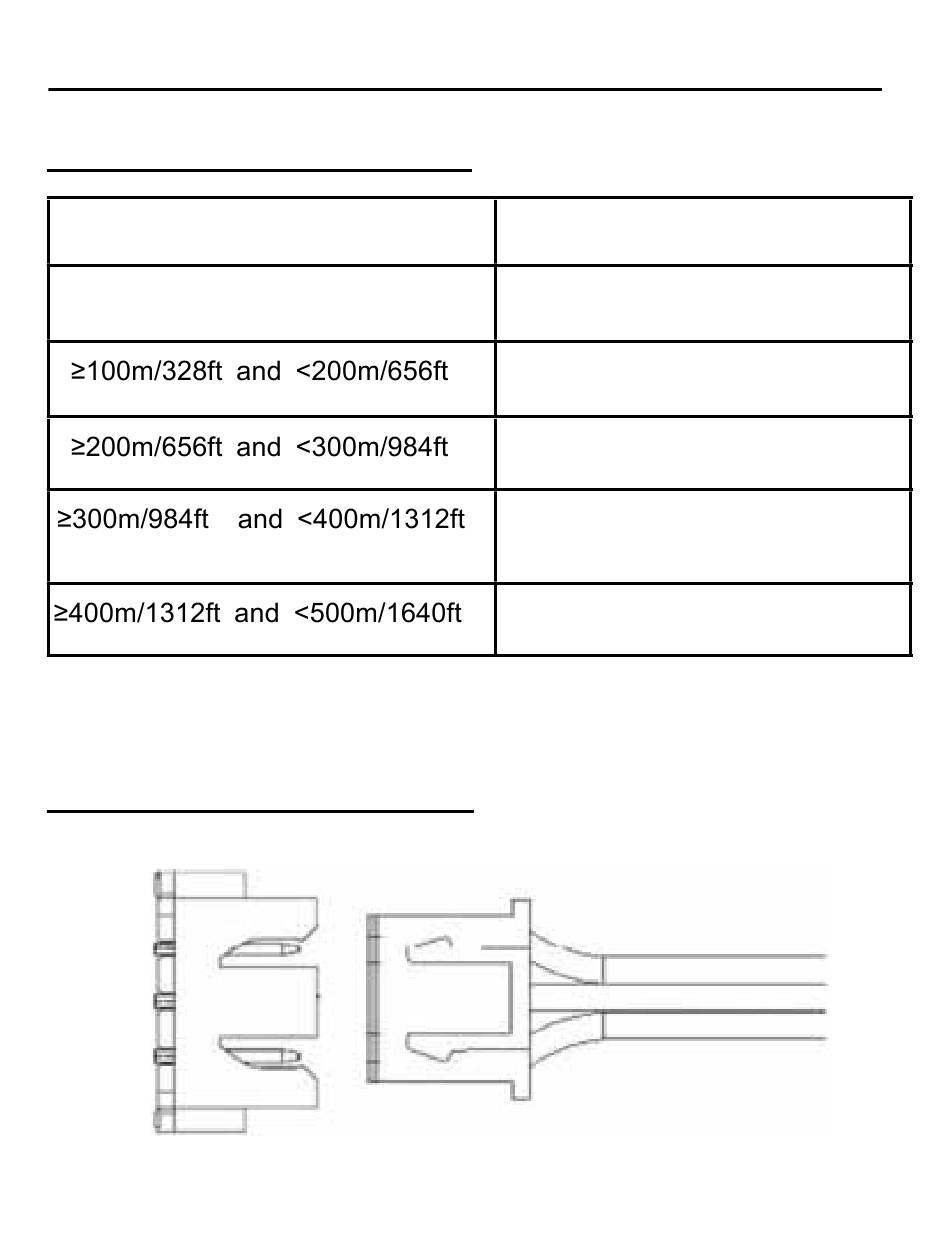

Wired Controller Wiring Instruction
Communication Wiring
Communication wiring length (m/ft)
< 100m/328ft
*Ground only one end of the shielded cable
Wiring Diagrams
C
B
A
2
0.3mm x3-core shielded wire
(22AWG,3wire)
2
0.5mm x3-core shielded wire
(20AWG,3wire)
2
0.75mm x3-core shielded
wire (18AWG,3wire)
2
1.25mm x3-core shielded wire
(16AWG,3wire)
2
2mm x3-core shielded wire
(14AWG,3wire)
18
Wire Size
red
yellow
white
