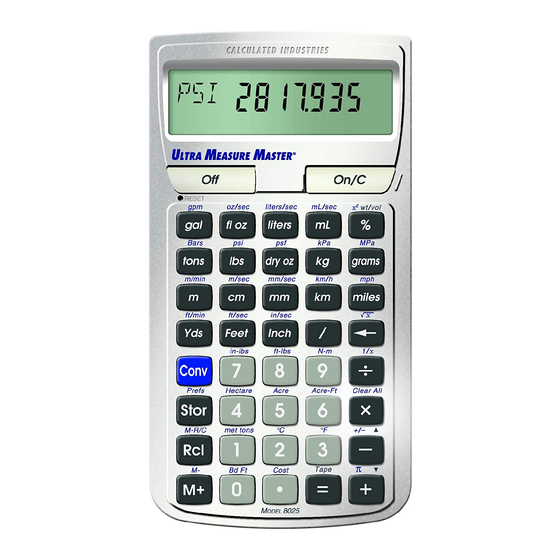

Calculated Industries ULTRA MEASURE MASTER 8025 Pocket Reference Manual

Professional grade u.s. standard to metric conversion calculator
Hide thumbs
Table of Contents

Advertisement

Quick Links

U
M
LTRA
EASURE
M
ASTER
®
PROFESSIONAL GRADE U.S. STANDARD
TO METRIC CONVERSION CALCULATOR
Model 8025
Pocket Reference Guide
Direction
This
Insert

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ULTRA MEASURE MASTER 8025 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Calculated Industries ULTRA MEASURE MASTER 8025

Summary of Contents for Calculated Industries ULTRA MEASURE MASTER 8025

  • Page 1 LTRA EASURE ASTER ® PROFESSIONAL GRADE U.S. STANDARD TO METRIC CONVERSION CALCULATOR Model 8025 Pocket Reference Guide Direction This Insert...
  • Page 2 LTRA The Ultra Measure Master calculator sim- plifies conversions between Metric and Imperial weights and measures. The Ultra Measure Master can convert the following types of dimensions: • Linear • Area • Volume • Weight • Temperature • Linear Velocity •...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS GETTING STARTED ...1 KEY DEFINITIONS...1 Basic Function Keys...1 Miscellaneous Functions ...2 Memory Functions...3 Conversion Functions...3 PAPERLESS TAPE FUNCTION...8 Paperless Tape Example...8 PREFERENCE SETTINGS ...9 FRACTIONAL SETTINGS ...10 Setting Fractional Modes...11 USING EXPONENTIAL NOTATION ..12 Entering Exponents ...12 CONVENTIONS AND UNITS OF MEASURE...13 BASIC MATH OPERATIONS ...15...
  • Page 4 Weight/Volume Conversions ...26 Temperature Conversions ...29 Linear Velocity Conversions ...30 Volumetric Velocity Conversions ...31 Pressure Conversions ...32 Bending Moment Conversions ...34 APPENDIX ...36 Default Settings ...36 Accuracy/Errors ...36 Auto Shut-Off ...37 Battery ...38 Replacing the Battery ...38 Reset ...38 REPAIR AND RETURN...39 Warranty, Repair and Return Information ...39 WARRANTY ...40...

  • Page 5: Getting Started

    GETTING STARTED KEY DEFINITIONS Basic Function Keys + – x ÷ = 0 – 9 and • ß ® Ç OCKET Arithmetic operation keys. Four-function (+, –, x, ÷) percent key. Keys used for entering numbers. Off Key — Turns all power off.

  • Page 6: Miscellaneous Functions

    Miscellaneous Functions Ç B ® = Ç ß Ç ÷ Ç x Ç – Ç + Ç • Ç % Ç / Ç 0 ß % Note: After entering a value and pressing ß % continue pressing the % key until you’ve reached the desired Weight per Volume format.

  • Page 7: Memory Functions

    Memory Functions Ç n Ç ® ® ® ß 0 – 9 ® n or 0 – 9 Conversion Functions  OCKET Memory Plus. (M–) Memory Minus. Clear M+. Recall and Clear M+. Memory Storage — When pressed after the ß key, the 0 through 9 keys will store the displayed value into fixed Memory.
  • Page 8 OCKET Kilograms Key — Enters or converts to Kilograms. Grams Key — Enters or converts to Grams. Meters Key — Enters or converts to Meters. Centimeter Key — Enters or converts to Centimeters. Millimeter Key — Enters or converts to Millimeters. Kilometer Key —...
  • Page 9 Ç g Ç F Ç L Ç Â Ç t OCKET Inch values (e.g., 9 i 1 / 2). Repeated presses during conversions toggle between Fractional and Decimal Inches. Fraction Key — Used to separate the numerator and denominator when entering fractions: 1 / 2.
  • Page 10 Ç l Ç d Ç k Ç G Ç m Ç c Ç M Ç K Ç I Ç y OCKET Pounds per Square Inch (psi) — Enters or converts to Pounds per Square Inch. Pounds per Square Foot (psf) — Enters or converts to Pounds per Square Foot.
  • Page 11 Ç f Ç i Ç 9 Ç 8 Ç 7 Ç 6 Ç 5 Ç 4 Ç 3 Ç 2 Ç 1 OCKET Feet per Second (ft/sec) — Enters or converts to Feet per Second. Inches per Second (in/sec) — Enters or con- verts to Inches per Second.

  • Page 12: Paperless Tape Function

    PAPERLESS TAPE FUNCTION ® = Paperless Tape Example Add 6 Feet, 5 Feet and 4 Feet, then access the paperless tape mode and scroll back through your entries. Then, back up one entry, exit the tape mode and add 10 Feet to the total. KEYSTROKES 6 f + 5 f +...

  • Page 13: Preference Settings

    PREFERENCE SETTINGS Press Ç, then ß, then keep pressing ß to toggle through the main settings. Press the + key to advance within sub- setting. Use the – key to back up. Press o key to exit Preferences. PRESS Ç AND: First press of ß...

  • Page 14: Fractional Settings

    (Cont’d) Fifth press of ß : Sixth press of ß : Note: Press o at anytime to exit the Preference Settings. FRACTIONAL SETTINGS Fractional Resolution is permanently set via the Preference Settings (see Preference Settings section for instruc- tions). To select other formats temporarily (e.g., 1/64, 1/32, etc.), see the example below: Add 44/64 to 1/64 of an Inch and then...

  • Page 15: Setting Fractional Modes

    Note: Changing the Fractional Resolution on a displayed value does not alter your Permanent Fractional Resolution Setting. Pressing o will return your calculator to the permanently set Fractional Resolution. Setting Fractional Modes Standard Mode In Standard Mode, the fractional result is reduced to its lowest common denominator (i.e., 8/16 reduces to 1/2).

  • Page 16: Using Exponential Notation

    USING EXPONENTIAL NOTATION Your calculator is defaulted to have expo- nential notation set to “on.” Therefore, any integer value exceeding seven digits will display in exponential format. When expo- nential notation is off, the calculator adjusts dimensioned values to a higher unit when the display limit is exceeded (known as Auto-Ranging);...

  • Page 17: Conventions And Units Of Measure

    CONVENTIONS AND UNITS OF MEASURE CONVENTIONS Linear Area Volume OCKET UNITS OF MEASURE Inches Feet Yards Millimeters Centimeters Meters Miles Kilometers Square Inches Square Feet Square Yards Square Millimeters Square Centimeters Square Meters Square Miles Square Kilometers Acres Hectares Milliliters Cubic Inches Cubic Feet Cubic Yards...
  • Page 18 (Cont’d) Volume (cont’d) Temperature Weight Linear Velocity Millimeters per Second Volumetric Velocity (Flow Rate) Pressure Bending Moment OCKET Gallons Board Feet Celsius Fahrenheit Kilograms Grams dry Ounces Pounds Tons Metric Tons Inches per Second Feet per Second Meters per Second Feet per Minute Meters per Minute Miles per Hour...

  • Page 19: Basic Math Operations

    (+, –, x, ÷), the second value and then the equals key (=). This feature also makes the calculator sim- ple to use for dimensional math. Adding or Subtracting Dimensions Examples: KEYSTROKES 1.

  • Page 20: Multiplying Or Dividing Dimensions

    Multiplying or Dividing Dimensions Examples: KEYSTROKES 1. Multiply 5 Feet 3 Inches by 8 Feet 6-1/2 Inches: 5 f 3 i x 8 f 6 i 1 / 2 = 2. Multiply 50 Meters per Minute by 12.5: 5 0 Ç m x 1 2 • 5 = 3.

  • Page 21: Memory Operation

    Display/Clear Memory ® ® Clear Memory Memory is semi-permanent, clearing only when you: 1) turn off the calculator; 2) press ® ®; 3) press Ç ®; 4) press Ç x (Clear All) . When Memory is recalled (® n), con-...

  • Page 22: Using Memory Storage Keys (M0 - M9)

    Using Memory Storage Keys (M0 - M9) In addition to the standard cumulative Memory (as previously described), your calculator has ten independent Storage Registers – M0 through M9 – that can be used to permanently store single, noncu- mulative values. The following example shows the use of M0 (ß...

  • Page 23: Using The Ultra Measure Master

    USING THE ULTRA MEASURE MASTER ENTERING DIMENSIONS AND UNITS When entering Feet-Inch dimensional val- ues, you must enter the largest dimension first — Feet before Inches, Inches before fractions. To enter fractions of an Inch, enter the numerator (value above the line), press / (Fraction Bar key) and then enter the denominator (value below the line).

  • Page 24: Linear Dimensions

    Linear Dimensions The following examples show how linear dimensions are entered: Note: The o key should be pressed after each of the entries below to clear the display. DIMENSION 5 Feet 1/2 Inch 5 Feet 1-1/2 Inch 5 f 1 i 1 / 2 10 Yards 17.5 Meters Any units of measurement other than...

  • Page 25: Conversions

    CONVERSIONS Linear Conversions To convert a displayed linear value, press the Ç key, followed by the desired unit key. See below for examples. Convert 27 Feet to other linear dimensions: KEYSTROKES 1. Enter 27 Feet: 2 7 f 2. Convert to Inches: Ç...

  • Page 26: Square And Cubic Conversions

    Ç f Convert 12 Cubic Feet to Cubic Yards: KEYSTROKES 1 2 f f f Ç y Convert 45.75 Board Feet to other volume dimensions. KEYSTROKES 1. Clear calculator: OCKET (1.6 square yards) EFERENCE DISPLAY SQ FEET 1.555556 SQ YD...
  • Page 27 3 Feet by 1 Foot 9-5/8 Inches by 2 Feet 4 Inches then convert to Centimeters and Yards. KEYSTROKES 1. Clear calculator: 2. Enter Length and multiply by Width and Depth: 3 f x 1 f 9 i 5 / 8 x 2 f 4 i = 12.61458...

  • Page 28: Weight Conversions

    Convert 126 Liters to Gallons and fluid Ounces. KEYSTROKES 1. Clear Calculator: 2. Enter 126 Liters: 1 2 6 L 3. Convert to Gallons: Ç g 4. Convert to fluid Ounces: Ç F Weight Conversions To convert a displayed weight value, press the Ç...
  • Page 29 What is the cost if one Liter is $0.75? Use the Cost Function to find the total cost of the gas. KEYSTROKES 1. Clear calculator: 2. Enter 12 Gallons: 1 2 g 3. Convert to Liters at $0.75 per Liter: Ç...

  • Page 30: Weight/Volume Conversions

    To change the Weight per Volume factor, enter the value, then press ß %. The first press will enter the Weight as the calculator’s current setting. To change the Weight per Volume factor, continue to press the % key to cycle through the factors shown above.
  • Page 31 Cubic Foot, which is equivalent to the Density of water: 1 Gram per Cubic Centimeter). KEYSTROKES 1. Clear calculator: 2. Enter Depth and multiply by Length and Width to find the Volume: 2 4 i x 1 0 f x 6 f = 3.
  • Page 32 Volume factor back to the default of 1 Gram per Cubic Centimeter (equivalent to 62.42796 Pounds per Cubic Foot). KEYSTROKES 1. Clear calculator: 2. Enter 1.75 factor: 1 • 7 5 ß % % % % % 3. Enter 15 Cubic Yds: 1 5 y y y 4.

  • Page 33: Temperature Conversions

    Fahrenheit or Celsius, respectively. See examples below. Examples Convert 78 °F to a °C temperature. KEYSTROKES 1. Clear calculator: 2. Enter 78 °F and convert to Celsius: 7 8 Ç 3 (°F) Ç 2 (°C) Convert 11 °C to a °F temperature.

  • Page 34: Linear Velocity Conversions

    See below for examples. Examples Convert 55 Miles per Hour to Kilometers per Hour. KEYSTROKES 1. Clear calculator: 2. Enter 55 mph then convert to kmh: 5 5 Ç I (mph) Ç K (km/h) Convert 8 Inches per Second (ips) to Millimeters per Second (mm/s).

  • Page 35: Volumetric Velocity Conversions

    See below for examples. Examples Convert 48 fluid Ounces per Second to Liters per Second. KEYSTROKES 1. Clear calculator: 2. Enter 48 oz/s then convert to l/s: 4 8 Ç F (oz/sec) Ç L (Liters/sec) Calculating Aqueduct Slope —...

  • Page 36: Pressure Conversions

    Gallons of water per Minute. If you have a two Liter bottle that filled up in 12 Seconds, is the faucet within code? KEYSTROKES 1. Clear calculator: 2. Divide Liters by Seconds: 2 ÷ 1 2 = 3. Enter as Liters per Second: Ç...
  • Page 37 Ç k (kPa) 6. Convert to mPa: Ç G (mPa) Convert 24 Pounds per Square Foot to Kilo Pascals. KEYSTROKES 1. Clear calculator: 2. Enter 24 psf: 2 4 Ç d (psf) 3. Convert to kPa: Ç k (kPa) OCKET EFERENCE PSI 0.5...

  • Page 38: Bending Moment Conversions

    See below for examples. Examples Convert 120 Inch-lb to Newton-meters. KEYSTROKES 1. Clear calculator: 2. Enter 120 in/lb: 1 2 0 Ç 7 (in-lbs) 3. Convert to N-m: Ç 9 (N-m) Convert 700 Newton-meters to ft-lb.
  • Page 39 30 N-m but your torque wrench only shows ft-lb. Find the ft-lb setting required to set up the wrench. KEYSTROKES 1. Clear calculator: 2. Enter N-m: 3 0 Ç 9 (N-m) 3. Find ft/lbs: Ç 8 (ft-lbs) OCKET 22.12687...

  • Page 40: Appendix

    APPENDIX Default Settings After a Clear All (Ç x), your calculator will return to the following setting: STORED VALUES Weight per Volume If you replace your battery or perform a Full Reset * (press O, hold down x, and press o), your calculator will return to...

  • Page 41: Auto Shut-Off

    Preference Setting, the value will be shown in scientific notation (e.g., 20 million mm – 2.00000 mm). Auto Shut-Off Your calculator will shut itself off after about 8-12 minutes of non-use. OCKET ERROR TYPE Overflow (too large) Divide by 0...

  • Page 42: Battery

    Note: Values in memory or shown on the display will be cleared. Replacement batteries are available at most discount or electronics stores. You may also call Calculated Industries at 1-775-885-4900. Replacing the Battery Turn the calculator over and open user guide door located at the top.

  • Page 43: Repair And Return

    Warranty, Repair and Return Information Return Guidelines Please read the Warranty in this User's Guide to determine if your Calculated Industries product remains under warranty before calling or returning any device for evaluation or repairs. If your product won't turn on, check the battery as outlined in the User's Guide.

  • Page 44: Warranty

    Non-warranty repair covers service beyond the warranty period, or service requested due to damage resulting from misuse or abuse. Contact Calculated Industries at the number listed above to obtain current product repair information and charges. Repairs are guaranteed for 90 days.
  • Page 45 Disclaimer CI MAKES NO WARRANTY OR REPRESENTATION, EITHER EXPRESS OR IMPLIED, WITH RESPECT TO THE PRODUCT’S QUALITY, PERFORMANCE, MER- CHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE. AS A RESULT, THIS PRODUCT, INCLUD- ING BUT NOT LIMITED TO, KEYSTROKE PROCE- DURES, MATHEMATICAL ACCURACY AND PREPRO- GRAMMED MATERIAL, IS SOLD “AS IS,”...

  • Page 46: Fcc Class B

    Class B computing device, pursuant to Subpart J of Part 15 of FCC rules. LOOKING FOR NEW IDEAS Calculated Industries, a leading manufacturer of special- function calculators and digital measuring instruments, is always looking for new product ideas in these areas.
  • Page 47 Software copyrighted and licensed to Calculated Industries, Inc. by Construction Master Technologies, LLC, 2007. Pocket Reference Guide copyrighted by Calculated Industries, Inc. © 2007. Ultra Measure Master® and Calculated Industries® are registered trademarks of Calculated Industries, Inc. ALL RIGHTS RESERVED CALCULATED INDUSTRIES®...
