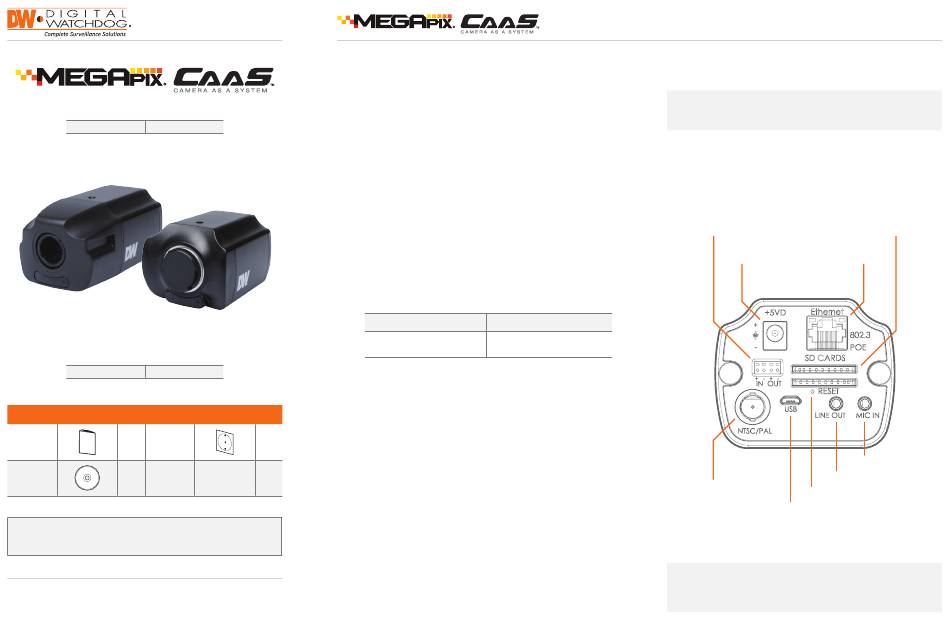

Quick Start Guide
DWCA-C128-64
DWCA-C12C-64
DWCA-C128-64
DWCA-C12C-64
Username: admin
Password: admin
WHAT'S IN THE BOX
Template Sheet
QSG Manual
1 Set
for installing by
Bolt & Nut
Manual CD
1 Set
Attention: This document is intended to serve as a quick reference page for initial set-up.
It is recommended that the user read the entire instruction manual for complete and proper
camera usage.
Tel: 866-446-3595 / 813-888-9555
Technical Support Hours:
9:00AM – 8:00PM EST, Monday thru Friday
Step 1 – PREPARING TO MOUNT THE CAMERA
1.
The mounting surface must bear five times the weight of your camera.
2.

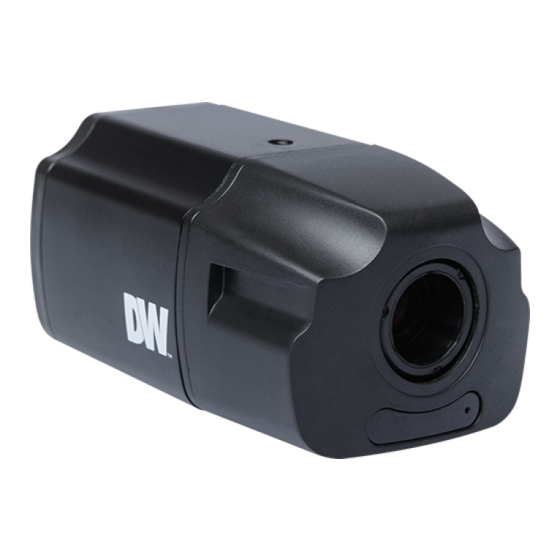

The MEGApix CaaS Box camera has two mounting options. The camera can
be mounted from the top or the bottom by connecting the camera to any 1/4-
20 mounting bracket.
3.
Using an appropriate mounting bracket, mark and drill the necessary holes to
mount the bracket to a wall or ceiling.
4.
Attach the mounting bracket to the surface using machine screws.
Step 2 – CABLING THE CAMERA TO EXTERNAL DEVICES
5.
Pass the wires through and make all necessary connections.
a.
If you are using a PoE Switch, connect the camera using an Ethernet cable
for both data and power.
b.
If you are using a non-PoE switch, connect the camera to the switch using
an Ethernet cable and use a power adapter to power the camera.
Power Requirements
DC 5V
PoE IEEE 802.3atPoE+ / PoE Class 2
1 Set
digital-watchdog.com
Step 3 – INSTALLING THE CAMERA
6.
Power Consumption
3W, 600mA
Quick Start Guide
Note: For the DWCA-C12C-64 model, please add a CS Mount lens (not included).
Secure the lens to the front of the camera by rotating it clockwise.
Secure the box camera to the mounting bracket's screw to complete the
installation. Adjust the camera's view by using the mounting bracket's tilting
screws.
Alarm
Input/Output
5VDC External
PoE Output
Power Input
(Class 2)
Audio Line Out
Analog Signal Out
Reset Button
USB Out
(Firmware Upgrade)
Resetting the camera: To reset the camera, use the tip of a paper clip or
a pencil and press the reset button. Pressing the button for five (5) seconds
will initiate a camera-wide reset of all the settings, including network settings.
2x SD Card
Interface
Mic. Input
