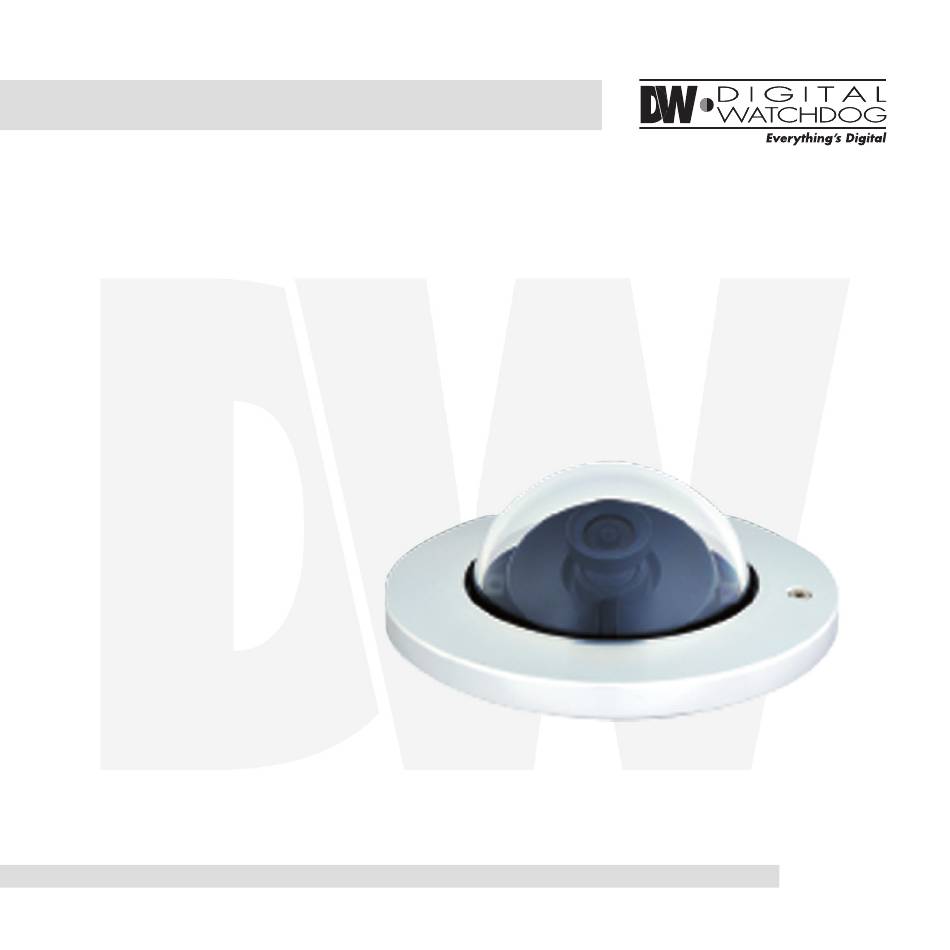

- Page 1 DWC-MC355T Micro Dome Camera User Manual ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 03212011...
- Page 2 PRECAUTIONS Do not open or modify. Do not open the case except during maintenence and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.
- Page 3 TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. No VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the menu setup of the camera. Check the power supply and make sure the camera has the proper voltage and current.
-
Page 4: Dimensions In Millimeters
DIMENSIONS IN MILLIMETERS*... -
Page 5: Installation
INSTALLATION* 1. Remove the 1 STOP SCREW(B) on UPPER CASE(C), using the L-WRENCH(A). 2. Separate UPPER CASE(C) from BOTTOM CASE(E). 3. Make the 4 mounting screw holes on the ceiling/wall. The holes of BOTTOM CASE(E) can help locate the correct hole locations. 4. - Page 6 CONNECTIONS* 12VDC VIDEO OUT CAUTION : Check for polarity when using a DC 12V.
-
Page 7: Lens Adjustments
LENS ADJUSTMENTS* Adjust the pan (360º) and tilt (70º) position. -
Page 8: Camera Settings
CAMERA SETTINGS* Camera Position Adjustment : (1) Loosen the SCREW(B) on the UPPER CASE(C), using L-WRENCH(A). (2) Separate BOTTOM CASE(E) from UPPER CASE(C) by twisting UPPER CASE(C) to the right. (3) Separate CLEAR DOME(D) from BOTTOM CASE(E). (4) Fix the camera gimbal located in the BOTTOM CASE(E). (5) Assemble CLEAR DOME(D) and UPPER CASE(C) with BOTTOM CASE(E). -
Page 9: Warranty Information
WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warrantor”) warrants Camera Series against defects in materials or workmanship as follows. LABOR : For the initial five (5) years and one (1) year on LED from the date of original purchase, if the camera is determined to be defective, the Warrantor will repair or replace the unit, with new or refurbished product at its option, at no charge. -
Page 10: Limits And Exclusions
LIMITS AND EXCLUSIONS* There are no express warranties except as listed above. The Warrantor will not be liable for incidental or consequential damages (including without limitation and damage to recording media) resulting from the use of these products, or arising out of any breach of the warranty. -
Page 11: Specifications
SPECIFICATIONS* Specifications Model MC355T Camera TYPE Color Vandal-Proof Micro Dome Camera Mount Surface Image Device 1/3" PIXIM Pixels-Total 742(H) x 552(V) Pixels-Effective 720(H) x 540(V) Scanning System 525 line, 2:1Interlace Horizontal Frequency Internal Mode 15,734Hz Vertical Frequency Internal Mode 59.94Hz Min. - Page 12 5436 W Crenshaw St. Tampa, FL 33634 Tel : 866-446-3595 / 813-888-9555 Fax : 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours : Monday-Friday 8:30am to 8:00pm Eastern Time...
