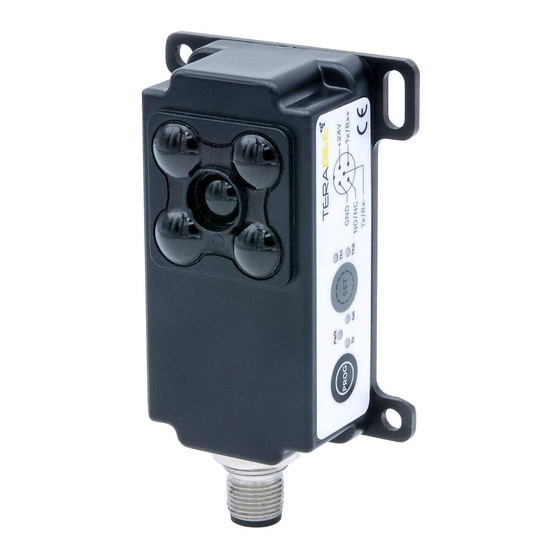

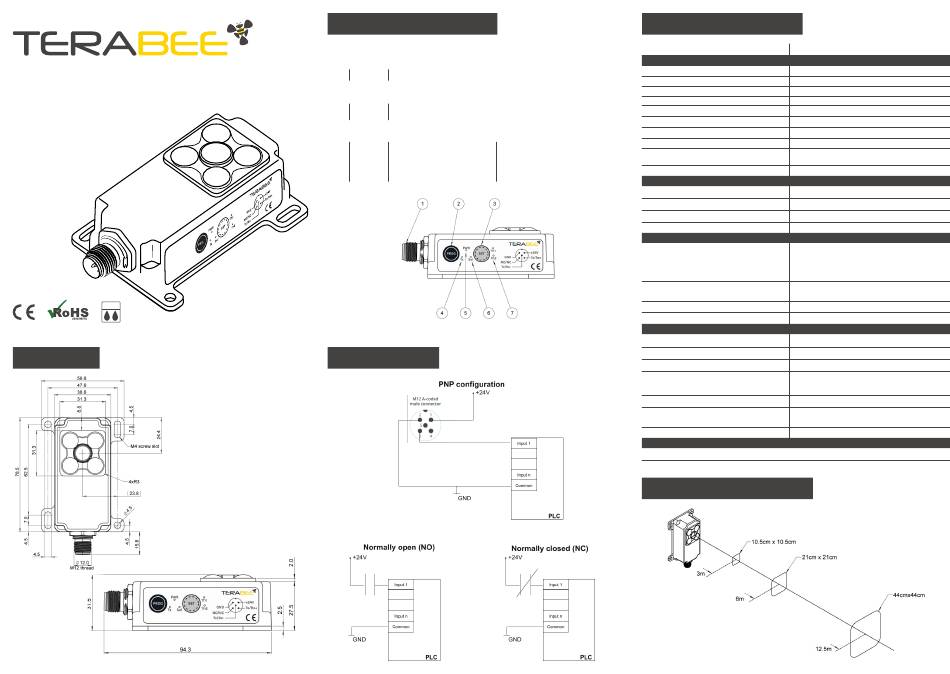

TeraBee IND-TOF-1 Quick Setup Manual

IND-TOF-1
Quick Setup Guide
IP65

Dimensions

Operation and Indicators

COMMUNICATION
1 M12 A-coded male connector, 5-pin
TEACH-IN BUTTONS
2 PROG Program background threshold
3 SET Program threshold 1 and 2
LED INDICATORS
4 Tx RS485 Data transmission Red
5 PWR Power indicator Red
6 Sel Sensor selected Blue
7 Th1/Th2 Threshold breach notification, Green/Red
error indication

PLC Connection

Technical Specifications
Product code TB-IND-TOF-1-RS485
Performance
Detection Principle Infrared Time-of-Flight
Range 0.5 m to 12.5 m
Output Distance Resolution
5 mm
Accuracy ±4 cm in the first 4 m, ±1% beyond 4 m
Repeatability ±5 mm
Field of View Approx. 2°
Projected Reception Area 10.5 cm × 10.5 cm @ 3 m range
Light Source Wavelength 940 nm
Access Time for Distance
11 ms
Measurements
Response time for NO/NC State Change 35 ms to 100 ms
Electronics
Supply Voltage V 24V DC
IN ±5 %
Current Consumption (max. @ V =24V DC)
90 mA
IN
Warm-up Time (advised) ≥ 15 min
Initialization Time < 1 s
Interfaces
Digital Output Switching (NO/NC in PNP/NPN
configuration), 0V - 24V
Maximum output current: 450 mA (@ VIN=
24V DC), unfused
Serial Interface (distance measurement RS485 (half-duplex, 19.2 kbps)
and remote settings)
Communication Protocol Modbus
Visual Notification
5 x LEDs (multicolor)
Mechanics
Dimensions (L×W×H) 94 mm x 56 mm x 31 mm
Weight 99 g
Enclosure Rating IP65
Housing Material
Main body: ABS
Backplate: Aluminium
Type of Connection M12 A-coded male connector, 5-pin
Ambient Temperature Operation -20°C to +45°C
(@ V = 24 V DC)
IN
4 slots for M4 screws
Mounting Style
Conformity
Reference Standard CE, RoHS, Eye-Safety, Vibration & Shock
Projected Reception Area
