Specifications (Cont.)
Environment
Note: *1 x DP (for connecting the motherboard and LVDS panel)
**1 x USB 2.0 (for connecting the motherboard and touch controller)

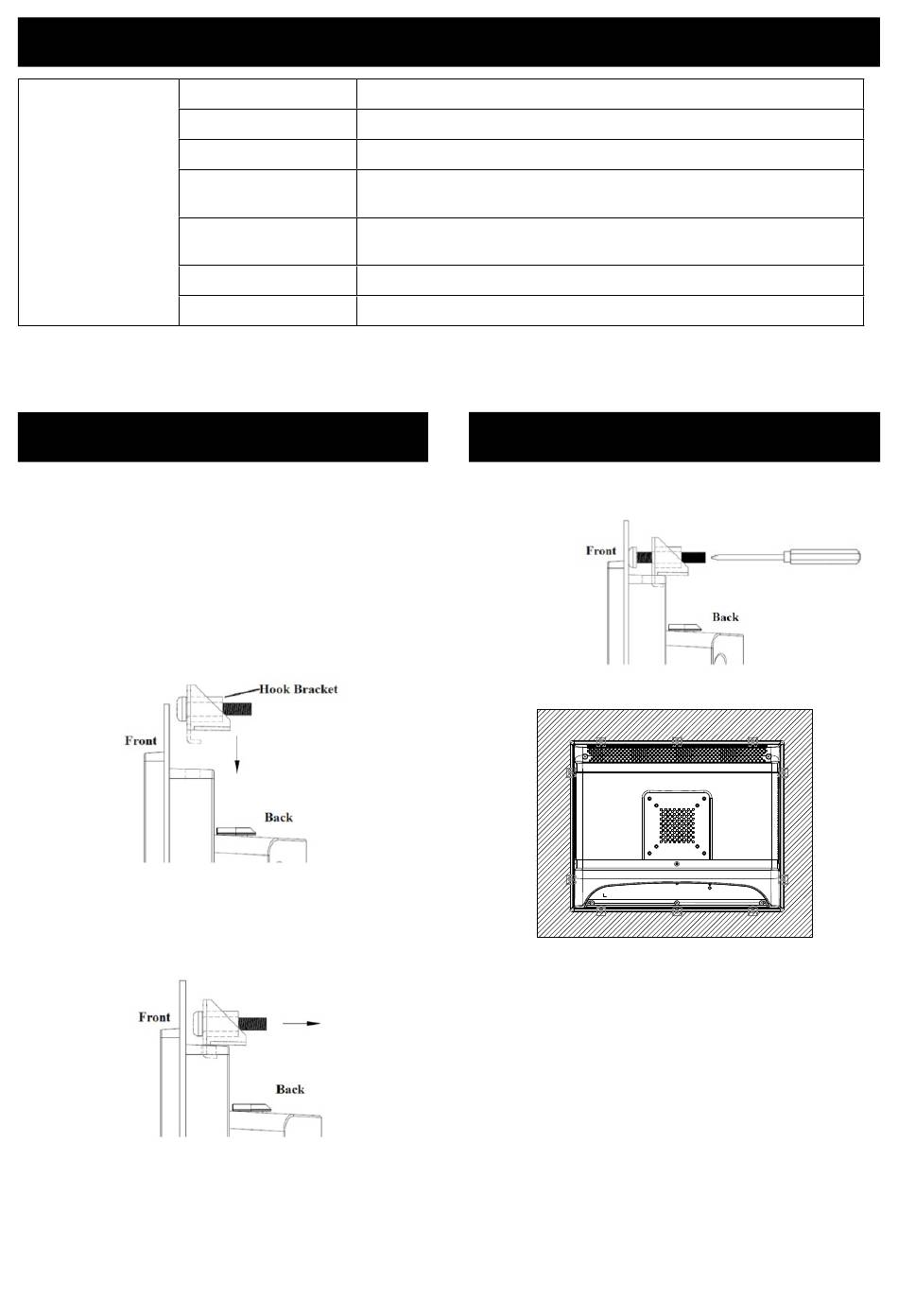

Panel Mounting

To mount the flat-bezel panel PC, follow the steps outlined
below.
1. Prepare a panel cutout according to the panel PC
dimensions.
Cutout dimensons for PPC-6151C:382 x 303 mm
(15.03 x 11.92 in); PPC-6171C:427 x 347 mm (16.81 x
13.66 in); PPC-6191C:444 x 370 mm (17.48 x 14.56 in).
2. Insert the panel PC into the cutout. Retrieve the hook
brackets and M6 x 21L screws from the accessory box
(10 for PPC-6151C/6171C and 12 for PPC-6191C).
Hook brackets for panel mounting
3. Insert the hook brackets into the holes in the direction
of the arrow shown in the figure below. Then hang the
panel PC onto the hook brackets.
Operating Temperature
Storage Temperature
Relative Humidity
Shock
Vibration
EMC
Front Panel
0 ~ 50 °C (32 ~ 122 °F)
-30 ~ 60 °C (-22 ~ 140 °F)
10 ~ 95% @ 40 °C (non-condensing)
Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-
2-27
Operating random vibration test 5 ~ 500Hz, 1Grms @with HDD, follows
IEC 60068-2-64
CE, FCC Class A
Protection IP65 compliant
Panel Mounting (Cont.)
4. Tighten the hook bracket screws to affix the panel PC
in place.
PPC-6151C_6171C_6191C Startup Manual 3
Fasten the hook bracket
