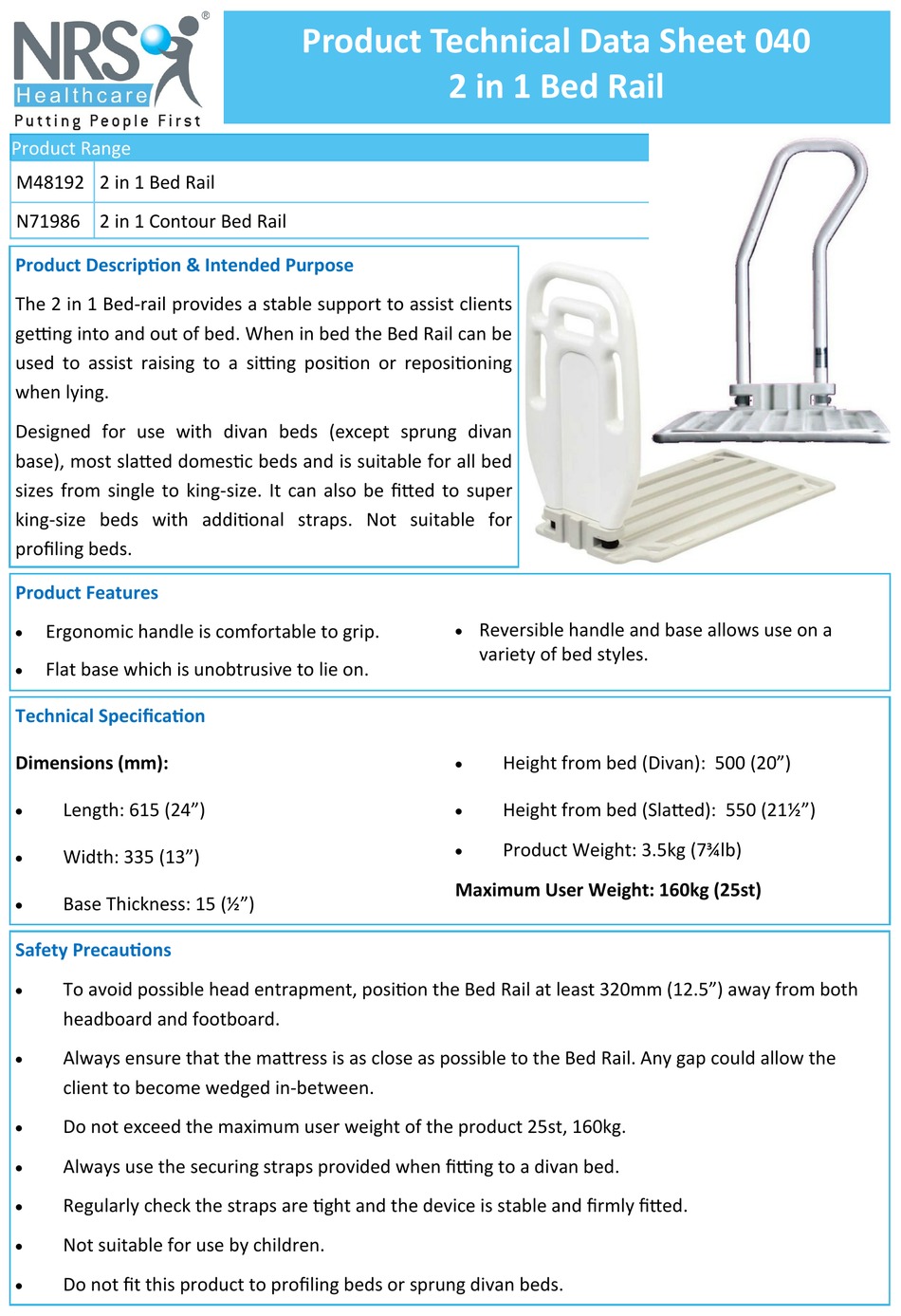

NRS Healthcare M48192 Product Technical Data Sheet

Product Range

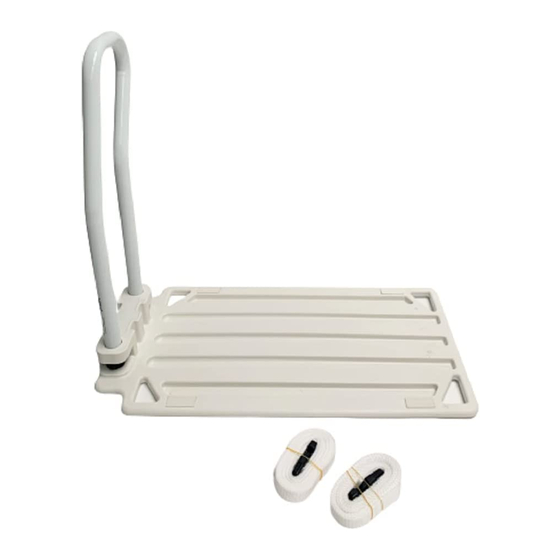

M48192 2 in 1 Bed Rail
N71986 2 in 1 Contour Bed Rail
Product Description & Intended Purpose
The 2 in 1 Bed-rail provides a stable support to assist clients
getting into and out of bed. When in bed the Bed Rail can be
used to assist raising to a sitting position or repositioning
when lying.
Designed for use with divan beds (except sprung divan
base), most slatted domestic beds and is suitable for all bed
sizes from single to king-size. It can also be fitted to super
king-size beds with additional straps. Not suitable for
profiling beds.

Product Features


Ergonomic handle is comfortable to grip.

Flat base which is unobtrusive to lie on.

Technical Specification

Dimensions (mm):

Length: 615 (24")

Width: 335 (13")

Base Thickness: 15 (½")

Safety Precautions


To avoid possible head entrapment, position the Bed Rail at least 320mm (12.5") away from both
headboard and footboard.

Always ensure that the mattress is as close as possible to the Bed Rail. Any gap could allow the
client to become wedged in-between.

Do not exceed the maximum user weight of the product 25st, 160kg.

Always use the securing straps provided when fitting to a divan bed.

Regularly check the straps are tight and the device is stable and firmly fitted.

Not suitable for use by children.

Do not fit this product to profiling beds or sprung divan beds.
Product Technical Data Sheet 040
2 in 1 Bed Rail




Maximum User Weight: 160kg (25st)
Reversible handle and base allows use on a
variety of bed styles.
Height from bed (Divan): 500 (20")
Height from bed (Slatted): 550 (21½")
Product Weight: 3.5kg (7¾lb)
