NRS Healthcare M48465 User Instructions

General Safety Warning

Please ensure these instructions are fully read and
implemented. Failure to do so may result in injury.
Retain these instructions in a safe place for future
reference.

1.0 Intended Use

The Economy Drop Down Rail with Leg is a wall
mounted rail which provides a stable support to
users when lowering onto and raising from the
toilet. It can be pushed back against the wall to
enable side transfers on and off the toilet seat or
when not in use. It is not designed for use in a
shower.

2.0 Safety Precautions

Do not exceed the maximum user weight of the
product 21st, 136kg.
Do not attempt to climb on or swing from the
product.

3.0 Unpacking

Remove packaging and check product carefully. If
any parts are damaged, do not use and contact
your supplier immediately.

4.0 Installation Precautions

This product must be installed by a suitably
qualified and competent person.
Always check the mounting surface and substrate
are structurally sound, strengthening modifications
may be required.
Always check for concealed electricity cables and
water pipes prior to installation.
Please Note: As the mounting substrate can vary
considerably, we do not supply fixings. Please
ensure the chosen fixings are fit for purpose and
are compatible with both the product and the
mounting substrate. If in doubt, please contact a
suitably qualified person.

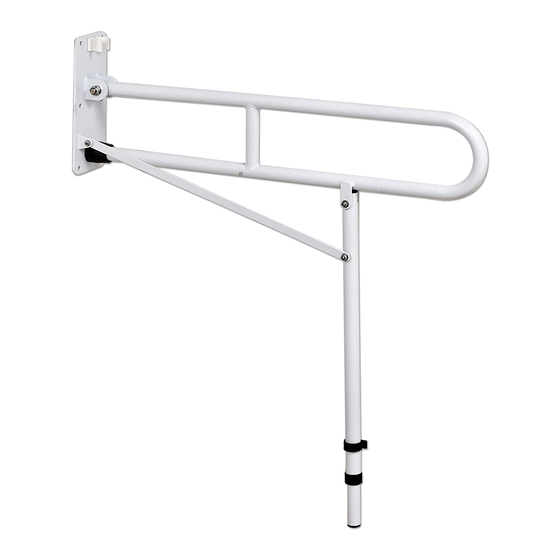

M48465 Economy Drop Down Rail with Leg
User Instructions
Maximum User Weight
Figure 1 – M48465 In Use
Retaining Bracket
Wall Plate
Figure 2 – Parts List
21st
136kg
'e-clip'
Extension
Rail
Leg
Leg
