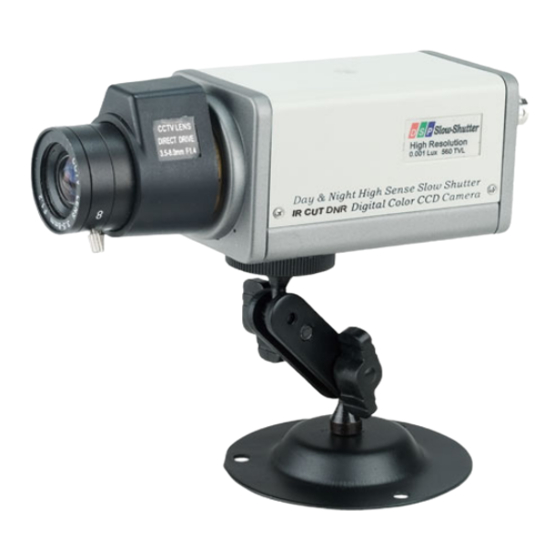

COP-USA CC36ICR Specifications

Professional Camera
· 1/3" SONY High Resolution
· Auto Iris DC
· Auto Electronic Shutter (AES)
· Auto White Balance (AWB)
· NTSC or PAL
· 560TVL B/W 620TVL
· Slowshutter
· Auto Gain Control (AGC)
· Dual Power Input 12VDC/24VAC
· Starlight 0.001 LUX
Specification
Type:
Signal System:
Pick up Device:
Picture Elements:
Resolution:
Mini Illumination (F1.030IRE):
Vertical Frequency: Vertical Frequency:
Horizontal Frequency:
Clock Frequency:
Scanning System:
Sync System:
S/N Ratio:
Electronic Shutter (up to 32X):
Gain
White Balance:
Position Preset
Backlight Compensation:
Gain Control:
Gamma:
Lens Driver:
Video Output:
Power Supply:
Power Consumption:
Dimension L x W x H (mm)
Weight:
Storage Temperature:
Operating Temperature:
* Pictures and specifications are subject to change without prior notice
Detail
Color Day / Night IR Cut Camera
NTSC /PAL
1/3" SONY High Resolution CCD
NTSC: 811(H)x508(V) PAL: 795(H)x596(V)
More than 560TVL B/W: 620TVL
0.001 LUX (Slowshutter 32X)
NTSC: 60Hz PAL:50Hz NTSC: 60Hz PAL:50Hz
NTSC: 15.734Hz PAL:15.625Hz
NTSC:28.636Mhz PAL:28.375Mhz
2:1 Interface
Internal
60dB (type) (AGC OFF)
AES: NTSC: 1/2 - 1/120000sec
AES: PAL: 3/5 - 1/120000sec
ATW: Auto Trace white balance
AWC: Auto White Balance Control
ON / OFF
0~18dB
0.45
Auto Iris Connector
1.0Vp-p (75Ω BNC)
DC12V or AC24V (±10%)
300mA
18 x 13 x 10cm
420g
-30°C ~ +60°C
-10°C ~ +45°C
CC36ICR
