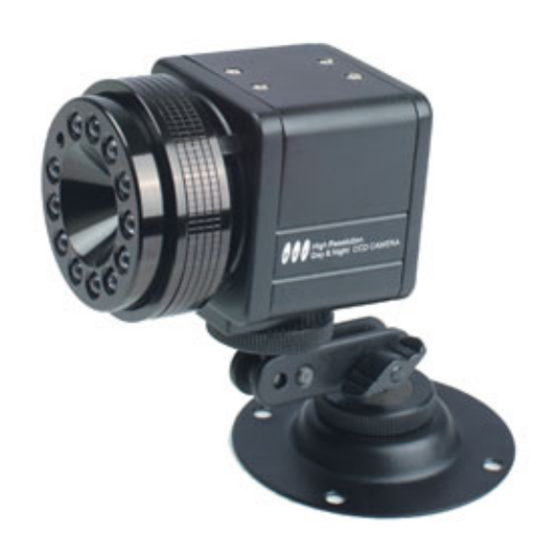

CC32B - High Resolution B/W Camera 600 TVL
Optical Technology Base:
Image Size ( Horz x Vert in mm)
Picture Elements (Horz x Vert in
mm):
Resolution:
Minimun Illumination:
Vertical Frequencies :
Scanning:
S/N Ratio:
Electronic Shutter:
Auto Iris Lens:
Video Output :
Audio Output :
Gamma :
White Balance :
Back Light Compensation:
Auto Gain:
Mirror Reverse Picture:
1/3" CCD B/W
4.82 x 3.64
EIA/NTSC: 510H x 492V - CCIR/PAL: 500H x 582V
600 Lines
0.05 Lux
EIA/NTSC: 60Hz - CCIR/PAL: 50Hz
2:1 Interlace
52 dB
1/120.000 / Sec Linear
DC Drive/ AES / Video Drive
1V p-p, 75 ohms
Max 2V p-p, 50 ohms
0.45
Auto Tracing
ON/OFF/Switchable
ON/OFF/Switchable
NO ( ON OFF Switchable )
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for COP-USA CC32-B
Summary of Contents for COP-USA CC32-B
- Page 1 CC32B - High Resolution B/W Camera 600 TVL Optical Technology Base: Image Size ( Horz x Vert in mm) Picture Elements (Horz x Vert in mm): Resolution: Minimun Illumination: Vertical Frequencies : Scanning: S/N Ratio: Electronic Shutter: Auto Iris Lens: Video Output : Audio Output : Gamma :...
- Page 2 Digital Zoom: Dimensions mm : Weight : Power Supply : Power Consumption : Storage Temperature: 50.5 x 50.5 x 66 265g 12VDC (+/- 0.5V) 150mA -30°C to +60°C * Pictures and specifications are subject to change without prior notice...
