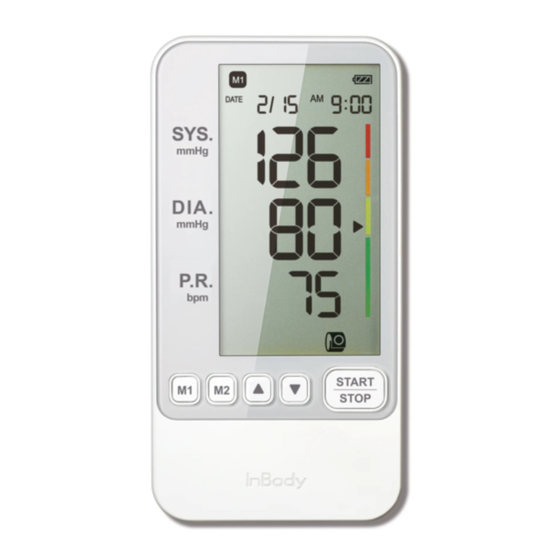

Automatic Blood Pressure Monitor
BP170 / BP170B
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for inbody BP170

Summary of Contents for inbody BP170

  • Page 1 Automatic Blood Pressure Monitor BP170 / BP170B User’s Manual...
  • Page 2 Reproduction, adaptation, or translation of this manual is prohibited without prior written consent from InBody Co., Ltd. under the copyright laws. This manual may be printed incorrectly and subject to change without notice. InBody Co., Ltd. shall not be liable for any errors, incidental, or consequential damages that occurred by not complying with the content of the User᾽s Manual.
  • Page 3 InBody Europe B.V. Gyroscoopweg 122, 1042 AZ, Amsterdam, The Netherlands TEL: +31 (0)20 238 6080 FAX: +31 (0)6 5734 1858 Website: https://nl.inbody.com E-mail: info.eu@inbody.com Australian Sponsor. [AUSTRALIA] Emergo AUSTRALIA. Level 20, Tower II, Darling Park, 201 Sussex Street, Sydney, NSW 2000, AUSTRALIA TEL: +61-2-9006-1662 FAX: +61-2-9006-1010 Website: https://www.emergogroup.com E-mail: Sponsor@emergogroup.com...

  • Page 5: Warranty

    Automatic Blood Pressure Monitor BP170 / BP170B User’s Manual Contents 1. Introduction for BP170(B) 2. Operating BP170(B) A. Preparation for Measurement B. Blood Pressure Measurement C. Saving Measurement Results D. Check the Stored Blood Pressure 3. Storage 4. Frequently Asked Questions (FAQ) A.
  • Page 6 1. Introduction for BP170(B) InBody BP170(B) is a compact and easy-to-use automatic blood pressure monitor. BP170(B) uses an oscillometric method and adopts downward exhaust type, which measures blood pressure by exhausting air from the pressurized cuff. Main users are ordinary people who need regular blood pressure management.
  • Page 7 * Names of Cuff Parts Checking mark for the available arm circumference Wearing location mark Air tube Air inlet (Connection with main body) * Display Screen Parts Name Mute Average blood pressure Bluetooth connection (Option for BP170B only) Storing location 2 AC adaptor connection indicator Storing location 1 Remaining battery indicator...

  • Page 8: Preparation For Measurement

    2. Operating BP170(B) A. Preparation for Measurement * If BP170(B) has been stored in a hot or cold environment, keep it in a room temperature for at least one hour. (1) Inserting / replacing the batteries Remove the battery cover.
  • Page 9 (3) Use of the dedicated AC adaptor (Optional) Connect the dedicated AC adapter plug to the main body of BP170(B). ❶ Connect the dedicated AC adaptor to the outlet. ❷ ❷ ❶ Caution • When disconnecting the AC adapter, disconnect the AC adapter from the outlet first, and then disconnect the AC adapter from the main body of BP170(B).
  • Page 10 (5) Date/Time Setting Upon the insertion of four(4) batteries or connection with the dedicated AC adapter, ❶ user may set the clock after BP170(B) turns on automatically. The order of time and date is year, month, day, hour followed by minute. ❷...

  • Page 11: Blood Pressure Measurement

    • Please sit down on a chair in front of a desk. • Connect air inlet of the cuff into the main body of BP170(B). The connection piece is located in the left side of the main body of BP170(B). • Please wear the cuff in the following order.
  • Page 12 (2) Proper Measurement Posture Measure at bare skin or thin clothing. Back is straight Cuff should be aligned at the same height as the user’s heart. Use a cushion or pillow for correct alignment. Put feet on flat the floor without twisting legs.
  • Page 13 ❶ Press the Start / Stop button to start the blood pressure measurement. ❷ BP170(B) begins to pressurize the cuff, and upon reaching a certain pressure, it slowly ❸ depressurizes to measure the blood pressure. When the measurement is complete, the blood pressure is displayed on the screen.
  • Page 14 (5) Check the measured values Check the basic information of the blood pressure and proper cuff status. ❶ Measurement date/time Red: Stage 2 hypertension Systolic blood pressure Orange: Stage 1 hypertension Yellow: Pre-hypertension Diastolic blood pressure Green: Normal Pulse rate The standard of classification: National Institutes of Health, NIH The cuff was properly worn.

  • Page 15: Saving Measurement Results

    The button pressed will be shown as an icon on the top row of the screen. (2) Press the Start / Stop button to save and BP170(B) will be turned off automatically. Notes • M1 and M2 can each store up to 100 measurement values. Oldest data will be automatically deleted for saving of measured value over 100 times.
  • Page 16 D. Check the stored blood pressure (1) Have BP170(B) turned off and press button to check the blood pressure results stored in the corresponding location. (2) The average blood pressure for the last three times is displayed. press button to check the stored results.
  • Page 17 Cautions • Do not store the tube with the tube bent or folded severely. • Do not place any object on BP170(B). Keep away from water, damp environment, direct ray of light, dust, bleach, eroding gas, etc. during storage. • Do not store in a place subject to vibration or impact.

  • Page 18: Frequently Asked Questions (Faq)

    A. Regarding the Measurement This section has collected frequently asked questions regarding BP170(B). Please contact the InBody Customer Center if the user has any questions after checking the information below. Question 1. The blood pressure values are different per every measurement.
  • Page 19 Question 2. Blood pressure is lower than when measured in hospital. Answer 1. Due to mental and psychological stability, blood pressure may be lower by 20-30 mmHg than measurement taken in hospital. It is important to be aware of the blood pressure when taken at home in a stable state.
  • Page 20 Answer 1. If systolic blood pressure is higher than 210 mmHg, refer to “(3) Start measurement” on page 11 and pressurize manually. Question 9. No sound heard from BP170(B). Answer 1. The buzzer sound of BP170(B) can be turned on or off. Press M1 and M2 buttons long at the same time.
  • Page 21 B. Regarding Error If a problem happens, is displayed in the Systolic blood pressure column and a letter or number appears in the Diastolic blood pressure column. Error Display Reason How to cope · Check the cuff connection and the cuff Failure in pressurization on cuff.

  • Page 22: Safety Information

    5. Others A. Safety Information Purpose for use This product is a device for measuring blood pressure or pulse rate at home. Please do not use for other purposes besides measuring blood pressure. Warning General Situation 1. Measured results can only be interpreted by experienced healthcare professionals and can not be used for diagnosis, medication or other treatment performed at the consumer’s discretion without a prescription.

  • Page 23: Battery Handling

    Battery Handling 1. Do not install batteries with wet hands. 2. Make sure that the polarities (+) and (-) are correct. AC Adaptor Handling (Optional Equipment) 1. Do not plug in or pull out the AC adaptor with wet hands. 2.
  • Page 24 7. Unplug the adapter when not using BP170(B) for a long time. Safety Precautions 1. Do not use or store BP170(B) in an environment where the cuff and air tube can be pressed by heavy materials. 2. Be careful when using or storing the cuff and air tube as they can be damaged by sharp edges.
  • Page 25 7. Unplug the adapter when not using BP170(B) for a long time. Safety Precautions 1. Do not use or store BP170(B) in an environment where the cuff and air tube can be pressed by heavy materials. 2. Be careful when using or storing the cuff and air tube as they can be damaged by sharp edges.

  • Page 26: Optional Equipment

    B. Optional Equipment • L-size cuff (only for arm-circumference 32 to 42 cm) • Dedicated AC adaptor C. Safety Information Safety Information Warning / Caution / Note BF-type equipment Power adaptor connection terminal CLASS II equipment (Dedicated AC adaptor) Other Symbols European conformity Operating instructions Manufacturer...

  • Page 27: Specifications

    • Level of protection against flooding: IP21 • Operation mode: Continuous Operation • Level of protection against electric shock: BF-type equipment E. Specifications Product Name Automatic electronic blood pressure monitor (BP170/BP170B) (Model Name) Display Method Digital display method (Custom segment LCD) Test Range...
  • Page 28 Manufacturing Country Republic of Korea Manufacturing Company InBody Co., Ltd. * For purposes of improvement, specifications are subject to change without notice. * This product is a ‘medical equipment’. Read guide and cautions before using this blood pressure monitor. * Battery life test conditions: using new alkaline batteries, operating temperature 23°C, Arm circumference 25cm, max pressure170mmHg.
  • Page 32 ©2019 InBody Co., Ltd. All rights reserved. BM-ENG-L5-B-190812...
