BP170 / BP170B
BP170(B) User Manual for Measurement Guide and Setup
Thank you for purchasing the BP170(B). This user's manual describes all the features of the BP170(B).
Please read before use and keep it in a safe place. By following the manual instructions, you will be able to
use the BP170(B) more safely and effectively.
INDICATIONS FOR USE: The InBody blood pressure monitor is designed to measure blood pressure
(diastolic and systolic) and pulse rate in adult patients with an arm circumference range between 17cm -
42cm Rx Only.
129x183_BP170_manual_ENG_D_210702.indd 1
129x183_BP170_manual_ENG_D_210702.indd 1
User's Manual
2021-07-01 오후 5:55:
2021-07-01 오후 5:55:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BP170 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for inbody BP170

Summary of Contents for inbody BP170

  • Page 1 BP170(B) User Manual for Measurement Guide and Setup Thank you for purchasing the BP170(B). This user’s manual describes all the features of the BP170(B). Please read before use and keep it in a safe place. By following the manual instructions, you will be able to use the BP170(B) more safely and effectively.
  • Page 2 Reproduction, adaptation, or translation of this manual is prohibited without prior written consent from InBody Co., Ltd. under the copyright laws. This manual may be printed incorrectly and subject to change without notice. InBody Co., Ltd. shall not be liable for any errors, incidental, or consequential damages that occurred by not complying with the content of the User᾽s Manual.
  • Page 3 Emergo AUSTRALIA. Level 20, Tower II, Darling Park, 201 Sussex Street, Sydney, NSW 2000, AUSTRALIA TEL: +61-2-9006-1662 FAX: +61-2-9006-1010 Website: emergogroup.com E-mail: Sponsor@emergogroup.com USA CONTACT BIOSPACE INC. dba INBODY 13850 CERRITOS CORPRT DR STE C, Cerritos, California, 90703 TEL: (323) 932-6503 Customer Service Information InBody USA [USA] 13850 Cerritos Corporate Dr.
  • Page 4 129x183_BP170_manual_ENG_D_210702.indd 4 129x183_BP170_manual_ENG_D_210702.indd 4 2021-07-01 오후 5:55: 2021-07-01 오후 5:55:...

  • Page 5: Table Of Contents

    BP170 / BP170B User’s Manual Contents I. Introduction II. Using the BP170(B) A. Preparing for Measurement B. Blood Pressure Measurement C. Saving Measurement Results D. Check the Stored Blood Pressure III. Storage IV. FAQ A. Regarding Measurement B. Troubleshooting V. Others A.

  • Page 6: Introduction

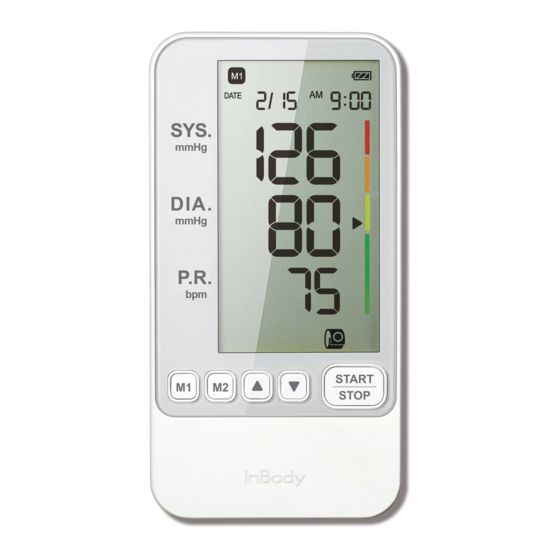

    The InBody BP170(B) is a compact and easy-to-use automatic blood pressure monitor. The BP170(B) operates on the oscillometric principle to measure your blood pressure and pulse rate. The BP170(B) is primarily designed for general household use and for individuals who need regular blood pressure management.
  • Page 7 * Cuff Parts Checking mark for the available arm circumference Artery mark Air tube Air plug (Connection to the main unit) * Display Screen Parts Mute symbol Average value symbol Bluetooth connection symbol Memory 2 symbol AC adapter connection symbol Memory 1 symbol Battery level indicator Date display...

  • Page 8: Using The Bp170(B)

    . Using the BP170(B) A. Preparing for Measurement * If the BP170(B) has been stored in a hot or cold environment, keep it at room temperature for at least one hour. (1) Inserting / replacing the batteries Remove the battery cover.
  • Page 9 Insert the AC adapter plug into the AC adapter jack on the side of the main unit. ❶ Plug the AC adapter into an electrical outlet. ❷ *When the BP170(B) is used with the AC adapter connected, " AA" alkaline batteries are not required to operate the BP170(B). ❷ ❷...
  • Page 10 Attention • Pour une gestion appropriée de vos données de tension artérielle, régler la date et l'heure avant d'utiliser le BP170(B). • Si l'heure est mal réglée, la fonction Hypertension élevée matinale peut être inexacte. • L'horloge est formatée lors du remplacement des piles. Pour réinitialiser l'horloge, enlever les quatre(4) piles et les réinsérer après 10 secondes.

  • Page 11: Blood Pressure Measurement

    B. Blood Pressure Measurement (1) How to wear the one-touch cuff • Please remove thick clothing from your upper arm. It is recommended to take measurement on bare skin. • Please sit down comfortably at a table. • Connect the air plug of the cuff into the air jack located on the left side of the main unit. •...
  • Page 12 (2) Proper measurement posture Measure on bare skin or while dressed in thin clothes. Back is straight The cuff should be placed on the arm at the same level as the heart. Use a cushion or pillow for correct alignment. Put the feet flat on the floor with the legs uncrossed.
  • Page 13 ❶ Press the Start / Stop button to start the blood pressure measurement. ❷ The BP170(B) begins to inflate the cuff, and when it reaches a certain pressure point, ❸ it slowly deflates and measures the blood pressure. When the measurement is complete, the blood pressure is displayed on the screen.
  • Page 14 • Si l'utilisateur a mal ou rencontre tout autre problème pendant la mesure, appuyer sur le bouton Arrêt / Marche. Si appuyer sur le bouton Arrêt / Marche ne libère pas rapidement la pression, déconnecter le tube à air de la partie principale du BP170(B) ou d"rouler la manchette de votre bras.
  • Page 15 ACC/AHA Measurement date/time Red: Hypertensive Crisis Systolic blood pressure Red: Stage 2 hypertension Orange: Stage 1 hypertension Yellow: Elevated Diastolic blood pressure Green: Normal Pulse rate Pressure (Reference: ACC/AHA Task Force on Clinical Practice Guidelines, 2017) The cuff was properly worn. The cuff was loosely worn.
  • Page 16 Note • Among measured values between 4a.m. and 10a.m., early morning hypertension is detected if the systolic blood pressure is greater than 135mmHg and/or the diastolic blood pressure is greater than 85mmHg. • Irregular pulse rate is detected when there is a difference in the pulse of more than 25% of the reference pulse.

  • Page 17: Saving Measurement Results

    Memory1 or Memory2. The same symbol as the button pressed is displayed at the top of the screen. (2) Press the Start / Stop button to complete the save, and the BP170(B) will shut down. Note • M1 and M2 can store blood pressure measurement results up to 100 times each. If it exceeds 100 records, the oldest data is automatically deleted.

  • Page 18: Check The Stored Blood Pressure

    D. Check the Stored Blood Pressure (1) With the BP170(B) turned off, press to check the blood pressure results stored in the corresponding location. (2) When the button is pressed, the average blood pressure for the last three measurements is displayed on the screen.

  • Page 19: Storage

    • Si le manchon est contaminé, et qu’il ne peut plus être utilisé, veuillez le remplacer par un nouveau manchon • Communiquez avec le représentant InBody de votre région pour vous procurer des manchons additionnels. The BP170(B) should be transported or stored under the following conditions.
  • Page 20 • Ne pas ranger le tube courbé ou plié. • Ne placer aucun objet sur le BP170(B). Tenir à distance de l'eau, d'un environnement humide, de la lumière directe du soleil, de la poussière,du javel, des gaz d'érosion, etc..., pendant le rangement.

  • Page 21: Faq

    . FAQ A. Regarding Measurement You will find answers to frequently asked questions about the BP170(B) below. If you have any questions that are not answered in this section, please contact Product Support. Question 1. The blood pressure values are different per every measurement.
  • Page 22 Question 2. The blood pressure value is low compared to the value measured in the hospital. Answer 1. Since the user is psychologically stable at home, the blood pressure measurement is usually lower by 20 to 30mmHg than the reading taken at the hospital. It is important to know the measurement value in a stable state at home.
  • Page 23 13 and pressurize manually. Question 9. No sound was heard from the BP170(B). Answer 1. The beep sound of the BP170(B) can be turned on and off. Press and hold the buttons at the same time for 3 seconds.

  • Page 24: Troubleshooting

    · Measure the blood pressure in a stable state. measurement. · Disconnect the connected adapter. Adapter malfuction. · Use the AC adapter for BP170(B) only. Product malfunction. · Please contact to Product Support. Low battery voltage. · Replace with new batteries.

  • Page 25: Others

    . Others A. Safety Information Device Application This product is a device for measuring blood pressure or pulse rate. Please do not use for other purposes besides blood pressure and pulse measurement. Do not use this device near Magnetic Resonance Imaging (MRI) Equipment. Warning General Information 1.
  • Page 26 Avertissement Situation générale 1. Les résultats mesurés ne peuvent être interprétés que par un professionnel de santé expérimenté, et ne peuvent être utilisés pour un diagnostic, une prescription ou un traitement par le client sans aucune prescription médicale. 2. Si le tube à ai est enroulé autour du cou, il y a risque de mort par suffocation. 3.
  • Page 27 7. If the user feels any pain or abnormality during the measurement, stop the measurement immediately. 8. Do not use the BP170(B) in an enviornment where a physical shock may happen. 9. The performance of the BP170(B) may be affected by extreme temperatures, humidity and/or latitude.
  • Page 28 Safety Precautions 1. Do not use or store the BP170(B) in an environment where the cuff and air tube can be pressed by heavy objects. 2. Be careful when using or storing the cuff and air tube, as they can be damaged by sharp edges.
  • Page 29 8. Ne pas utiliser le BP170(B) s'il y a risque de choc physique. 9. La performance du BP170(B) peut être affecté par des températures extrêmes, l'humidité ou la latitude. Bien vouloir l'utiliser dans l'environnement idéal. 10. Bien vouloir l'utiliser et le garder dans un environnement sans animaux.
  • Page 30 Précaution de sécurité 1. Ne pas utiliser ou conserver le BP170 (B) dans un environnement ou le tube à air et la \ manchette peuvent être appuyés par des objets lourds. 2. Faire attention aux objets tranchants lors de l'utilisation et du stockage de la manchette et du tube à air.

  • Page 31: Optional Equipment

    B. Optional Equipment • L-size one-touch cuff (only for arm-circumference 32~42cm (13 ~ 17 in)) • AC adapter for BP170(B) C. Safety Information Safety Information Warning / Caution Note BF-type equipment Power adapter connection terminal CLASS II equipment (AC adapter)

  • Page 32: Classification

    • Level of protection against flooding: IP21 • Operation mode: Continuous Operation • Level of protection against electric shock: BF-type equipment E. Specifications Product Name Automatic electronic blood pressure monitor (BP170/BP170B) (Model Name) Display Method Digital display method (Custom segment LCD) Test Range...
  • Page 33 Manufacturing Country Republic of Korea Manufacturing Company InBody Co., Ltd. * For purposes of improvement, specifications are subject to change without notice. * This product is ‘medical equipment’. Read guide and cautions before using this blood pressure monitor. * Battery life test conditions: using new alkaline batteries, operating temperature 23°C, Arm circumference 25cm, max pressure170mmHg.

  • Page 34: Emc Declaration

    This EUT is intended for use in the electromagnetic environment specified below. The user must assure that it tis used in such an environment. 129x183_BP170_manual_ENG_D_210702.indd 34 129x183_BP170_manual_ENG_D_210702.indd 34 2021-07-01 오후 5:56: 2021-07-01 오후 5:56:...
  • Page 35 129x183_BP170_manual_ENG_D_210702.indd 35 129x183_BP170_manual_ENG_D_210702.indd 35 2021-07-01 오후 5:56: 2021-07-01 오후 5:56:...
  • Page 36 Test specifications for ENCLOSURE PORT IMMUNITY to RF wireless communications equipment Test Maximum Immunuty Band a) frequency Distance Service a) power Modulation test level (MHz) (MHz) (V/m) Pulse 380 –390 TETRA 400 modulation 18 Hz GMRS 460, ± 5 kHz 430 –...
  • Page 37 1. This product undergoes a strict review process to ensure quality control. 2. The warranty period of this product follows the warranty period policy of the manufacturer. 3. If the product malfunctions under normal use, InBody will repair it free of charge during the warranty period.
  • Page 38 129x183_BP170_manual_ENG_D_210702.indd 38 129x183_BP170_manual_ENG_D_210702.indd 38 2021-07-01 오후 5:56: 2021-07-01 오후 5:56:...
  • Page 39 129x183_BP170_manual_ENG_D_210702.indd 39 129x183_BP170_manual_ENG_D_210702.indd 39 2021-07-01 오후 5:56: 2021-07-01 오후 5:56:...
  • Page 40 ©2021 InBody Co., Ltd. All rights reserved. IM-ENG-L5-D-210702 129x183_BP170_manual_ENG_D_210702.indd 40 129x183_BP170_manual_ENG_D_210702.indd 40 2021-07-01 오후 5:56: 2021-07-01 오후 5:56:...
