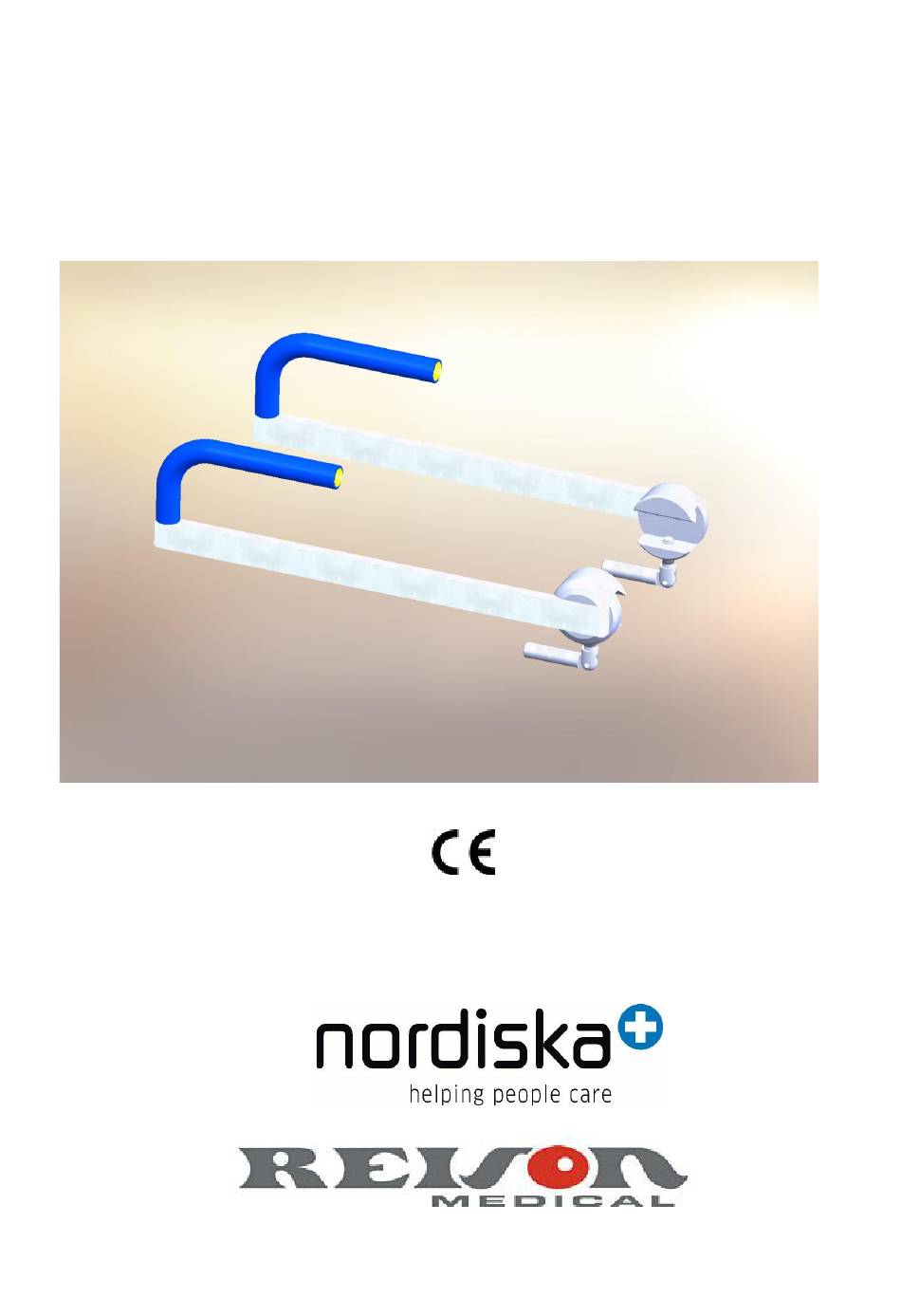

- Page 1 USERS MANUAL TRANSPORT HANDLES 10-458 GMDN 35393 PID 122487 10-458 Edit. 1 Page 1 ( 4...
- Page 2 INTRODUCTION The transport handle 10-458 is intended to be fixed to the back section of an operating table when the operating table is to be moved with or without patient. The idea is to avoid moving the table using the head rest as transport handle. A head rest is not designed to meet the load arising when an operating table is moved.
- Page 3 The transport handles consists of a pair of fixed clamps with universal grooves that fits all accessory rails on the market. The handles themselves are fixed at the end of an extension rail and are covered with soft sleeves. The transport handles shall be hooked on the accessory rail from the upper side of the rail.
- Page 4 7. Set screw MP6SS M5x14 A2 2pcs. TECHNICAL SPECIFICATION Length 40cm Width Height 15cm Weight (pair) 2,8kg Box 240 Eriksbergsvägen 32A 734 25 Hallstahammar Sweden Phone: +46 220 43399 Fax: +46 220 29016 E-mail: info@reison.se www.reison.se 10-458 Edit. 1 Page 4 ( 4...
