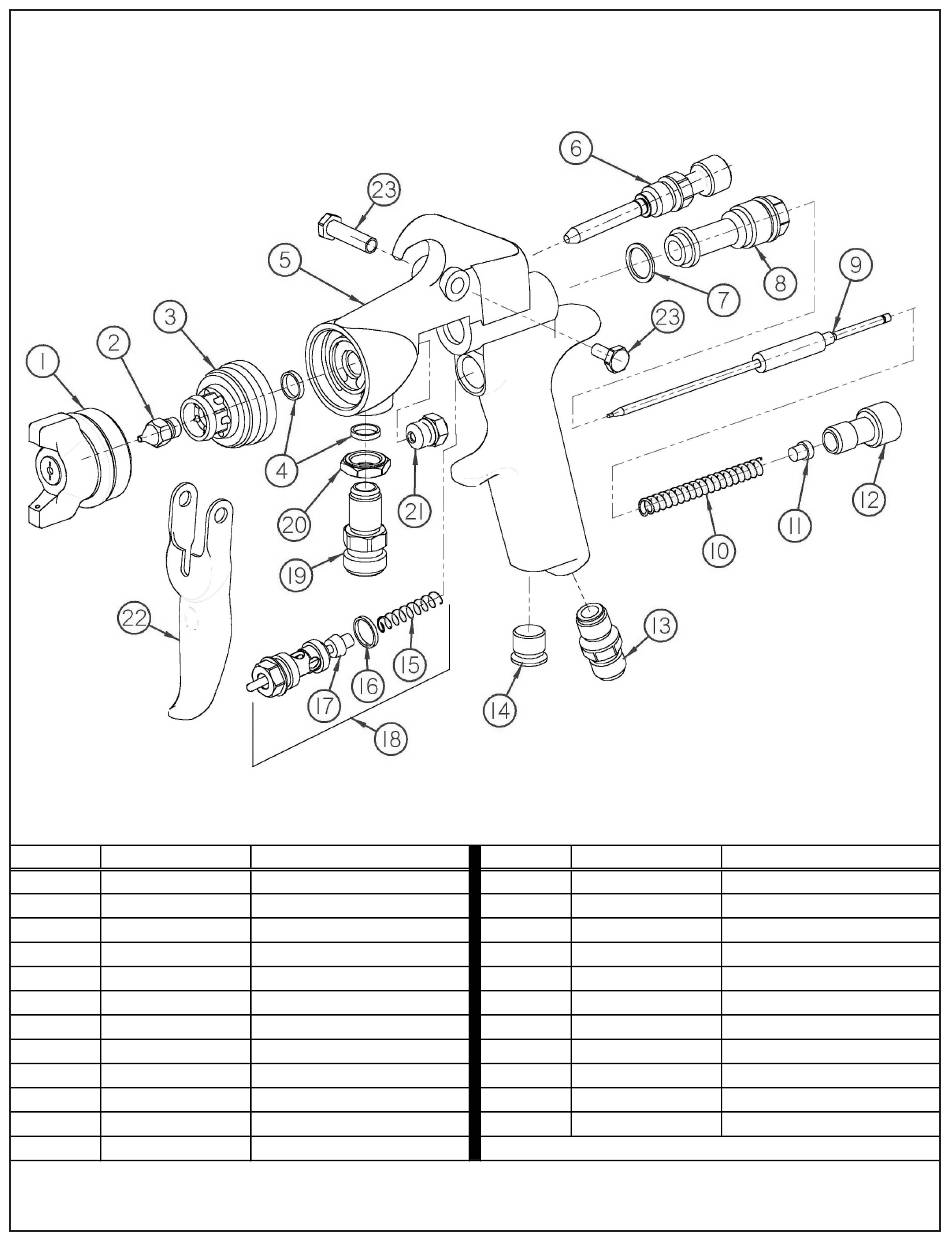

C.A. Technologies TOMCAT 100C Operation And Maintenance Instructions page 3

ITEM NO. PART NO.
1 See Air Cap Chart
2 See Air Cap Chart
3 60-15C
4 60-137
5 60-1106
6 See Air Cap Chart
7 60-119
8 60-201
9 See Air Cap Chart
10 60-204
11 60-205
12 60-202
**See air cap selection chart on page 1
*Indicates part included in repair kit # 10-112
*
*
*
*
DESCRIPTION
Air Cap**
Fluid Tip**
Fluid Nozzle Body
Seal*
Tomcat Gun Body Conventional
Fan Control Assembly**
Seal*
Rear Bushing
Fluid Needle**
Needle Return Spring*
Spring Seat*
Fluid Control Knob
ITEM NO. PART NO.
13 60-104
14 60-122
15 61-1003
16 60-125
17 60-302
18 60-1520
19 60-132
20 60-128
21 61-1026
22 60-2101
23 60-1033
*
*
*
DESCRIPTION
Air Inlet Fitting
Plug
Air Valve Spring*
Seal*
Air Valve Poppet
Air Valve Assembly
Fluid Inlet
Locknut
Needle Seal*
Trigger
Trigger Pivot Set
