DMP Electronics X1 Series Installation And Programming Manual
Multi-door access controller
Hide thumbs
Also See for X1 Series:
- Installation and programming manual (18 pages) ,
- Compliance manual (6 pages) ,
- Installation and programming manual (16 pages)
Related Manuals for DMP Electronics X1 Series
Summary of Contents for DMP Electronics X1 Series

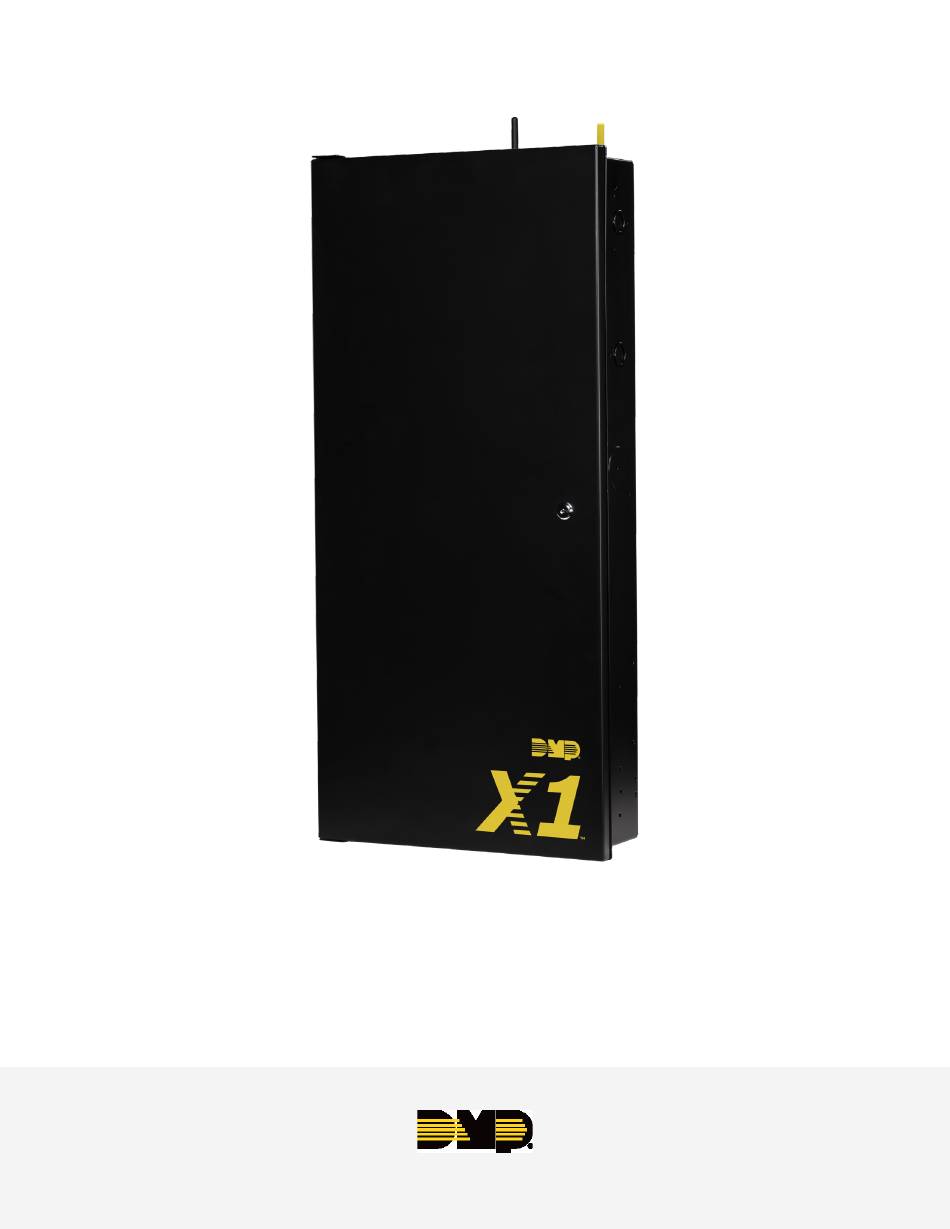

- Page 1 X1 SERIES MULTI-DOOR ACCESS CONTROLLER INSTALLATION AND PROGRAMMING GUIDE LT-2289 1.01 21293 © 2021...
-
Page 2: Table Of Contents
TABLE OF CONTENTS X1‑8 Door Controller Overview ���������������������������� 1 Step 8: Apply Power ������������������������������������������� 13 X1 Door Controller Power ��������������������������������������������������� 1 Ground the Door Controller ���������������������������������������������13 X1 Door Controller PCB Components ���������������������������� 1 Wire AC Power ����������������������������������������������������������������������13 XD Door Control Module PCB Components �������������� 2 Wire the Battery �������������������������������������������������������������������13 Door Controller Plug-In Terminals ����������������������������������... -
Page 3: X1-8 Door Controller Overview
X1 SERIES MULTI‑DOOR ACCESS CONTROLLER OVERVIEW The X1 Series is a cloud-based access door controller that is fully programmed in Dealer Admin™ and maintained in Virtual Keypad™� This guide will cover mounting the door controller, wiring devices to the door controller, configuring network options, applying power, programming the door controller in Dealer Admin, and testing the door controller�... -
Page 4: Xd Door Control Module Pcb Components
X1 and XD Headers R2 W2 G2 B2 DS RX Door Controller Plug‑In Terminals Insert Wiring terminals on an X1 Series Door Controller is done easily by using the plug-in terminals� Plug In 1� Insert the wire into the slot�... -
Page 5: Step 1: Mount The Door Controller
STEP 1: MOUNT THE DOOR CONTROLLER The metal enclosure for the X1 Series must be mounted directly to a wall, backboard, or other flat surface in a secure, dry place to protect the door controller from damage� Do not remove the PCBs from the enclosure�... -
Page 6: Step 3: Wire The Inputs
STEP 3: WIRE THE INPUTS Door Switch (DS) Connect a door contact or door position switch to indicate the status of the door, whether it is open or closed� Use this terminal if enabling door prop or door force� This terminal is a Normally Closed input� Request to Exit (RX) Connect a motion sensing device or a mechanical switch to provide DS RX... -
Page 7: Step 5: Wire The Electronic Lock
STEP 5: WIRE THE ELECTRONIC LOCK Form C Relay The X1 Series provides a Form C (SPDT) relay for controlling locks and other electronically-controlled barriers� The three relay terminals marked NO C NC allow you to connect the device wiring to the relay for module control�... -
Page 8: Step 6: Determine Communication
STEP 6: DETERMINE COMMUNICATION The options in this section are in the DMP-recommended installation order� If an option is not part of your desired application, move to the next option� Ethernet Port Ethernet Connection Connect an Ethernet cable from the LAN/WAN connection to the X1 PCB Ethernet port�... -
Page 9: Wi-Fi Connection
Wi‑Fi Connection A Wi-Fi connection or a static IP address must be established after Wi-Fi Antenna power up� See Wi-Fi instructions later in this guide� Note: You can connect over Ethernet or Wi-Fi, but not both at X1-8 Enclosure Nut and Washer inside Enclosure the same time�... -
Page 10: Step 7: Install Optional Output Module
STEP 7: INSTALL OPTIONAL OUTPUT MODULE X1 Output Module PCB Components Refer to the diagram below throughout the installation� RELAY RELAY RELAY RELAY RELAY Address Rotary Power LEDs ADDR Bottom 4-Wire Connector NC 1 NO NC 2 NO NC 5 NO NC 3 NO NC 4 NO Top 4-Wire Connector... -
Page 11: Address The X1 Output Module
Address the X1 Output Module The X1 Output Module (X1-OUT-EXP) has a 1 through 9 addressable rotary dial that is factory defaulted to 1� Additional output modules need to be addressed in sequence� Wire the X1 Output Module Use the included 4-position harness and enclosure knockouts to connect the top connector on the output module to the bottom connector on the last XD Door Controller Module�... -
Page 12: Optional Additional Output Modules
Optional Additional Output Modules If not installing additional output modules, skip to Step 6 Wire the Outputs� The metal enclosure for the X1 Output Expansion Module comes with mounting holes for two additional X1 Output Module PCBs� To mount the additional PCB, use the provided First X1 Output Expansion Module standoffs and screw the PCB onto the 3 mounting holes�... -
Page 13: Wire The Additional Output Modules
Wire the Additional Output Modules If not installing additional output modules, skip to Step 6 Wire the Outputs� Use the included 4-position harness to connect the top connector on the second output module to the connector on the first output module� 100 VAC Wire-In Transformer Model 505-12... -
Page 14: Wire The Outputs
Normally Closed To wire for output control, use the 10 terminals on the output module� The X1 Series Output Module provides 10 Form C (SPDT) 1 Amp relays for controlling access to 10 outputs� The three relay terminals are labeled for normally open (NO) and normally closed (NC) operation�... -
Page 15: Step 8: Apply Power
STEP 8: APPLY POWER Warning: Refer to your local state regulations before connecting to building power� Wiring methods shall be in accordance with NEC, NFPA72, ANSI, and with all Authority Having Jurisdiction Ground the Door Controller Be sure to secure the green wire lead Model 505-12 to an earth ground�... -
Page 16: Modules
Check the Addresses of the XD Door Control Modules The XD Door Control Module address is based on its location in the enclosure� XD 1 - Address 2 X1 - Pre-Addressed to Address 1 R2 W2 G2 DS RX XD 7 - Address 8 XD 2 - Address 3 R2 W2 G2 DS RX... -
Page 17: Door Controller Wiring Example
Door Controller Wiring Example The diagram here shows the transformer and the battery wiring� It also shows a possible application with an electronic lock wired normally closed with wet contacts� To 505-12 Power Supply +AC/DC- +BAT- R2 W2 G2 DS RX Jumper Set to Wet White Green... -
Page 18: Xd Door Control Module Wiring Example
XD Door Control Module Wiring Example A door control module wires similarly to a door controller, except the door control module locks must be wired in a dry state with power supplied by the built-in 505-12 5 Amp Power Supply� Wiring from Previous X1/XD R2 W2 G2 DS RX... -
Page 19: Step 9: Manage Connection Settings
STEP 9: MANAGE CONNECTION SETTINGS If not connecting over Ethernet, connect to Wi-Fi at this time� If connecting over Ethernet, skip to Configure Network Settings� Configure Wi‑Fi Settings On power up, the X1 broadcasts an SSID of DMPX1 followed by the door controller’s serial number� No password is required to connect to the SSID�... -
Page 20: Step 10: Program In Dealer Admin
STEP 10: PROGRAM IN DEALER ADMIN After you’ve installed the X1 Series Door Controller and configured basic communication settings, follow the steps in each of the following sections to program a door controller in Dealer Admin: 1� Sign In to Dealer Admin 2�... -
Page 21: Program The X1-8 Door Controller
Program the X1‑8 Door Controller If door options don’t open automatically, select the X1 that you want to configure� 1� Enter a descriptive name for the door� 2� In Strike Time, enter the number of seconds that you want the door to unlock when access is granted�... -
Page 22: Add An X1 Output Module (Optional)
Add an X1 Output Module (Optional) If your application does not include an X1 Output Module, skip to Enable Video Services� 1� Go to System Information� 2� Under Outputs, select the Add icon � 3� Select the X1 that the output module is connected to� 4�... -
Page 23: Step 11: Test The Door Controller
STEP 11: TEST THE DOOR CONTROLLER Make sure that the Reader LEDs are on and the door controller’s Power LED is on� If connected to Wi-Fi, the Wi-Fi LED is on solid� If connected to network, the Network Port light is blinking� For cell and all communication methods, check that door controller is communicating with Dealer Admin and Virtual Keypad after Dealer Admin programming is completed�... - Page 24 L’exposition aux radiofréquences de ce système a été évaluée selon la norme RSS‑102 et est jugée conforme aux limites établies par le Code de sécurité 6 de Santé Canada. Le système doit être installé à une distance minimale de 7.87 pouces (20 cm) séparant l’antenne d’une personne présente en conformité avec les limites permises d’exposition du grand public. X1 SERIES MULTI-DOOR Environmental Temperature 0 °...
