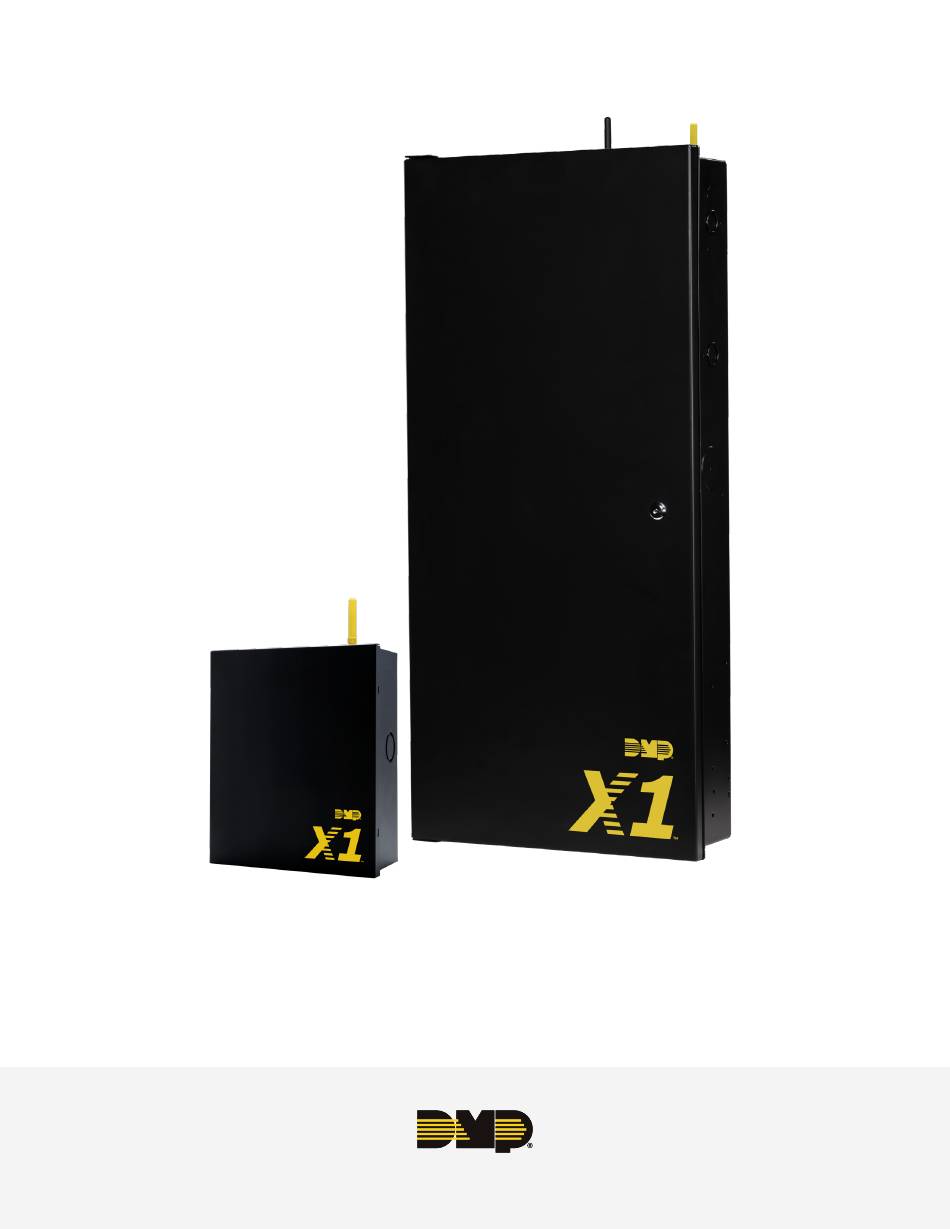

X1 & X1-8 DOOR CONTROLLER
COMPLIANCE GUIDE
LT-2294 1.01 21011
© 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DMP Electronics X1

Summary of Contents for DMP Electronics X1

  • Page 1 X1 & X1-8 DOOR CONTROLLER COMPLIANCE GUIDE LT-2294 1.01 21011 © 2021...
  • Page 2 All output circuits are Class 2 power limited. The X1 can be powered by a 12 or 24 V DC or AC power supply or UL 294 listed POE switch. POE power to be supplied by a UL 294 Listed, power limited, injector providing 44‑57 VDC and 15.40 W for maximum output (POE).

  • Page 3: Wiring Example

    Observe polarity when connecting Battery Harness the battery. The X1 was evaluated for 4 hours of standby power (level IV) using the UPG UB1290 12 V Battery Wiring Example The diagram here shows the transformer and the battery wiring. It also shows a possible application with an electronic lock wired normally closed with wet contacts.

  • Page 4: Ground The System

    Knockouts are supplied for power input. +AC/DC- Wire the Battery Module 7: Module 2: The battery leads for the X1‑8 come Address 8, Door 8 Address 3, Door 3 pre‑wired. Connect the red battery lead to the battery positive terminal. Connect the black battery lead to the negative battery terminal.

  • Page 5: Fcc Information

    Code de sécurité 6 de Santé Canada. Le système doit être installé à une distance minimale de 7.87 pouces (20 cm) séparant l’antenne d’une personne présente en conformité avec les limites permises d’exposition du grand public. X1 & X1-8 COMPLIANCE GUIDE | DIGITAL MONITORING PRODUCTS...
  • Page 6 System Units Communication Options Level I Destructive Attack and Line Security Level IV Endurance and Standby Power Ethernet Wi‑Fi Cellular 263LTE‑A‑X1 (X1), 263LTE‑V‑X1 (X1) X1-8 Ethernet Wi‑Fi Cellular 263LTE‑A‑Z1/381‑2 (X1‑8), 263LTE‑V‑Z1/381‑2 (X1‑8) Mechanical Enclosure 6.5” W x 8” H x 3” D Dimensions 16.5 cm W x 20.3 cm H x 7.6 cm D...
