ADTRAN TSU ACE Quick Start Manual

®
TSU ACE (AC SYSTEM)
Quick Start Guide
Network
S
PECIFICATIONS
T1/FT1 Interface Supported Standards: AT&T 54016, ANSI T1.403
Line Rate: 1.544 Mbps
Line Code: AMI or B8ZS
Framing: SF or ESF
Input Signal: 0 to -36 dB (DS1)
DS0 Assignment: Contiguous or Alternating
Connector: RJ-48C, V.35
Clock Source Network, Internal, DTE
Diagnostics Test Pattern Generation and Detection: 511, all ones, all zeros, 1:8
Network loopbacks (local and remote); responds to both inband and
FDL loop codes
Compliance FCC Part 15 Class A, ACTA/FCC Part 68, IC CS-03
UL/CUL 60950
Physical Dimensions: 2.75-inch W x 4.25-inch D
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Relative Humidity: Up to 95 percent, noncondensing
Quick Start Guide, 61202295L1-13B, August 2006

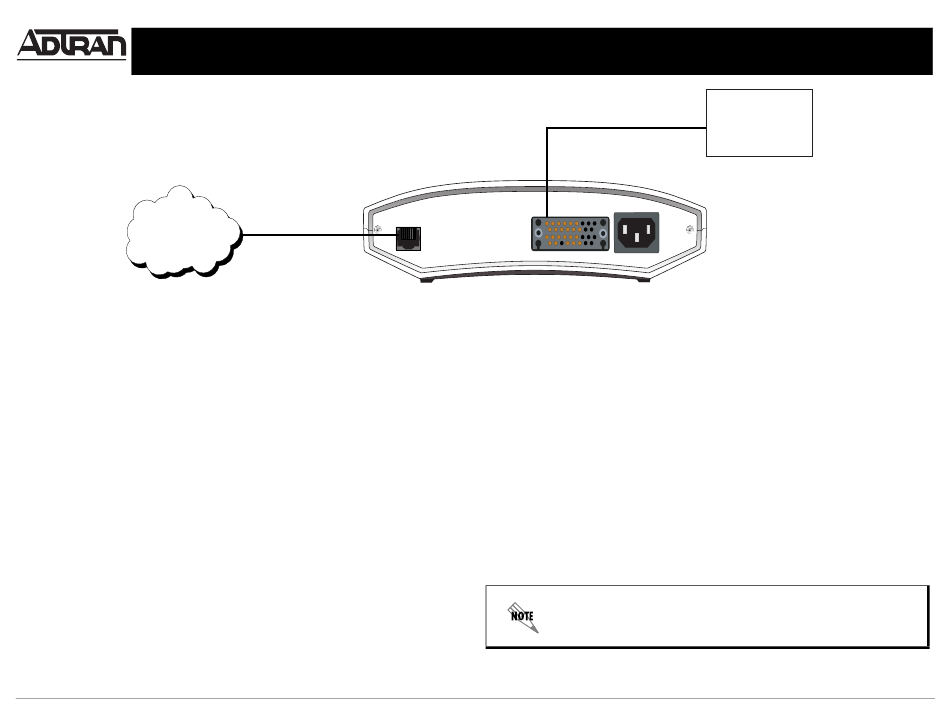

NETWORK
NETWORK
T1
4-wire Telco Cable
(Provided)
For more detailed documentation, visit us online at www.adtran.com.
V.35 Cable
115VAC 60 HZ 0.15A
V.35 Nx56/64
G S
ETTING TARTED
Two configuration methods are available for your TSU ACE unit:
• Front panel LCD
• ADTRAN's PC control program, T_Watch PRO
Choose the option which best suits your needs. A limited menu tree is provided on the back of this
sheet for configuring through the front panel LCD.
I I
NSTALLATION NSTRUCTIONS
1. Connect the device to the network T1 circuit through the RJ-48C jack (labeled NETWORK) on
the rear of the unit.
2. Connect the device to DTE equipment through the rear panel V.35 interface (labeled V.35
N 56/64).
X
3. Connect the power cord to the unit via the receptacle (labeled 115VAC 60HZ 0.15A) and then
to a reliably grounded 115 VAC, 60 Hz power source.
4. Upon the first application of power, the unit will automatically execute self-tests followed by an
initialization sequence. When shipped from the factory, the TSU ACE is uninitialized and set to
factory default conditions.
5. Configure the TSU ACE using the local front panel of the unit or from T-Watch PRO.
Additional information can be found on the TSU Single Port Family
product CD which shipped with the unit. It contains the TSU ACE User
Manual as well as other applicable documentation.
1202295L1
DTE
Copyright © 2006 ADTRAN, All Rights Reserved
