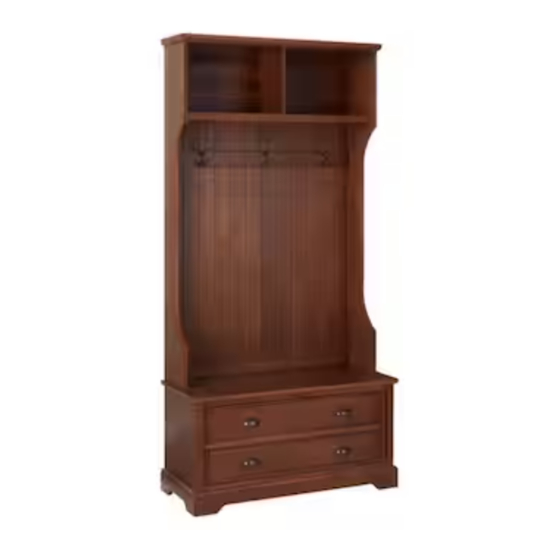

SMALL HALL TREE WITH 1 DRAWER AND 2 OPEN CUBBIES
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this small hall tree with 1 drawer and
2 open cubbies. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products
available for your home improvement needs. Thank you for choosing Home Decorators Collection!
USE AND CARE GUIDE
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service.
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
HOMEDEPOT.COM/HOMEDECORATORS
Item #1004459932
Model #SK19319Ar1-W-1
Item #1004459931
Model #SK19319Ar1-W-2
1-800-998-7021
THANK YOU
Item #1004459942
Model #SK19319Ar1-N-1
Item #1004459941
Model #SK19319Ar1-N-2
Advertisement
Table of Contents
Related Manuals for Home Decorators Collection SK19319Ar1-W-1
Summary of Contents for Home Decorators Collection SK19319Ar1-W-1
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this small hall tree with 1 drawer and 2 open cubbies. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products...
-
Page 2: Table Of Contents
Table of Contents Hardware Included ..............3 Table of Contents ............2 Safety Information ............2 Pre-assembly (continued) ..........4 Warranty ................. 2 Package Contents ..............4 3 Year Warranty ...............2 Assembly ............... 5 ... -
Page 3: Pre-Assembly
Pre-assembly PLANNING ASSEMBLY Keep children and pets away from build area. Make sure your area is large enough to unpack, sort and assemble the unit. TOOLS REQUIRED Large head Small head Phillips Phillips screwdriver screwdriver HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity... -
Page 4: Pre-Assembly (Continued)
Pre-assembly (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Top panel Bottom left side panel Left side panel Bottom right side panel Right side panel Top back panel Partition Middle back panel Fixed panel Bottom back panel Top cross brace Drawer front panel Bottom cross brace Drawer left side panel... -
Page 5: Assembly
Assembly Attaching the pothook □ Attach pothook (JJ) to brace (F) with bolt (KK) as shown. HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-998-7021 for further assistance. - Page 6 Assembly (continued) Attaching the partition to the fixed panel □ □ a) Install dowel (AA) and bolt (BB) into panel (E). c) Join panel (E) to the partition (D) with dowel (AA). □ b) Insert lock (CC) into partition (D). □...
- Page 7 Assembly (continued) Attaching the top right panel □ □ a) Install dowel (AA) and bolt (BB) into panel (C). c) Join panel (C) to the assembled body with dowel (AA). □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. □...
- Page 8 Assembly (continued) Attaching the top left panel and cross brace □ c) Join braces (F) and (G), and panel (E) to the panels (B) □ a) Install dowel (AA) and bolt (BB) into panel (B). and (C) with dowel (AA). □...
- Page 9 Assembly (continued) Attaching the top panel □ □ a) Install dowel (AA) and bolt (BB) into panel (A). c) Join panel (A) to the assembled body with dowel (AA). □ □ b) Insert lock (CC) into panels (B) and (C), and partition (D). d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes.
- Page 10 Assembly (continued) Attaching the middle panel □ a) Join panel (H) to the assembled body with dowel (AA). □ b) Tighten panel (H) with screw (FF).
- Page 11 Assembly (continued) Attaching the bar to the bottom side panel □ Join bar (I) to the panels (K) and (L) with dowel (AA). HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-998-7021 for further assistance.
- Page 12 Assembly (continued) Attaching the bottom panel □ □ a) Install dowel (AA) and bolt (BB) into panel (J). c) Join panel (J) to the assembled body with dowel (AA). □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. Tighten bar (I) with screw (EE).
- Page 13 Assembly (continued) Attaching the assembled base □ □ a) Install dowel (AA) and bolt (BB) into panel (H). c) Join panels (K) and (L) to the assembled body with dowel (AA). □ b) Insert lock (CC) into panels (K) and (L). □...
- Page 14 Assembly (continued) Attaching the back panel □ Tighten panels (M), (N), and (O) to the assembled body with screws (GG) and metal plates (HH) as shown.
- Page 15 Assembly (continued) Assembling the drawer □ d) Slide panel (U) into the grooves on panels (Q) and (R). □ a) Install dowel (AA) and bolt (BB) into panel (P). Tighten bolt (BB) with lock (CC) in the pre-drilled hole. □ □...
- Page 16 Assembly (continued) Inserting the drawer □ Insert the drawer into the assembled body as shown. NOTE: Make sure the slide piece is at the front end of the glide when installing the drawer into the body. SAFETY RELEASE TAB NOTE: When removing the drawer, tip-up the safety release tab to remove the drawer from the body.
- Page 17 Assembly (continued) Finalizing the assembly □ Install the anti-tipping hardware as shown. HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-998-7021 for further assistance.
- Page 18 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service. 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-800-998-7021 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
