USE AND CARE GUIDE

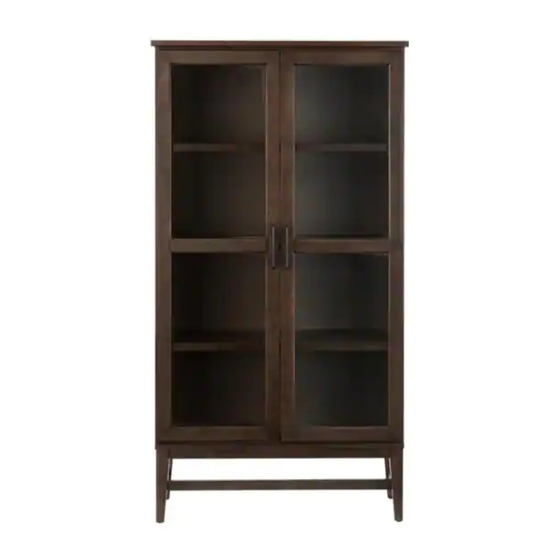

BOOKCASE WITH GLASS DOORS
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service.
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-800-998-7021
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this bookcase with glass doors. We
strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection Bellamy SK19345Br2-S-1
Summary of Contents for Home Decorators Collection Bellamy SK19345Br2-S-1
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this bookcase with glass doors. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Hardware Included ..............3 Table of Contents ............2 Safety Information ............2 Pre-assembly (continued) ..........4 Warranty ................. 2 Package Contents ..............4 3 Year Warranty ...............2 Assembly ............... 5 ... -
Page 3: Pre-Assembly
Pre-assembly PLANNING ASSEMBLY Keep children and pets away from build area. Make sure your area is large enough to unpack, sort and assemble the unit. TOOLS REQUIRED Large head Small head Phillips Phillips screwdriver screwdriver HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity... -
Page 4: Pre-Assembly (Continued)
Pre-assembly (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Top panel Base side crossbar Left side panel Bottom panel Right side panel Base side frame Fixed panel Back panel Adjustable shelf Left door Front crossbar Right door Base center crossbar... -
Page 5: Assembly
Assembly Attaching the fixed panel to the right side panel □ □ a) Install dowel (AA) and bolt (BB) into panel (C). c) Join panel (D) to the panel (C). □ b) Insert lock (CC) into panel (D). □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-998-7021 for further assistance. - Page 6 Assembly (continued) Attaching the left panel and the front crossbar □ □ a) Install dowel (AA) and bolt (BB) into panel (B). c) Join panel (B) and bar (F) to the assembled body with dowel (AA). □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. □...
- Page 7 Assembly (continued) Attaching the top panel □ □ a) Install dowel (AA) and bolt (BB) into panel (A). c) Join panel (A) to the assembled body with dowel (AA). □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. □...
- Page 8 Assembly (continued) Attaching the bottom panel □ □ a) Install dowel (AA) and bolt (BB) into panel (I). c) Join panel (I) to the assembled body with dowel (AA). □ □ b) Insert lock (CC) into panels (B) and (C). d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes.
- Page 9 Assembly (continued) Attaching the bar to frame □ a) Join bars (H) and (G) to the frame (J) with dowel (AA). □ b) Tighten bars (H) and (G) with screw (GG). HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-998-7021 for further assistance.
- Page 10 Assembly (continued) Attaching the bar and frame to the bottom panel □ a) Join bar (H) and frame (J) to the assembled body with dowel (AA). □ a) Tighten bar (H) and frame (J) with screw (GG).
- Page 11 Assembly (continued) Attaching the back panel □ Tighten panel (K) to the assembled body with screws (FF) as shown. HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-998-7021 for further assistance.
- Page 12 Assembly (continued) Assembling the adjustable shelf □ Insert shelf supports (HH) in desired positions and place shelf (E) on the supports.
- Page 13 Assembly (continued) Attaching the door □ a) Attach hinge (KK) to left door (L) and right door (M) with screw (LL). □ b) Attach left door (L) and right door (M) to the assembled body with screw (LL) as shown. Attach handle (II) to left door (L) and right door (M) with the handle bolt (JJ).
- Page 14 Assembly (continued) Finalizing the assembly □ Install the anti-tipping hardware as shown.
- Page 15 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service. 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-800-998-7021 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
