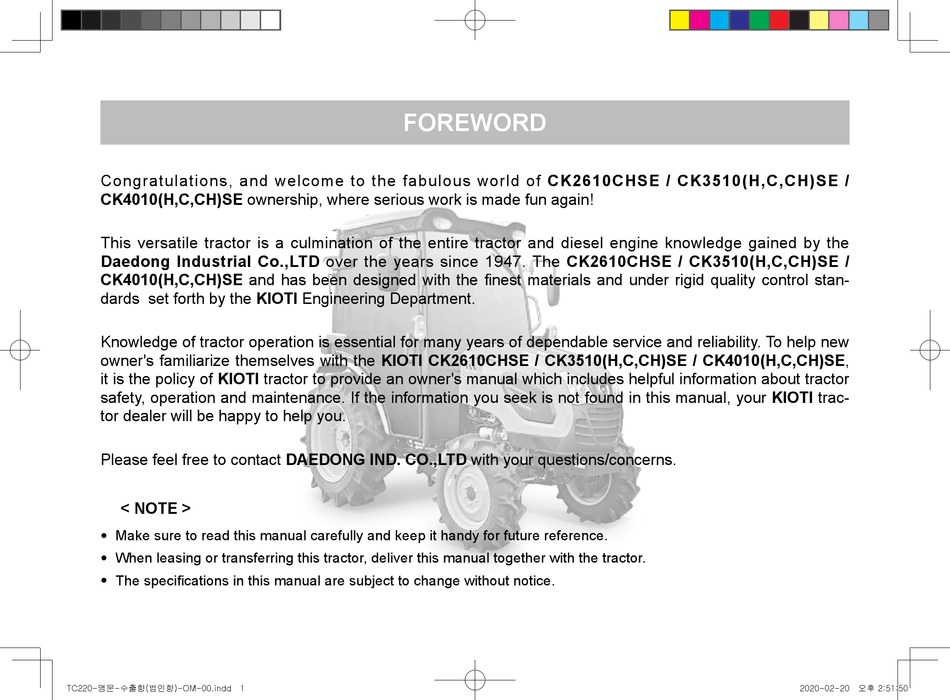

Congratulations, and welcome to the fabulous world of CK2610CHSE / CK3510(H,C,CH)SE /
CK4010(H,C,CH)SE ownership, where serious work is made fun again!
This versatile tractor is a culmination of the entire tractor and diesel engine knowledge gained by the
Daedong Industrial Co.,LTD over the years since 1947. The CK2610CHSE / CK3510(H,C,CH)SE /
CK4010(H,C,CH)SE and has been designed with the finest materials and under rigid quality control stan-
dards set forth by the KIOTI Engineering Department.
Knowledge of tractor operation is essential for many years of dependable service and reliability. To help new
owner's familiarize themselves with the KIOTI CK2610CHSE / CK3510(H,C,CH)SE / CK4010(H,C,CH)SE,
it is the policy of KIOTI tractor to provide an owner's manual which includes helpful information about tractor
safety, operation and maintenance. If the information you seek is not found in this manual, your KIOTI trac-
tor dealer will be happy to help you.
Please feel free to contact DAEDONG IND. CO.,LTD with your questions/concerns.
< NOTE >
Make sure to read this manual carefully and keep it handy for future reference.
When leasing or transferring this tractor, deliver this manual together with the tractor.
The specifications in this manual are subject to change without notice.
TC220-영문-수출향(법인향)-OM-00.indd 1
FOREWORD
2020-02-20 오후 2:51:50

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CK2610CHSE and is the answer not in the manual?

Questions and answers

Levi A. Martinez
April 14, 2025

i own a 2021 ck4010se and it is giving me some codes on hours instrument it went to lymph mode and shows a code 8194 F25 4097 f25 9263 f28

0

Subscribe to Our Youtube Channel

Related Manuals for Daedong CK2610CHSE

Summary of Contents for Daedong CK2610CHSE

  • Page 1 This versatile tractor is a culmination of the entire tractor and diesel engine knowledge gained by the Daedong Industrial Co.,LTD over the years since 1947. The CK2610CHSE / CK3510(H,C,CH)SE / CK4010(H,C,CH)SE and has been designed with the finest materials and under rigid quality control stan- dards set forth by the KIOTI Engineering Department.
  • Page 2 ISO 3600 EU STANDARDS This manual was compiled in compliance with the ISO 3600, standards and the instructions contained here comply with the requirements of the Machinery Directive 2010/52/EU in force in the European Community. For tractors sold or used outside the European Community, local laws will prevail.
  • Page 3 TABLE OF CONTENTS FOR SAFE OPERATION ......... BEFORE OPERATION ........SPECIFICATIONS ..........FUNCTION DESCRIPTION AND OPERATING TIPS ..SECTION OPERATION ............ 3-POINT HITCH IMPLEMENT AND LOADER OPERATION .. MAINTENANCE ..........STORAGE AND DISPOSAL ......TROUBLESHOOTING ........INDEX............... TC220-영문-수출향(법인향)-OM-00.indd 3 2020-02-20 오후 2:51:51...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS FOR SAFE OPERATION ........1-1 BEFORE OPERATION ........2-1 PRECAUTIONS BEFORE OPERATION ....1-2 vEHICLE IDENTIFICATION NUMBER ..... 2-2 GEnEral PrECaUTiOnS ..........1-2 PrODUCTiOn SErial nUMbEr ........2-2 riSK OF OvErTUrninG ..........1-6 EnGinE SErial nUMbEr ..........2-2 TranSMiSSiOn nUMbEr ..........2-3 PRECAUTIONS DURING OPERATION ....
  • Page 5 TABLE OF CONTENTS DRIvING SPEED TABLE ........3-12 PTO SPEED ..............4-15 FUEl GaUGE ..............4-15 IMPLEMENT LIMITATIONS ........3-14 EnGinE COOlanT TEMPEraTUrE GaUGE ..... 4-16 WaTEr-in-FUEl WarninG laMP ......4-17 STANDARD IMPLEMENT DIMENSIONS ....3-14 TUrn SiGnal laMP ............ 4-17 FUNCTION DESCRIPTION AND OPERATING DPF rEGEnEraTiOn WarninG laMP (CK3510/ TIPS ..............4-1...
  • Page 6 TABLE OF CONTENTS STEErinG WhEEl aDjUSTMEnT ......4-28 REaR WINDOW ............4-41 ClUTCh PEDal ............4-29 WORkINg lIghT ............4-42 braKE PEDal .............. 4-29 WIPER ................4-42 ParKinG braKE ............4-30 CD PlayEr / raDiO (OPTiOnal) ....... 4-43 aCCElERaTOR PEDal ..........4-30 aNTENNa ..............
  • Page 7 TABLE OF CONTENTS OPERATING THE ENGINE ........5-3 3-POINT HITCH IMPLEMENT AND LOADER OPERATION ............6-1 STaRTINg ENgINE ............5-3 STOPPINg ENgINE ............5-7 REMOvAL AND INSTALLATION OF 3-POINT HITCH IMPLEMENT (INCLUDING CONNEC- WarMinG UP ..............5-8 TION OF UNIvERSAL jOINT) ......6-2 jUMP STarTinG ............
  • Page 8 TABLE OF CONTENTS MAINTENANCE ...........7-1 ChECKinG WhEEl bOlT/nUT TOrqUE (q) ..... 7-23 aDjUSTinG ClUTCh PEDal (r) ........ 7-23 MaINTENaNCE ChECk lIST ........7-3 FUEl FilTEr (S) ............7-24 DaIlY ChECk ITEM ............7-3 ClEaninG anD rEPlaCinG air ClEanEr FilTEr MainTEnanCE SChEDUlE CharT ......7-4 (T) ................
  • Page 9 TABLE OF CONTENTS ChECkINg aND REPlaCINg WIPER(aM) ....7-40 bODy FUSE (an) ............7-42 Main FUSE (aP) ............7-45 rEPlaCinG bUlb (aq) ..........7-46 STORAGE AND DISPOSAL ........8-1 TRACTOR STORAGE ..........8-2 DaIlY STORagE ............8-2 lONg-TERM STORagE ..........8-2 USinG TraCTOr aFTEr lOnGTErM STOraGE ..
  • Page 10 SAFETy AND vEHICLE DAMAGE WARNING This manual includes information titled as WARNING, CAUTION, IMPORTANT and NOTE. These titles indicate the following: This indicates that a condition may result in harm, serious injury or death to you or other persons if the warning is not heeded.
  • Page 11 UNIvERSAL SyMBOLS various universal symbols have been used on the instruments and controls of your KIOTI tractor. below is a list of the universal symbols and their meanings. low Fuel Warning light qT lamp high Temperature Coolant Temperature Preheat low Temperature Warning light Water-in-Fuel Warning Parking brake...
  • Page 12 TC220-영문-수출향(법인향)-OM-00.indd 12 2020-02-20 오후 2:51:53...
  • Page 13 FOR SAFE OPERATION PREcAuTIONS bEFORE OPERATION ...... 1-2 General precautions ............1-2 risk of overturninG ..............1-6 PREcAuTIONS duRINg OPERATION ....... 1-9 When drivinG the tractor ..........1-13 When parkinG the tractor ..........1-15 When operatinG the p.t.o ............1-15 When usinG the 3-point hitch ...........1-17 SAFETy PREcAuTIONS duRINg SERvIcINg ..

  • Page 14: Precautions Before Operation

    ck3510(h,c,ch)se / ck4010(h,c,ch)se PREcAuTIONS bEFORE OPERATION gENERAl PREcAuTIONS a careful operator is the best opera- tor. most accidents can be avoided safety helmet by observing certain precautions. to help prevent accidents, use these fit clothes safety precautions, and pay attention to the job at hand.
  • Page 15 for safe operation this tractor should be operated, ser- vice and repaired by a well-trained and skilled technician who is also aware of accompanying danger. it is necessary to follow any applicable accident prevention practices, general health and safety standards and traffic regulations.
  • Page 16 ck3510(h,c,ch)se / ck4010(h,c,ch)se t66o103a t66o104a t66o105a 9. never operate this tractor or 12. never start the engine while 16. all persons using the tractor any other agricultural equipment standing on the ground. should have knowledge of its while under the influence of alco- proper operation and should read 13.
  • Page 17 for safe operation 20. for your safety ROPS with a seat belt is recommended for all applications. NOTE • always use seat belt when the tractor is equipped with a ROPS and cAb. never use the seat belt when tractor is not equipped with a ROPS.

  • Page 18: Risk Of Overturning

    ck3510(h,c,ch)se / ck4010(h,c,ch)se RISK OF OvERTuRNINg ImPORTANT • The safe working practices listed hereunder concerns only a few cases of overturn- ing risk. • The list is therefore NOT com- prehensive of all possible cases. t55o116a tG2o103a 22. this cabin is not certified for for your safety, tractors must be chemical proof, never operate equipped with original safety belts.
  • Page 19 for safe operation • reduce your speed before making wide turns. do not let the tractor jump or bounce on rough terrains. You could lose control. • don't pull a load too heavy for your tractor. it could run away on the down slope or the tractor could jack-knife around a towed load.
  • Page 20 ck3510(h,c,ch)se / ck4010(h,c,ch)se tG2o107a tG2o108a • if you need cross a steep slope, • When driving across a slope with do not steer uphill, but slow down mounted implements, keep such and take a wide turn. always drive implements on the uphill side. do straight up or down a slope, never not raise implements.

  • Page 21: Precautions During Operation

    for safe operation PREcAuTIONS duRINg OPERATION tG2o109a h11o109a t66o108a 1. enter or leave the tractor leftward 2. avoid accidental contact with gear • avoid crossing steep slopes if pos- griping hand rail on a fender. shift levers while the engine is run- sible.
  • Page 22 ck3510(h,c,ch)se / ck4010(h,c,ch)se td2o110a t66o109a t66o110a (1) height control hitch (2) towing hook 3. do not park your tractor on a steep 4. do not operate your tractor in 5. make sure that all pressure lines incline, and remember to shut off an enclosed building without the are tight before starting the tractor.
  • Page 23 for safe operation 11. a safety chain will help control drawn equipment should it be accidentally separated from the draw-bar while transporting. using the proper adaptor parts, attach the chain to the tractor draw-bar support or other specified anchor locations. provide only enough slack in the chain to permit turn- ing.
  • Page 24 ck3510(h,c,ch)se / ck4010(h,c,ch)se 15. do not leave implements and at- tachments in the raised position when the vehicle is stopped or unattended. 16. When using implements or at- tachments with your tractor you should first read their respective owner's manual. You should al- ways keep their safe operation procedures in mind.

  • Page 25: When Driving The Tractor

    for safe operation whEN dRIvINg ThE TRAcTOR t66o114a t66o115a te1o481a (1) Brake pedal (l) (2) Brake pedal (r) (3) Brake lock 19. driving forward out of a ditch or 21. When working in groups, always (a) lock (B) unlock up steep inclines can cause the let the others know what you are tractor to tip over backwards.
  • Page 26 ck3510(h,c,ch)se / ck4010(h,c,ch)se 4. Observe all local traffic and safe- ty regulations. 5. turn the headlights on. dim them when meeting another ve- hicle. 6. drive at speeds that allow you to maintain control at all times. 7. do not apply the differential lock while traveling at road speeds.

  • Page 27: When Parking The Tractor

    for safe operation whEN PARKINg ThE TRAcTOR whEN OPERATINg ThE P.T.O t66o120a h23o121a m55o107B (1) low speed lamp (1) p.t.o shaft cover (2) p.t.o shaft cap 11. When driving the tractor after 1. disengage the p.t.o, lower all 1. make sure the tractor is completely sunset, be sure to turn on the low implements, place all control le- stopped, gears are in neutral and...
  • Page 28 ck3510(h,c,ch)se / ck4010(h,c,ch)se 3. Before installing or using p.t.o wARNINg driven equipment, read the man- Ensure that implements and • ufacturer's manual and review the attachments are properly in- safety labels attached to the equip- stalled and that the tractor and ment.

  • Page 29: When Using The 3-Point Hitch

    for safe operation SAFETy PREcAuTIONS duRINg SERvIcINg whEN uSINg ThE -POINT hITch t66o124a t66o125a te1o4c1a (1) 3-point hitch lowering speed knob (a) fast (B) sloW 1. use the 3-point hitch only with in order to service your tractor you 2. allow the tractor time to cool off equipment designed for 3-point must park it on a flat level surface, set before servicing any part that may...
  • Page 30 ck3510(h,c,ch)se / ck4010(h,c,ch)se t66o126a m55o114a m55o115a 6. do not remove the radiator cap 7. if the tractor must be lifted for 10. Use floor jack of suitable capac- while the coolant is hot. When servicing, take it to a suitably ity and apply them at the centre cool, slowly rotate the cap to the equipped workshop.
  • Page 31 for safe operation NOTE • apply the jack lift to the lifting points according to the type of operation and follow the safety procedures given before. t66o127a t66o128a 12. When working with your trac- 14. tire mounting should be done by tors electrical components you qualified professionals, with the must first disconnect the battery...
  • Page 32 ck3510(h,c,ch)se / ck4010(h,c,ch)se Before pressurizing to the hy- draulic system, make sure that all connections are tight and that all line, pipes and hoses are free of damage. t66o129a t66o130a (1) cardboard (2) hydraulic line (3) magnifying Glass 17. make sure that wheel bolts have 19.

  • Page 33: Safety Precautions When Using The Loader

    for safe operation SAFETy PREcAuTIONS whEN uSINg ThE lOAdER h11o103a t66o131a h11o102a 20. keep environmental pollution in 1. never let anyone get in the loader 2. do not stand under the lifted load- mind. When replacing coolant or and use the loader as a work- er or get close to it.
  • Page 34 ck3510(h,c,ch)se / ck4010(h,c,ch)se h11o104a h11o105a h11o106a 3. the loader can be turned over if a 4. never carry a big object with the 5. When attaching or detaching the draw-bar is improperly loaded. loader unless the correct imple- loader, fit parts which are con- ment is attached.
  • Page 35 for safe operation c56o185a h11o107a h11o108a h11o107a ImPORTANT 6. do not allow loader arms or attach- 7. keep bystanders away. no riders. • ROPS (Roll Over Protective ment to contact electrical power Structure), sun canopy are not lines. electrocution will cause seri- a FOPS (Falling Object Protec- ous injury or death.

  • Page 36: Implements And Attachments

    ck3510(h,c,ch)se / ck4010(h,c,ch)se ImPlEmENTS ANd ATTAchmENTS ImPORTANT wARNINg • • use exclusively front loader Keep the loader's operation approved by the tractor's man- manual together with the trac- ufacturer, with cE mark and tor's manual, always at hand parallelogram type. in the storage compartment of •...
  • Page 37 for safe operation • three-point hitch and side mounted swinging and shaking during trans- to reduce risks, the following precau- implements make a much larger port and work that could jeopardize tions should be used. arc when turning than towed equip- the stability of the tractor implement - only use loader equipped with a ment.

  • Page 38: Cleaning The Tractor

    ck3510(h,c,ch)se / ck4010(h,c,ch)se clEANINg ThE TRAcTOR • keep work surfaces and engine • check for correct coupling between compartments clean. tow hook and trailer. see the tow- ing attachments section. • Before cleaning the machine, al- w a ys l o w e r i mpl em ents to the •...

  • Page 39: Safety Decal Maintenance

    for safe operation SAFETy dEcAl mAINTENANcE dEcAl mOuNTINg lOcATION [cAbIN] t22o101d TC220-BOBCAT-OM-01.indd 27 2020-02-20 오후 2:49:15...
  • Page 40 ck3510(h,c,ch)se / ck4010(h,c,ch)se t22o102d TC220-BOBCAT-OM-01.indd 28 2020-02-20 오후 2:49:15...
  • Page 41 for safe operation [ROPS] t22o103B TC220-BOBCAT-OM-01.indd 29 2020-02-20 오후 2:49:16...
  • Page 42 ck3510(h,c,ch)se / ck4010(h,c,ch)se t22o104a TC220-BOBCAT-OM-01.indd 30 2020-02-20 오후 2:49:16...

  • Page 43: Description

    for safe operation dEScRIPTION (5) part no.: t2555-52141 (1) part no.: t2555-52611 (2) part no.: t4938-53551 WARNING Avoid flames and sparks. Before starting and operating STOP engine while refueling Know the operating and safety instructions in the operators manual and on the tractor. Clear the area of bystanders.
  • Page 44 ck3510(h,c,ch)se / ck4010(h,c,ch)se (6) part no.: t4625-52351 (7) part no.: t2615-55112 (9) part no.: f6800-29112 WARNING This tractor is equipped with a DPF(Diesel Particulate Filter). Use the CJ-4 grade Engine oil. Otherwise, cause DPF failure. Do NOT run an engine 1.

  • Page 45: Cautions For Decal Maintenance

    for safe operation cAuTIONS FOR dEcAl mAIN- TENANcE (10) part no.: t4555-52353 safety decals are attached to the tractor for safe operation. make sure to follow the instruction on the decals D A N G E R as well as the following instruction: Improper operating of tractor can rollover Lower the ROPS for low clearance ONLY.
  • Page 46 ck3510(h,c,ch)se / ck4010(h,c,ch)se ImPORTANT • If a decal is damaged or lost, contact your local dealer im- mediately to install a new de- cal. • make sure to attach the decal to the correct position cleanly without bubbles after cleaning its mounting surface.

  • Page 47: Before Operation

    Before operation Vehicle identification numBer ......2-2 Production serial number ..........2-2 engine serial number ............2-2 transmission number ............2-3 essential replacement parts ......2-4 oils and fluids ................2-4 filters ..................2-4 belts and rubber Parts ............2-5 other comPonents ..............2-5 TC220-영문-수출향(법인향)-OM-02.indd 1 2020-12-10 오전 10:44:10...

  • Page 48: Vehicle Identification Number

    / cK3510(h,c,ch)se / cK4010(h,c,ch)se Vehicle identification numBer production serial numBer engine serial numBer [ck3510 / ck4010] [ck2610] T21O201A T21O202A m56O205A (1) Production serial number (1) engine serial number (1) engine serial number this number is to identify the vehicle,...

  • Page 49: Transmission Number

    before oPeration transmission numBer When in need of parts, be prepared to give your dealer both the tractor and engine serial numbers. Fill in the following fields so that the production and engine serial num- bers can be provided immediately when service is needed: tractor serial no: TC2O203A...

  • Page 50: Essential Replacement Parts

    Fuel filter 4-1 eh35-0011a (cK3510 / cK4010) coolant fresh clean water with ethylene glycol (50:50) 0.89 (3.4)(**) Fuel filter (engine only) 4-2 t4682-43172 (cK2610) (*) - cK2610chse: 1.53 (5.8) / (**) - cK2610chse: 0.73 (2.8) ※ TC220-영문-수출향(법인향)-OM-02.indd 4 2020-12-10 오전 10:44:11...

  • Page 51: Belts And Rubber Parts

    before oPeration Belts and ruBBer parts other components H11O206A H11O207A belts, hoses and boots, which are the battery condition is very impor- made of rubber, get weakened and tant for engine start performance cracked as they age. if these parts especially in winter.
  • Page 52 memo memo TC220-영문-수출향(법인향)-OM-02.indd 6 2020-12-10 오전 10:44:12...

  • Page 53: Specifications

    SpecificationS SpecificationS............3-2 ExtErnal dimEnsions .............3-2 major spEcifications .............3-4 noisE lEvEls as pErcEivEd by thE opErator ....3-10 vibration lEvEls of thE tractor Exposition to vibrations ................3-11 Driving.SpeeD.table..........3-12 implement.limitationS......... 3-14 standard implEmEnt dimEnsions ........3-14 TC220-영문-수출향(법인향)-OM-03.indd 1 2020-01-23 오전...

  • Page 54: External Dimensions

    / cK3510(h,c,ch)sE / cK4010(h,c,ch)sE SpecificationS external.DimenSionS in. (mm) cK2610cHSe item cK3510(c,cHSe) cK4010(c,cHSe) 1. overall length (a1) 128.3 (3,260) 2. overall length (a2) 120.9 (3,070) 3. overall width (b) 54.5 (1,385) 4. overall height (c) 91.1 (2,315) 5. Wheel base (d) 65.7 (1,670)
  • Page 55 spEcifications in. (mm) item cK3510(H)Se./.cK4010(H)Se 1. overall length (a1) 128.3 (3,260) 2. overall length (a2) 120.9 (3,070) 3. overall width (b) 54.5 (1,385) 4. overall height (c) 92.9 (2,360) 5. Wheel base (d) 65.7 (1,670) 6. tread (E1) 44.3 (1,126) 7.

  • Page 56: Major Specifications

    / cK3510(h,c,ch)sE / cK4010(h,c,ch)sE major.SpecificationS [manUal] model item cK3510Se cK4010Se cK3510cSe cK4010cSe model 3h-tm4b no. of cylinders total displacement cc (cu) 1,826 (111.4) Engine bore and stroke in. (mm) 3.4 x 4.03 (87 × 102.4) Engine gross power hp (kW) 34.9 (26)
  • Page 57 spEcifications model item cK3510Se cK4010Se cK3510cSe cK4010cSe forward 1.03 ~ 15.02 (1.65 ~ 24.18) Ground speed (tire for agri- cultural) mph (Km/h) reverse 1.00 ~ 14.63 (1.61 ~ 23.56) driving 4Wd (front Wheel drive) manual system brake Wet disc type differential lock rear standard front...
  • Page 58 / cK3510(h,c,ch)sE / cK4010(h,c,ch)sE model item cK3510Se cK4010Se cK3510cSe cK4010cSe type independent rear pto shaft 1 - 3/8" 6 splines speed min. turning radius in.(mm) 96.46 (2,450) (With one rear wheel braked) Weight (with rops/cabin) lbs.(kg.f) 1,318 (2,906) 1,534 (3,382) max.
  • Page 59 [HSt] model item cK2610cHSe cK3510HSe cK4010HSe cK3510cHSe cK4010cHSe model 3a165lWh-U1 3h-th4b no. of cylinders total displacement cc (cu) 1,647 (100.5) 1,826 (111.4) Engine 3.4 x 3.6 bore and stroke in. (mm) 3.4 x 4.03 (87 × 102.4) (87 x 92.4)
  • Page 60 / cK3510(h,c,ch)sE / cK4010(h,c,ch)sE model item cK2610cHSe cK3510HSe cK4010HSe cK3510cHSe cK4010cHSe Ground speed forward 0 ~ 17.45 (0 ~ 10.84) 0 ~ 15.73 (0 ~ 25.32) (tire for agricultural) reverse 0 ~ 12.22 (0 ~ 7.59) 0 ~ 11.01 (0 ~ 17.72)
  • Page 61 1 - 3/8" 6 splines speed min. turning radius (With one rear wheel in.(mm) 96.46 (2,450) braked) Weight (with rops/cabin) lbs.(kg.f) 1,541 (3,397) 1,318 (2,906) 1,534 (3,382) max.

  • Page 62: Noise.levels.as.perceived.by.the.operator

    / cK3510(h,c,ch)sE / cK4010(h,c,ch)sE noiSe.levelS.aS.perceiveD.by.tHe.operator the following tables give the noise level values, measured from the driver’s seat in instantaneous conditions in compli- ance with standards no.1322/2014(rvcr) annexxiii and when driving by in compliance with standard 2015/96(rEp- pr) annexiii.

  • Page 63: Vibration.levels.of.the.tractor.exposition.to.vibrations

    spEcifications vibration.levelS.of.tHe.tractor.expoSition.to.vibrationS Warning • the.vibration.level.transmitted.to.the.body.as.a.whole.depend.on.different.parameters,.some.of.them.relat- ing to the machine, others to the terrain and many specific for the operator. The prevailing parameters are the.type.of.terrain.or.work.surface.and.the.ground.speed. • vibrations.cause.discomfort.for.the.operator.and.in.some.cases.put.his/her.health.and.safety.at.risk.. • make.sure.that.the.tractor.is.in.good.condition.and.that.all.routine.servicing.is.correctly.and.regularly.car- ried.out. • check.tire.pressure.and.the.steering.and.braking.systems. • check.that.the.operator's.seat.and.adjustment.systems.are.in.good.condition,.then.adjust.the.seat.to.the. operator's.weight.and.size. important • More information on Whole Body Vibration (WBV) on agricultural tractors can be found in more specific publications.and.the.relative.risks.can.be.taken.into.account.following.the.laws.of.the.country..in.order.to.

  • Page 64: Driving.speed.table

    / cK3510(h,c,ch)sE / cK4010(h,c,ch)sE Driving.SpeeD.table [manUal] mph (Km/h) tire.Size:.11.2-24.4pr.(agricultural.tire) 1.00 (1.62) 0.98 (1.58) 1.29 (2.08) 1.26 (2.02) speed speed 1.63 (2.63) 1.59 (2.56) 2.05 (3.30) 2.00 (3.22) 3.18 (5.11) 3.09 (4.98) 4.08 (6.56) 3.97 (6.39) medium medium speed speed 5.16 (8.30)
  • Page 65 5.11 (8.22) high speed 14.88 (23.94) 10.41 (16.76) ※ at rated engine speed (2,600 rpm) ※ these speed values are based on the technical design and can be different from the actual values. cK2610cHSe tire.size.11.2-24.(ag) range.shift forward reverse low speed 2.50 (4.03)

  • Page 66: Implement Limitations

    / cK3510(h,c,ch)sE / cK4010(h,c,ch)sE implement.limitationS StanDarD.implement.DimenSionS this Kioti tractor has been thoroughly tested for proper performance with implements sold or approved by Kioti. Use with implements which are not sold or approved by Kioti and which exceed the maximum specifications listed below, or which are otherwise unfit for use with this Kioti tractor may result in malfunctions or failures to the tractor, damage to other property and injury to the operator or others.
  • Page 67 84.0 (2,133) note. : this is a sample of attachments commonly used. before purchasing or using any attachment on a DaeDong product, please review the specifications to determine if it is a compatible product. Damages or failures due to improper use of compatibility issue will not be covered by warranty.
  • Page 68 mEmo memo TC220-영문-수출향(법인향)-OM-03.indd 16 2020-01-23 오전 9:13:03...

  • Page 69: Function Description And Operating Tips

    Function description and operating tips exterior view ......... 4-3 pto indicator ........... 4-20 engine oil pressure warning laMp ... 4-20 switches ........... 4-5 battery charge warning laMp..4-21 Mounting location ........4-5 parKing braKe warning laMp ..... 4-22 Key switch ........... 4-7 preheat indicator ........
  • Page 70 Function description and operating tips position control lever ....... 4-35 7-pin socKet (optional) ......4-53 lifting arM (lower linK) speed con- tires, wheels and ballast ..4-54 trol Knob ..........4-36 inflation pressure ....... 4-55 joysticK lever ......... 4-36 tread ............4-56 double acting lever ......

  • Page 71: Exterior View

    function description and operating tips exterior view [cabin] t22O418a (1) work lamp (5) door handle (9) top link (13) check link (2) wiper (6) step (10) lift rod (14) brake lamp (3) rearview Mirror (7) bonnet (11) lower link (4) turn signal lamp (8) head lamp (12) drawbar TC220-영문-수출향(법인향)-OM-04.indd 3...
  • Page 72 / cK3510(h,c,ch)se / cK4010(h,c,ch)se [rops] 8 10 11 8 10 11 t22O482a (1) seat (5) headlamp (9) top link (13) lower link (2) steering wheel (6) rops (10) oil dipstick (14) check link (3) Fuel filler port (7) turn signal lamp...

  • Page 73: Switches

    function description and operating tips switches mounting location (1) combination switch manual (2) hazard warning flasher switch (3) Key switch (4) pto auto/manual switch (5) dpf regeneration switch t22O410a TC220-영문-수출향(법인향)-OM-04.indd 5 2020-12-10 오전 10:45:31...
  • Page 74 / cK3510(h,c,ch)se / cK4010(h,c,ch)se (1) combination switch (2) hazard warning flasher switch (3) Key switch (4) speed cruise control switch (5) dpf regeneration switch (6) pto auto/manual switch t22O411b TC220-영문-수출향(법인향)-OM-04.indd 6 2020-12-10 오전 10:45:31...

  • Page 75: Key Switch

    function description and operating tips Key switch acc (c) start (e)   when the key switch is turned to the the position "e" indicates "start." in position "c," the flasher lights and order to start the engine, depress the turn signal lights can be operated.

  • Page 76: Combination Switch

    / cK3510(h,c,ch)se / cK4010(h,c,ch)se combination switch headlamp switch caution • stop the engine immediately if the oil pressure warning lamp does not go off after the engine is started. the engine may be severely damaged. • if the battery charge warn-...
  • Page 77 function description and operating tips turn signal light switch horn switch warning • driving with high beam head- l a m p o n d i s t u r b s t h e a p - proaching vehicle’s visibility for safe driving.

  • Page 78: Hazard Warning Flasher Switch

    / cK3510(h,c,ch)se / cK4010(h,c,ch)se hazard warning Flasher switch speed cruise control switch (hst) caution • if the hazard lamp is turned on for an extended period of time while the engine is stopped, the battery can be discharged. therefore, use them only in emergency.

  • Page 79: Pto Switch (On / Off)

    function description and operating tips pto switch (on / oFF) warning caution PRESSING PRESSING • never use the cruise control to avoid personal injury and ac- function on a public or bumpy cident: • road or during turning. b e f o r e d i s a s s e m b l i n g o r •...

  • Page 80: Pto Selection Switch

    / cK3510(h,c,ch)se / cK4010(h,c,ch)se pto selection switch dpF regeneration switch 2. pto manual operation when the pto selection switch is set in the manual position, the pto is kept engaged regardless of the lifting height of the lift arm (implement).
  • Page 81 function description and operating tips 5. run the engine for 3 to 4 minutes. caution caution then, press the activation portion to protect the catalyst filter, to avoid injury: of the regeneration switch for ap- • keep the followings: never clean the tractor body prox.

  • Page 82: Instrument Cluster

    / cK3510(h,c,ch)se / cK4010(h,c,ch)se instrument cluster instrument cluster Features symbols on the instrument panel come on when the key switch is turned to the “on” position. (1) fuel gauge 2 3 4 2 3 4 6 7 8 6 7 8...

  • Page 83: Tachometer/Hourmeter

    function description and operating tips tachometer/hourmeter pto speed Fuel gauge tC2O416C tC2O417d tC2O418b (1) tachometer (2) hourmeter (1) 540 rpm (1) fuel gauge e: empty f: full the tachometer indicates the engine it indicates the engine rpm that can this gauge indicates the remain- rpm.

  • Page 84: Engine Coolant Temperature Gauge

    / cK3510(h,c,ch)se / cK4010(h,c,ch)se engine coolant temperature gauge warning caution • • add fuel immediately when make sure to control the work the fuel level warning lamp on load so that the needle is not the instrument cluster comes in the red zone.

  • Page 85: Dpf Regeneration Warning Lamp (Ck3510/Ck4010 Only)

    function description and operating tips water-in-Fuel warning lamp turn signal lamp dpF regeneration warning lamp (cK3510/cK4010 only) tC2O430C tC2O433C tC2O431C when a certain amount of water (ap- operating the turn signal lamp switch if carbon is accumulated in the ex- prox.

  • Page 86: Dpf Regeneration Underway Lamp (Ck3510/Ck4010 Only)

    / cK3510(h,c,ch)se / cK4010(h,c,ch)se dpF regeneration underway lamp (cK3510/cK4010 only) dpF regeneration warning lamp warning • do not touch or come near the dpF part during the regenera- tion process as its surround- ing area is hot. if not, you can get burnt.
  • Page 87 function description and operating tips warning in the warning level 3 (cel lamp • on), both manual and auto- flashed matic regeneration processes cannot be performed. • when the dpF warning lamp comes on, make sure to perform the manual regeneration as the active regeneration cannot be performed.

  • Page 88: Pto Indicator

    / cK3510(h,c,ch)se / cK4010(h,c,ch)se pto indicator engine oil pressure warning lamp warning other general operation can- • not be performed during the manual regeneration process. during regeneration, the en- gine speed is maintained - 1st: before mode: 30 ~ 300 sec.

  • Page 89: Battery Charge Warning Lamp

    function description and operating tips battery charge warning lamp caution caution • • if the oil level is below the if this warning lamp comes specified range, the engine on while driving, the charging can stall. system, such as the alternator, •...

  • Page 90: Parking Brake Warning Lamp

    / cK3510(h,c,ch)se / cK4010(h,c,ch)se parKing braKe warning preheat indicator linKed pedal lamp (iF lamp equipped) tC2O427C tC2O428b tC2O491a when the parking brake is applied, this indicates the operating condition the lamp comes on when the syn- the lamp comes on.

  • Page 91: Hst Cruise Lamp (If Equipped)

    function description and operating tips hst cruise lamp (iF equipped) tC2O466a to activate the cruise control function, set the desired speed and press the switch to the “on” position. in this case, the hst cruise lamp comes on the cluster meter. depress the hst pedal to increase the driving speed in order to accelerate at a constant speed.

  • Page 92: Error Indicator

    / cK3510(h,c,ch)se / cK4010(h,c,ch)se error indicator note • some error codes may not dis- played depending on the model. ecu error code (cK3510/cK4010 only) LINKED CRUISE PEDAL tC2O490b (1) display you can see the error code below on the lcd window for hour meter. when you found these on the lcd, please contact with Kioti dealer.

  • Page 93: Controls

    function description and operating tips controls (1) hand throttle lever manual (2) shuttle lever (3) clutch pedal (4) brake pedal (lh) (5) brake pedal (rh) (6) accelerator pedal (7) position control lever (8) Main shift lever (9) range shift lever (10) joystick lever (11) tilt lever (12) parking brake pedal...
  • Page 94 / cK3510(h,c,ch)se / cK4010(h,c,ch)se (1) hand throttle lever (2) parking brake lever (3) brake pedal (4) range shift lever (5) position control lever (6) pto on/off switch (7) hst reverse driving pedal (8) hst forward driving pedal (9) joystick lever...

  • Page 95: Main Shift Lever

    function description and operating tips main shiFt lever range shiFt lever high, mid and low speeds can be se- manual manual lected by the range shift lever. Make sure to shift the range shift lever after the tractor is completely stopped by depressing the clutch pedal.

  • Page 96: Shuttle Shift Lever

    / cK3510(h,c,ch)se / cK4010(h,c,ch)se shuttle shiFt lever steering wheel adjustment caution • make sure to operate the shut- tle shift lever only while the ve- hicle is stationary. otherwise, the vehicle may turn abruptly, resulting in a personal injury and transmission damage.

  • Page 97: Clutch Pedal

    function description and operating tips clutch pedal braKe pedal 1. Make sure to latch the left and manual right brake pedals as shown in the figure while driving on a road. The tractor can roll over if depressing only one brake pedal at a high speed.

  • Page 98: Parking Brake

    / cK3510(h,c,ch)se / cK4010(h,c,ch)se parKing braKe accelerator pedal warning to avoid possible injury, death or loss of property from a ma- chine runaway: • with the engine off, the tractor may move unexpectedly re- gardless of the gear shift posi- tion.

  • Page 99: Hand Throttle Lever

    function description and operating tips hand throttle lever linKed pedal lever (For hst models) caution • do not use the hand throttle lever while driving on a public road. otherwise, it can lead to an accident as it becomes hard to decelerate the tractor rapidly.

  • Page 100: Front Wheel Drive Lever

    / cK3510(h,c,ch)se / cK4010(h,c,ch)se Front wheel drive lever be sure to full stop the tractor before caution engaging or disengaging the 4wd. in abnormal driving condition, such as rapid acceleration or caution deceleration, is occurred by to avoid accidents: operating the hst pedal, not by •...

  • Page 101: Differential Lock Pedal

    function description and operating tips diFFerential locK pedal the differential lock is to secure the manual caution differential system and keep the • the differential lock should be wheel rotation on both sides the engaged only while the driv- same in order to enhance the trac- ing clutch is engaged.

  • Page 102: Seat Adjustment

    / cK3510(h,c,ch)se / cK4010(h,c,ch)se seat adjustment seat sliding cushion strength adjustment warning • never leave the driver's seat while the engine running. • before leaving the seat, be sure to turn off any imple- ments which are equipped with rotating blades such as rotary tiller, rotary cutter, mid/ rear mower, snow blower, etc.

  • Page 103: Position Control Lever

    function description and operating tips position control lever seat belt warning • make sure that the seat belt is not twisted. it cannot work properly, leading to a danger- ous situation. • the seat belt should go around your body as low as possible, not your waist or abdomen.

  • Page 104: Lifting Arm (Lower Link) Speed Control Knob

    / cK3510(h,c,ch)se / cK4010(h,c,ch)se liFting arm (lower linK) joysticK lever speed control Knob the position control lever is used to adjust the height of implements on the 3-point hitch ends. the implement attached to the lifting arm can be lowered by pushing the lever while the implement is raised by pulling the lever.

  • Page 105: Double Acting Lever

    function description and operating tips double acting lever t22O478a (1) double acting lever this lever is used to control a auxil- iary hydraulic implement installed to rear. see the chapter 5, “how to drive” for the details. TC220-영문-수출향(법인향)-OM-04.indd 37 2020-12-10 오전 10:45:49...

  • Page 106: Cabin System

    / cK3510(h,c,ch)se / cK4010(h,c,ch)se cabin system interior devices (1) air outlet (2) speaker (3) air inlet (4) sun visor (5) heater/air conditioner switch (6) room lamp (7) inside rearview Mirror (8) cd player / radio t21O419a TC220-영문-수출향(법인향)-OM-04.indd 38 2020-12-10 오전 10:45:49...

  • Page 107: Exterior Devices

    function description and operating tips exterior devices 3. the cabin can be kept comfortable and pleasant by operating the air conditioner and heater. 4. the cabin structure is safe as it is verified by the rops (roll over protection structure) test. how- ever, make sure to fasten the seat belt for best the protection.

  • Page 108: Entrance

    / cK3510(h,c,ch)se / cK4010(h,c,ch)se entrance emergency hammer (only eu model) M55o4s4a t21O903a t21O421a (1) door handle (1) emergency hammer pull the handle forward to open the enter or leave the tractor through the emergency hammer is equipped for door.

  • Page 109: Unlocking The Door

    function description and operating tips unlocKing the door rear window warning • the rear window may not be opened due to an implement. make sure there is enough space to open the window to prevent damage and breakage by an implement. •...

  • Page 110: Working Light

    / cK3510(h,c,ch)se / cK4010(h,c,ch)se worKing light wiper to t u r n o n , p o s i t i o n t h e s w i t c h marked (front) to "on" the position. the key switch should be positioned to the "on"...

  • Page 111: Cd Player / Radio (Optional)

    function description and operating tips cd player / radio (optional) important • normal water can be used as the washer fluid, but it is recom- mended to use the washer fluid made exclusively for vehicles. especially, make sure to use seasonal washer fluid in winter.

  • Page 112: Antenna

    / cK3510(h,c,ch)se / cK4010(h,c,ch)se antenna indoor lamp caution • working with the volume of the stereo system excessively high can affect the driver's concentration, leading to pos- sible safety accidents. te1o465a t21O426a (1) antenna (1) indoor lamp check the contact and angle of the...

  • Page 113: Accessory (If Equipped)

    function description and operating tips power socKet s t e r e o / a u x s w i t c h & u s b charge accessory (iF equipped) inside rearview mirror t22o480a t22o479a t21O427a (1) inside rearview Mirror (1) power socket (1) stereo/aux switch (2) aux connection hole &...

  • Page 114: Sun Visor

    / cK3510(h,c,ch)se / cK4010(h,c,ch)se sun visor air recirculation and Fresh air mode cup holder and storage t21O429a t21O430a (1) sun visor (1) internal air inlet pull it down to block the sunlight from it is possible to recirculate internal air or draw fresh air by operating the air the front.

  • Page 115: Defogger Switch (If Equipped)

    function description and operating tips deFogger switch (iF equipped) tion of the switch to deactivate the de- warning fogger. (to prevent battery discharge) • this cabin is not designed for note spraying chemicals and can- not block polluted outside air •...
  • Page 116 / cK3510(h,c,ch)se / cK4010(h,c,ch)se caution • avoid using any sharp tool or abrasive cleaner on the rear glass. • when cleaning or working on the rear glass, be careful not to scratch or damage the heat- ed wires on the glass.

  • Page 117: Heater And Air Conditioner

    function description and operating tips heater and air conditioner warning • use the fresh air mode in nor- mal conditions and use the air recirculation mode only if necessary. continued opera- tion of the air recirculation mode can cause the inside to become stuffy, causing head- aches, drowsiness, or frost on the windows.
  • Page 118 / cK3510(h,c,ch)se / cK4010(h,c,ch)se Fan speed control dial air conditioner switch vent mode control dial t21O432a h11o493a t21O442a the fan speed for the heater and air press it to activate the air conditioner Air flows out from four left and right...
  • Page 119 function description and operating tips bi-level deFrost temperature control switch h11o498a t21O441a H11O497a Air flows out from four front and four Air flows out from four front vents to- the desired temperature can be set left and right vents when turning the ward the front glass when turning the by adjusting this dial.
  • Page 120 / cK3510(h,c,ch)se / cK4010(h,c,ch)se air conditioner maintenance warning caution Make sure to follow the instructions • • if you sleep with the air con- K e e p t h e w i n d o w s c l o s e d...

  • Page 121: 7-Pin Socket (Optional)

    function description and operating tips 7-pin socKet (optional) a soft brush and water carefully speciFications For a/c not to bend it. reFrigerant and lubricant 3. operation in summer season: compressor item refrigerant Make sure to check the tension of the a/c belt before using the a/c type r-134a ucon488...

  • Page 122: Tires, Wheels And Ballast

    / cK3510(h,c,ch)se / cK4010(h,c,ch)se tires, wheels and ballast color oF warning circuit wire • d o n o t u s e t i r e s l a r g e r o r turn signal (lh) yellow smaller than specified.

  • Page 123: Inflation Pressure

    Always maintain the proper tire inflation pressure. Make sure the tire pressure does not exceed the pressure recommended in the manual. cK2610chse / cK3510(h,c,ch)se / cK4010(h,c,ch)se item remarks tire size Inflation pressure front 7-16 / 6pr 2.2 kg/cm², 215 Kpa, 31 psi...

  • Page 124: Tread

    / cK3510(h,c,ch)se / cK4010(h,c,ch)se tread td2O457b (1) bolt (2) rim bolt (3) rim (4) disc t46w031a warning When working on a field where crops are linearly aligned, the tread should be • do not weld or apply heat to adjusted so that the tires do not cross over the crops.
  • Page 125 function description and operating tips in. (mm) standard tread dimension agricultural turf industrial position front 44.33 49.13 49.09 (1,126) (1,248) (1,247) rear 47.63 47.32 43.38 (1,210) (1,202) (1,102) 62.12 54.52 62.79 (1,578) (1,595) (1,385) tC2O454b TC220-영문-수출향(법인향)-OM-04.indd 57 2020-12-10 오전 10:45:58...

  • Page 126: Wheel Torque And Direction

    / cK3510(h,c,ch)se / cK4010(h,c,ch)se wheel torque and direction Front wheel installation Front tire specs and wheel r e a r w h e e l i n s ta l l at i o n pattern bolt/nut torque pattern...

  • Page 127: Additional Weight (Optional)

    function description and operating tips additional weight (optional) rear tire specs and wheel additional Front weight bolt/nut torque if the front tires are excessively load- tire size ed, it becomes hard to steer the trac- agricultural tor, the tires can be worn faster and the durability of the front axle can be 11.4-24 / 4pr deteriorated.
  • Page 128 / cK3510(h,c,ch)se / cK4010(h,c,ch)se components For additional Front weight max. load 26 kg × 6 pieces (343 lbs.) caution • additional weight might be needed for transporting heavy implements. • reduce the speed regardless of additional weight when driv-...
  • Page 129 function description and operating tips important • attach only required amount of weight. • unnecessary weight can result in poor braking performance, rapid wear of the brake discs, shortened axle life, and in- crease in fuel consumption. TC220-영문-수출향(법인향)-OM-04.indd 61 2020-12-10 오전 10:45:59...
  • Page 130 MeMo memo TC220-영문-수출향(법인향)-OM-04.indd 62 2020-12-10 오전 10:45:59...

  • Page 131: How To Drive

    HOW TO DRIvE PRE-OPERATION CHECK ........... 5-2 INITIAl OPERATION ............ 5-2 OPERATING THE ENGINE .......... 5-3 Starting engine ...............5-3 Stopping engine ...............5-7 WarMing Up .................5-8 JUMp Starting ................5-9 OPERATING THE TRACTOR ........5-10 HoW to drive ................5-10 HoW to Fold ropS ..............5-14 HoW to raiSe ropS to UprigHt poSition .......5-15 parking ..................5-16 tUrning ..................5-17...

  • Page 132: Pre-Operation Check

    / ck3510(H,c,cH)Se / ck4010(H,c,cH)Se PRE-OPERATION CHECK INITIAl OPERATION CHECK ITEms it is a good practice to know the con- • Walk around inspection. driving a new tractor at a high speed dition of your tractor before you start or under heavy load can affect its du- •...

  • Page 133: Operating The Engine

    HoW to drive OPERATING THE ENGINE sTARTING ENGINE mANUAl WARNING ImPORTANT To avoid accidents: safety start system is applied: • • be sure to read and under- start condition (HsT): Operator stand the warning and caution on the seat + Pushing brake decals on the tractor thor- pedal.
  • Page 134 / ck3510(H,c,cH)Se / ck4010(H,c,cH)Se 1. Make sure there is no obstacle mANUAl around the tractor. 2. Securely engage the parking brake and depress the brake pedal. ImPORTANT • make sure that the brake ped- als are fully depressed before...
  • Page 135 HoW to drive 5. depress the clutch pedal. (the en- mANUAl gine will not start unless the clutch pedal is depressed.) depress the brake pedal. (HSt model) ImPORTANT starting condition: • HsT: brake pedal depressed & PTO switch off t22O503A tC2O404d •...
  • Page 136 / ck3510(H,c,cH)Se / ck4010(H,c,cH)Se CHECKING WARNING lAmPs 1. if the oil pressure warning lamp (2) WARNING does not go off in 4 to 5 seconds • Never operate the start motor after the engine is properly started, for more than 10 consecu-...

  • Page 137: Stopping Engine

    HoW to drive sTOPPING ENGINE WARNING WARNING • • If driving the tractor for an ex- Never touch the muffler or hot tended period of time with the covers until they have cooled charge warning lamp ON, the down after running the engine battery can be discharged and or driving the tractor.

  • Page 138: Warming Up

    / ck3510(H,c,cH)Se / ck4010(H,c,cH)Se WARmING UP HOW TO WARm UP ENGINE it is recommended always to warm 1. Start the engine and run it at a low WARNING up the engine before driving in order speed and without a load for ap- •...

  • Page 139: Jump Starting

    HoW to drive JUmP sTARTING 2. check the length of the jump 7. Start the engine of the tractor cable and position another trac- with the discharged battery. tor near the tractor with the dis- 8. disconnect the black cable from charged battery.

  • Page 140: Operating The Tractor

    / ck3510(H,c,cH)Se / ck4010(H,c,cH)Se OPERATING THE TRACTOR HOW TO DRIvE WARNING • be sure to fasten your seat belt if the tractor is equipped with the ROPs or cabin. • The seat belt should go around your pelvis or as low as possi- ble, not your waist or abdomen.
  • Page 141 HoW to drive mANUAl td2o509a t22o511a tC2O450b (1) Brake pedals (lH/rH) (1) position control lever (1) Hand throttle lever (2) Brake pedal interlock latch (a) lifting : Slow : Fast (a) depress 3. Make sure that both brake pedals 4. pull the position control lever back- 5.
  • Page 142 / ck3510(H,c,cH)Se / ck4010(H,c,cH)Se 6. depress the brake pedal to release mANUAl the parking brake. (HSt) push the release lever to release the brake. t22O426A t22O503A (1) clutch pedal (a) depress 7. depress the clutch pedal fully. CAUTION To avoid accidents: •...
  • Page 143 HoW to drive 8. Move the main and range shift le- mANUAl CAUTION vers into the desired positions. (For • Never put your foot on the the HSt model, move the range clutch pedal during driving. shift lever to the desired position.) The clutch disc can be rapidly 9.

  • Page 144: How To Fold Rops

    / ck3510(H,c,cH)Se / ck4010(H,c,cH)Se HOW TO fOlD ROPs CAUTION • It is very dangerous to drive with the ROPs folded. fold the ROPs only when there is ab- solutely no possibility for roll over. If the situation changes, raise the ROPs upright imme- diately.

  • Page 145: How To Raise Rops To Upright Position

    HoW to drive HOW TO RAIsE ROPs TO UPRIGHT POsITION CAUTION CAUTION To avoid accidents: To avoid accidents: • • fix the mounting bolts firmly make sure to set the ROPs up- and secure the frame with the right and fasten the seat belt knock bolt.

  • Page 146: Parking

    / ck3510(H,c,cH)Se / ck4010(H,c,cH)Se PARKING 1. pull the parking brake lever (3) WARNING down with the brake pedals de- • The brake pad can be rapidly pressed forward to engage the worn if you drive with the park- pedals with the latch. if the braking ing brake applied.

  • Page 147: Turning

    HoW to drive TURNING DRIvING ON slOPE you should turn slowly by reducing ve- 1. please drive according to the con- ImPORTANT hicle speed. ditions of the slope at safe speed • Get off the tractor after check- so that the engine is not under WARNING ing that the tractor is com- heavy load if possible.

  • Page 148: Precautions When Coming In And Out Of Work Field

    / ck3510(H,c,cH)Se / ck4010(H,c,cH)Se PRECAUTIONs WHEN COmING PRECAUTIONs WHIlE DRIv- IN AND OUT Of WORK fIElD ING ON THE ROAD ImPORTANT • for a heavy load job, such as front end loader operation, use low speed of the range shift lever.

  • Page 149: Loading Into And Unloading Out Of The Truck

    HoW to drive lOADING INTO AND UNlOAD- ING OUT Of THE TRUCK mANUAl WARNING • If the tractor is broken down during driving on a road, move i t t o a s a f e p l a c e w i t h t h e flasher lights blinking.

  • Page 150: Precautions When Using Power Steering

    / ck3510(H,c,cH)Se / ck4010(H,c,cH)Se PRECAUTIONs WHEN UsING POWER sTEERING 2. if you operate the steering wheel WARNING with the tractor loaded, using the • When transporting the trac- implement or loader, the steering tor with a truck, fix the trac-...
  • Page 151 HoW to drive NOTE NOTE WARNING • If a malfunction occurs while the power steering system in this the power steering system in this tractor is a load reaction, full hy- tractor is a load reaction, full hy- driving on a road, stop the draulic type.

  • Page 152: 3-Point Hitch Control Position Control

    / ck3510(H,c,cH)Se / ck4010(H,c,cH)Se 3-POINT HITCH CONTROl POsITION CONTROl WARNING • If stopping the engine while driving, the steering perfor- mance can become deterio- rated due to loss of hydraulic power, resulting in a severe accident. Never stop the en- gine while driving.
  • Page 153 HoW to drive WARNING • If trying to lift an object with e x c e s s i v e w e i g h t b y t h e 3-point hitch while the tractor is not equipped with proper front suit case weights, the front wheels may be lifted instead, leading to roll over.

  • Page 154: Remote Hydraulics

    / ck3510(H,c,cH)Se / ck4010(H,c,cH)Se REmOTE HyDRAUlICs D O U b l E A C T I N G l E v E R ( I f EqUIPPED) CAUTION • If the lifting arm is properly operated but abnormal noise...
  • Page 155 HoW to drive pulled or pushed continuously for pressure returning ImPORTANT operation which is suitable for an • It is hard to start the engine lever 1 Push Pull implement with a short operating while the detent valve is in op- time, such as a hydraulic cylinder.
  • Page 156 / ck3510(H,c,cH)Se / ck4010(H,c,cH)Se PT1/2 COUPlER sOCKET (ImPlEmENT) CONNECTING AND DIsCONNECTING ImPlEmENT CONNECTION 5. pull the hydraulic hose of the im- plement to check that the couplers 1. Make sure to stop the engine be- are properly connected. fore connecting it.
  • Page 157 HoW to drive 5. remove the male coupler by push- ing the female coupler boss back- ward. 6. close the dust-proof cover of the female coupler. Wrap the male coupler of the implement with a plastic bag to prevent contamina- tion.
  • Page 158 MEMO mEmO TC220-영문-수출향(법인향)-OM-05.indd 28 2020-01-23 오전 9:15:43...

  • Page 159: 3-Point Hitch Implement And Loader Operation

    3-POINT HITCH IMPLEMENT AND LOADER OPERATION REMOvAL AND INsTALLATION Of 3-POINT HITCH IMPLEMENT (INCLuDINg CONNECTION Of uNI- vERsAL jOINT) ............6-2 OPERATION fOR 3-POINT HITCH IMPLEMENT MOuNTINg COMPONENTs ........6-5 Adjustment of lift rod ............6-5 Adjustment of top link ............6-6 Adjustment of stAbilizer .............6-6 dismounting the implement ..........6-6 drAw bAr And trAiler ............6-7...

  • Page 160: Removal And Installation Of 3-Point Hitch Implement (Including Connection Of Universal Joint)

    / ck3510(h,c,ch)se / ck4010(h,c,ch)se REMOvAL AND INsTALLATION Of 3-POINT HITCH IMPLEMENT (INCLuDINg CONNECTION Of uNIvERsAL jOINT) A40O613A Te1O619A H61O615A (1) implement support (2) lower link (1) telescopic stabilizers pin (1) check link (2) lift rod (rh) (3) lower link...
  • Page 161 3-point hitch implement And loAder operAtion 10. Adjust the balance of the imple- ment by adjusting the length of the lift rod (rh). tighten the turn buckle lock nut of the lift rod (rh) securely afterward. 1 1 1 H61O608A T22O609A (1) top link (2) lock pin...
  • Page 162 / ck3510(h,c,ch)se / ck4010(h,c,ch)se IMPORTANT • Consult your local KIOTI Deal- er for selection of the univer- sal joint. • When selecting a universal joint, make sure that it is not too short to come off the its female and male shafts at the...

  • Page 163: Operation For 3-Point Hitch Implement Mounting Components

    3-point hitch implement And loAder operAtion OPERATION fOR 3-POINT HITCH IMPLEMENT MOuNTINg COMPONENTs ADjusTMENT Of LIfT ROD TC2O603A (1) lift rod (2) turn buckle (3) lock nut 1. Adjust the implement balance by turning the turn buckle. 2. After adjustment, secure it with the lock nut.

  • Page 164: Adjustment Of Top Link

    / ck3510(h,c,ch)se / ck4010(h,c,ch)se ADjusTMENT Of TOP LINK ADjusTMENT Of sTAbILIzER DIsMOuNTINg THE IMPLEMENT 1. park the tractor with the implement on the level ground and lower the implement all the way down. install the implement support as needed.

  • Page 165: Draw Bar And Trailer

    Approval number to be announced check the max. towing weight of the trailer and max. vertical load that can maker daedong or kioti be applied to the drawbar. maximum horizontal load/d-value : 12,676 ~ 13,448 lb. towable mass (t) :...

  • Page 166: Pto & Pto Shield Guard

    / ck3510(h,c,ch)se / ck4010(h,c,ch)se PTO & PTO sHIELD guARD before you install the some kind of WARNINg implement, take off pto shaft cap(2) • Never use any other part for and install the universal joint of im- pulling except draw bar. Pull- plement.

  • Page 167: Precautions When Using The Pto

    3-point hitch implement And loAder operAtion PRECAuTIONs WHEN usINg THE PTO INsTALLINg PTO sHAfT use in rice fields: when using the WARNINg tractor in rice fields, where the water • To avoid accidents, always level could rise above the height of make sure that all PTO guards the pto shaft, ask your dealer for are in position and stay well...
  • Page 168 / ck3510(h,c,ch)se / ck4010(h,c,ch)se WARNINg WARNINg • • Make sure that the PTO safety before starting up any PTO- cover is in its position before driven implement hitched to driving the PTO shaft. the three-point linkage, lift the •...
  • Page 169 3-point hitch implement And loAder operAtion M55O626A (1) pto cover (A) Allowable Angle Of Universal Joint: 50˚ refer to the chart below as to install- ing of an universal joint. TYPE Of PTO sHAfT sAe 1-3 / 8" 6 splines Allowable angle of universal joint 50˚...

  • Page 170: Handling Loader

    / ck3510(h,c,ch)se / ck4010(h,c,ch)se HANDLINg LOADER (1) loader mounting bracket (2) balancing cylinder (3) loader Arm (4) boom (5) grill guard (6) tilt cylinder (7) bucket for detailed information about installa- tion and use of the front loader, refer to the separate manual of the loader.

  • Page 171: Fixation Points For Front End Loader

    3-point hitch implement And loAder operAtion fIxATION POINTs fOR fRONT END LOADER [Front axle frame] [Front axle frame] [front axle frame] [front axle frame] [Flywheel housing] [Flywheel housing] [flywheel housing] [flywheel housing] [clutch housing] [Clutch housing] [Rear axle & Transmission] [rear axle &...

  • Page 172: Driving On Slope

    / ck3510(h,c,ch)se / ck4010(h,c,ch)se DRIvINg ON sLOPE WHEN LOADED buCKET AND REAR bALLAsT ARE INsTALLED WHEN uNLOADED buCKET AND REAR bALLAsT ARE INsTALLED when driving downhill with the empty Driving on uphill Driving on uphill bucket and rear ballast installed, keep the rear ballast toward the higher level of the ground.

  • Page 173: Joystick Lever

    3-point hitch implement And loAder operAtion jOYsTICK LEvER PARKINg WITH LOADER INsTALLED M55O625A T22O604A T22O605A (1) joystick lever (A) boom down (b) boom up 1. up and down of boom CAuTION FLOAT pulling the joystick lever back (b) • W h e n p a r k i n g t h e t r a c t o r lifts the boom of the loader while w h i c h i s e q u i p p e d w i t h a dOWN &...
  • Page 174 / ck3510(h,c,ch)se / ck4010(h,c,ch)se one position further to forward tion (2 o’clock position). however, from the down position. when the these two operations may not be lever is in this position, the boom performed simultaneously due to moves up and down freely along...
  • Page 175 3-point hitch implement And loAder operAtion WARNINg IMPORTANT • • Make sure to lock the joystick If the boom or bucket is not operating, properly, lower the lever while moving. Otherwise, bucket onto the ground, stop its vibration can cause safety the engine, and reduce all hy- problems, such as falling off draulic pressure.

  • Page 176: Joystick Valve

    / ck3510(h,c,ch)se / ck4010(h,c,ch)se jOYsTICK vALvE WARNINg To avoid accidents: • Pressurized diesel fuel or hy- draulic fluid may be sprayed on your skin or eyes, lead- ing to a severe injury or even death. • To c h e c k f o r l e a k s , u s e a board and wear protective gloves and goggles.
  • Page 177 MAINTENANCE MAINTENANCE ChECk lIsT .... 7-3 changing engine oil anD rePlacing filter (l) ..........7-15 Daily check item ........7-3 rePlacing transmission fluiD anD maintenance scheDule chart ..... 7-4 filter (m) ..........7-18 lUBRICANTs ........7-8 changing front axle case oil (n) ..7-19 aDJusting Brake PeDal (o) ....
  • Page 178 MAINTENANCE aDJusting engine valve clearance (ae) ............. 7-32 rePlacing air cleaner filter (af) ..7-32 rePlacing air filter (ai) ....... 7-33 check anD clean caB air intake fil- ter ............. 7-34 flush cooling system anD chang- ing coolant (aJ) ........7-36 anti-freeze ..........

  • Page 179: Maintenance

    maintenance MAINTENANCE ChECk lIsT DAIly ChECk ITEM sERVICE sChEDUlE Maintenance codes Item sERVICE REQUIRED engine oil Check the oil level and add as needed. Do not overfill. hydraulic (transmission/ check level and add as needed. front axle) oil level Air cleaner and its filter Check the filter condition for leakage and damage.

  • Page 180: Maintenance Schedule Chart

    / ck3510(h,c,ch)se / ck4010(h,c,ch)se MAINTENANCE sChEDUlE ChART Maintenance Run hour Run Age Mainte- Interval Remarks nance 50 100 200 250 400 600 800 1500 3000 1 year 2 year codes Item Di / iDi ⊙ ○ ○ change tier2 or 3 ○...
  • Page 181 maintenance Maintenance Run hour Run Age Mainte- Interval Remarks nance 50 100 200 250 400 600 800 1500 3000 1 year 2 year codes Item check ⊙ 11 air cleaner element clean t, af ○ replace ○ ○ 12 Fuel filter element replace ○...
  • Page 182 / ck3510(h,c,ch)se / ck4010(h,c,ch)se Maintenance Run hour Run Age Mainte- Interval Remarks nance 50 100 200 250 400 600 800 1500 3000 1 year 2 year codes Item 21 toe-in adjust ○ engine valve clear- adjust ○ ance fuel injection nozzle check ○...
  • Page 183 maintenance Maintenance Run hour Run Age Mainte- Interval Remarks nance 50 100 200 250 400 600 800 1500 3000 1 year 2 year codes Item 3-point hitch & check ○ drawbar 36 Pin fastening check ○ IMPORTANT • must be done after the first 10 or 50 hours of operation. ⊙...

  • Page 184: Lubricants

    / ck3510(h,c,ch)se / ck4010(h,c,ch)se lUBRICANTs to prevent serious damage to the equipment, use only genuine kIOTI fluids, oils and greases or equivalents. Item [U.s.gal. (l)] lubricants fuel 8.98 (34.0) ultra-low sulfur diesel (sulfur content: 10 ppm or less) ck2610: 0.73 (2.8)
  • Page 185 maintenance WARNING • Check the oil level periodically. Correct the oil level, if needed, before operating. • Always check and add oil with the tractor on a flat, level surface. • Do not deliberate tampering with or misuse of the engine emissions control system; in particular with re- gard to deactivating or not maintaining an exhaust gas recirculation (EGR).

  • Page 186: Maintenance Code

    / ck3510(h,c,ch)se / ck4010(h,c,ch)se MAINTENANCE CODE hOW TO DIsCONNECT ThE hOOD (A) ChECkING AND ADDING FUEl (C) tC2O752A td2O702A tC2O701A (1) hood (2) opening Button (1) hood (1) fuel tank cap (a) Press (B) open 1. the hood opener is a rod placed in...

  • Page 187: Checking Transmission Fluid Level (D)

    maintenance ChECkING TRANsMIssION FlUID lEVEl (D) 1. turn the key switch to "on" and IMPORTANT check the amount of fuel with the fuel • Be careful not to let the fuel gauge. tank become empty. Otherwise 2. if the needle on the fuel gauge is air will enter the fuel system, close to “e”...

  • Page 188: Checking Engine Oil Level (E)

    / ck3510(h,c,ch)se / ck4010(h,c,ch)se ChECkING ENGINE OIl lEVEl (E) IMPORTANT • If the level is low, do not run the engine. • Never add oil over the upper limit. • Be sure to check the oil level after installing a hydraulic im- plement.

  • Page 189: Checking Coolant Level (F)

    maintenance ChECkING COOlANT lEVEl (F) IMPORTANT • When using oil of different maker or viscosity from the previous one, remove all of the old oil. Never mix two dif- ferent types of oil. • Do not start the engine when the oil level is below the lower limit.

  • Page 190: Cleaning Radiator Grill And Screen (G)

    / ck3510(h,c,ch)se / ck4010(h,c,ch)se ClEANING RADIATOR GRIll AND sCREEN (G) ant in chapter maintenance for IMPORTANT every two years.) • The bonnet grill and screen 3. the tractor is furnished in the fac- must be clean from debris to...

  • Page 191: Checking Brake And Clutch Pedals (H)

    maintenance ChECkING BRAkE AND ChECkING GAUGEs, METER ChANGING ENGINE OIl AND ClUTCh PEDAls (h) AND INDICATORs (I) REPlACING FIlTER (l) 1. t h e b r a k e a n d c l u t c h p e d a l s 1.
  • Page 192 / ck3510(h,c,ch)se / ck4010(h,c,ch)se OIl CAPACITy [u.s.gal. (l)] ck2610 1.53 (5.8) ck3510/ck4010 1.95 (7.4) 8. run the start motor for approx. 10 seconds to distribute oil to each part of the engine. 9. run the engine for approx. 5 min-...
  • Page 193 maintenance WARNING CAUTION IMPORTANT • • The engine oil is very hot To avoid injury: Use only specified engine oil • while the engine is running and kIOTI genuine filter to Be sure to stop the engine or right after the engine is insure smooth operation and before changing the fluid or stopped.

  • Page 194: Replacing Transmission Fluid And Filter (M)

    / ck3510(h,c,ch)se / ck4010(h,c,ch)se REPlACING TRANsMIssION FlUID AND FIlTER (M) tC2O713A tC2O708A tC2O702A (1) hydraulic filter (2) hst filter (1) Drain Plug (1) oil Dipstick and filler Port (a) oil level is acceptable within this range If transmission fluid is contaminated 3.

  • Page 195: Changing Front Axle Case Oil (N)

    maintenance ChANGING FRONT AxlE CAsE OIl (N) OIl CAPACITy 5.8 u.s.gal. (22 l) CAUTION To avoid injury: • Be sure to stop the engine before changing the fluid or replacing the filter. • Cool down the fluid sufficient- tC2O709A tC2O710A ly.

  • Page 196: Adjusting Brake Pedal (O)

    / ck3510(h,c,ch)se / ck4010(h,c,ch)se ADJUsTING BRAkE PEDAl (O) Prolonged use of the brake pedal MANUAl MANUAl increases its free play. this free play deteriorates the brake performance and can cause a problem to the brake system. the brake pedal can be adjusted as follows: 1.
  • Page 197 maintenance 3. when adjustments are needed, PROPER BRAkE PEDAl FREE loosen the locking nut and turn the TRAVEl (A) turn buckle until the rod length is 0.8 ~ 1.2 in. (20 - 30 mm) at the desired and acceptable limit. 4.

  • Page 198: Lubricating Grease Nipple (P)

    / ck3510(h,c,ch)se / ck4010(h,c,ch)se lUBRICATING GREAsE NIPPlE (P) Apply quality multi-purpose grease to the locations specified in the following figure at every 50 hours of use or when necessary. also, record the operating hour on every application. tC2O720A tC2O716A...

  • Page 199: Checking Wheel Bolt/Nut Torque (Q)

    maintenance ChECkING WhEEl BOlT/NUT TORQUE (Q) ADJUsTING ClUTCh PEDAl (R) CAUTION To avoid injury: • Never operate tractor with a loose rim, wheel, or axle. • Any time bolts and nuts are loosened, retighten to speci- fied torque. • Check all bolts and nuts fre- quently and keep them tight.

  • Page 200: Fuel Filter (S)

    / ck3510(h,c,ch)se / ck4010(h,c,ch)se FUEl FIlTER (s) 1. if the clutch does not operate REMOVING WATER FROM FUEl properly due to its excessive play, FIlTER adjust its play regularly. 1. water and dust in fuel are accumu- lated in the filter. Remove the plug 2.

  • Page 201: Cleaning And Replacing Air Cleaner Filter (T)

    maintenance ClEANING AND REPlACING AIR ClEANER FIlTER (T) 4. For filter replacement, refer to the IMPORTANT instruction for replacing the air • Be sure to refit the cover with cleaner filter for every year. the arrow (on the rear of To clean the filter, use only clean dry cover) upright.

  • Page 202: Checking Fuel Lines (U)

    / ck3510(h,c,ch)se / ck4010(h,c,ch)se ChECkING FUEl lINEs (U) with the hose clamps every two IMPORTANT years and securely tighten. • When disconnecting the fuel 3. if the fuel pipes and hose clamps pipe for replacement, plug are found damaged or deterio-...

  • Page 203: Adjusting Fan Belt Tension (V)

    maintenance ADJUsTING FAN BElT TENsION (V) BATTERy (W) PRECAUTIONs FOR hANDlING Belt deflection for proper fan belt ten- sion (A) A deflection of between 0.28 ~ 0.35 in. (7 ~ 9 mm) when the belt is pressed in the middle of the span. 4.
  • Page 204 / ck3510(h,c,ch)se / ck4010(h,c,ch)se BATTERy sWITCh mishandling the battery shortens the WARNING service life and adds to maintenance • The battery gas can explode. costs. if the battery is insufficiently Do not expose the battery to charged, the headlights may dim and flames or sparks.
  • Page 205 maintenance ChARGING DIRECTION FOR sTORAGE 1. to slow charge the battery, con- 1. when storing the tractor for a long CAUTION nect the battery positive terminal period, remove the battery from • T h e c h a r g e w a r n i n g l a m p to the charger positive terminal tractor and store in a dry place out comes on if the charging sys-...

  • Page 206: Checking Intake Air Line (X)

    / ck3510(h,c,ch)se / ck4010(h,c,ch)se ChECkING INTAkE AIR lINE (x) ADJUsTING TOE-IN (y) ChECkING RADIATOR hOsE AND ClAMP (z) ADJUsTING PROCEDURE t46OA36A tC2O727B tC2O728A (1) air line hose (2) clamp (a) wheel - to - wheel Distance at front (1) clamp...

  • Page 207: Power Steering Line (Aa)

    maintenance POWER sTEERING lINE (AA) ADJUsTING FRONT AxlE PIVOT PIN (AD) take the following actions in the event the coolant temperature reach- es the boiling point, what is called "over-heating". 1. stop the machine in a safe place and keep the engine unloaded idling.

  • Page 208: Adjusting Engine Valve Clearance (Ae)

    / ck3510(h,c,ch)se / ck4010(h,c,ch)se ADJUsTING ENGINE VAlVE REPlACING AIR ClEANER FIlTER (AF) ClEARANCE (AE) this service can be affected by the 1. open the hood and check the suc- engine sensitively. therefore, contact tion hose and air cleaner housing for your local kIOTI Dealer for this ser- damage.

  • Page 209: Replacing Air Filter (Ai)

    maintenance REPlACING AIR FIlTER (AI) CAUTION WARNING • • Use only a kIOTI genuine fil- Tractor with cabs have no ter. If using a product other protection against dangerous than the genuine one, it can substances, but have a protec- damage the engine internal tion against dust (Category 2).

  • Page 210: Check And Clean Cab Air Intake Filter

    / ck3510(h,c,ch)se / ck4010(h,c,ch)se ChECk AND ClEAN CAB AIR INTAkE FIlTER Check and clean the intake air filter CAUTION IMPORTANT every 100 hours or more often if • Always wear protective clothing, The Manufacturer has no re- needed. Keep the air filter clean for e.g.: overalls, goggles, gloves...
  • Page 211 maintenance WARNING IMPORTANT • • Ta k e t h e f i l t e r o f f b e f o r e Dispose of filters correctly in accordance with local regula- washing the cab. If the cab is tions.

  • Page 212: Flush Cooling System And Changing Coolant (Aj)

    / ck3510(h,c,ch)se / ck4010(h,c,ch)se FlUsh COOlING sysTEM AND ChANGING COOlANT (AJ) 4. use clean, fresh water and anti- CAUTION freeze to fill the reservoir tank. • Only install carbon filters sup- 5. follow the cleaner manufacturer’s plied sealed when delivered: instruction.
  • Page 213 maintenance 11. check the coolant level in the IMPORTANT reservoir tank. if the level is low, • Do not start engine without add coolant. coolant. • COOlANT CAPACITy (Engine Only) Use clean, fresh water and anti-freeze to fill the radiator ck2610 0.73 u.s.gal.(2.8 l) and reservoir tank.

  • Page 214: Anti-Freeze

    / ck3510(h,c,ch)se / ck4010(h,c,ch)se ANTI-FREEzE BlEEDING FUEl sysTEM (Ak) This tractor is filled with 50% of eth- * at 760 mmhg pressure (atmo- ylene glycol at factory. spheric). a higher boiling point is obtained by using a radiator pres- if the anti-freeze has been replaced sure cap.
  • Page 215 maintenance NOTE CAUTION I M P O R TA N T • • Bleeding is not necessary if in- To protect the catalyst filter, Never bleed the fuel system stalling the fuel port after fueling. keep the followings: while the engine is hot. •...

  • Page 216: Draining Water From Clutch Housing (Al)

    / ck3510(h,c,ch)se / ck4010(h,c,ch)se DRAINING WATER FROM ChECkING AND REPlACING WIPER(AM) ClUTCh hOUsING (Al) INsPECTION REPlACEMENT tC2O733A t21o460a h11o649a (1) Plug (1) wiper (1) wiper arm (2) wiper fixing lever (3) wiper Blade 1. there is a plug under the clutch check the operation and wear of the 1.
  • Page 217 maintenance h11o651a h11o652a h11o650a (1) wiper arm (2) fixing lever (1) wiper Blade 4. set a new wiper blade horizontal 3. lower the blade and pull out the 5. lift the wiper blade to its end and so that the fixing lever is facing blade by moving it in the shape of install it so that the fixing lever is down.

  • Page 218: Body Fuse (An)

    / ck3510(h,c,ch)se / ck4010(h,c,ch)se BODy FUsE (AN) CAUTION • When wiping the windshield, set the wiper blade upright, spray water onto the glass w i t h a h o s e , a n d w i p e t h e glass with clean cloth.
  • Page 219 maintenance there are marks for the fuse capac- roPs ity and location on the cover of the fuse panel. replace the fuse accord- Brake ing to the following procedure: Head Lamp 1. turn the key switch to the “off” position and turn off all the electri- cal devices.
  • Page 220 / ck3510(h,c,ch)se / ck4010(h,c,ch)se caBin Brake Head Lamp Spare Brake_Lamp Fuel_Heater Power_Outlet Spare H11O655A Deffoger Cruise Cluster_(B) Cluster Wiper ECU_Control Spare Head_Lamp Stereo 10A ECU_Main Tail_Lamp Spare Cruise 3. if the fuse is blown, replace it with Flasher Beacon_Lamp...

  • Page 221: Main Fuse (Ap)

    maintenance MAIN FUsE (AP) WARNING • Never use a fuse with the ca- pacity higher than specified on the fuse box cover. • If using a faulty fuse, steel wire, or foil, the electrical de- vice can be damaged or even can catch a fire.

  • Page 222: Replacing Bulb (Aq)

    / ck3510(h,c,ch)se / ck4010(h,c,ch)se REPlACING BUlB (AQ) hEADlAMP the main fuse is to protect electric the bulbs and their capacity used devices and wirings. if the ignition, in this tractor are listed in the below preheat, charge or main function is table.
  • Page 223 maintenance REAR TURN sIGNAl lAMP AND POsITION lAMP WARNING • If using a bulb other than the specified one, the lamp can be damaged and the tractor can even catch fire. • Make sure to use bulbs with the specified capacity. CAUTION td2O739A tC2O739A...
  • Page 224 / ck3510(h,c,ch)se / ck4010(h,c,ch)se 2. Disconnect the connector and loosen the nut from the bottom of the fender to remove the turn sig- nal lamp assembly. td2O742A (1) screw (2) cover 3. loosen the screw to remove the cover.
  • Page 225 maintenance FRONT TURN sIGNAl lAMP AND POsITION lAMP td2O745B tC2O740A (1) turn signal lamp Bulb (1) screw (2) lens (2) Position lamp Bulb 3. remove the bulb by turning its 1. the front turn signal lamps are in- socket counterclockwise. install a stalled onto the roPs frame.
  • Page 226 / ck3510(h,c,ch)se / ck4010(h,c,ch)se REAR WORk lAMP td2O747A (1) Bulb socket 2. remove the bulb by turning its socket counterclockwise. install a new bulb. td2O746A (1) screw (2) lens 1. loosen the screw to remove the lens. TC220-영문-수출향(법인향)-OM-07.indd 50...
  • Page 227 STORAGE AND DISPOSAL TRAcTOR STORAGE ..........8-2 Daily storage................8-2 long-term storage ..............8-2 Using traCtor aFter longterm storage ......8-4 USAGE AND DISPOSAL ..........8-4 TC220-영문-수출향(법인향)-OM-08.indd 1 2020-01-23 오전 9:19:55...

  • Page 228: Tractor Storage

    CK2610CHse / CK3510(H,C,CH)se / CK4010(H,C,CH)se TRAcTOR STORAGE DAILy STORAGE LONG-TERm STORAGE 1. Keep the tractor clean when it is if the tractor will be kept unused for 5. C h a n g e t h e e n g i n e o i l a n d stored.
  • Page 229 storage anD DisPosal 11. Add grease to all the grease fit- cAUTION ting. To avoid injury: 12. Flush the cooling system and • Never clean the tractor body drain water from it. also, add while the engine is running. anti-freeze as well as water. •...

  • Page 230: Using Tractor After Longterm Storage

    CK2610CHse / CK3510(H,C,CH)se / CK4010(H,C,CH)se USAGE AND DISPOSAL USING TRAcTOR AFTER LONGTERm STORAGE 1. Check the tire air pressure and in- 10. Drive the tractor outside and in order to protect the environment, flate the tires if they are low. check if it is operating properly.
  • Page 231 TROUBLESHOOTING ENGINE TROUBLESHOOTING ........9-2 TRacTOR TROUBLESHOOTING ....... 9-4 TC220-영문-수출향(법인향)-OM-09.indd 1 2020-01-23 오전 9:20:07...

  • Page 232: Engine Troubleshooting

    CK2610CHSE / CK3510(H,C,CH)SE / CK4010(H,C,CH)SE This troubleshooting chart summarizes simple service items for users who are familiar with mechanical systems. For more detailed service items, contact your local KIOTI Dealer. ENGINE TROUBLESHOOTING cause countermeasures 1. When engine is difficult to •...
  • Page 233 TROUBLESHOOTING cause countermeasures 1. When engine is difficult to • Start motor does not rotate • Depress the clutch pedal unless depressed. start when key switch is turned • Put the PTO switch to the OFF position. • If the switch or start motor is faulty, have it repaired in a workshop.

  • Page 234: Tractor Troubleshooting

    CK2610CHSE / CK3510(H,C,CH)SE / CK4010(H,C,CH)SE TRacTOR TROUBLESHOOTING cause countermeasures 1. When tractor does not move • Shift lever is in neutral position • Check the shift levers. while engine is running • Parking brake is applied • Release the parking brake.
  • Page 235 TROUBLESHOOTING cause countermeasures 4. Steering wheel is not • Steering wheel is heavy or • The toe-in is incorrect. Adjust it again. operating properly vibrates • The tire inflation pressure is different. Inflate the left and right tires into the specified pressure. •...
  • Page 236 CK2610CHSE / CK3510(H,C,CH)SE / CK4010(H,C,CH)SE cause countermeasures 5. Hydraulic system is • Defective sensor. Contact your KIOTI dealer. faulty • 3-point hitch vibrates by itself • Select the highest top link hole. 6. Electric system is faulty • The fuse is blown. Check the wiring and replace the fuse.

  • Page 237: Index

    INDEX INDEX................10-2 TC220-영문-수출향(법인향)-OM-10.indd 1 2020-02-13 오후 3:10:38...
  • Page 238 CK2610CHSE / CK3510(H,C,CH)SE / CK4010(H,C,CH)SE NUMERIC Anti-frEEzE ................7-38 3-point HitCH Control poSition Control ....5-22 3-point HitCH iMplEMEnt AnD loADEr opErAtion ..6-1 7-pin SoCKEt (optionAl) ..........4-53 BAttErY (w) ................7-27 BAttErY CHArgE wArning lAMp ........4-21 BAttErY SwitCH ..............7-28 ACCElErAtor pEDAl ............4-30 BEforE opErAtion ..............2-1 ACCESSorY (if EquippED) ..........4-45...
  • Page 239 inDEx CHECKing BrAKE AnD ClutCH pEDAlS (H) ....7-15 CHECKing CoolAnt lEVEl (f) .........7-13 DAilY CHECK itEM ..............7-3 CHECKing EnginE oil lEVEl (E) ........7-12 DAilY StorAgE ...............8-2 CHECKing fuEl linES (u) ..........7-26 DECAl Mounting loCAtion ..........1-27 CHECKing gAugES, MEtEr AnD inDiCAtorS (i) ..7-15 DEfoggEr SwitCH (if EquippED) ........4-47 CHECKing HEAD ligHt, HAzArD ligHt EtC.
  • Page 240 CK2610CHSE / CK3510(H,C,CH)SE / CK4010(H,C,CH)SE front wHEEl inStAllAtion pAttErn ......4-58 ECu Error CoDE (CK3510/CK4010 onlY) ......4-24 fuEl filtEr (S)..............7-24 EMErgEnCY HAMMEr(onlY Eu MoDEl) ......4-40 fuEl gAugE ................4-15 EnginE CoolAnt tEMpErAturE gAugE .....4-16 funCtion DESCription AnD opErAting tipS ....4-1 EnginE oil prESSurE wArning lAMp ......4-20 EnginE SEriAl nuMBEr ............2-2...
  • Page 241 inDEx iMplEMEnt liMitAtionS .............3-14 lifting ArM (lowEr linK) SpEED Control KnoB ..4-36 iMplEMEntS AnD AttACHMEntS ........1-24 linKED pEDAl lAMp (if EquippED) .........4-22 inDEx ..................10-1 linKED pEDAl lEVEr (for HSt MoDElS) ......4-31 inDoor lAMp ................4-44 loADing into AnD unloADing out of tHE truCK ..5-19 inflAtion prESSurE ............4-55 long-tErM StorAgE ............8-2 initiAl opErAtion ..............5-2...
  • Page 242 CK2610CHSE / CK3510(H,C,CH)SE / CK4010(H,C,CH)SE prE-opErAtion CHECK............5-2 opErAting tHE EnginE ............5-3 proDuCtion SEriAl nuMBEr ..........2-2 opErAting tHE trACtor ..........5-10 pt1/2 CouplEr SoCKEt (iMplEMEnt) ......5-26 opErAtion for 3-point HitCH iMplEMEnt Mount- pto & pto SHiElD guArD............6-8 ing CoMponEntS ..............6-5 pto inDiCAtor ..............4-20 otHEr CoMponEntS ............2-5...
  • Page 243 inDEx rEplACing BulB (Aq) ............7-46 SwitCHES .................4-5 rEplACing fuEl filtEr .............7-24 rEplACing trAnSMiSSion fluiD AnD filtEr (M) ..7-18 riSK of oVErturning ............1-6 tACHoMEtEr/HourMEtEr ..........4-15 tEMpErAturE Control SwitCH ........4-51 tipS for BrEAKing-in ............5-2 SAfEtY DECAl MAintEnAnCE ..........1-27 tirES, wHEElS AnD BAllASt ...........4-54 SAfEtY prECAutionS During SErViCing ....1-17 trACtor StorAgE ...............8-2 SAfEtY prECAutionS wHEn uSing tHE loADEr ..1-21...
  • Page 244 CK2610CHSE / CK3510(H,C,CH)SE / CK4010(H,C,CH)SE ViBrAtion lEVElS of tHE trACtor ExpoSition to ViBrAtionS ..............3-11 wArMing up ................5-8 wAtEr-in-fuEl wArning lAMp........4-17 wHEEl inStAllAtion DirECtion ........4-58 wHEEl torquE AnD DirECtion ........4-58 wHEn DriVing tHE trACtor ...........1-13 wHEn loADED BuCKEt AnD rEAr BAllASt ArE inStAllED ................6-13...
