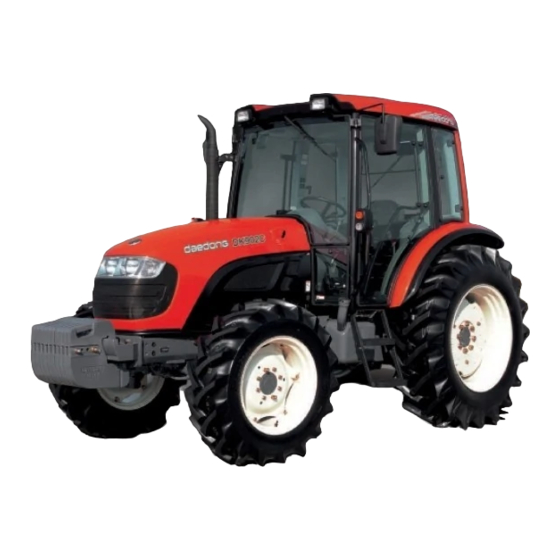

- Page 1 DK752C/DK902C TRACTORS WORKSHOP MANUAL...
- Page 2 TABLE OF CONTENTS CHAPTER 0 SAFETY FIRST CHAPTER 1 GENERAL CHAPTER 2 ENGINE CHAPTER 3 CLUTCH CHAPTER 4 TRANSMISSION CHAPTER 6 REAR AXLE CHAPTER 7 BRAKE CHAPTER 8 FRONT AXLE CHAPTER 9 STEERING SYSTEM CHAPTER 10 HYDRAULIC SYSTEM CHAPTER 11 ELECTRIC SYSTEM CHAPTER 12 CABIN...
-
Page 3: Table Of Contents
DK752C/DK902C SAFETY FIRST CHAPTER 0 TABLE OF CONTENTS 1. FOR SAFETY .......... 0-2 2.4 Avoid fi res..........0-4 2.5 Cautions when handling the battery ..0-5 1.1 Alert symbols .......... 0-2 2.6 Cautions for high pressure hoses ....0-5 2. SAFETY TIPS .......... 0-3 2.7 Use of appropriate tools and equipment... -
Page 4: For Safety
DK752C/DK902C SAFETY FIRST - FOR SAFETY 1. FOR SAFETY • Most accidents can be avoided if basic safety in- structions and regulations are followed. Always fol- low the safety regulations and avoid any dangerous situation to prevent an accident. •... -
Page 5: Safety Tips
DK752C/DK902C SAFETY FIRST - SAFETY TIPS 2. SAFETY TIPS 2.1 SAFETY GEAR 2.2 WORK PLACE T46W007A 2.2.1 VENTILATING SYSTEM The service should be performed in well-ventilated T46W006A area. If the engine should be started in an enclosed place, the exhaust gas vent pipe should be installed. -
Page 6: Safety Instructions When Preparing Tractor
DK752C/DK902C SAFETY FIRST - SAFETY TIPS 2.3 SAFETY INSTRUCTIONS WHEN 2.4 AVOID FIRES PREPARING TRACTOR T46W011A • Never smoke or allow flames in your work area T46W009A when servicing the fuel system. • Lower the implement on to the ground. -
Page 7: Cautions When Handling The Battery
DK752C/DK902C SAFETY FIRST - SAFETY TIPS 2.5 CAUTIONS WHEN HANDLING THE 2.6 CAUTIONS FOR HIGH PRESSURE HOSES BATTERY T46W015A T46W019A • Always disconnect the negative battery cable first • The hydraulic fluid leaks from high pressure and reconnect it last to avoid sparks from an acci- hoses or pipes can penetrate your skin. -
Page 8: Use Of Appropriate Tools And Equipment
Do not confuse units (mm, inch, etc.). • Use the air impact wrench only when unscrewing No genuine DAEDONG part contains asbestos. the bolts or nuts. Such wrench should not be used when assembly precisely machined parts which its •... - Page 9 DK752C/DK902C ENGINE CHAPTER 2 TABLE OF CONTENTS 1. GENERAL INFORMATION ..... 2-3 2.2.15 Crankshaft thrust washers ..2-19 2.2.16 Timing case and drive 1.1 Introduction ..........2-3 assembly ........2-20 1.2 Engine views and engine identification .. 2-4 2.2.17 Cylinder block assembly ..2-21 1.2.1 Engine views ......
- Page 10 TABLE OF CONTENTS 6.14 E140 oil filter ........2-44 7.3.4 Open engine breather .... 2-135 6.15 E150 cooling fan ........2-45 7.4 Lubrication system ......2-136 6.16 E160 alternator ........2-46 7.4.1 General description ....2-136 6.17 E170 manifold ........2-47 7.4.2 Lubrication system flow diagram ......
- Page 11 1.1 INTRODUCTION This Workshop Manual has been written to provide POWERPART recommended consumable products are assistance in the service and overhaul of DAEDONG listed under "POWERPART recommended consumable 1100 series 4 cylinder engines. It should be used in products". Reference to the relevant consumable prod- conjunction with normal workshop practise and infor- ucts is also made at the beginning of each operation.
- Page 12 Download the full PDF manual instantly. Our customer service e-mail: aservicemanualpdf@yahoo.com...
