Maintenance
since 1928
3 - If necessary, install a tap and a drain circuit instead of the drain plug (REF 23).
4 - Make sure that this tray can contain the quantity of lubricant during the drainage process, see lubricant volume
table §9.7.
5 - Unscrew the plug (REF 23) and undertake emptying.
6 - Position and tighten the plug (REF 23) by applying PTFE band or waterproof paste or close the drain tap
NOTE : If the pump is mounted with the inlet/outlet positioned upwards, lubricant drainage is obtained by unscrewing cover
screws in the lower part.

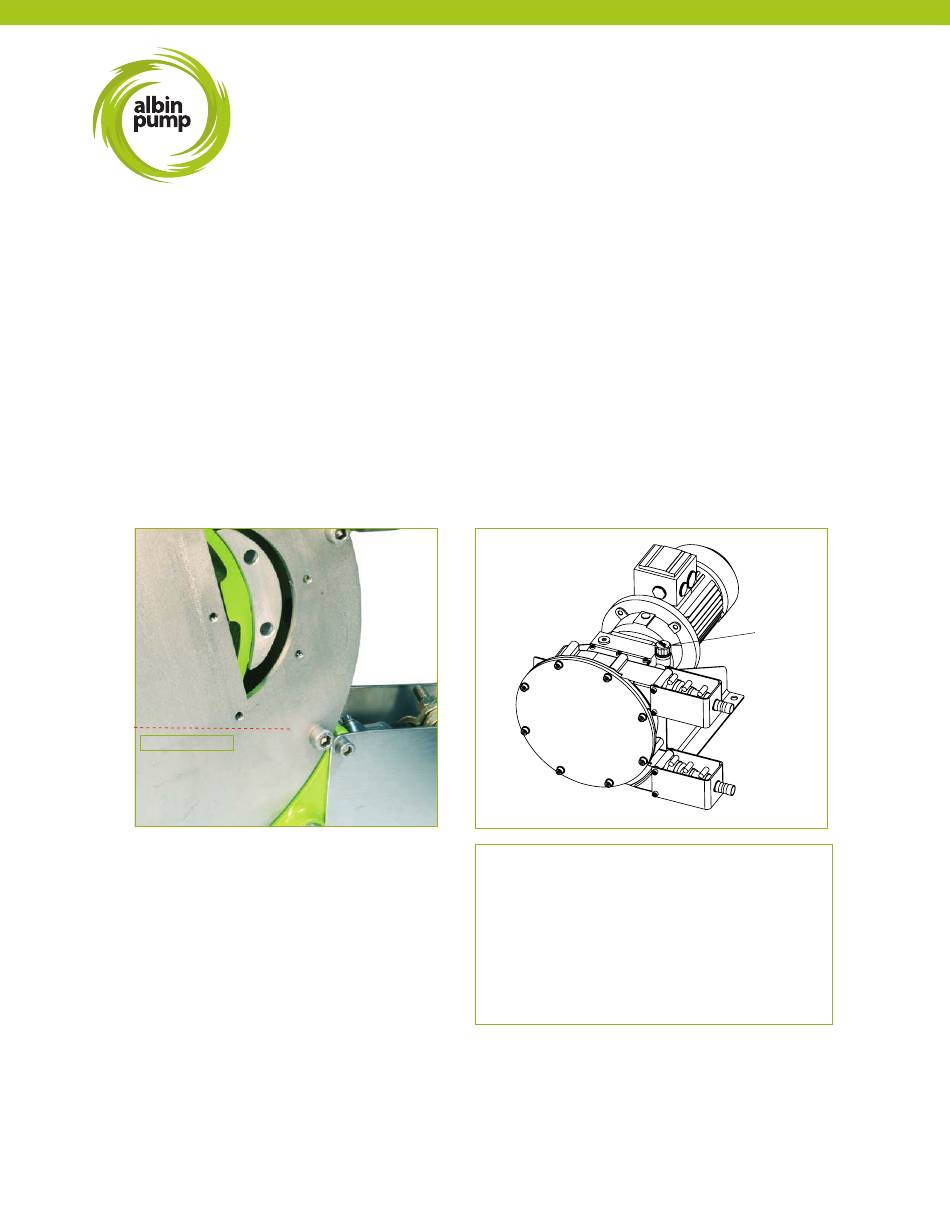

7 - Remove the sight glass (REF 15) as well as its seal (REF 46) and fill the casing with the ALBIN lubricant, see lubricant
table §9.7. You can also fill the casing by the breather cap (REF 52) situated at the back of the pump casing. The
required lubricant level is underneath the bottom edge of the sight glass (see photo beneath).
8 - Check the state of the seal (REF 46) and reassemble the sight glass (REF 15) or tighten the breather cap (REF 52).
MAX LEVEL
12 albinpump@irco.com Albinpump.com

FOR MODELS ALH05, ALH10, ALH15
Unscrew higher breather plug (REF 52) of the
pump. Place a funnel inside the plug hole and fill
the casing with the ALBIN lubricant
(see lubricant table §9.7). The necessary volume
of lubricant is just underneath the shaft line.
Albin Pump ALH Instruction Manual

.
REF 52
and ALH20:
