Undercounter Refrigeration

Custom Panel

For overlay models, a custom door panel and handle
hardware must be provided. Refer to the charts for panel
requirements and dimensions.
Finish all sides of the custom panel. They may be visible
when the door is open or through the window of glass
door models.
A D-style handle is recommended. Locate the door handle
near the edge of the panel opposite the hinge and cen-
tered top to bottom.
Model UW-24FS has a finished stainless steel exterior that
is designed to be used in a freestanding application.
PANEL REQUIREMENTS
WEIGHT PER PANEL
UC-24R, UC-24C(I)
UC-24BG, UW-24
PANEL THICKNESS
All Panels
GLASS DOOR
For models UC-24BG and UW-24, the custom door panel
will attach directly to the door frame with screws through
a series of pre-drilled holes.
Do not install a solid panel on a glass door unit. A solid
door is available as a sales accessory and must be installed
if a solid panel is specified. Service may be required to
install the door. Contact an authorized Sub-Zero dealer
for more information. Overall dimensions are the same for
glass and solid door panels.

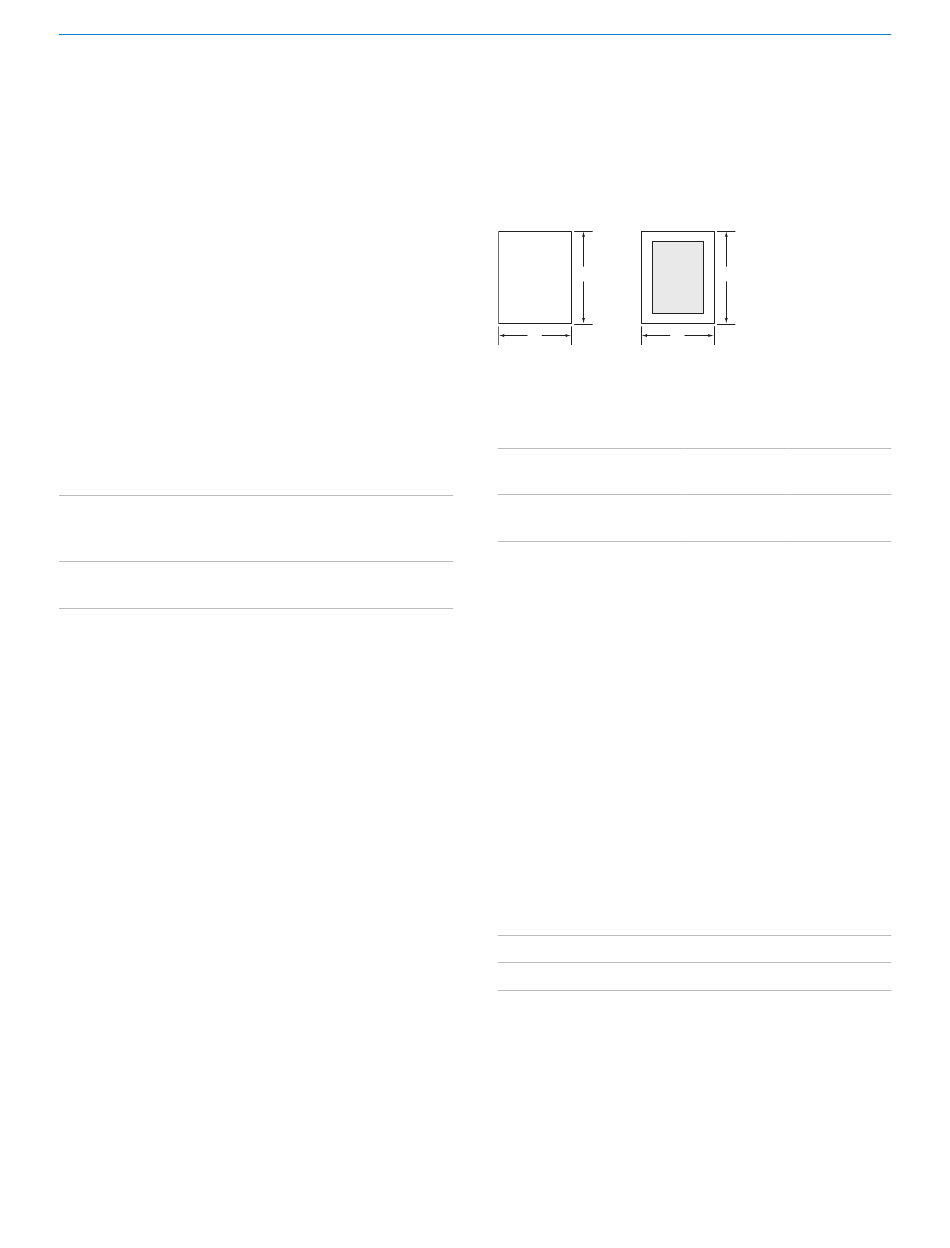

OVERLAY PANEL DIMENSIONS
W
UC-24R, UC-24C(I)
PANEL DIMENSIONS
MODEL
Undercounter Model
STILES / RAILS
MAX
UC-24BG, UW-24
20 lb
(9 kg)
10 lb
(5 kg)
MIN
DOOR CLEARANCE
5/8"
(16)
Undercounter models can be installed flush with surround-
ing cabinetry. Depending on the thickness of the custom
door panel, it may be necessary to install the unit 1/4"
beyond the front surface of adjacent cabinetry to prevent
interference when the door is opened to 145°. Refer to the
full-scale template on page 9.
STANDARD HANDLES
Optional stainless steel tubular and pro handles are avail-
able through an authorized Sub-Zero dealer. For local
dealer information, visit the find a showroom section of
our website, subzero.com. Refer to the chart below for
standard handle lengths.
HANDLE LENGTH
Undercounter Model
Outdoor Model
A
H A A H
A
W
UC-24BG, UW-24
23 3/4"
TUBULAR
24 1/4"
(616)
W H
30 1/16"
(603) (764)
A
2 1/4" min
(57)
(6)
PRO
22 1/2"
(572)
NA 15 11/16"
(399)
