Undercounter Refrigeration
Electrical Requirements
Installation must comply with all applicable electrical codes.
Locate the electrical supply within the shaded area shown
in the illustration below. A separate circuit servicing only
this appliance is required.
If the unit will be connected to a home security system,
allow 36"
of excess wiring for proper connection.
(914)
IMPORTANT NOTE: The electrical outlet must be posi-
tioned with the grounding prong to the right of the thinner
blades.
IMPORTANT NOTE: For outdoor model UC-24RO, a
ground fault circuit interrupter (GFCI) is required to reduce
the risk of electrical shock. A GFCI is not recommended for
use with other Undercounter models and may cause inter-
ruption of operation.
ELECTRICAL REQUIREMENTS
Electrical Supply
Service
Receptacle
LEFT SIDE
OF OPENING
1
2"
15
/
"
2
(51)
(394)
3"
(76)
FLOOR

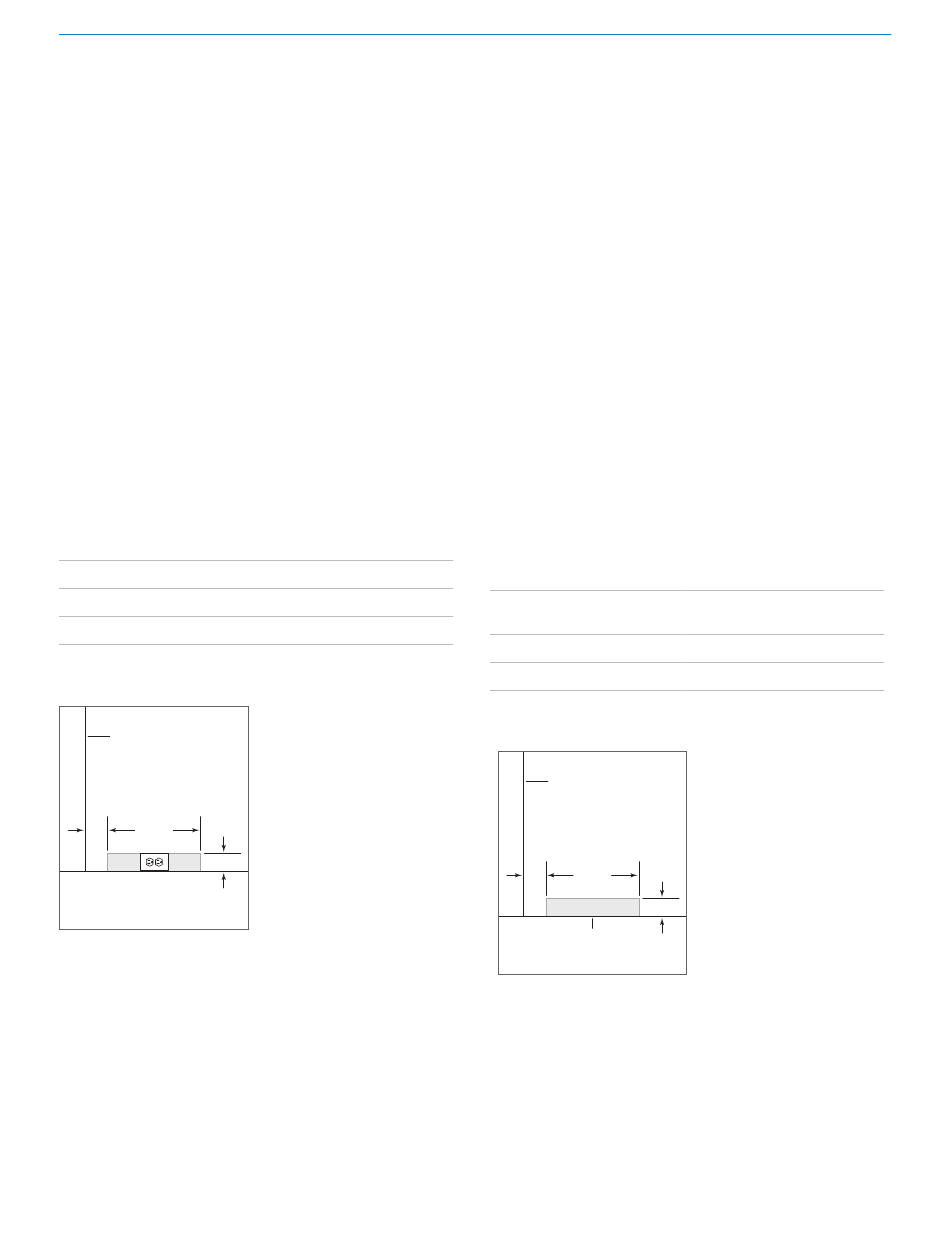

Electrical supply location
6 | Sub-Zero Customer Care 800.222.7820
115 VAC, 60 Hz
15 amp dedicated circuit
3-prong grounding-type
Plumbing Requirements
MODEL UC-24CI
Installation must comply with all applicable plumbing
codes.
For Model UC-24CI, locate the water supply line within
the shaded area shown in the illustration below. Connect
the water supply line to the house supply with an easily
accessible shut-off valve between the supply and the
unit. Do not use self-piercing valves. A saddle valve kit is
avail able through an authorized Sub-Zero dealer. For local
dealer information, visit the find a showroom section of
our website, subzero.com.
IMPORTANT NOTE: A reverse osmosis system can be used
provided there is constant water pressure supplied to the
unit at all times as indicated in the chart below. A copper
line is not recommended for this application.
PLUMBING REQUIREMENTS
Water Supply
Pressure
Excess Line for Connection
LEFT SIDE
OF OPENING
1
2"
15
/
"
2
(51)
(394)
3"
(76)
AREA EXTENDS 1
/
"
2
(13)
FORWARD ON FLOOR
Water supply location
1/4" OD copper, braided stainless
steel, or PEX tubing
20–100 psi
(1.4–6.9 bar)
36"
(914)
