t.a.c. MS-83010 Series General Instructions Manual page 7

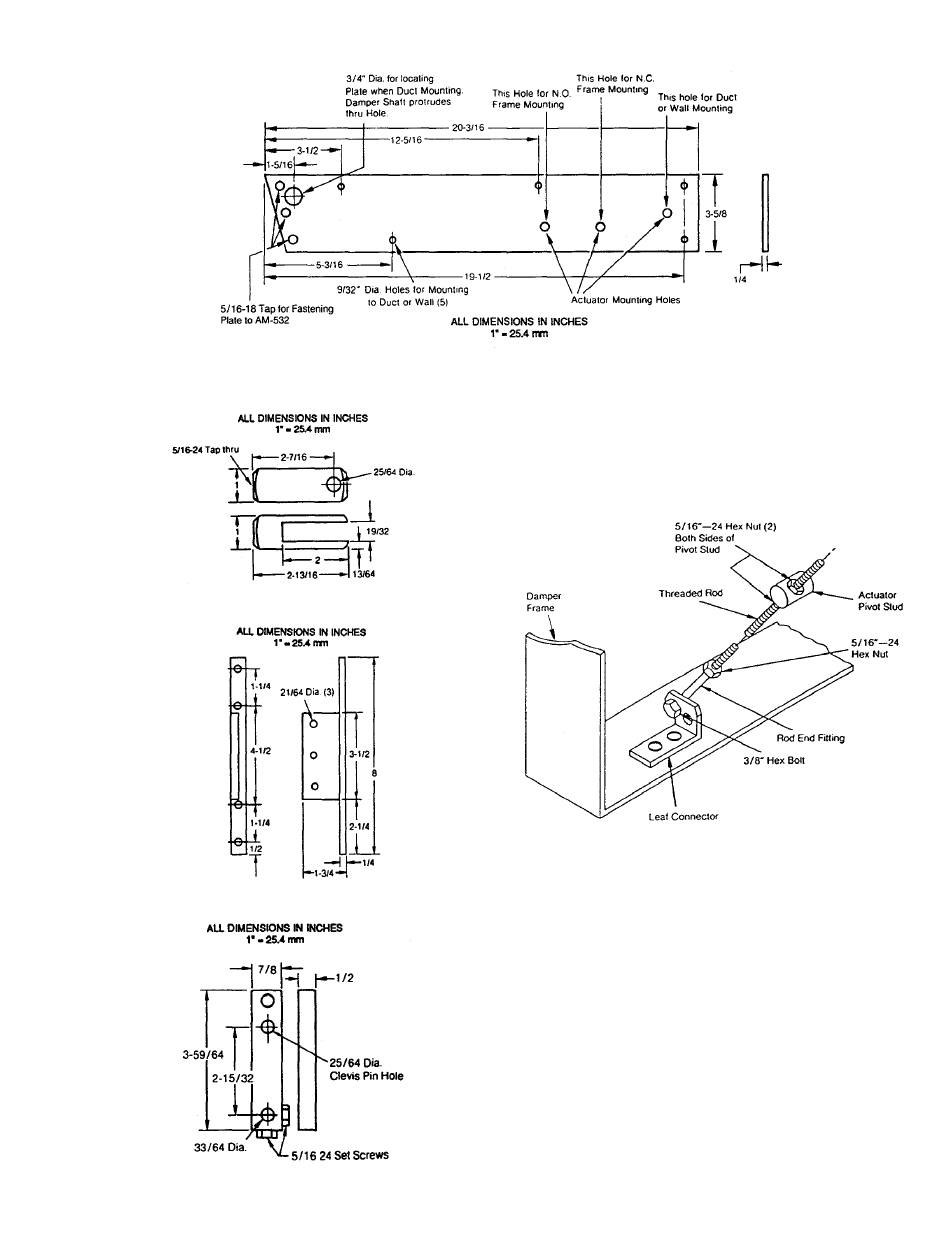

Figure-13 AM-535 Clevis.
Figure-14 AM-532 Bolt-on Frame Bracket.
Figure-15 AM-530 Crank Arm.
F-19449-5
Figure-12 AM-536 Mounting Plate.
AM-538 Brace Kit for Pivot Mounted MS-8305X
Actuators
The AM-538 brace kit is used with pivot mounted MS-8305X
actuators when additional support is needed to stiffen the
mounting bracket.
Mounting Instructions (Refer to Figure 16)
1. Thread 5/16" - 24 hex nut and then the rod end fitting onto
the thread rod and secure rod end fitting by jamming lock
nut against the rod end fitting.
2. Insert the 3/8" hex head bolt through the rod end fitting
and then through the top hole in the leaf connector. Use
lock washer and 3/8" - 16 hex nut to loosely secure.
3. Thread a 5/16" - 24 hex nut about 7" (180 mm) down the
threaded rod.
4. Loosen the nuts on the pivot stud of the actuator.
5. Slide the threaded rod from the damper side through the
hole in the end of the pivot stud.
6. Locate the leaf connector on the edge of the damper
frame and mark the positions to drill mounting holes.
7. Drill the two (2) mount holes 7/32" (6 mm) in diameter.
© Copyright 2006 TAC All Rights Reserved.
Figure-16 Installation of AM-538 Brace Kit.
7
