Pre-Installation - t.a.c. MS-83010 Series General Instructions Manual

Table-2 Damper Actuator Selection Specifications (linkage provided)
Supply Voltage
Part Number 50/60 Hz (Vac)
10 Watts
MS-83040 120 (+10%, -15%)
MS-83041 240 (+10%, -15%)
MS-83043 24 (+10%)
MS-83050 120 (+10%, -15%)
MS-83051 240 (+10%, -15%)
MS-83053 24 (+10%)
a
Damper ratings are nominal and based on standard (not low leakage) dampers at 1" (25.4 mm) W.C. pressure and 2000 fpm (10 m/s) velocity.
b
220 Vac at 50 Hz (+1-%, - 15%) the power stroke is approximately 25% slower and the VA is 20% more.
Table-3 MS-8301X Valve Body and Linkage (order
separately).
End Fitting Size
Linkage
(in.)
1-1/2 thru 2
AV-430
2-1/2 thru 3
AV-495 2-1/2 thru 4

PRE-INSTALLATION

Inspection
Inspect the package for damage. If damaged, notify the
appropriate carrier immediately. If undamaged, open the
package and inspect the device for obvious damage due to
shipping. Return damaged products.
Required Installation Items
•
Wiring diagrams
•
Tools (not provided):
Digital volt-ohm meter (DVM)
Appropriate drill and drill bit for mounting screws
Appropriate wrenches for adjustment of damper and
valve linkages
TOOL-209, 135 ohm slidewire and 0 to 7 mA manual
positioner
•
Appropriate accessories
•
Mounting screws or bolts (not provided)
•
Wire nuts (not provided)
INSTALLATION
Caution:
1. Installer must be a qualified, experienced technician.
2. Disconnect power supply before installation to prevent
electrical shock and equipment damage.
3. Make all connections in accordance with electrical wiring
diagram, and in compliance with national and local codes.
Use copper conductors only.
4. Do not exceed the ratings of the device.
5. Avoid locations where excessive moisture, corrosive
fumes or vibration are present. NEMA Type 1 housings
are intended for indoor use primarily to provide a degree
of production against contact with enclosed equipment.
2
Output
VA Rating
Description
47
Proportional
46 2" (51 mm)
stroke
44
47
Prop. 3-1/2"
46 (89 mm)
stroke
44
Valve Body
VB-92X3, VB-92X4, VB-9313,
VB-9314, VB-9323
VB-9323
VB-92X3, VB-9313
© Copyright 2006 TAC All Rights Reserved.
Application
Proportional Proportional Control
Torque Nominal Damper Area
Rating lb.-in. sq. ft. (m
(N-m) for
Determining
Parallel
Damper Area
75 (8.5) 42 (3.9)
190 (21.5) 106 (9.8) 137 (12.7)
Mounting
The actuator can be mounted in any position in a weather
protected area. It is recommended that valve actuators be
mounted above the centerline of the valve body. When
selecting a location, allow sufficient room for accessories and
for service of the product.
MS-8301X Valve Actuators
For the correct installation of valve linkages refer to the
instruction sheets for AV-430 (F-19072) or AV-495 (F-21665)
which-ever is appropriate for the particular valve body.

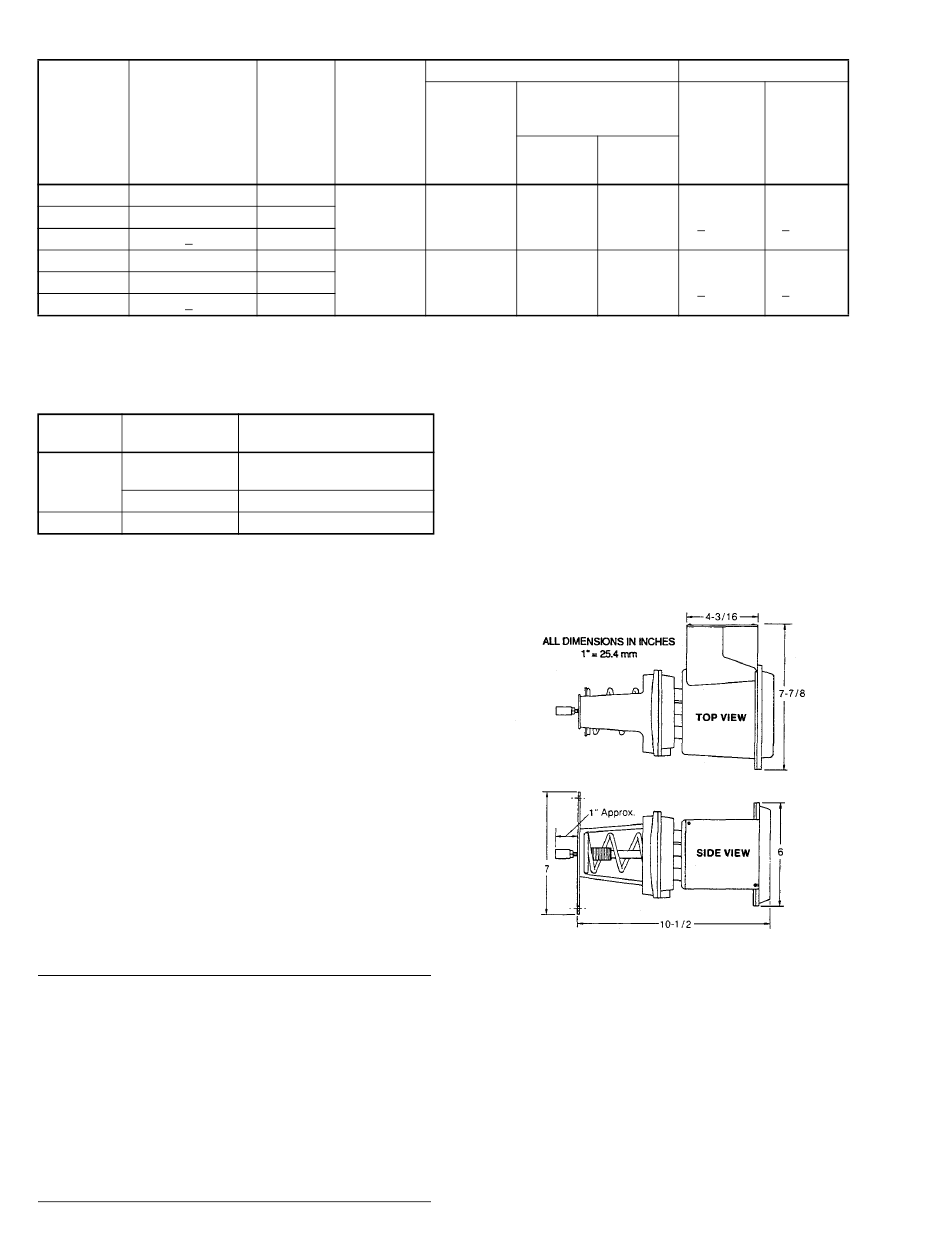

Figure-1 Dimensions for MX-830XX Series.
MS-8304X 75 lb.-in. Damper Actuator
Typical Mounting
Accessories typically required for mounting per Figure 3
•
Crank arm for damper shaft; AM-111, AM-112, AM-113 or
AM-115
•
Ball joint; AM-122 or AM-132
•
Damper rod, 5/16" dia.; AM-125 or AM-125-048
Timing at 70°F (21°C)
a
2
) No Load
Retract
b
Stroke
Opposed
2-1/4 min. 1/2 min.
54 (5)
+25 sec. +10 sec.
4 min. 1-1/2 min.
+40 sec. +15 sec.
F-19449-5
