SENCOR SMR 131
Antenna
PTT(push to talk)
button
-press and hold to
transmil
(UP)/(DOWN)buttons
-press to change
channels, volume, and
to select settings durina
oroarammina.
CALL button
-press to send a ringing
tone to other PMR units.
Speaker

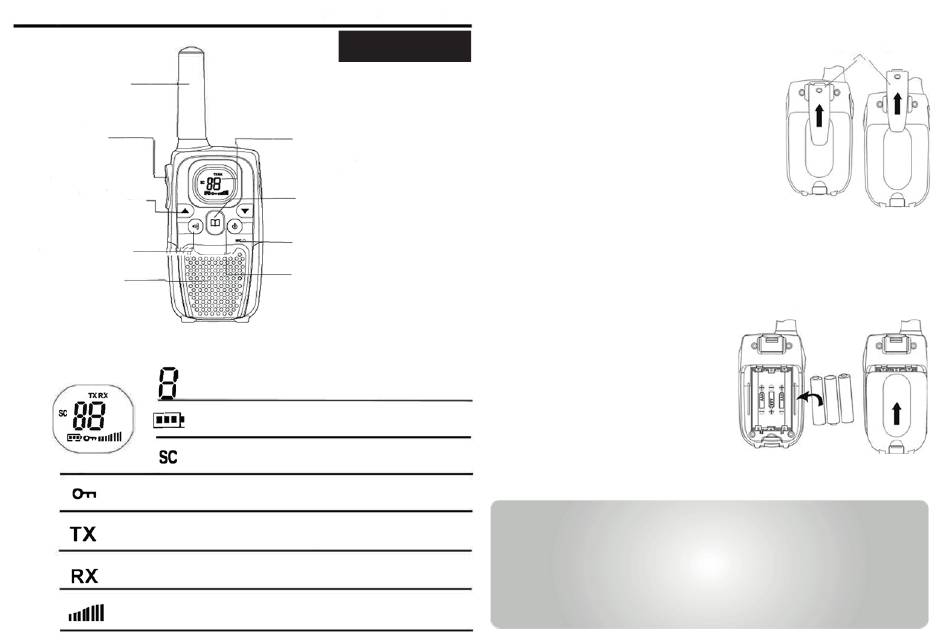

1.LCD Screen
Channel Number. Changes from 1 to 16
as selected by the user.
Displays when Sean function is activated
Displayed when Key Lock function is activated
Displayed when transmitting a signal.
Displayed when receiving a signal.
Displayed the full volume level
Personal Mobile Radio
USER GUIDE
LCD screen
-Displays the current
Channel selection and
other radio symbols.
MENU button
-press to program the PMR
settings
MIC (mlcrophone)
(Power) button
-press and hold to tum the
PMR unit ON or OFF.
Displays when battery level goes low.
2. lnstallation
2.1 Removing the Belt clip
a. Pull the belt cliR latch away from the
PMR.
b. While pulling the belt clip latch, push
up the belt chp as shown in Fig. 1.
2.2 lnstalling the Belt clip
a. Slide the belt clip into the slot as
shown in Fig. 2.
b. A click" indicates the belt cliP. is
locked into its pos1tion.
2.3 lnstalling the Batteries
a. Slide down the battery
compartment cover.
b. lnsert the 3xAAA batteries.
Position the batteries according
to the polarity marking on the
battery compartment. See Fig.3
c. Replace the battery cover. See
Fig. 4.
Notes:
• Use only same type and make of batteries on the PMR units.
• The PMR units have a built-in Power Saver (PS) for maximum
battery life, but when not in use, turn the units OFF to save battery
power
• Remove the batteries if the units wi/1 not be used for a /ong period
of time.
Belt clip latch
Figure 1
Figure 2
Figure 3 Figure 4
