OWNER'S MANUAL
USER INSTRUCTIONS
NÁVOD K OBSLUZE
UŽIVATELSKÉ POKYNY
NÁVOD NA OBSLUHU
POUŽÍVATEĽSKÉ POKYNY
HASZNÁLATI ÚTMUTATÓ
HASZNÁLATI UTASÍTÁSOK
INSTRUKCJA OBSŁUGI
ZALECENIA DLA UŻYTKOWNIKA
SMR 110
Personal Mobile Radio
Radiostanice
Rádiostanica
Rádióállomás
Radiostacja
Advertisement
Related Manuals for Sencor SMR 110
Summary of Contents for Sencor SMR 110

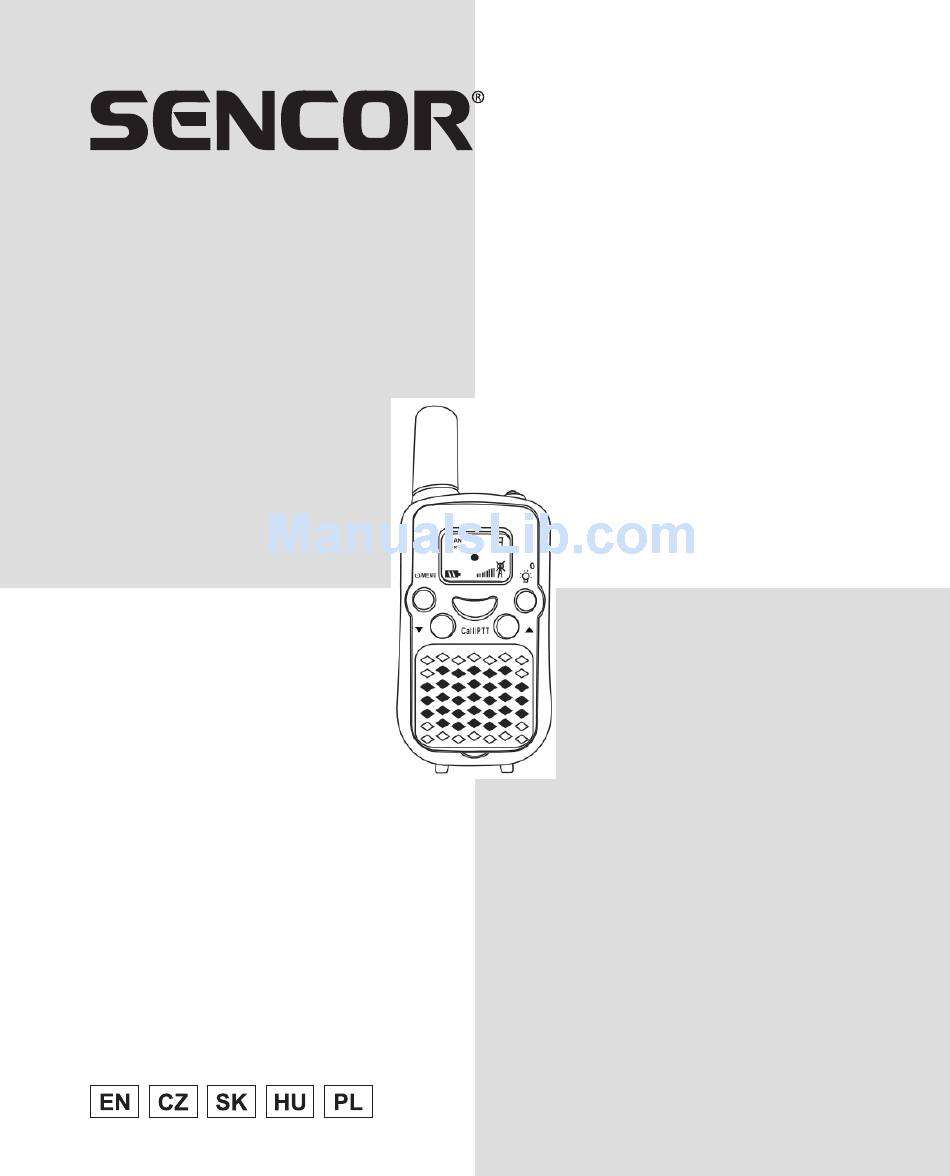

- Page 1 SMR 110 OWNER‘S MANUAL Personal Mobile Radio USER INSTRUCTIONS NÁVOD K OBSLUZE Radiostanice UŽIVATELSKÉ POKYNY NÁVOD NA OBSLUHU Rádiostanica POUŽÍVATEĽSKÉ POKYNY HASZNÁLATI ÚTMUTATÓ Rádióállomás HASZNÁLATI UTASÍTÁSOK INSTRUKCJA OBSŁUGI Radiostacja ZALECENIA DLA UŻYTKOWNIKA...
- Page 3 PIC 1 Antenna Call/PTT button (Call)/ Tx/Rx Icon (Push-to-talk) Volume 10 Battery Level Down Button 11 Vox Up Button 12 Scanning ON/OFF power button / 13 Channel//Menu Item MENU Button 14 CTCSS/Menu option Speaker 15 LED fl ashlight button Microphone 16 LED fl...
- Page 4 PIC 2 EN-2...
- Page 5 EN ~ Instructions for use This set includes 2 walkie-talkie units: these are communication devices which operate on mobileradio frequencies. They come with 8 (option) channels as well as a back-lit LCD screen, enabling you to communicate over several kilometres free-of-charge (up to 5 km in open areas) Note: Please read these user instructions carefully before using the equipment and retain for future consultation!
- Page 6 ITEM DESCRIPTION (Pic 01, 02) Antenna 2. RX icon - Displayed when receiving TX icon - Displayed when transmitting 3. Volume level indicator Setting Down button (▼) 5. Setting Up button (▲) 6. ON/OFF power button/MENU (Menu) () Loud speaker 8.
- Page 7 BEFORE USE (PIC 2) To insert batteries into the devices, fi rst remove the belt attachment: lift the attachment clip (17) and press the belt attachment upwards (18) Open the battery compartment (20) and insert 3 AAA batteries (19) (not supplied), ensuring that the poles are correctly aligned.
- Page 8 For a voice transmission, press and hold the Call/PTT (transmit) (9) button and speak into the microphone (8). Hold down this button until the transmission of your message is complete. Hold the microphone a minimum of 5 cm from your face. Note: The other device must be set to the same channel and have set the same CTCSS code (see point 7)
- Page 9 CTCSS Press the MENU-button (6) twice: The current CTCSS code fl ashes on the display. Press the ▼ -button (4) or the ▲-button (5) to change to another code. Press the Call/PTT - button (9) to confi rm and return to stand-by mode. Note: To turn off CTCSS, select for CTCSS the code „OF“...
- Page 10 10. Scanning for an active radio channel Press the Up ▲ button (5) for 3 seconds: The ’Scan’ function indicator (12) will appear on the screen and the channel (13) will scan continuously from 1 to 8 (according to current CTCSS subchannel setting only).
-
Page 11: Display Backlight
Press the Call/PTT - button (9) to confi rm your selection and return to the standby mode. 13. Roger Beep On/Off After the Call/PTT - button is released, the unit will send out a roger beep to confi rm that you have stopped talking. To set the Roger Beep. - Page 12 17. Technical specifi cations Channels Sub-code CTCSS 38 Frequency 446 MHz Range Up to 5 Km (Open fi eld) Battery 3 AAA Transmission Power <= 500 mW ERP Modulation Type FM -F3E Channel spacing 12.5 kHz 18. Channel Frequency Table Channel Frequency (MHz) Channel...
- Page 13 The CE mark included on the unit, in the manual and on the package means that the product fulfi ls basic requirements of the R&TTE 1995/EC Regulations and Low Voltage Regulations 73/23/EEC. The Declaration of Conformity is available on www.sencor.eu . EN-11...
-
Page 14: Warranty Conditions
Data on presented documents differs from data on products. Cases when the claiming product cannot be indentified according to the presented documents (e.g. the serial number or the warranty seal has been damaged). Authorized service centers Visit www.sencor.eu for detailed information about authorized service centers. EN-12...
