www.seuservice.com

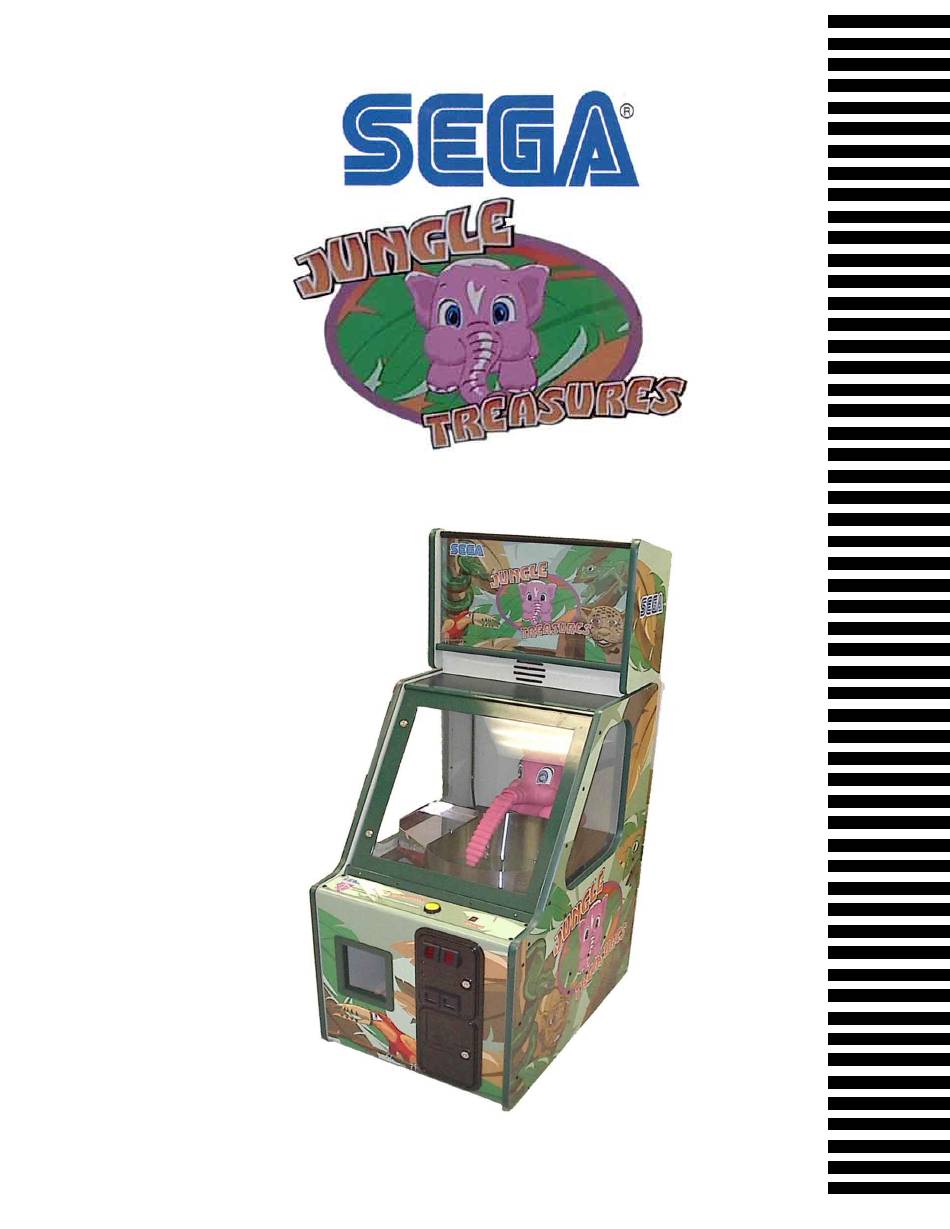

1ST PRINTING JULY '03
REV. 2

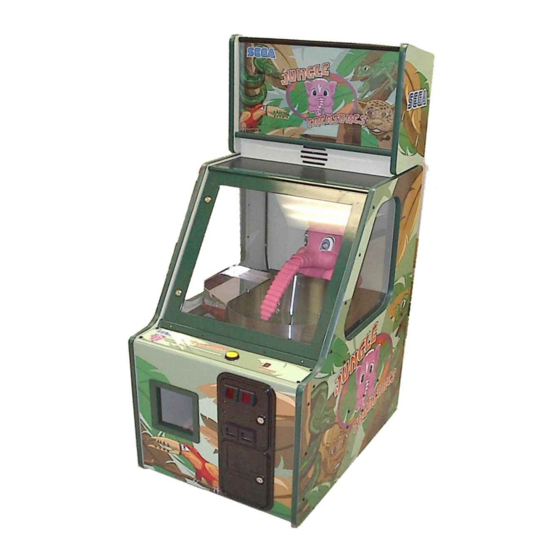

A Game of Skill
Owner's Manual
SEGA AMUSEMENTS USA, INC.
MANUAL NO. 999-1763
GAME CODE: JT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JUNGLE TREASURES and is the answer not in the manual?

Questions and answers

Related Manuals for Sega JUNGLE TREASURES

Summary of Contents for Sega JUNGLE TREASURES

  • Page 1 1ST PRINTING JULY ‘03 REV. 2 A Game of Skill Owner’s Manual SEGA AMUSEMENTS USA, INC. MANUAL NO. 999-1763 GAME CODE: JT...
  • Page 2 VISIT OUR WEBSITE!
  • Page 3 BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING: To maintain the safety: To ensure the safe usage of the product, be sure to read the following before using the product. The following instructions are intended for the users, operators and the personnel in charge of the opera- tion of the product.
  • Page 4 SEGA shall not be held responsible for any accidents, compensation for damage to a third party, resulting from the specifications not designated by SEGA.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING: TABLE OF CONTENTS INTRODUCTION OF THE OWNER’S MANUAL 1. HANDLING PRECAUTIONS ..................1 - 2 2. PRECAUTIONS CONCERNING INSTALLATION LOCATION ........3 - 4 3. OPERATION ........................5 - 6 4.

  • Page 6: Introduction Of The Owners Manual

    SEGA AMUSEMENTS USA, INC./CUSTOMER SERVICE 45133 Industrial Drive, Fremont, California 94538, U.S.A. Phone : (415) 701-6580 Fax : (415) 701-6594  PRODUCTION DATE  This SEGA product was produced in the year of: 2003 This signifies that this work was disclosed in 2003.
  • Page 7 DEFINITION OF LOCATION MAINTENANCE MAN AND SERVICEMAN Non-technical personnel who do not have technical knowledge and expertise should refrain from performing such work that this manual requires the location's main- tenance man or a serviceman to carry out, or work which is not explained in this WARNING! manual.
  • Page 8 Notes:...

  • Page 9: Handling Precautions

    • SEGA shall not be held responsible for damage, compensation for damage to a third party, caused by specification changes not designated by SEGA.
  • Page 10  Some parts are the ones designed and manufactured not specifically for this game machine. The manufacturers may discontinue, or change the specifications of, such general-purpose parts. If this is the case, Sega cannot repair or replace a failed game machine whether or not a warranty period has expired.

  • Page 11: Precautions Concerning Installation Location

    2. PRECAUTIONS CONCERNING INSTALLATION LOCATION This product is an indoor game machine. Do not install it outside. Even indoors, avoid installing in places mentioned below so as not to cause a fire, electric shock, WARNING! injury and or malfunctioning.  Places subject to rain or water leakage, or places subject to high humidity in the proximity of an indoor swimming pool and or shower, etc.
  • Page 12 To avoid machine malfunctioning and a fire, do not place any obstacles near the ventilation opening.  SEGA shall not be held responsible for damage, compensation for damage to a third party, resulting from the failure to observe this instruction.

  • Page 13: Operation

    3. OPERATION PRECAUTIONS TO BE HEEDED BEFORE STARTING THE OPERATION To avoid injury and trouble, be sure to constantly give careful attention to the behavior and manner of the visitors and players. In order to avoid accidents, check the following before starting the operation: ...
  • Page 14  Immediately stop such violent acts as hitting and kicking the product. Such violent acts can cause parts damage or falling down, resulting in injury due to fragments and falling down. CAUTION!  Do not put any heavy item on this product. Placing any heavy item on the prod- uct can cause a falling down accident or parts damage.

  • Page 15: Assembling And Installation

    4. ASSEMBLING AND INSTALLATION  Perform assembly work by following the procedure herein stated. Failing to comply with the instructions can cause electric shock hazard. WARNING!  Perform assembling as per this manual. Since this is a complex machine, erroneous assembling can cause an electric shock, machine damage and or not functioning as per specified performance.
  • Page 16 24.75 in. FIG. 6. 2 e Provide ventilation space for the ventilation opening. Allow more than 28 in. of space for customer traffic. www.seuservice.com...
  • Page 17 POWER SUPPLY, AND EARTH CONNECTION  Be sure to independently use the power supply socket outlet equipped with an Earth Leakage Breaker. Using a power supply without an Earth Leakage WARNING! Breaker can cause a fire when electric leakage occurs. ...

  • Page 18: Precautions To Be Heeded When Moving The Machine

    5. PRECAUTIONS WHEN MOVING THE MACHINE  When moving the machine, be sure to unplug the power plug. Moving the machine with the plug as is inserted can damage the power cord and cause fire WARNING! and electric shock hazards. ...

  • Page 19: Name Of Parts

    6. NAME OF PARTS Marquee Speaker Play Area 7 Seg. Display Play Button Coin Inlet Prize Chute TABLE 1 Dimensions and Weights Width x Length x Height Weight CABINET 24.75 in x 34.25 in x 62.5 in 210 LBS www.seuservice.com...

  • Page 20: Game Description

    7. GAME DESCRIPTION The following explanations apply to cases where the product is functioning satisfactorily. Should there be anything different then the following contents, some sort of faults may have occurred. Immediately look into the cause of the fault and eliminate the cause thereof to ensure satiffactory operation.

  • Page 21: How To Play

    8. HOW TO PLAY Play starts with the player inserting a coin/  token into a slot on the front of the machine. Insert Coin/Token When the coin/token is realeased the Elephant  moves his head and “Nose” in an attempt to aquire a “Prize”...

  • Page 22: Gameboard Config Settings

    9. Gameboard Config Settings Dip Switches Dip Switches Switch 1 (Play until Prize is won) Enable play until prize is won Disable play until prize is won Switch 2 & 3 (Credits per Play) 1 Credit for play amount 2 Credits for play amount 3 Credits for play amount 4 Credits for play amount * If Switch 1 is “On”...

  • Page 23: Game Errors

    Optical sensor check sequence:  • On Power up or game resetting for next play the optical sensor status is analyzed. • If Optical status is not saved for each optical sensor the game will initiate the “Optical Sensor check sequence” which moves each motor in sequence to test sensor transitions.

  • Page 24: Test Mode

    12. Test Mode While the game is playing: - Press test button once plays a sound but doesn’t affect game play. - Press and hold test button for 2 seconds stops game-play, clears credits and resets game. While the game is in attract mode: - If all sensors are operational and there are no errors - The display attract show lights every segment in a figure eight order - If there are sensor problems detected the display will show a letter code corresponding to...

  • Page 25: Design Related Parts

    13. DESIGN RELATED PARTS 999-1726 999-1729 Plex Marquee JT Decal Header Left 999-1730 Decal Header Right 999-1738 999-1739 Glass Front Door Plex Right Side 999-1740 Plex Left Side 999-1736 Eyeball SET 999-1727 Plex Control Panel 999-1731 Decal Cabinet JT Left 999-1732 Decal Cabinet JT Right 999-1728...
  • Page 26 14. PARTS (Header) Item # Part # Description 999-1733 Marquee Sash Local Purchase Fluorescent Fixture 18 in 15 W Coolwhite 999-1751 Speaker 999-1749 Prize Ramp www.seuservice.com...
  • Page 27 PARTS (Midheight of Game) Item # Part # Description 999-1734 Top Sash 999-1741 Main Door Hindge 999-1742 Main Door Frame 999-1735 Bottom Sash Cab 999-1743 Rear Door 999-1745 Key & Lock Rear Door 999-1744 Main Door Key & Lock X2 999-1746 Prize Chute Top www.seuservice.com...
  • Page 28 PARTS (Lower Game) Item # Part # Description 999-1752 7 Segment LED 999-1753 Leg Adjuster 999-1754 Swivel Casters 999-1755 SW Playbutton (Flashing) 999-1747 Prize Chute Frame 999-1748 Prize Chute Lower 999-1737 Plex Prize Chute Door www.seuservice.com...
  • Page 29 PARTS (Electronics) Item # Part # Description 998-0185 Transfomer 998-0186 Power Supply 998-0187 Line Filter 998-0189 Motor Boards 998-0188 Main Game Board www.seuservice.com...

  • Page 30: Parts

    PARTS Item # Part # Description Notes 999-1758 Elephant Trunk 999-1756 Elephant Head 999-1757 Elephant Torso 999-1750 Prize Bucket Side 999-1830 Prize Bucket Bottom 999-1831 Prize Bucket Mixer/Diverter 999-1832 Prize Sensors 999-1833 Prize Chute Center 999-1834 Nose Tip 999-1835 Nose Tip Claw www.seuservice.com...
  • Page 31 PARTS Item # Part # Description Notes 999-1814 Trunk Tip Mount 999-1815 Trunk Channel 999-1816 Trunk Band Metal 999-1817 Trunk Band Plastic 999-1818 Trunk Band Plastic Ribbed 999-1819 Trunk Frame 999-1820 Trunk Band Bracket 999-1821 Trunk Band Mount/Slide 999-1822 Trunk Band Arm 999-1823 Encoder Wheel 1/2 Trunk 999-1824...
  • Page 32 PARTS Item # Part # Description Notes 999-1841 Head Cam 999-1827 Opto Coupler 2 on bracket 999-1847 Opto Coupler Bracket Head 999-1842 Head Motor Bracket 999-1843 Elephant Main Frame 999-1759 Head Motor Up/Down Motion 999-1844 Elephant Main Post 999-1845 Interrupter Opto Bracket 999-1846 Opto Coupler Bracket Body 3 of them www.seuservice.com...
  • Page 33 PARTS Item # Part # Description Notes 999-1848 Bearing Bracket Visable U Shaped Bracket 999-1855 Bearing 999-1854 Bearing Holder Flat Plate on Top 999-1836 Bucket Shaft and Plate 999-1762 Bucket Motor 999-1837 Bucket Support Brace 999-1838 Shaft Coupler 999-1839 Bucket Motor Bracket 999-1840 Brace Mount 1 on each side...

  • Page 34: Wire Color Code Table

    15. WIRE COLOR CODE TABLE THE WIRE COLOR CODE is as follow: PINK SKY BLUE BROWN PURPLE LIGHT GREEN Wires other than those of any of the above 5 single colors will be displayed by 2 alphanumeric characters. NO TRACE BLUE YELLOW GREEN...

  • Page 35: Input Port Assignments

    16. INPUT PORT ASSIGNMENTS P9 - 34 pos. Ultrex connector Color Code Bit Access Description BIT 6 Push Button Switch BIT 7 Test Button Switch BIT 8 Volume Up Switch BIT 9 Volume Down Switch BIT 10 Coin Switch BIT 11 Nose Open Sensor BIT 12 Nose Close Sensor...
  • Page 36 P6(Multiplexed Lamp Source) - 16 pos. KK-100 connector Color Code Bit Access Description BIT 1 Button lamp Source BIT 2 Bin 1 Lamp Source BIT 3 Bin 2 Lamp Source BIT 4 Eye 1 Lamp Source BIT 5 Eye 2 Lamp Source BIT 6 Button Lamp Source Backup BIT 7...
  • Page 37 Warranty Your new Sega Product is covered for a period of 90 days from the date of shipment. This certifies that the Printed Circuit Boards, Power Supplies and Monitor are to be free of defects in workman- ship or materials under normal operating conditions. This also certifies that all Interactive Control Assemblies are to be free from defects in workmanship and materials under normal operating condi- tions.
  • Page 38 SEGA AMUSEMENTS USA, INC.
