  • Page 2: Legal Information

    All company, brand and product names are trade or service marks, or registered trade or service marks, of ZTE CORPORATION or of their re- spective owners. This document is provided “as is”, and all express, implied, or statutory...

  • Page 3: Safety Precautions

    Safety Precautions Note: Before using the device, read the following safety precautions. ZTE bears no liability to the consequences incurred by violation of the safety instructions. Usage Cautions � Read all the safety cautions carefully before using the device. �...

  • Page 4: Package Content

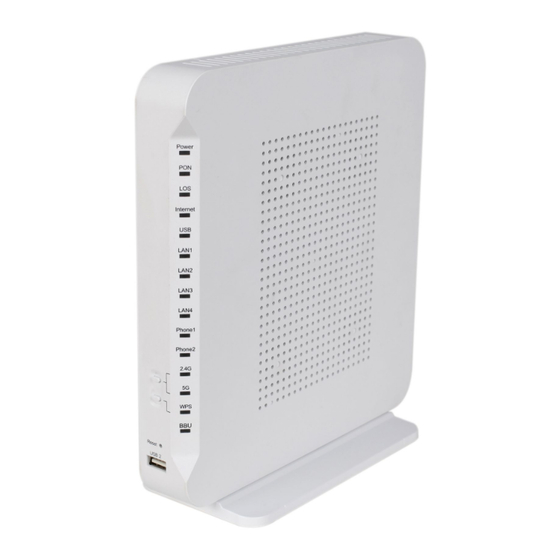

    If any of the items included in the package is incorrect, lost or damaged, please contact your service provider. If you need to replace the product, please keep the package and all the items in good condition. Indicator Figure 3-1 shows the indicators on the front panel of the ZXHN F680 unit.
  • Page 5 Figure 3-1 Indicators of the ZXHN F680 Unit Table 3-1 describes the indicators on the front panel of the ZXHN F680 unit. Table 3-1 Indicators on the Front Panel Indicator Description Status The device is powered off. Power Solid green The device is powered on.
  • Page 6 Indicator Description Status The ONT received optical power is normal. The optical transmitter of the PON interface is Solid red powered off. The received optical power is less than the Flashing red optical receiver sensitivity, or the device is downloading a program package. The device is not powered on, there is no WAN connection with Internet properties configured, or the WAN configuration is not effective.
  • Page 7 The standby power supply is used and operates Solid green properly. The standby power supply is used but operates Flashing green improperly. For example, undervoltage occurs. Interface Figure 4-1 shows the interfaces and buttons of the ZXHN F680 unit.
  • Page 8 Figure 4-1 Interfaces and Buttons on the Back Panel Table 4-1describes the interfaces and buttons of the ZXHN F680 unit. Table 4-1 Descriptions of the Interfaces and Buttons on the Back Panel Interface/Button Description RJ-11 telephone interface, connected to the telephone with RJ-11 Phone1/Phone2 telephone cable.

  • Page 9: Product Features

    WLAN button for enabling or disabling the 2.4G/5G WLAN Wi-Fi function. • The Reset button, Wi-Fi button, WPS button and USB2 interface are on a side of the ZXHN F680 device. Product Features Interfaces � GPON interface:...

  • Page 10: Cable Connection

    � Network management: Provides multi-mode network management. Pechnical Specification For the product specifications of the ZXHN F680 , refer to Table 6-1. Table 6-1 Product Specifications Technical Specifications 206 mm × 222 mm × 32 mm Dimension (Height ×...

  • Page 11: Troubleshooting

    Figure 7-1 Entire Connection Verify that the cable connections are correct, and press the On/Off button. After the power indicator is lit and other indicators operate properly, services of the carrier can be used. Troubleshooting The Power indicator on the front panel is off after the power button is pressed. The power adapter is not correctly connected to the device.

  • Page 12: Fcc Statement

    The Phone indicator on the front panel is off after the device is powered on. The telephone function is abnormal. Please contact the service provider for help. FCC Statement FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
