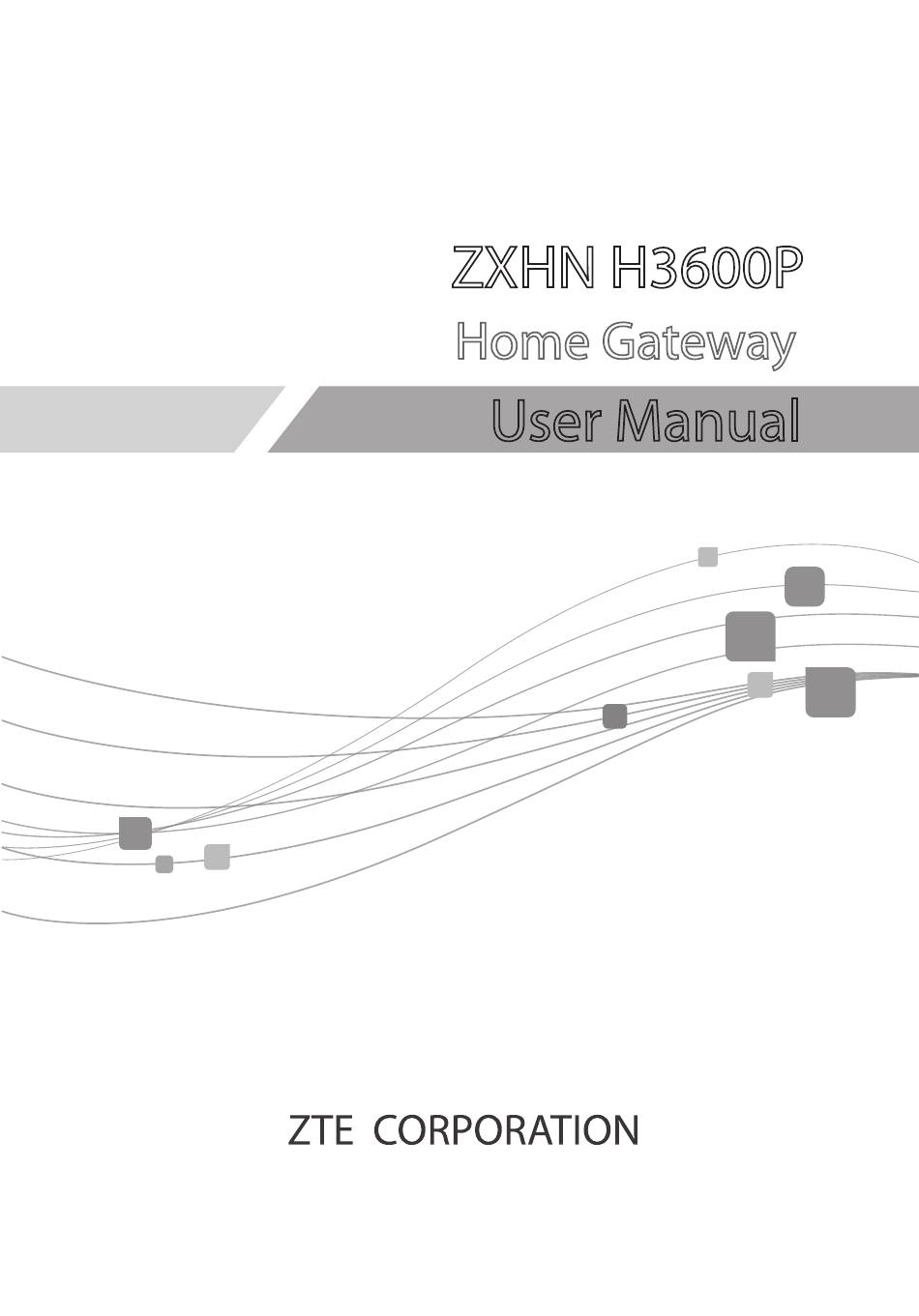

- Page 1 ZXHN H3600P Home Gateway User Manual...
-
Page 2: Legal Information
All company, brand and product names are trade or service marks, or registered trade or service marks, of ZTE CORPORATION or of their respe- ctive owners. This document is provided “as is”, and all express, implied, or statutory warranties, representations or conditions are disclaimed, including without limitation any implied warranty of merchantability, fitness for a particular... -
Page 3: Safety Precautions
Safety Precautions Note The users should read the usage cautions above carefully and will be responsible for any incident resulting from the violation of the above cautions. Usage Cautions Read all the safety cautions carefully before using the device. ... -
Page 4: Environment Protection
EU Declaration of Conformity Hereby, ZTE Corporation declares that the radio equipment type ZXHN H3600P is in compliance with Directive 2014/53/EU, The full text of the EU declaration of con- formity is available at the following Internet address: http://support.zte.com.cn/support/cer/EU... -
Page 5: Package Check
You may also contact your equipment provider for more information on the environmental performances of these prod- ucts. Package Check Please ensure the ZXHN H3600P package contains the following items. Name Quantity ZXHN H3600P... -
Page 6: Product Specifications
2414 MHz–2472 MHz Wi-Fi 5 GHz band: EIRP < 23 dBm 5150 MHz–5350 MHz Wi-Fi 5 GHz band: EIRP < 30 dBm 5450 MHz–5725 MHz Hardware Description Front Panel Figure 4-1 shows the indicators on the front panel of the ZXHN H3600P. - Page 7 Figure 4-1 The Front Panel Table 4-1 describes the indicators on the front panel of the ZXHN H3600P unit. Table 4-1 Descriptions of Indicators LED Indicator Status Description The device is powered o . Power Solid green The device is powered on properly.
- Page 8 LED Indicator Status Description The device is not powered on or the Ethernet Off connection does not exit. The WAN connection is online.The device has a WAN IP address from IPCP, DHCP or statically configured. LED remains green in the case of Solid green disconnection due to idle timeout when PPP dial-on-demand is enabled.
-
Page 9: Side Panel
Solid green The USB interface is connected with USB device. Data is being transmitted or received via the Flashing green USB interface. Side Panel Figure 4-2 shows the buttons and interfaces on the side panel of the ZXHN H3600P . - Page 10 Figure 4-2 The Side Panel Table 4-2 describes the buttons and interfaces on the side panel of the ZXHN H3600P. Table 4-2 Descriptions of the Side Panel Interface/Button Function Reset push button. During power on period, press this button Reset for more than 5 seconds to reset the current settings to the fac- tory default.
-
Page 11: Rear Panel
WPS Push Button, press this button to enable or disable the WPS function. Rear Panel Figure 4-3 shows the buttons on the rear panel of the ZXHN H3600P. Figure 4-3 The Rear Panel Table 4-3 describes the interfaces and buttons on the rear panel of the ZXHN H3600P. -
Page 12: Hardware Connection
3G Dongle connection. RJ-11 port. It is used to connect to the phone through the tele- Phone phone line. Hardware Connection Figure 5-1 shows the devices that are connected to interfaces of the ZXHN H3600P Figure 5-1 Cable Connection... -
Page 13: Troubleshooting
After the devices are connected to the ZXHN H3600P device, press the power but- ton. When the corresponding indicators on the front panel are On, you can enjoy various services provided by the service provider. The factors affecting the wireless network coverage range include the location of the product, distance between the product and a wireless terminal, number of ob- stacles, obstacle material and density, and interference source. - Page 14 The broadband indicator on the front panel is off after the device is pow- ered on. The WAN link is not established. The Ethernet cable is not correctly connected to the WAN interface. Please contact the service provider for help. Unable to connect to the network.
- Page 15 CERTIFICATION QC PASS...
