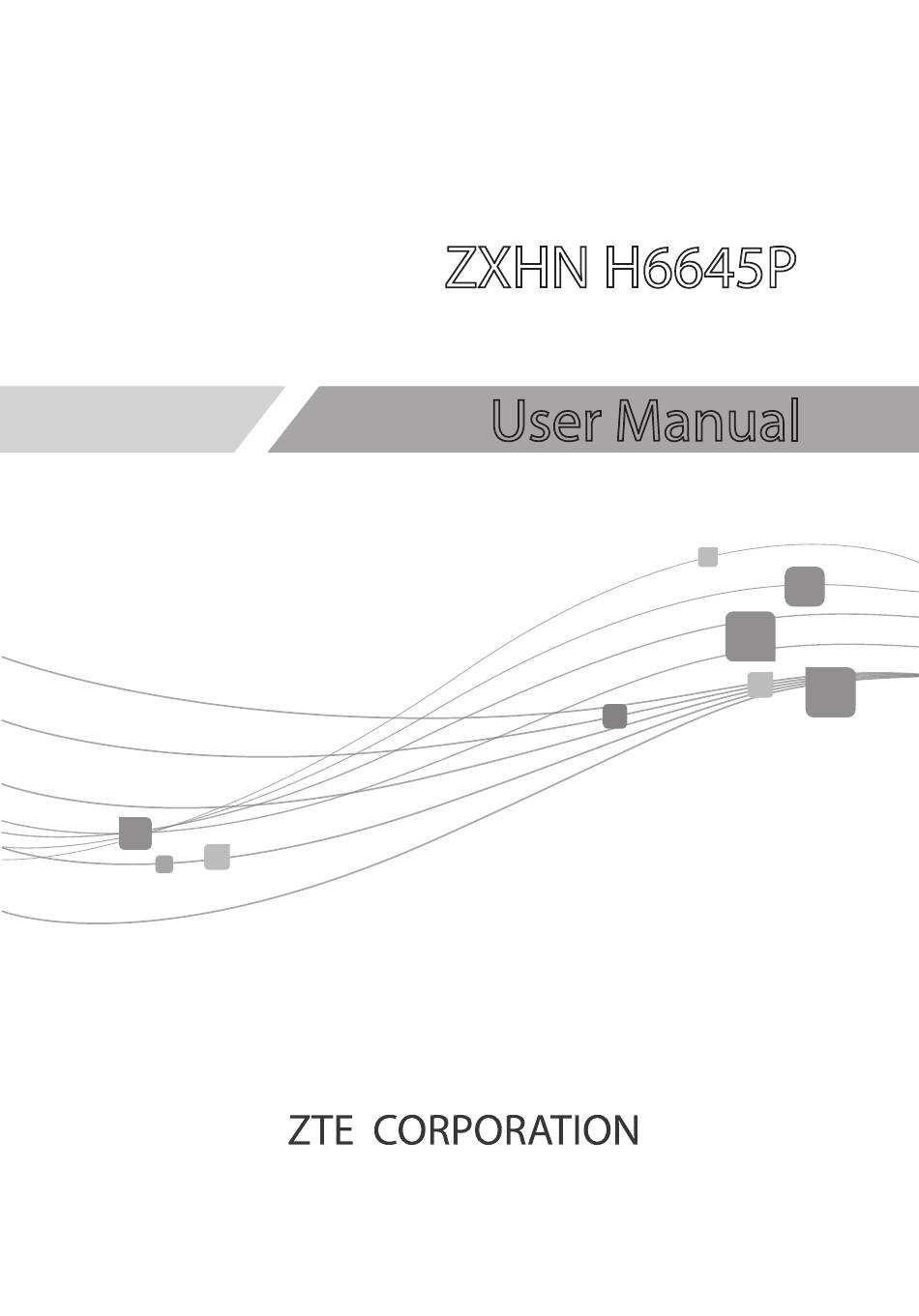

- Page 1 ZXHN H6645P Home Gateway User Manual...
-
Page 2: Legal Information
All company, brand and product names are trade or service marks, or registered trade or service marks, of ZTE CORPORATION or of their respe- ctive owners. This document is provided “as is”, and all express, implied, or statutory warranties, representations or conditions are disclaimed, including without limitation any implied warranty of merchantability, fitness for a particular... -
Page 3: Safety Precautions
Safety Precautions Note The users should read the usage cautions above carefully and will be responsible for any incident resulting from the violation of the above cautions. Usage Cautions Read all the safety cautions carefully before using the device. ... -
Page 4: Environment Protection
EU Declaration of Conformity Hereby, ZTE Corporation declares that the radio equipment type ZXHN H6645P is in compliance with Directive 2014/53/EU, The full text of the EU declaration of con- formity is available at the following Internet address: http://support.zte.com.cn/support/cer/EU... -
Page 5: Package Check
You may also contact your equipment provider for more information on the environmental performances of these prod- ucts. Package Check Please ensure the ZXHN H6645P package contains the following items. Name Quantity ZXHN H6645P... -
Page 6: Product Specifications
2414 MHz–2472 MHz Wi-Fi 5 GHz band: EIRP < 23 dBm 5150 MHz–5350 MHz Wi-Fi 5 GHz band: EIRP < 30 dBm 5450 MHz–5725 MHz Hardware Description Front Panel Figure 4-1 shows the indicators on the front panel of the ZXHN H6645P. - Page 7 Figure 4-1 The Front Panel Table 4-1 describes the indicators on the front panel of the ZXHN H6645P unit. Table 4-1 Descriptions of Indicators LED Indicator Status Description The device is powered off. Solid green The device is powered on properly.
- Page 8 LED Indicator Status Description Solid green The Ethernet connection has been established. The equipment is not powered on, the SFP (SFP Optical Link) module is not inserted or no optical fiber is de- tected. Solid green The The SFP uplink physical link negotiation has been established.
-
Page 9: Side Panel
5 minutes. Flashing slowly WLAN terminal is in WPS accessing process. green Flashing fast The WPS accessing of the WLAN terminal is green faulty. Side Panel Figure 4-2 shows the buttons and interfaces on the side panel of the ZXHN H6645P... - Page 10 Figure 4-2 The Side Panel Table 4-2 describes the buttons and interfaces on the side panel of the ZXHN H6645P. Table 4-2 Descriptions of the Side Panel Interface/Button Function Standard USB 3.0 interface, connected to a USB storage device, USB1* printer or 3G Dongle connection.
-
Page 11: Rear Panel
WPS Push Button, press this button to enable or disable the WPS function. Rear Panel Figure 4-3 shows the buttons on the rear panel of the ZXHN H6645P. Figure 4-3 The Rear Panel Table 4-3 describes the interfaces and buttons on the rear panel of the ZXHN H6645P. -
Page 12: Hardware Connection
Power switch. Power on or power off the device. *When the SFP uplink port is used, USB1 and USB2 cannot be used at the same time. Hardware Connection Figure 5-1 shows the devices that are connected to interfaces of the ZXHN H6645P... - Page 13 Figure 5-1 Cable Connection After the devices are connected to the ZXHN H6645P device, press the power but- ton. When the corresponding indicators on the front panel are On, you can enjoy various services provided by the service provider. The factors affecting the wireless network coverage range include the location of the product, distance between the product and a wireless terminal, number of ob- stacles, obstacle material and density, and interference source.
-
Page 14: Troubleshooting
Do not put other objects on the product. Try to reduce the number of obstacles between the product and a wireless terminal. Horizontally place the product in the middle of the applied area and do not put it in a corner. ...
