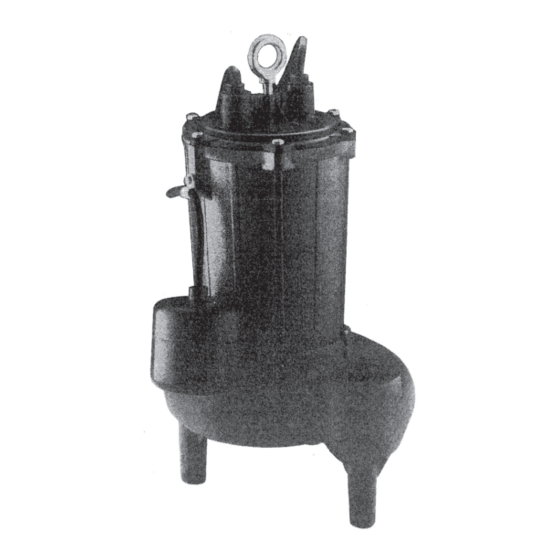

Summary of Contents for Pentair MYERS WHV-5 Series

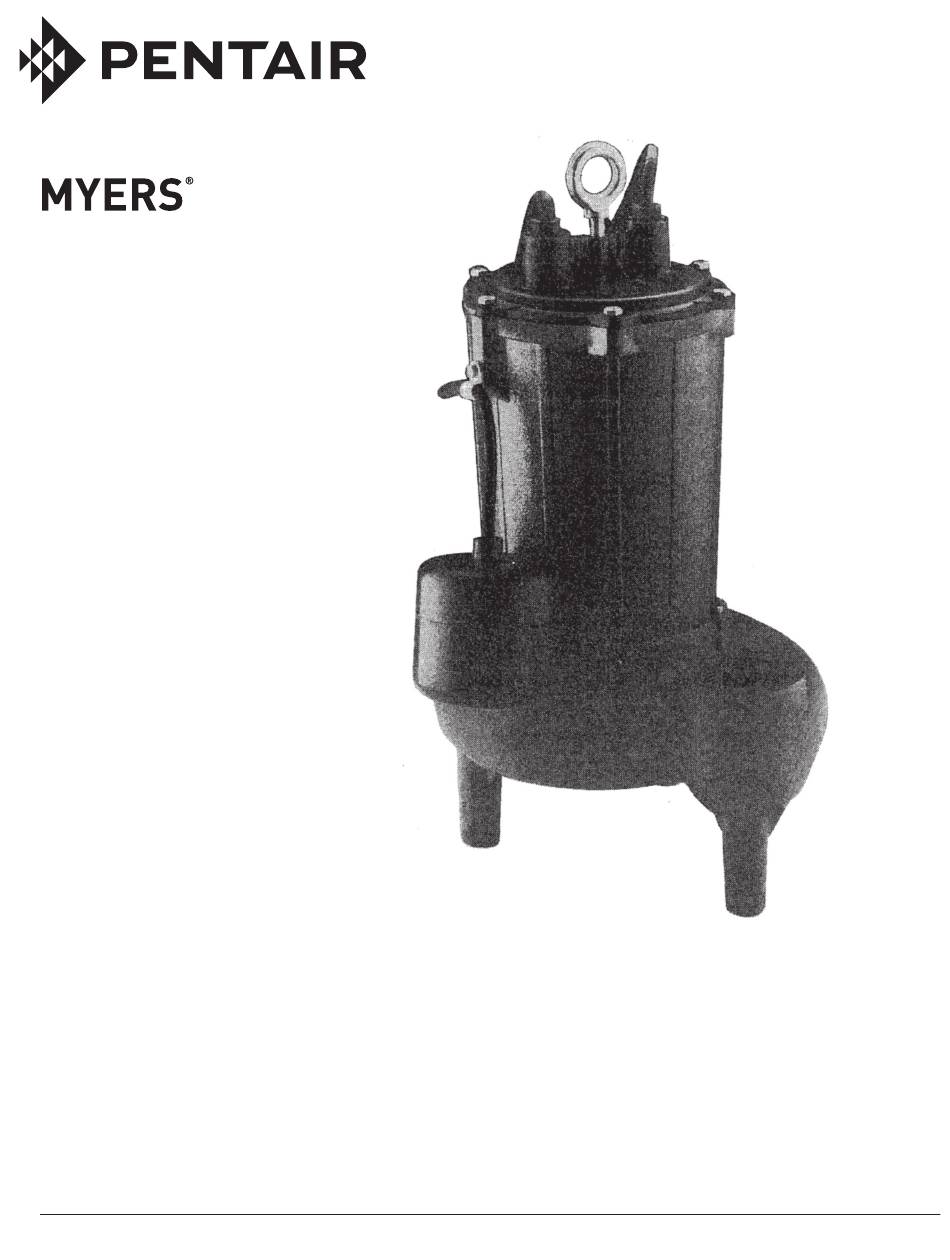

- Page 1 INSTALLATION AND SERVICE MANUAL NOTE! To the installer: Please make sure you provide this manual to the owner of the equip ment or to the responsible party who maintains the system. Part # 23833A156 | © 2012 Pentair Pump Group, Inc. | 11/14/12...
- Page 2 CALIFORNIA PROPOSITION 65 WARNING: used in 24" dia. or larger basins. Do not use WHV-5 in an 18" diameter basin. This product and related accessories contain chemicals known to the SIMPLEX BASIN State of California to cause cancer, birth defects or other reproductive harm. The B20-3036 basin package is for 1/2 HP pumps and has a 30"...
- Page 3 Inlet flange is installed in the field and hole cut in basin 5. Run water into sump until pump starts. Be sure at height required. More than one inlet flange can be discharge line valve is open. used if required to bring extra lines into basin. 6.
- Page 4 7. Check for electrical trouble – explained in the 5. This cycle will continue and pumps will alternate control box instructions. A competent electrician on successive cycles. should make checks in the control box to locate 6. If excessive flow enters the basin that is more than trouble.
- Page 5 23833A156 11/08/12...
- Page 6 WHV-5 23833A156 11/08/12...
- Page 7 PARTS LIST Reference Part Number Description Qty. Reference Part Number Description Qty. 21929A002 Bolt, Eye 3/8"-16 13321A009 Screw, Set 5/16"-18 x 3/4" 24472D001 24945C000 Impeller 05876A125 O-Ring, 6-1/8" x 5-7/8" x 1/8" 24947D000 Case, Volute 19099A023 Screw, Machine 1/4"-20 x 7/8" 09859A800 Wire, Jumper 09822A006...
- Page 8 Warranty is effective only if Pentair Myers authorized control panels are used. All seal fail and heat sensing devices must be hooked up, functional and monitored or this warranty will be void. Pentair Myers will cover only the lower seal and labor thereof for all dual seal pumps. Under no circumstance will Pentair Myers be responsible for the cost of field labor, travel expenses, rented equipment, removal/reinstallation costs or freight expenses to and from the factory or an authorized Pentair Myers service facility.
