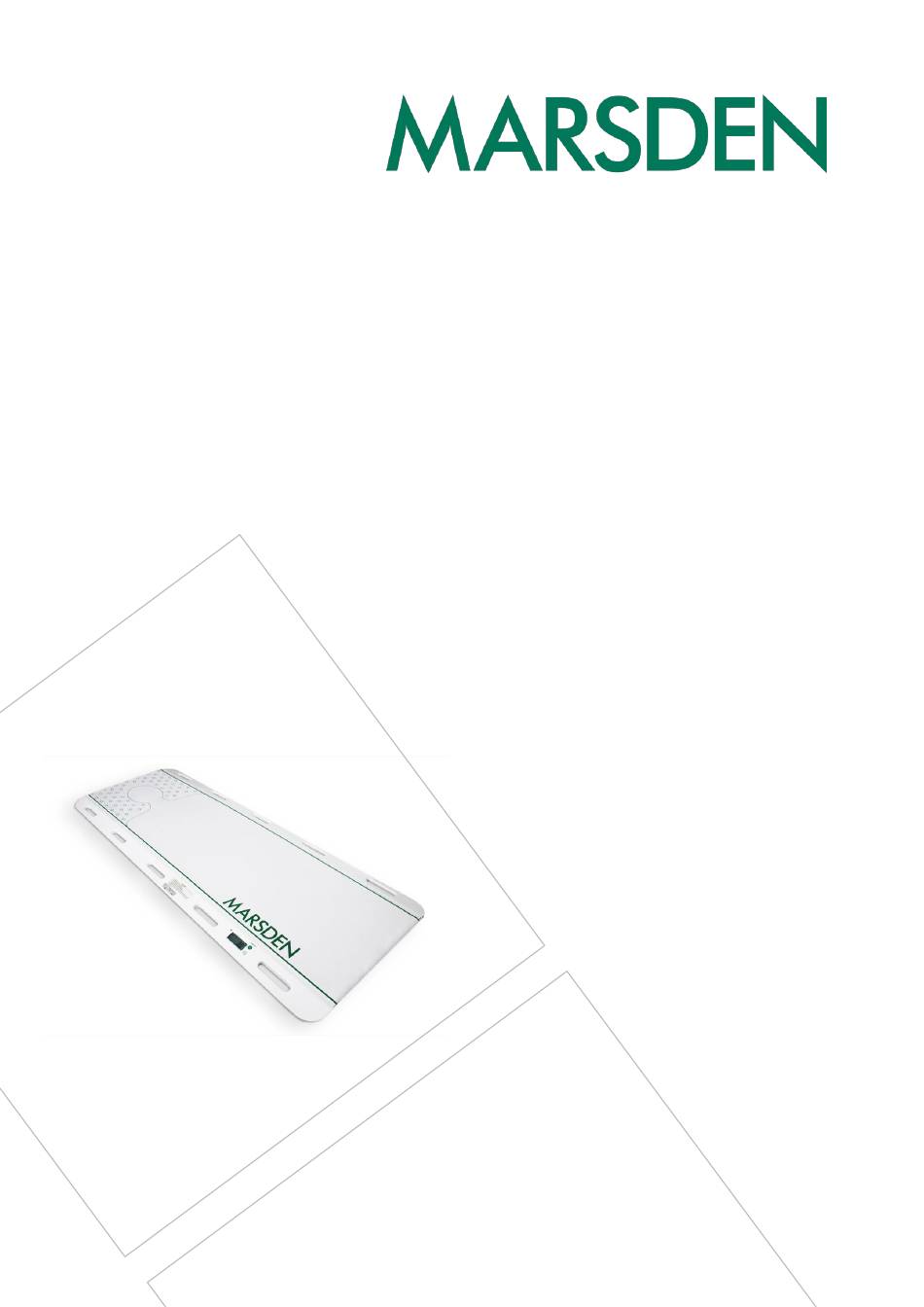

- Page 1 USER MANUAL M-999 Patient Transfer Scale Please take time to read these instructions before starting to use the scale Version 1.0 10/18...
-
Page 2: Table Of Contents
Contents Introduction Product Specification Safety Instructions Cleaning Explanation of Graphic Symbols LCD Display Recharging the M-999 Setting up the Scale Preparing to use the Scale Operation: Basic Functions Operation: Advanced Functions EMC Guidance and Manufacturer’s Declaration Error Messages Manufacturer’s Declaration of Conformity... -
Page 3: Introduction
Thank you for purchasing this Marsden Patient Transfer Scale. This is a precision Class III Weighing Instrument and considerate use will result in many years of accurate weighing. The scale has a maximum load capacity of 250kg which must not be exceeded. -
Page 4: Safety Instructions
Before putting the device into use, please read with care the information given in this user manual, which contains important instructions for proper installation, use and maintenance of the device. Marsden/the manufacturer shall not be liable for damages arising from failure to heed the following instructions: •... -
Page 5: Cleaning
• Do not submerge the PTS in water. If you think the scale may have suffered water ingress, stop using it immediately and contact Marsden/your local dealer/your service partner. • Always disconnect the PTS from the mains power supply before cleaning. -
Page 6: Explanation Of Graphic Symbols
Dispose of old appliances separately from your household waste. This product must be disposed of at a communal collection point. Carefully read this operation manual before setup and commissioning, even if you are already familiar with Marsden scales. Page 6... -
Page 7: Lcd Display
LCD Display HOLD Stable symbol Minus weight Zero symbol Low battery Stable symbol: To indicator the weight reading is stable Minor weight: The weight is under zero. Zero symbol: The weight is at zero point. Low battery: Please recharge the scale. ON/OFF/ZERO HOLD Page 7... -
Page 8: Recharging The M-999
We recommend fully charging the scale before first use. To fully charge the scale please allow 8 hours. When the low battery indicator on the LCD display indicates that the scale needs recharging, move the M-999 to a location where it can be charged. You will find the charging port on the underside of the scale. -
Page 9: Setting Up The Scale
Setting up the Scale With the scale switched on, press HOLD for six seconds. You will then enter Setup for auto power-off, buzzer and backlight. Auto off time: 30m /60 m/off Buzzer: On/Off Backlight: ON/OFF Auto power-off: Buzzer on/off: Backlight on/off: To confirm the settings, please press HOLD when shows on the display. -
Page 10: Preparing To Use The Scale
Preparing to use the Scale The Patient Transfer Scale should be used in line with current moving and handling policies. Essentially, it should be used in the same way you would use a transfer board, taking into account of course that you will need to pause during the transfer process. •... - Page 11 Page 11...
-
Page 12: Operation: Basic Functions
Operation: Basic Functions Switching the Scale on To switch the scale on, press the ON/OFF/ZERO button. When the display shows 0.0 the scale is ready to use. Switching the Scale off Press and hold ON/OFF/ZERO button for three seconds to power the scale down. -
Page 13: Operation: Advanced Functions
Operation: Advanced Functions Using the Hold Function The scale’s Hold function stabilises the weight reading on the display, allowing you to take an accurate reading without fluctuations. With a patient on the scale, press HOLD. The display will show ‘HOLD’. NB: Alternatively, you can activate the Hold function before the patient is on the scale. -
Page 14: Emc Guidance And Manufacturer's Declaration
Guidance and manufacturer’s declaration-electromagnetic immunity The MEDICAL SCALE M-999 is intended for use in the electromagnetic environment specified below. The customer or the user of the MEDICAL SCALE M-999 should ensure that it is used in such an environment. Electromagnetic... - Page 15 Guidance and manufacturer’s declaration-electromagnetic immunity The MEDICAL SCALE M-999 is intended for use in the electromagnetic environment specified below. The customer or the user of the MEDICAL SCALE M-999 should assure that is used in such and environment. Electromagnetic IEC 60601 test...
- Page 16 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the MEDICAL SCALE M-999 is used exceeds the applicable RF compliance level above, the MEDICAL SCALE M-999 should be observed to verify normal operation. If abnormal performance is observed, additional measures my be necessary, such as re-orienting or relocating the MEDICAL SCALE M-999.
- Page 17 Recommended separation distance between portable and mobile RF communications equipment and the MEDICAL SCALE The MEDICAL SCALE M-999 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the MEDICAL SCALE M-...
-
Page 18: Error Messages
Error Messages Error Message Reason Action Low battery: This warning Please recharge the scale. shows that the voltage of battery is too low to use Overload: The Total load Please reduce the load on exceeds the maximum the scale. capacity of scale Counting error (too high): This error is normally caused Indicates that the signal from... -
Page 19: Manufacturer's Declaration Of Conformity
Manufacturer’s Declaration of Conformity Manufacturer’s Declaration of Conformity This product has been manufactured in accordance with the harmonized European standards, following the provisions of the below stated directives: 93/42/EEC as amended by 2007/47/EC Medical Device Directive Please see separate document showing on sticker of device for above CE marking. -
Page 20: Contact Information
Fax: +44 (0) 1709 364293 E-mail: sales@marsdengroup.co.uk Manufacturing and Distribution: Unit 7, Centurion Business Park, Coggin Mill Way, Rotherham, S60 1FB Sales, Technical Support, Service & Finance Unit 1, Genesis Business Park, Sheffield Road, Rotherham S60 1DX www.marsden-weighing.co.uk www.patienttransferscale.com CD-IN-00037 REV002 10/2018...
