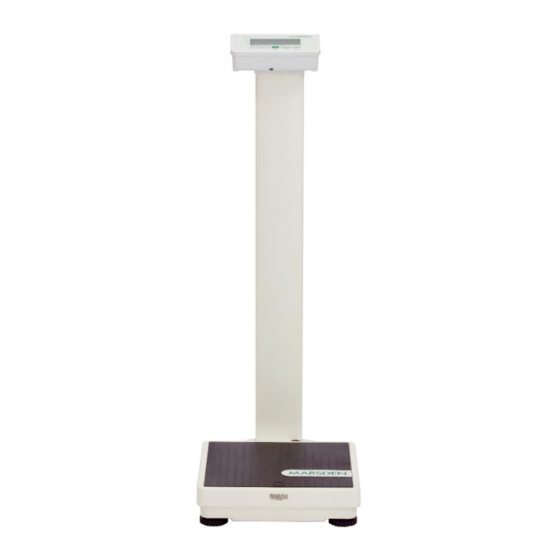

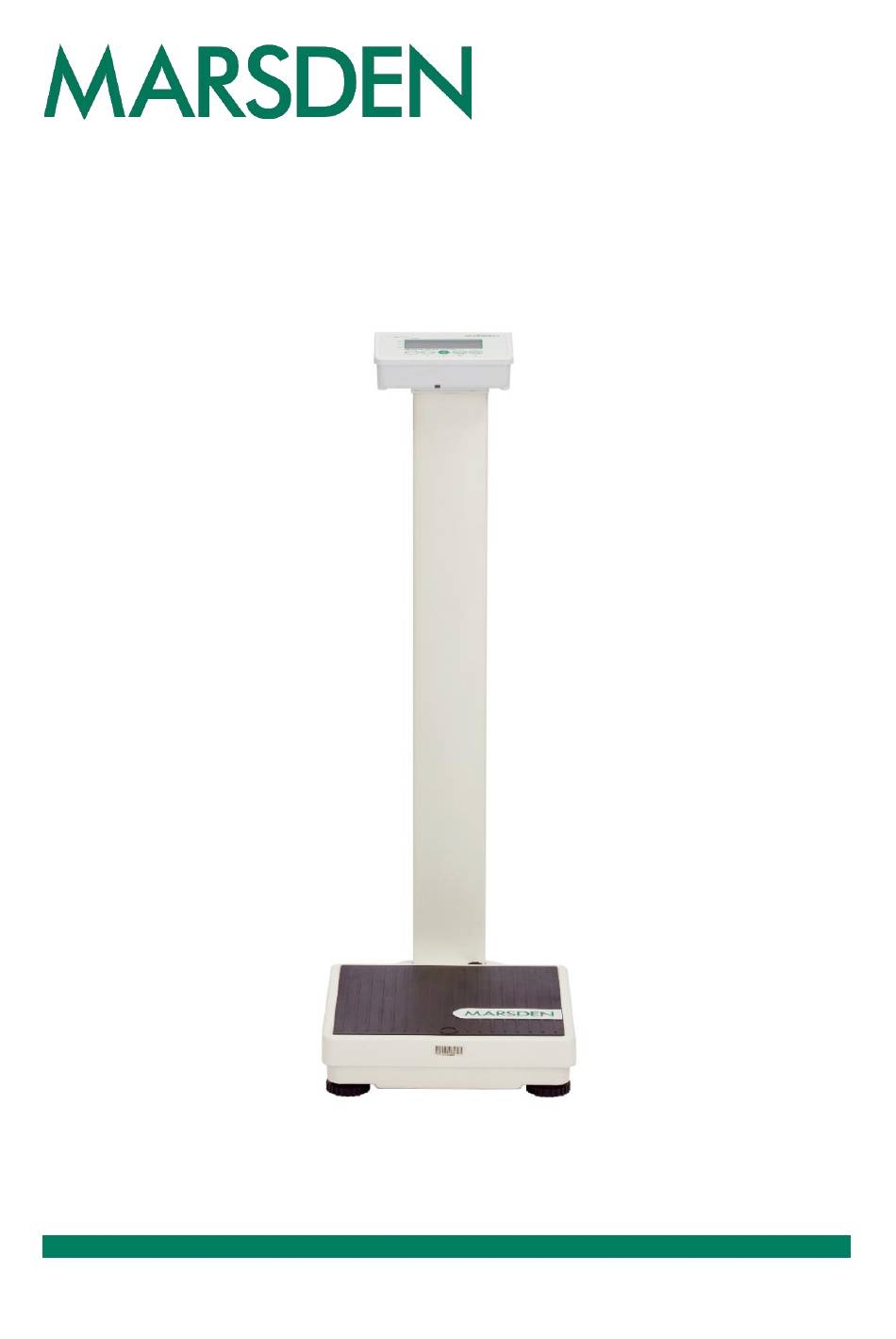

- Page 1 Marsden M-165 User Manual Please take time to read these instructions before starting to use the scale.
- Page 2 Before putting the device into use, please read with care the information given in this user manual, which contains important instructions for proper installation, use and maintenance of the device. Marsden and/or the manufacturer shall not be liable for damages arising from failure to heed the following instructions: •...
- Page 3 If any inaccuracies occur, please contact your local dealer or service partner. • If you are in the UK, service contracts are available from Marsden to keep your scale accurate and reliable for longer. Call 01709 364296 for more information.
- Page 4 Explanation of Graphic Symbols Separate collection for Caution, consult waste of electrical and accompanying electronic equipment, documents before use in accordance with Directive 2002/96/EC Manufacturer of medical Manufacturing year of device medical device Carefully read user manual before Medical electrical installation and usage, equipment with Type B and follow instructions...
- Page 5 Power Supply & Low Battery The indicator uses power from 6x AA batteries, or can be powered from the mains via the adaptor. Make sure the batteries are installed in the battery box of the indicator. Alternatively, plug the adaptor (12V 1A) into the port on the side of the scale.
- Page 6 Switching off the Scale Hold the ON/ZERO/OFF button for three seconds when the scale is turned on. The scale will power down. Setting the Scale to Zero If the display shows a reading other than 0.0 when nothing is on the scale, it can be reset to zero. Press ON/ZERO/OFF once.
- Page 7 Hold Function Press the HOLD/BMI button once, either whilst the patient is stood on the scale or before they step onto the scale. After a few seconds the scale will lock on the person’s weight. When the patient leaves the scale, the weight will remain on the display.
- Page 8 Body Mass Index (BMI) Function The patient should first stand on the scale. Hold down the HOLD/BMI button to enter BMI mode. The scale will enter height setting mode and the extreme left digit will flash. Enter the height by using the TARE/BSA button to decrease the value and HOLD/BMI button to increase the value.
- Page 9 Body Surface Area (BSA) After calculating BMI, you can then calculate BSA. After going through the first four steps on the previous page steps to calculate BMI, press TARE/BSA and Body Surface Area will be displayed. Tare Function Place the item/s you wish to deduct from the reading (such as a pair of shoes) on the scale and press TARE/BSA.
- Page 10 Assembling the Column (M-165 only) Assembling the M-165’s column should ideally be carried out by two people. Holding both the column and the base, ensuring all wiring is tucked inside the column housing, turn the scale over so that the column can be screwed to the base from the underside of the base.
- Page 11 Attaching the Height Measure (M-165 only) The M-165 can be purchased with a height measure. If you did not purchase your M-160 with a height measure, it is also available separately (model HM-201M). Using the four M5*0.8*9 screws provided, mount the two brackets onto the column of the M-165.
- Page 12 Guidance and manufacturer’s declaration-electromagnetic emissions The SCALE M-165 is intended for use in the electromagnetic environment specified below. The customer or the user of the SCALE M-165 should assure that it is used in such an environment. Emission test Compliance...
- Page 13 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the M-165 is used exceeds the applicable RF compliance level above, the M-165 should be observed to verify normal operation. If abnormal performance is observed, additional measures my be necessary, such as re-orienting or relocating the M-165.
- Page 14 Distributor: Unit 1, Genesis Business Park, Sheffield Road, Rotherham, UK, S60 1DX EU Importer: Marsden Weighing Machine Group Europe Ltd, The Black Church, St. Mary's Place, Dublin 7, Dublin, Ireland, D07 P4AX Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Manufactured by: Taichung City 41262 ,Taiwan (R.O.C.)
- Page 15 MARSDEN Unit 1, Genesis Business Park, Sheffield Road, Rotherham, S60 1DX Telephone: + 44 (0) 1709 364296 Version 2.0 Page 15 of 15...
