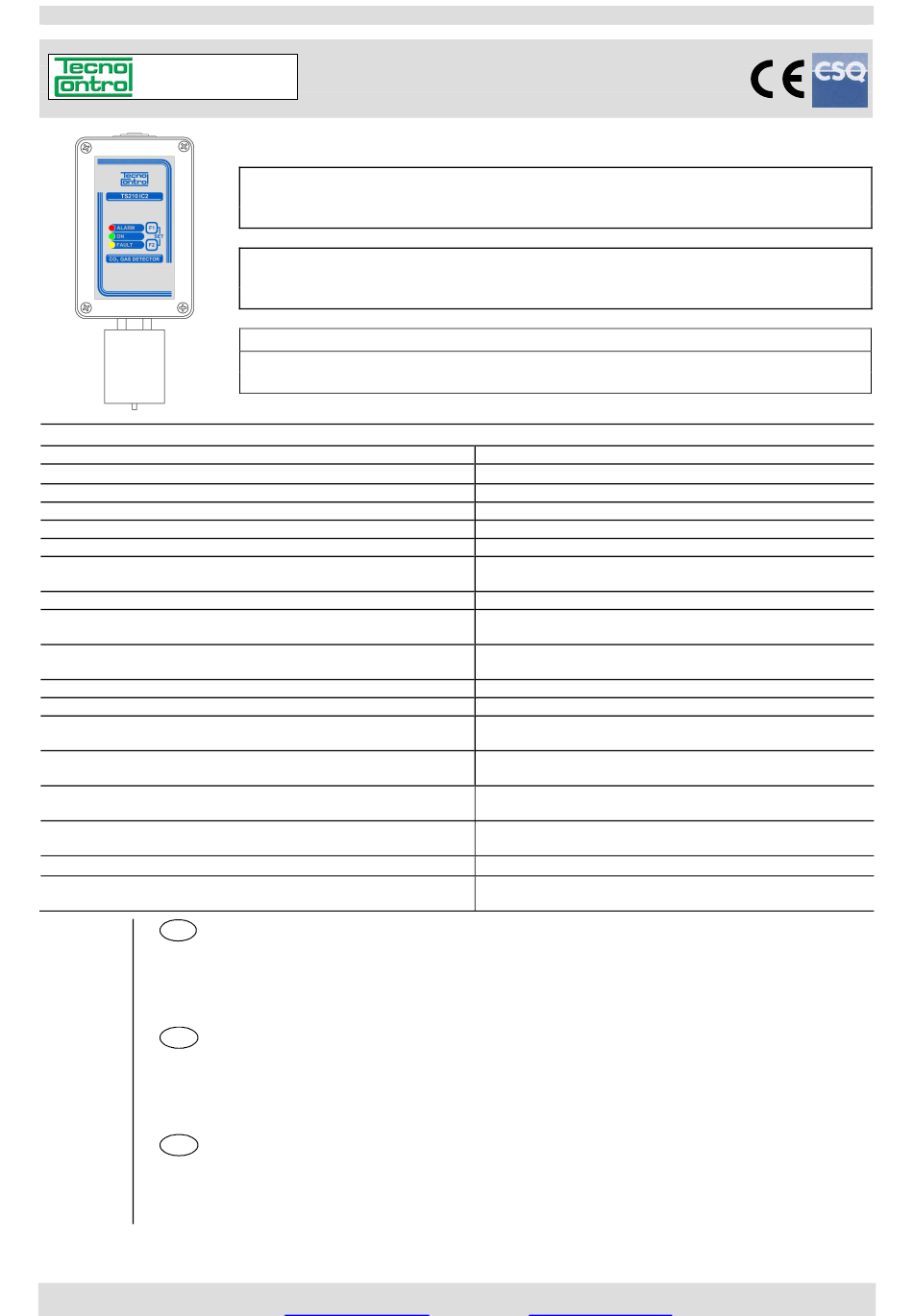

IST-2210.IC01.01
(IST-2210.IC01.01_TS210IC2_Anidride Carbonica (16.12.2015).docx)

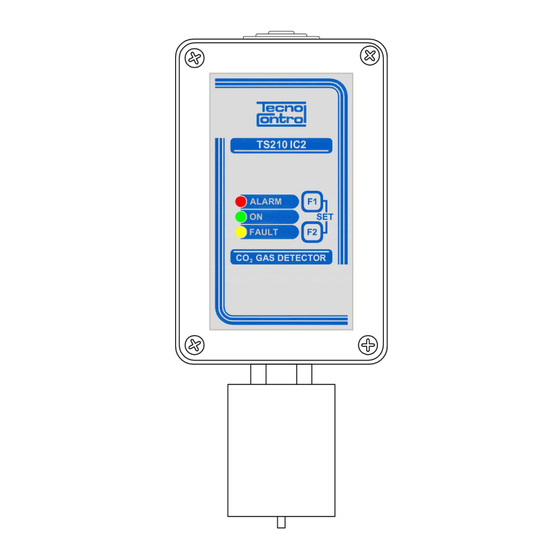

TS210 IC2
Caratteristiche tecniche / Technical specifications / Caractéristiques techniques
Alimentazione / Power supply / Alimentation
Sensore / Sensor Type / Capteur
Uscite / Outputs / Sortie
Resistenza di carico / load resistor / résistance de charge
Campo di misura / Standard Range / Champ de mesure
Vita media in aria / Average Life in air / Vie moyenne en air
Tempo di risposta / Response Time / Temps de réponse
Ripetibilità di zero / Zero Repeatability / Zéro répétitivité
Precisione / Accuracy / Précision
Tempo di Preriscaldo / Warm up time / Temps de préchauffage
Risoluzione / Resolution / résolution
Linearità / Linearity / Linéairite
Deriva a lungo termine in aria
Long time drift in air / Dérive à long terme en air
Tempo massimo di immagazzinamento
Max Storage Time / Temps maximum de stockage
Temp./umidità di immagazzinamento / Storage Temp-Humidity
Température et hygrométrie de stockage
Temp./umidità di funzionamento / Operation Temp./Humidity
Température et hygrométrie de fonctionnement
Pressione / Operation Pressure / Pression de fonctionnement
Grado di protezione -Dimensioni - Peso / IP Code - Size -
Weight / Indice de protection - Dimensions du boîtier - poids
DESCRIZIONE ................................................................................................................................... 2
NOTE SUI VARI MODELLI .......................................................................................................................... 2
FUNZIONAMENTO ...................................................................................................................................... 2
INSTALLAZIONE ......................................................................................................................................... 2
AVVERTENZE .............................................................................................................................................. 3
VERIFICHE ................................................................................................................................................... 3
DESCRIPTION ................................................................................................................................... 3
NOTES ON THE AVAILABLE MODELS ..................................................................................................... 4
OPERATIONAL DESCRIPTION .................................................................................................................. 4
INSTALLATION ............................................................................................................................................ 4
WARNING .................................................................................................................................................... 4
TESTS .......................................................................................................................................................... 5
DESCRIPTION ................................................................................................................................... 5
NOTES SUR LES DIFFERENTS MODELES ............................................................................................... 5
FONCTIONNEMENT .................................................................................................................................... 6
AVERTISSEMENTS ..................................................................................................................................... 6
VERIFICATIONS .......................................................................................................................................... 7
TECNOCONTROL S.r.l. - Via Miglioli, 47 20090 SEGRATE (MI) ITALY
Istruzione / User's Manual / Manuel d'utilisation
Trasmettitore IR di CO
IR CO
Gas Detector with 4÷20mA output
2
Sonde IR a transmetteur 4÷20mA pour gaz CO
Leggere Attentamente e Conservare quest'Istruzione.
Lire avec soin et garder la notice d'instruction
Per cinque anni non è necessario effettuare la calibrazione del sensore.
For five years it is not necessary to calibrate the sensor.
Pendant cinq ans, ne est pas nécessaire d'étalonner le capteur.
Modello / Model / Modele
TS210 IC2
http:
www. tecnocontrol.it
con uscita 4÷20mA
2
Please read and keep this manual
Calibrato per / Calibrated for / Tarée pour
Anidride carbonica / Carbon Dioxide / dioxyde de carbone
12÷24Vcc (-10/+15%) 2W / 12÷24Vdc (-10/+15%) 2W
NDIR (Nondispersive Infrared Sensor)
4 ÷ 20 mA lineare / Linear / linéaire
50 ohm / 12Vdc (-10%) - 500 ohm / 24Vdc (-10%)
MTBF (Sensore / Sensor / Capteur) > 5 anni / years / ans
60s < T
< 105s (dipendente dal valore misurato / depend-
90
ing on the measured value / dépend de la valeur mesurée)
±1% FS (Fondo Scala / Full Scale / fond d'échelle)
±0,02%vol (=200ppm) + 5% del valore misurato
/ of measuring value / de la valeur mesurée
< 60 sec - Funzionamento / operational / fonctionnement
< 5 min - a specifiche / Full specification / Stabilité
0,002%vol (=20 ppm) anno / year / an
-40 ÷ +60°C / 5÷95 % RH
non condensata / non condensed / non condensée
-20 ÷ +55 °C / 10÷90 % RH
non condensata / non condensed / non condensée
IP44 / 160 x 80 x 67 mm / 400g
Tel. +39 02 26922890 - Fax +39 02 2133734
e-mail:
info@tecnocontrol.it
2
0 ÷ 2 % vol (=20000 ppm)
0,01 %vol (=100 ppm)
± 1.5% FS
1 anno / year / an
85 ÷ 110 kPa
Pag.1/8
