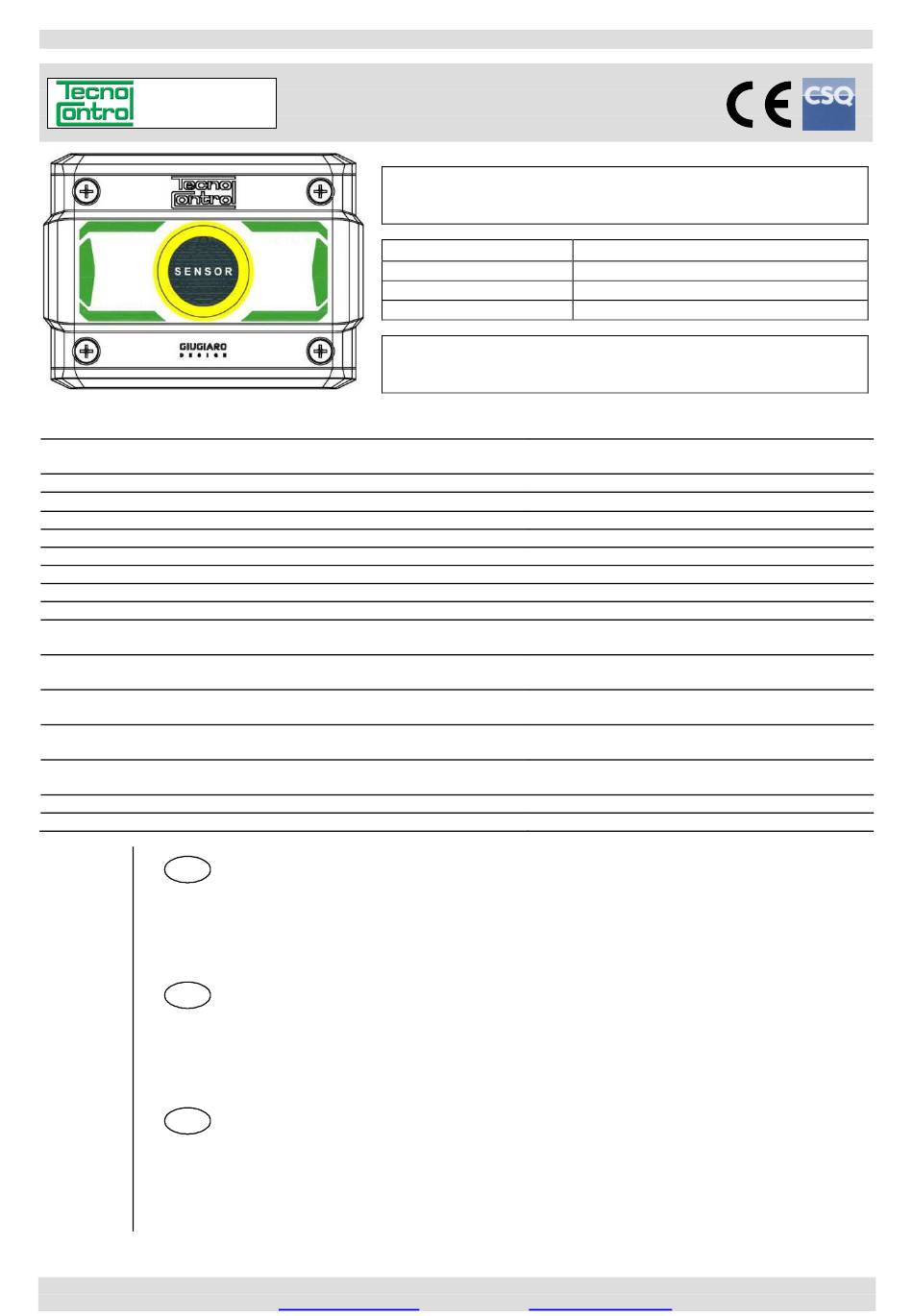

IST-2192.KM03.01/A
IST-2192.KM03.01-A_SE192K (20.02.2019).docx
SE192K
Caratteristiche tecniche / Technical specifications / Specifications techniques
Alimentazione / Power supply / Alimentation
Uscita / Output / Sortie
Resistenza di carico / Load resistor / Résistance de charge
Sensore / Sensor / Capteur
Campo di misura / Standard range / Champ de mesure
Limite del Sensore / Sensor limits / Limite échelle
Preriscaldo / Preheating / Préchauffage
Tempo di risposta T
/ Response time T
50
Precisione / Accuracy / Precision
Deriva a lungo termine in aria pulita
Long time drift in pure air / Dérive à long terme en air non pullué
Vita media in aria pulita
Expected life in pure air / Durée de vie moyenne en air non pullué
Tempo massimo di immagazzinamento
Max Storage Time / Temps maximum de stockage
Temp./umidità di funzionamento
Operation Temp./Humidity / Température et humidité de fonctionnement
Temp./umidità di immagazzinamento
Storage Temp./Humidity / Température et humidité de stockage
Grado protezione / Rating / Indice de protection
Dimensioni / Size / Dimensions
NOTE SUI MODELLI ................................................................................................................................ 2
FUNZIONAMENTO .................................................................................................................................. 2
INSTALLAZIONE ..................................................................................................................................... 2
AVVERTENZE .......................................................................................................................................... 3
VERIFICA FUNZIONAMENTO ................................................................................................................. 3
NOTES ON THE AVAILABLE MODELS ................................................................................................. 4
OPERATIONAL DESCRIPTION .............................................................................................................. 4
INSTALLATION........................................................................................................................................ 5
WARNING ................................................................................................................................................ 5
FUNTIONAL TESTING ............................................................................................................................. 5
MODÈLES ................................................................................................................................................ 7
FONCTIONNEMENT ................................................................................................................................ 7
INSTALLATION........................................................................................................................................ 7
AVVERTISSEMENT ................................................................................................................................. 8
VERIFICATIONS PERIODIQUES ............................................................................................................ 8
TECNOCONTROL S.r.l. - Via Miglioli, 47 20090 SEGRATE (MI) ITALY
Istruzione / User's Manual / Manuel d'utilisation

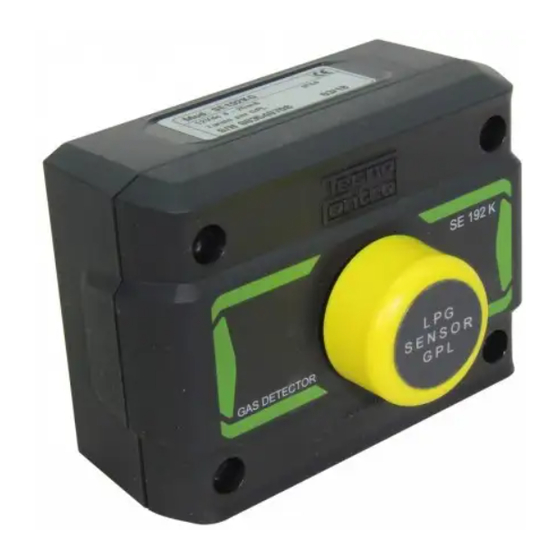

Rilevatore per gas combustibili
Detector for combustible gases
Sonde pour gaz combustibles
/ Temps de résponse T
50
............................................................................................................................. 2
............................................................................................................................. 7
http:
www.tecnocontrol.it
Leggere Attentamente e Conservare questa Istruzione.
Please read and keep this manual
Lire avec soin et garder la notice d'instruction
Modello / Model / Modele
SE192KM
SE192KG
SE192KB
Nuova versione con microcontrollore
New version with microcontroller
Nouvelle version, avec microcontrôleur
50
non condensata / non condensed / non condensée
non condensata / non condensed / non condensée
......................................................................................................... 4
e-mail:
info@tecnocontrol.it
Tarato per / Calibrated for / Tarée pour
Metano / Methane / Méthane
GPL / LPG
Benzina / Petrol / Essence
12÷24Vcc (-10/+15%) - 2 W
12÷24VDC(-10/+15%) 2W
4÷20mA Lineare / Linear / Linéaire
100 Ω max
Catalitico / Catalityc / Catalytiques
0 ÷ 20 % LIE / LEL
50% LIE / LEL
≈ 30 secondi / seconds / secondes
< 30 secondi / seconds / secondes
± 10 %
<±5 %LIE anno
<±5 %LEL year / <±5 %LIE ans
5 anni / years / ans
18 mesi / month / mois
-10 ÷ +50 °C / 5÷90 % r.h. 40°C
-25 ÷ +55°C / 5÷95 % r.h.
IP44
112 x 82 x 70 mm
Tel. +39 02 26922890 - Fax +39 02 2133734
Pag. 1 / 10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tecnocontrol SE192K Series
Summary of Contents for Tecnocontrol SE192K Series
-
Page 1: Table Of Contents
..........................7 MODÈLES ..............................7 FONCTIONNEMENT ..........................7 INSTALLATION............................7 AVVERTISSEMENT ..........................8 VERIFICATIONS PERIODIQUES ......................8 TECNOCONTROL S.r.l. - Via Miglioli, 47 20090 SEGRATE (MI) ITALY Tel. +39 02 26922890 - Fax +39 02 2133734 http: www.tecnocontrol.it e-mail: info@tecnocontrol.it... -
Page 2: It Descrizione
La distanza massima dalla centralina cui possono essere collegati i rilevatori dipende dall’alimentazione (Vedi Ta- bella 2) Normalmente con cavi 3x1,5mm a 12Vdc è 200 metri e a 24Vdc è 400 metri. TECNOCONTROL S.r.l. Via Miglioli 47 SEGRATE ( MI ) Tel. +39 02 26922890 - Fax +39 02 2133734... -
Page 3: Avvertenze
Pag. 3 / 10 AVVERTENZE Compatibilità con altre centrali: Se non si usa una Centrale Gas Tecnocontrol, utilizzare prodotti con ingresso 4÷20mA riferito a massa e con caratteristiche di funzionamento compatibili (Fondo Scala, Tensione minima di fun- zionamento, Assorbimento, Resistenza massima di carico etc.). Si declina ogni responsabilità per malfunzio- namenti, guasti o danni causati da prodotti non compatibili oppure non di nostra produzione. -
Page 4: En General Information
GENERAL INFORMATION The SE192K series are gas detectors with a catalytic sensor for flammable gases, are used in gas alarm systems for car parks, heating plants, and environments to be protected from possible leaks of gases such as Methane, LPG, etc. -
Page 5: Installation
12Vdc it is 200 meters and at 24Vdc it is 400 meters. WARNING Compatibility with other control units: In case of a control unit other than Tecnocontrol, please use products with 4÷20mA input referred to ground and with compatible operating characteristics (unit in %LEL, minimum operat- ing voltage, absorption, load resistance etc.). - Page 6 Preheating, then repeat the “Calibration” routine without inserting again the code. If condition still persists, it will be necessary to replace the detector and/or send it to the supplier for repair. TECNOCONTROL S.r.l. Via Miglioli 47 SEGRATE ( MI ) Tel. +39 02 26922890 - Fax +39 02 2133734...
-
Page 7: Fr Description
Le montage est mural et le degré de protection est IP44. Il s’utilise en se raccordant sur les centrales d’alarmes mono et multivoies Tecnocontrol (indiqué au Tableau MODÈLES... -
Page 8: Avvertissement
Les capteurs catalytiques ne peuvent pas fonctionner en déficience d'oxygène. Il est possible d'utiliser soit les bouteilles mono-usage de 2l Tecnocontrol BO200, soit celles à la haute pression avec détendeur. Utiliser le kit de calibration Tecnocontrol modèle TC011 (pour gaz non corrosifs) ou TC014 (inox). - Page 9 Tabella 1 / Table 1 / Tableau 1 Centraline collegabili agli SE192K Control unit which can be connected to the SE192K series / Centrales raccordable au SE192K Modello/ Model / Modele N°Sensori / Sensors number / nombre de sondes SE127K - SE128K - SE139K SE184K - SE194K –...
- Page 10 Calibration Tester / Tester d’étalonnage Posizionamento Positioning Montaggio a parete Positionnement Wall-mounting Montage au mure Fig. 3 – Dimensioni Outline Dimensions / Dimensions TECNOCONTROL S.r.l. Via Miglioli 47 SEGRATE ( MI ) Tel. +39 02 26922890 - Fax +39 02 2133734...
