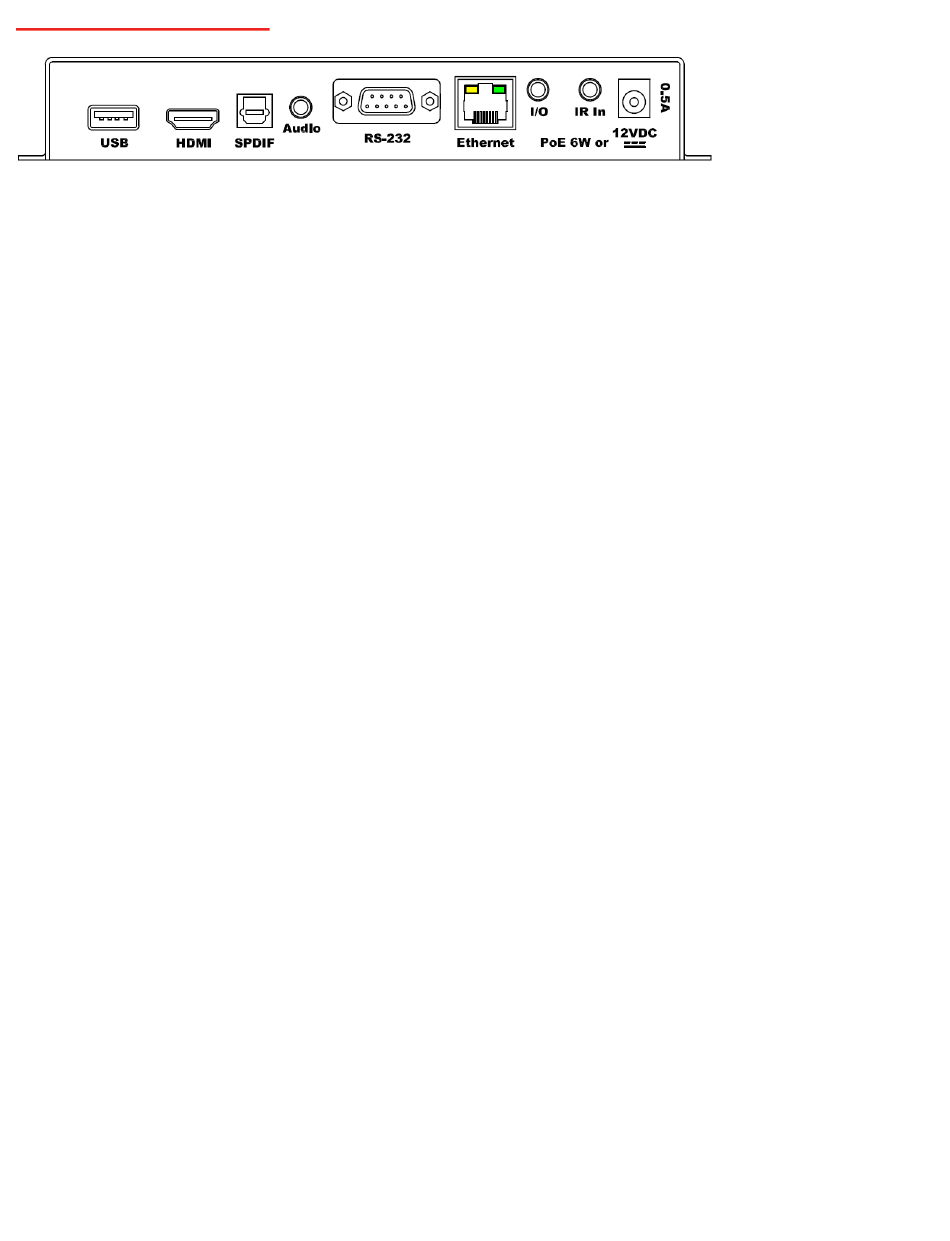

Rear Panel Connections

USB
USB-A service port. May be used as an alternate method for updating decoder firmware.
HDMI
HDMI receptacle, Type A, Version 1.4. Output resolutions available are 2160p, 1080p, 1080i, 720p, 480p, and 480i. The output normally
automatically detects a DVI display. The audio format follows the digital audio output settings.
SPDIF
Optical digital audio output port. The format of the output follows the digital audio settings. The format options are AC-3, PCM fixed, and
PCM variable. PCM variable will follow the volume control settings
Audio
3.5 mm TRS stereo output for variable level stereo analog audio.
RS-232
DB-9 male connector RS-232 data link to control system or for display control. Supports two-way communication for use with a third-party
control system processor or one-way communication for video display control. Baud rate is user configurable, 8 data bits, no parity, 1 stop
bit. When the QIP-D is configured for RS-232 display control, the port becomes transmit only and the port settings are automatically
configured depending on the display device type selected unless otherwise noted.
Ethernet
RJ-45 connector, 100 Mbps, PoE
I/O
For future use
IR In
3.5 mm TRS jack for optional external IR receiver or wired IR from a control system processor.
Tip= +5v DC (50 mA max)
Ring= Input
Sleeve= Ground
12VDC
Power input 2.1 mm coaxial jack (inside center conductor positive). May be used in lieu of Ethernet POE
