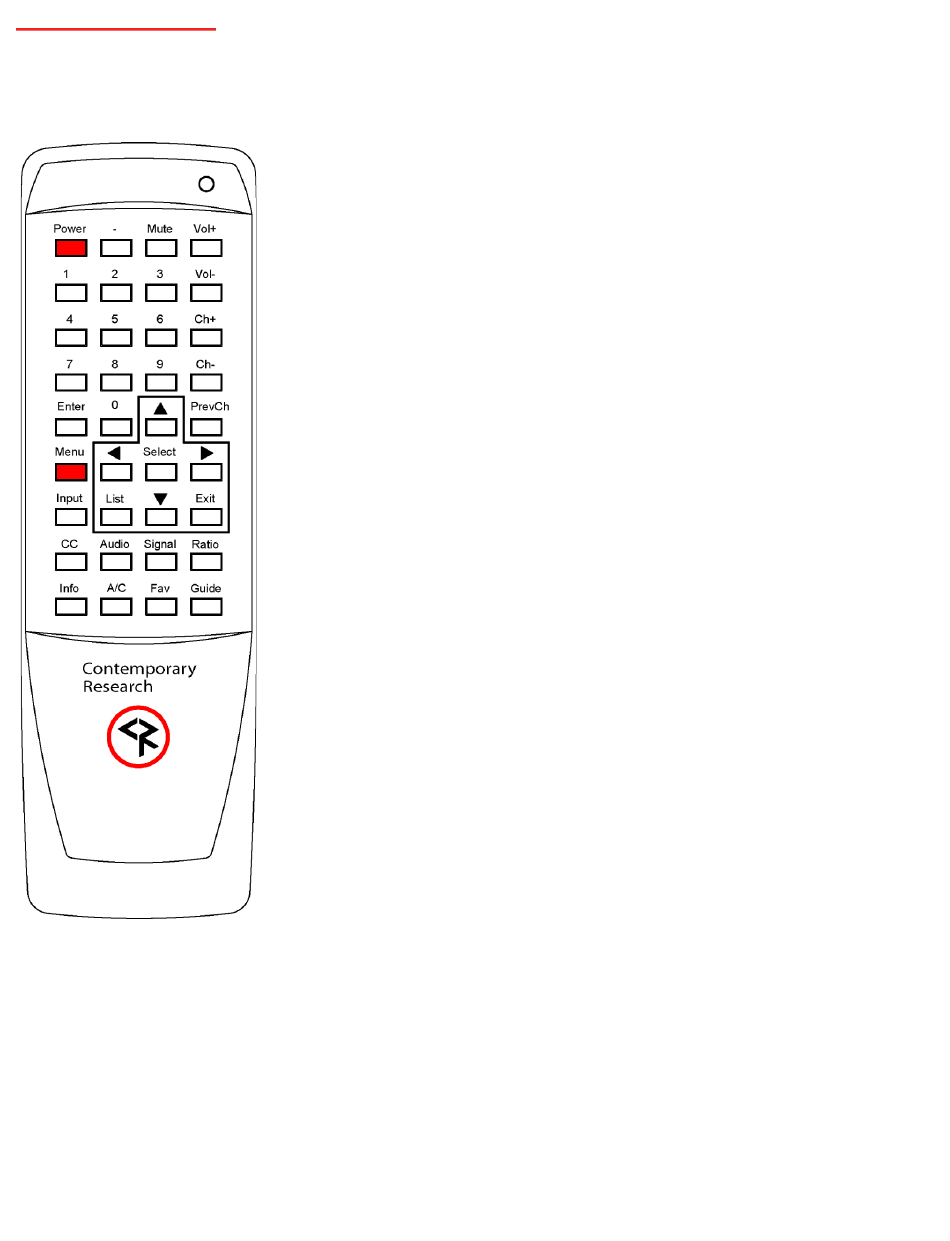

HD2-RC IR Remote

The optional HD2-RC IR Remote (5024-004) may be used to setup the QIP-D and for daily operation. The QIP-D is equipped with a front panel
IR sensor and a rear panel IR input jack for connection to an optional IR-RXD (5034-001) or compatible remote IR receiver. Each of the
functions on the remote have equivalent commands in RS-232, Ethernet, and wired IR formats.
Page | 11
Power
Press to toggle on and off.
Volume Control
Use the Vol+, Vol- and Mute buttons to control volume.
Channel Selection
Two-part major/minor channel numbers are separated by a – (dash). Example 21-3.
One-part channels are accessed by entering the channel number.-part digital channels are
Ch+, Ch- and PrevCh can be used to access and recall channels.
Menu Operation
Press Menu to access the on-screen menus.
•
Use the directional arrows, Select and Exit to navigate the on-screen menus.
•
Exit closes the on-screen menu.
•
Menu reverts to the previous menu or closes the on-screen menu from the Main
Menu.
•
Enter selects the menu choice.
Special Functions
•
CC steps through available closed-captioning options.
•
Ratio steps through aspect ratio options.
•
Info launches on-screen information banner.
Some features of the special function commands may only be available if supported in the received
IPTV stream.
Hold the Select button and press "9" to set the IR frequency at 57 KHz. Hold the Select button and
press "4" to set the IR to the normal 38 KHz frequency.
