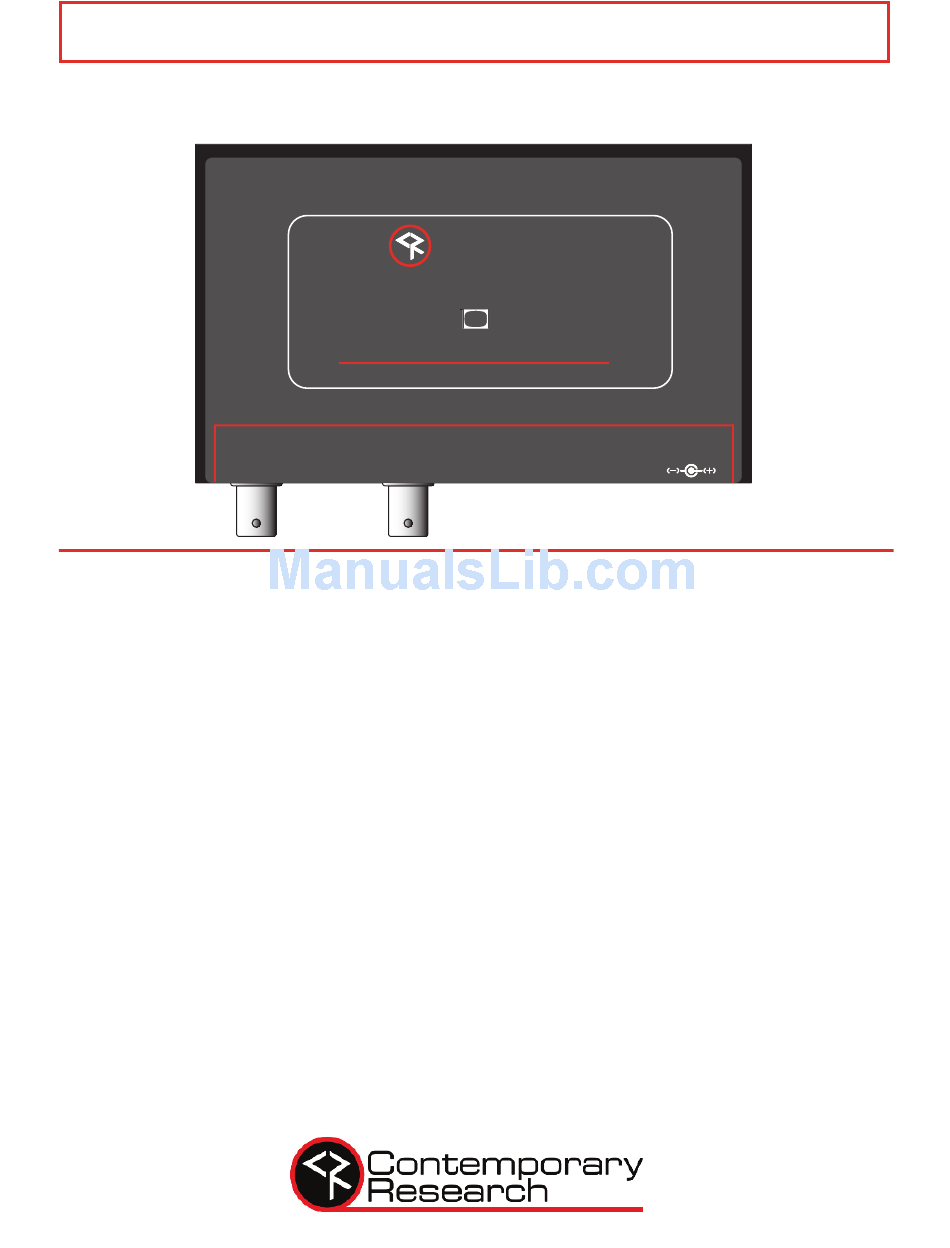

Contemporary Research VSCC Installation Manual

VSCC
S-Video Closed Caption Decoder
Video Out
The VSCC S-Video Closed-Caption decoder gives integrators a simple, reliable way to decode and display closed caption
text in both S-Video and composite video formats. Employing technology developed for the 232-STS S-Video TV Tuner, the
VSCC provides digital 2-D adaptive Y/C separation for superior S-Video signals from a composite NTSC video input.
Front-panel settings can select eight Closed Caption modes and remote control operation. A captive-screw control port
accepts a closure for Captions On/Off, sends a logic-level output for sensing video presence, and allows remote DC power.
Designed for versatile installation, the compact VSCC can be operated on a tabletop, attached to a display, or rack-
mounted 3-across, mixed with other CR System Tools using the optional single-rack height RK3 Rack Kit.
Physical
Size: 5.5" [140mm] wide x 1.1" [28mm] height x 3.5" [86mm] deep
Weight: 8 oz [226g]
Enclosure: All aluminum with durable black powder coat paint
Mounting: Tabletop, mount up to 3 units in RK3 Rack Mount
Connections
Video Output: BNC composite NTSC output, 1V p-p at 75 ohm impedance
S-Video Output: Mini DIN 4-pin, Y - 1V p-p at 75 ohms, C - 0.286 V p-p at 75 ohms
Digital adaptive 2-D Y/C separation filtering, cross-color and cross-luminance reduction
Differential Phase .3° max, Differential Gain .2% max, Video bandwidth 10MHz, Luma S/N 77dB
Video Input: BNC composite NTSC input
Caption/Control: 4-position DIP switch sets caption and control operation
Control Port: 5-pin captive screw terminal for logic level closure control, alternate remote DC
Power LED: Green LED lights when DC power is active, flashes when no video is present
Power In: 2.1mm coaxial jack (inside center conductor positive), 100 mA maximum
11.5 to 16.5 VDC, 12 VDC typical (may be unregulated)
Includes
12 VDC power supply, 100 mA (North American shipments only), 5-pin captive screw terminal
RK3 Rack Kit
Size: 19.0" [483mm] wide x 1.73" [44mm] 1RU height x .437" [11mm] deep
Mounting: Three mounting spaces, each space accepts two 4-40 ¼" screws 4.25" apart to attach System Tool
Installation Manual
CR System Tools
Contemporary
Research
CR System Tools
CC
VSCC
S-Video Closed Caption Decoder
Caption/Control
S-Video Out Video In Settings
www.contemporaryresearch.com
12 VDC Pwr In
100 mA max
Control Port
Pwr
5 4 3 2 1 LED ( ) ( )
