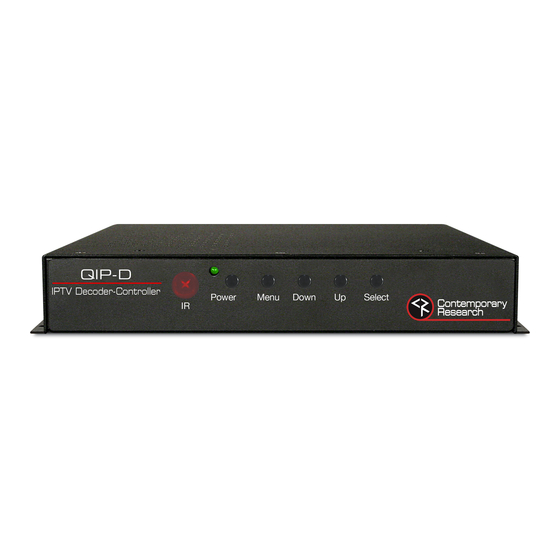

Contemporary Research QIP-D Product Manual

Iptv decoder/controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Product Manual
972.931.2728 | 888.972.2728 | www.contemporaryresearch.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QIP-D and is the answer not in the manual?

Questions and answers

Related Manuals for Contemporary Research QIP-D

Summary of Contents for Contemporary Research QIP-D

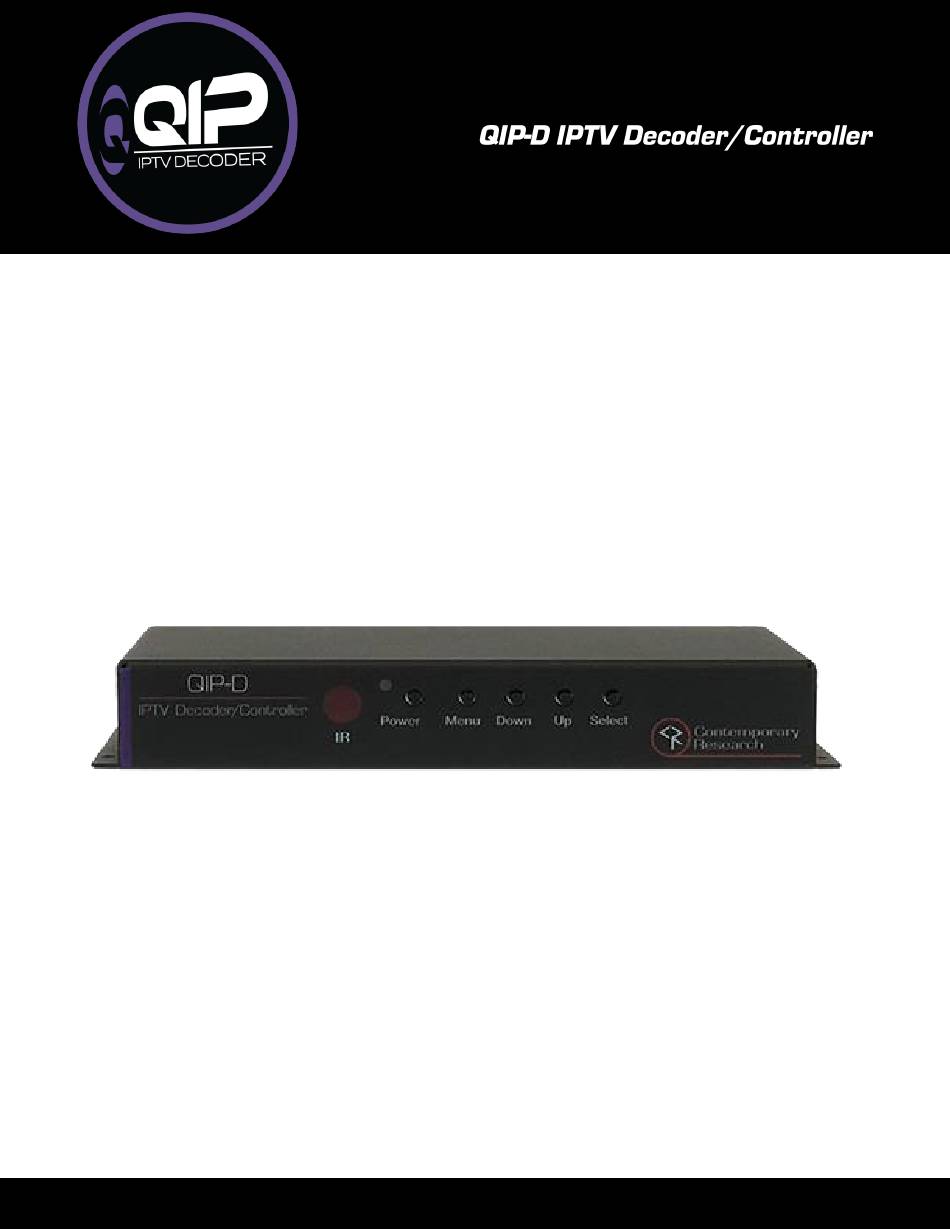

  • Page 1 Product Manual 972.931.2728 | 888.972.2728 | www.contemporaryresearch.com...

  • Page 2: Table Of Contents

    Overview ......................................3 Installing the QIP-D ..................................... 4 IPTV – Unicast/Multicast ..................................4 Channel List ......................................4 QIP-D Control and Setup ..................................5 Front Panel Operation ..................................5 Rear Panel Connections ..................................6 Setup Notes ......................................7 On-Screen Text Communication Menu............................... 8 On-Screen Graphical A/V Menu ................................

  • Page 3: Overview

    Channel up/down commands will step through the channels in the list. CR Toolbox software is a free PC application designed to connect and update CR products. It may be used to create and edit the channel list and upload the list to one or more QIP-D units. Individual channels may be added to or deleted from the list using CR Toolbox software or via RS-232 command.

  • Page 4: Installing The Qip-D

    Installing the QIP-D The slim profile of the QIP-D allows for mounting behind a flat panel display. The unit may be attached to the flat panel display with user provided hook and loop fastener adhesive tape or attached to the wall using the mounting ears. The unit may also be set flat on a suitable shelf or other stable flat surface.

  • Page 5: Qip-D Control And Setup

    One-way RS-232 iCC-Net Commands through an ICE-HE-DXL, IP-DXL, or broadcast UDP. Reply strings are not returned. • Web Pages – Enter the QIP-D IP address in the address bar of an internet browser on a connected device. The default IP address is 192.168.1.241. The Control web page mimics the optional HD2-RC handheld IR remote.

  • Page 6: Rear Panel Connections

    Baud rate is user configurable, 8 data bits, no parity, 1 stop bit. When the QIP-D is configured for RS-232 display control, the port becomes transmit only and the port settings are automatically configured depending on the display device type selected unless otherwise noted.

  • Page 7: Setup Notes

    Depending on the application, the RS-232 port may be configured for one-way or full two-way communication. For installations which the QIP-D will be used for display device control, the RS-232 port will be transmit only. Control strings will be sent to the display, but the unit will not respond to any response data on the receive pin from the display.

  • Page 8: On-Screen Text Communication Menu

    Firmware versions Press Select, then Up/Down to scroll through versions QIP-D V2.04 – System Firmware HW Rev D0 – Hardware Version Boot Ldr V1.02 – Bootloader Version Decoder V1.22 – Decoder Firmware Page | 8 QIP-D IPTV Decoder/Controller Product Manual 072021...

  • Page 9: On-Screen Graphical A/V Menu

    Time data is extracted from the System Time Table in the digital channel’s transport stream if available. When Daylight Saving is enabled, the decoder will adjust the time as needed if the daylight savings flag is enabled in the System Time Table. Page | 9 QIP-D IPTV Decoder/Controller Product Manual 072021...
  • Page 10 On-screen Info banner may be accessed by the following: • Info button press on IR remote or control web page • Hold Select button on the front panel • Serial command Page | 10 QIP-D IPTV Decoder/Controller Product Manual 072021...

  • Page 11: Hd2-Rc Ir Remote

    HD2-RC IR Remote The optional HD2-RC IR Remote (5024-004) may be used to setup the QIP-D and for daily operation. The QIP-D is equipped with a front panel IR sensor and a rear panel IR input jack for connection to an optional IR-RXD (5034-001) or compatible remote IR receiver. Each of the functions on the remote have equivalent commands in RS-232, Ethernet, and wired IR formats.

  • Page 12: Web Pages

    Web Pages The QIP-D includes Web pages accessible by any browser over IP. Open a web browser and enter the decoder/controller’s IP address in the address bar. The decoder/controller’s IP address may be displayed on-screen by holding down the Menu button. The default IP address is 192.168.1.241.
  • Page 13 Page | 13 QIP-D IPTV Decoder/Controller Product Manual 072021...

  • Page 14: Rs-232/Telnet/Udp Two-Way Communication Protocol

    ASCII > (greater than symbol) as an ‘Attention’ character and end with carriage return - ASCII CR, Hex $0D, or keyboard Enter - as an ‘End-of- command’ character. Responses from the QIP-D begin with the ASCII < (less than symbol) as an ‘Attention’ character and end with a carriage return followed by a line feed - ASCII LF or Hex $0A as an ‘End-of-command’ character.

  • Page 15: Table Of Rs-232 Control Commands

    Output Resolution Sets to 2160p Refresh Rate Sets to 59.94 Hz Refresh Rate Sets to 60 Hz Channel Number Graphic Display on-screen channel number graphic during channel change 0=Disable 1=Enable (Default) Page | 15 QIP-D IPTV Decoder/Controller Product Manual 072021...
  • Page 16 T2=2 Disables 2-way communication for RS-232 port CEC Control Mode Sets the HDMI CEC functions 0=None 2=Turn On and Off 1=Turn On RS-232 Display Type Sets Display type for RS-232 control Page | 16 QIP-D IPTV Decoder/Controller Product Manual 072021...
  • Page 17 4:3 Ratio Full 26=Mute Toggle 157=16:9 Ratio V Zoom 27=Power On 4:3 Ratio H Zoom 28=Power Off 158=AC=3 29=Menu 159=PCM 82=Ratio 160=PCM Variable 99=Dash 161=Display 16:9 100=Info 162=Display 4:3 101=Previous Channel Page | 17 QIP-D IPTV Decoder/Controller Product Manual 072021...

  • Page 18: Response Strings

    < The QIP-D channel status is split into Major Channel and Minor Channel sections. The Minor Channel will always be 000 for analog channels. The Minor Channel status will display “F00” if the Major channel is a special “one-part” digital channel. Also, as one-part channels can go higher than 999, the Minor status will indicate how many thousands (up to 63) should be added to the Major number.
  • Page 19 Lockout Bass Treble Output Output Output Mode Resolution Setting Fixed Fixed Fixed 0=RGB 0=1080i 0=1080i 2 digits 2=YPbPr 1=720p 1=720p digits 2=480p 2=480p 3=480i 3=480i 4=1080p 4=1080p 5=2160p 5=2160p < xxxx Page | 19 QIP-D IPTV Decoder/Controller Product Manual 072021...

  • Page 20: Creating And Loading The Channel List

    Contemporary Research devices on the network. CR Toolbox can also connect with individual devices through an RS-232 serial port. Click on the QIP-D/DvX tab in the device section to view the list of QIP-D/DVX units. Click on the Channel List tab to create a channel list.
  • Page 21 Once the channel list is complete, it will need to be uploaded to the QIP-D/DVX units. In the device list, click on the checkbox to select the QIP-D/DVX units to receive the channel list. Click on the Send Channel List button to send the channel list.

  • Page 22: Icc-Net Control Overview

    Third-party control processor with or without an ICE-HE-DXL or IP-DXL display control center The QIP-D receives the command strings as UDP IP data packets at port 31934 of its configured IP address. The ICE-HE-DXL and the IP-DXL will send the command strings to the broadcast IP address of its subnet. For IPTV based applications, the ICE- HE-DXL and IP-DXL are functionally equivalent.
  • Page 23 Control Data Flow with IPTV System Using Display Express Control Data Flow with IPTV System Using Third-Party Controller Page | 23 QIP-D IPTV Decoder/Controller Product Manual 072021...

  • Page 24: Integrated Display Controller

    232 is selected, two-way RS-232 communication of the QIP-D will be disabled and the RS-232 port will function as transmit only to control the display. The RS-232 protocols for many common TV and display makes and models are built in to the QIP-D application firmware. If a desired display type is not listed, contact Contemporary Research support for assistance.
  • Page 25 M-, P-, V-, X- Series Christie Projector 19.2K DHD800 Projector 9600 NP-M402H (set projector baud rate to 9600) Barco Projector 115.2K RLS-W12 Monitor 9600 Christie Projector 115.2K DHD850 Christie Projector 9600 FHQ981 Page | 25 QIP-D IPTV Decoder/Controller Product Manual 072021...

  • Page 26: Icc-Net Protocol Format

    Display Device Numbers A unique display device number from 1 to 4094 is assigned to each TV controller, tuner controller, QIP-D decoder/controller, QIP-DVX decoder/controller, or tuner to which control commands are addressed. The displays are organized into 16 zones of up to 255 devices each.

  • Page 27: Command String Protocol

    RTI = Select port, Hex mode, enter A5 01 18 05 54 48 02 0C 03 - Note that when you go back to normal editing mode, the app inserts a \x before each Hex character. Go to www.asciitable.com for a handy Decimal/ASCII/Hex conversion chart. Page | 27 QIP-D IPTV Decoder/Controller Product Manual 072021...

  • Page 28: Table Of Icc-Net Control Commands

    Channel Up “$A5,<dh>,<dl>,2,’TU’ ” (6 bytes) Channel Down “$A5,<dh>,<dl>,2,’TD’ ” (6 bytes) Previous Channel “$A5,<dh>,<dl>,2,’TP’ ” (6 bytes) Audio Volume "$A5,<dh>,<dl>,3,'VL',<Level>" (7 bytes) Sets volume in 64 steps, 0 - 63. Page | 28 QIP-D IPTV Decoder/Controller Product Manual 072021...
  • Page 29 Save "$A5,<dh>,<dl>,2,'ZW'" (6 bytes) Saves current channel and power status in NVRAM of the controller. Restore "$A5,<dh>,<dl>,2,'ZR'" (6 bytes) Restores channel and power status previously saved in NVRAM of the controller. Page | 29 QIP-D IPTV Decoder/Controller Product Manual 072021...

  • Page 30: Firmware Update

    Firmware Update CR Toolbox software for Windows will be required for full firmware updates to the QIP-D as well as other supported Contemporary Research products. CR Toolbox is available for download free of charge at contemporaryresearch.com in the software section.

  • Page 31: Specifications

    12VDC: Optional power input 2.1 mm coaxial jack (inside center conductor positive), 0.5 A max Stream Protocols • MPEG-TS Ethernet Streams • UDP or RTP • Multicast or Unicast • IGMP v2 Page | 31 QIP-D IPTV Decoder/Controller Product Manual 072021...
  • Page 32 IR-RXD External IR Receiver (5034-001) CC-COM-B RS-232 Null Modem Cable (5061-003) CC-COM 3.5 Serial Cable (5061-009) Trademarks HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC Page | 32 QIP-D IPTV Decoder/Controller Product Manual 072021...

  • Page 33: Safety Instructions And Warranty

    Warranty: Three (3) year limited warranty on all parts and labor for Contemporary Research manufactured products. Contemporary Research warrants its manufactured products against defects in materials and workmanship for a period of three years from the day of...
  • Page 34 Product Service: Contemporary Research will test, repair, or replace the product or products without charge if the unit is under warranty. If the product is out of warranty, Contemporary Research will test, and then repair the product or products. The parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair.

This manual is also suitable for:

Qip-dvx
