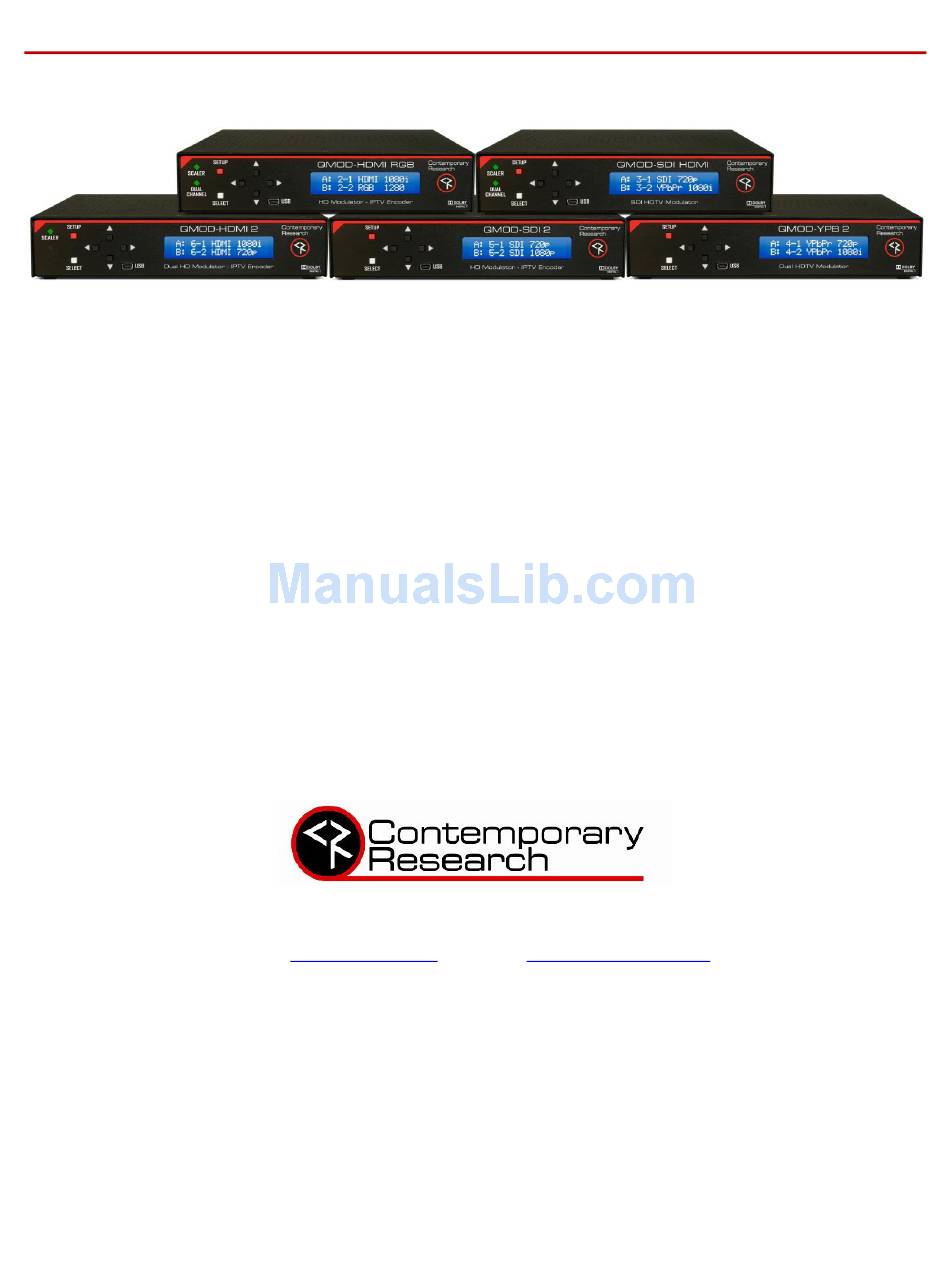

- Page 1 Product Manual QMOD™ HD Modulator-IPTV Encoders August 2018 4355 Excel Pkwy, Suite 600, Addison, TX, 75001 Phone: 972-931-2728 • Toll-Free: 888-972-2728 • Fax: 972-931-2765 E-Mail: Support@crwww.com • Website: contemporaryresearch.com Contemporary Research QMOD Modulators HD/IPTV Encoders...
-
Page 2: Table Of Contents
The software included in this product contains copyrighted software that is licensed under the GPL. You may obtain the complete Corresponding Source code from us for a period of three years after our last shipment of this product. Request this and current GNU version information by contacting Contemporary Research, contemporaryresearch.com/contact/contact- us/. -
Page 3: Overview
Overview QMOD-HDMI RGB QMOD-SDI HDMI QMOD-HDMI 2 QMOD-SDI 2 QMOD-YPB 2 Each modulator has a different a mix of video and audio inputs, so the menus for each are different – but all the rest of the menus and Web choices are the same. There are also differences in which Video input is available, as noted below. You can always use the video inputs for receiving closed captioning data. -
Page 4: Video And Audio Assignment
SDI 1, SDI 2, or Video 2. Reading down for Program B, you can select SDI 1, SDI 2, or Video 1. Audio and caption notes are included as well. QMOD-SDI 2 QMOD-SDI HDMI Program B Program B... -
Page 5: Installation Overview
• Pressing Left and Right arrows during power-up resets to your custom settings (see Advanced Menu page) • Pressing Up and Down during power-up clears everything, resets to factory settings – use with caution Contemporary Research QMOD Modulators HD/IPTV Encoders... -
Page 6: Front Panel Menus And Web Pages
The TV figures out which to play using the channel ID, typically something like channel IDs 2.1 and 2.2, 3.1 and 3.2 and so on. For marketing purposes, we use the popular term “2-Channel” the general public understands, for integrators we use the more correct term “2 Programs”. Contemporary Research QMOD Modulators HD/IPTV Encoders... -
Page 7: Program A And Program B
Shows horizontal frequency of source Vert Freq Shows vertical frequency of source Lines Shows number of lines in source video Output Mode Select outputs for streaming RF | IP | RF+IP More on next page Contemporary Research QMOD Modulators HD/IPTV Encoders... -
Page 8: Common
Displays Mac address - the last 3 pairs identify the serial number Unit Name Create unique name for the QMOD QMOD Version Starts with current version, use left and right arrows for versions of all software modules Contemporary Research QMOD Modulators HD/IPTV Encoders... -
Page 9: Advanced
Select Internet Protocol Version 4, select Properties and enter IP Address: 192.168.227.1 Subnet mask: 255.255.255.0 • Enter 192.168.227.227 in your browser to see the QMOD web pages • Once this is set, the same settings apply to all QMODs Contemporary Research QMOD Modulators HD/IPTV Encoders... -
Page 10: Updating Firmware With Cr Toolbox
Updating Firmware with CR Toolbox CR Toolbox is a PC application for many Contemporary Research products. When launched, CR Toolbox will search the network to discover connected devices, and list them in product-specific tabs. In addition, CR Toolbox will connect to the Contemporary Research SFTP server and check for updates. -
Page 11: Converged Rf And Iptv Distribution
"reserved" combinations in that range that don't work efficiently, so you'll want to use addresses assigned by the IT department. Typical "non-reserved" addresses include: 239.0.0.5 239.0.27.xxx (default CR IGMP group) 239.0.0.6 239.3.0.1 239.0.100.99 239.0.1.1 Contemporary Research QMOD Modulators HD/IPTV Encoders... -
Page 12: Using Vlc Media Player To Test Streaming
• Click Play to watch the video • Click the Playback menu and Program option to select Program A or Program B • For multicast, include multicast group address as well, such as udp://@239.0.27.34:1234 Contemporary Research QMOD Modulators HD/IPTV Encoders... -
Page 13: Rku Universal Rack Mount Kit
RKU Universal Rack Mount Kit All Contemporary Research rack-mountable products will now include a Universal Rack Mounting Kit (RKU). The RKU will allow for mounting of a single unit or two units side-by-side in a 19" rack. One Universal Rack Mounting Kit will be included with the purchase of each product and will include the following parts: •... -
Page 14: Specifications
PS12-2 Switching power supply, 2A 12 VDC, fits in typical AC power strips PS12-8Y 8A power supply with Y cable to drive 2-4 QMODs (free at time of order) Options RK1 Single Rack Kit, RK2EZ Dual Rack Kit Contemporary Research QMOD Modulators HD/IPTV Encoders... -
Page 15: Qam Channel Chart, Center Frequency
QAM Channel Chart, Center Frequency Channel Frequency Channel Frequency Channel Frequency Channel Frequency Contemporary Research QMOD Modulators HD/IPTV Encoders... -
Page 16: Safety Instructions And Warranty
• If the video product is dropped or the cabinet is damaged. • When the video product exhibits a distinct change in performance, this indicates a need for service. Contemporary Research QMOD Modulators HD/IPTV Encoders... - Page 17 Research SSV-DX Display Express PC product carries a six month limited warranty. Product Service: Contemporary Research will test, repair, or replace the product or products without charge if the unit is under warranty. If the product is out of warranty, Contemporary Research will test, and then repair the product or products. The parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair.
