Summary of Contents for Contemporary Research QMOD-HDMI 1.5

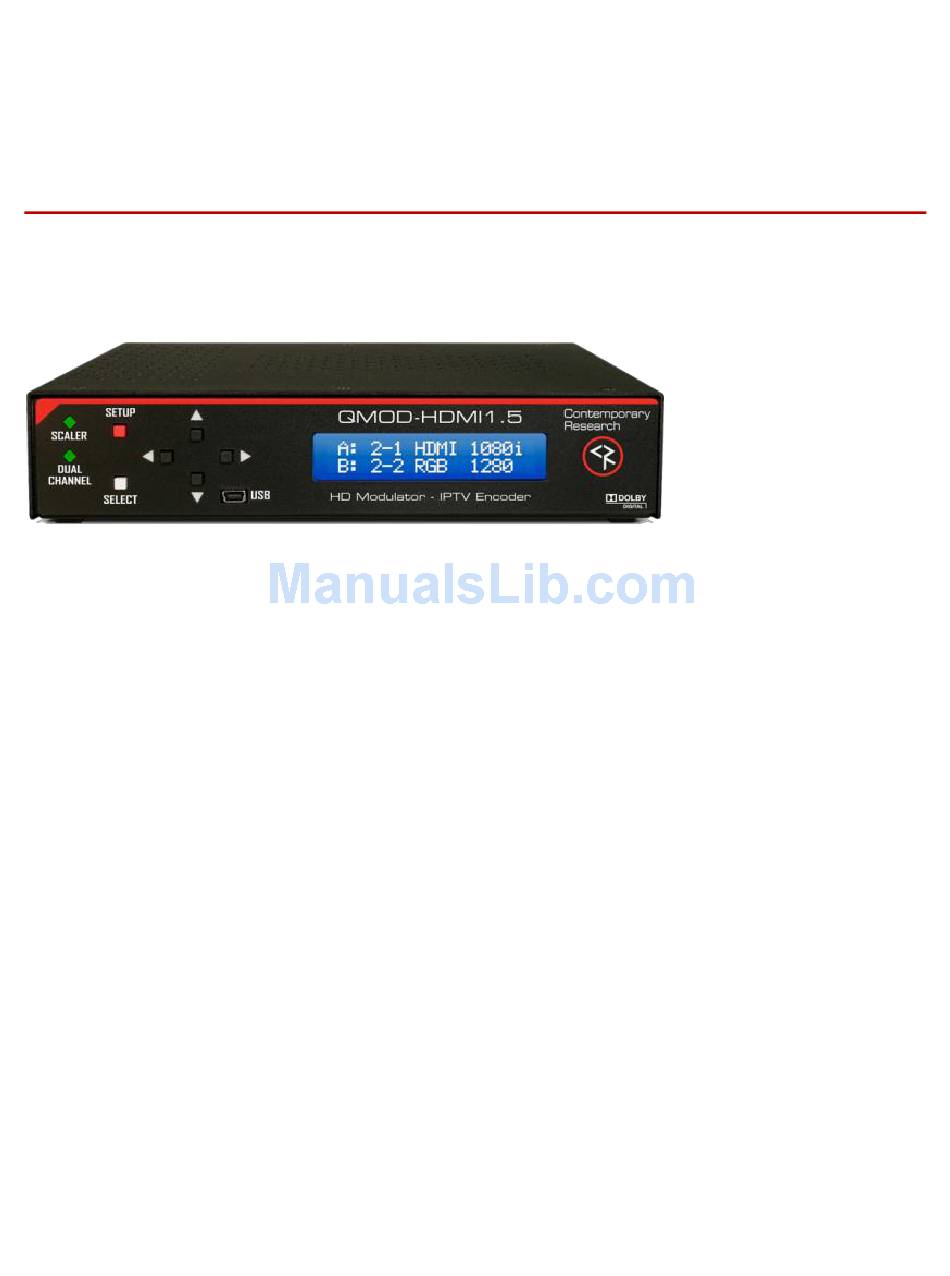

- Page 1 Product Manual QMOD-HDMI1.5 QMOD™ HD Modulator-IPTV Encoder September 25, 2014 Preliminary Contemporary Research QMOD-HDMI1.5...
-
Page 2: Table Of Contents
Other Open HDMI Sources ........................11 Rack Mounting ..........................12 Specifications ............................ 13 Safety Instructions ........................... 14 Limited Warranty and Disclaimer ..................... 15 Manufactured under license from Dolby Laboratories. Dolby and the Double-D symbol are registered trademarks of Dolby Laboratories. Contemporary Research QMOD-HDMI1.5... -
Page 3: Overview
Control with IP Telnet commands Saves power and rack space using efficient design Includes compact switching power supply Mounts in optional 1RU single (RK1) or dual (RK2EZ) 19” rack kits Meets RoHS safety and California energy standards Contemporary Research QMOD-HDMI1.5... -
Page 4: Installation - Settings
The TV figures out which to play using the channel ID, typically something like channel IDs 2.1 and 2.2, 3.1 and 3.2 and so on. For marketing purposes we use the popular term “2-Channel” the general public understands, for integrators we use the more correct term “2 Programs”. Contemporary Research QMOD-HDMI1.5... -
Page 5: Program A And Program B
Selects source for captioning. Video 1 and 2 provide Line 21 captioning data CC Source None | Video 1 | Video 2 Shows horizontal frequency of source Horiz Freq Shows vertical frequency of source Vertical Freq Shows number of lines in source video Lines Contemporary Research QMOD-HDMI1.5... -
Page 6: Common
Fan Speed Set fan speed in percent Backlight Display brightness 1-10 Activates inclusion of virtual channel ID and short Name in the video stream. CVCT On (default) | Off Enter update key Chan Key Firmware version FW version Contemporary Research QMOD-HDMI1.5... -
Page 7: Web Pages
The Web pages provide the same settings as the front-panel menus in simple Web forms (QMOD-HDMI1.5 pages shown as an example). Quick Setup shows the basic setup options. The Program A and Program B pages offer a full range of setup features for each program. Contemporary Research QMOD-HDMI1.5... -
Page 8: Web Pages Via Usb
Right-click the USB Ethernet/RNDIS Gadget Select Internet Protocol Version 4, select Properties and enter this info: IP Address: 192.168.277.228 Subnet Mask: 225.225.225.0 All else blank Enter 192.168.227.227 in your browser to see the QMOD Web pages Contemporary Research QMOD-HDMI1.5... -
Page 9: Firmware Update
When you open the folder, run the Setup.exe file, as you would for any new software app. After you run the installer, look in All Programs, find the Contemporary Research folder, then open the QMOD Updater folder. Click on the file with product and version you want to install to run the app: You have two options for firmware updating, Ethernet or Front panel USB. -
Page 10: Installation - Sources
The assigned EAS inputs, usually Video and Stereo, will broadcast on both programs when active Multicast Multicasting streams require a router with Multicast capability – the router creates the copies needed for user requests. Use IP addresses 224.0.0.1 through 239.255.255.255, which are set aside for multicast streams. Contemporary Research QMOD-HDMI1.5... -
Page 11: Hdmi Connectivity
HDMI to RGBHV will work. We leave those issues up to the end user. Other Open HDMI Sources Other sources that do not have HDCP on the HDMI output are: Contemporary Research 232-ATSC+1 HDTV tuners SDI – to – HDMI adapters Contemporary Research... -
Page 12: Rack Mounting
3. Reinstall the bottom/chassis of the first unit underneath its cover and attach with just eight (8) of the screws removed in step 1. 4. Attach short rack ears to the side and towards the front of each unit with the four (4) supplied 8-32 by 1/4" (black) countersunk screws. Contemporary Research QMOD-HDMI1.5... -
Page 13: Specifications
PS12-1 Switching power supply, 1A 12 VDC, fits in typical AC power strips PS12-4Y 4A power supply with Y cable to drive 2-4 QMODs (free at time of order) Options RK1 Single Rack Kit , RK2EZ Dual Rack Kit Contemporary Research QMOD-HDMI1.5... -
Page 14: Safety Instructions
If the video product is dropped or the cabinet is damaged. When the video product exhibits a distinct change in performance, this indicates a need for service. Contemporary Research QMOD-HDMI1.5... -
Page 15: Limited Warranty And Disclaimer
Limited Warranty and Disclaimer Contemporary Research Corporation (CR) warrants this product to be free from defects in material and workmanship under normal use for a period of two years from the date of purchase from CR. Should such a defect occur CR will repair or replace, at their option, the defective product at no cost for parts or labor.
