Assembly
Check to ensure that all components are included
Mast with lift arm, lift motor, sling bar, control box and battery.
Undercarriage with base-width adjustment motor and locking handle.
Hand control and cord.
Instructions, charging cable and power supply cord for charging.

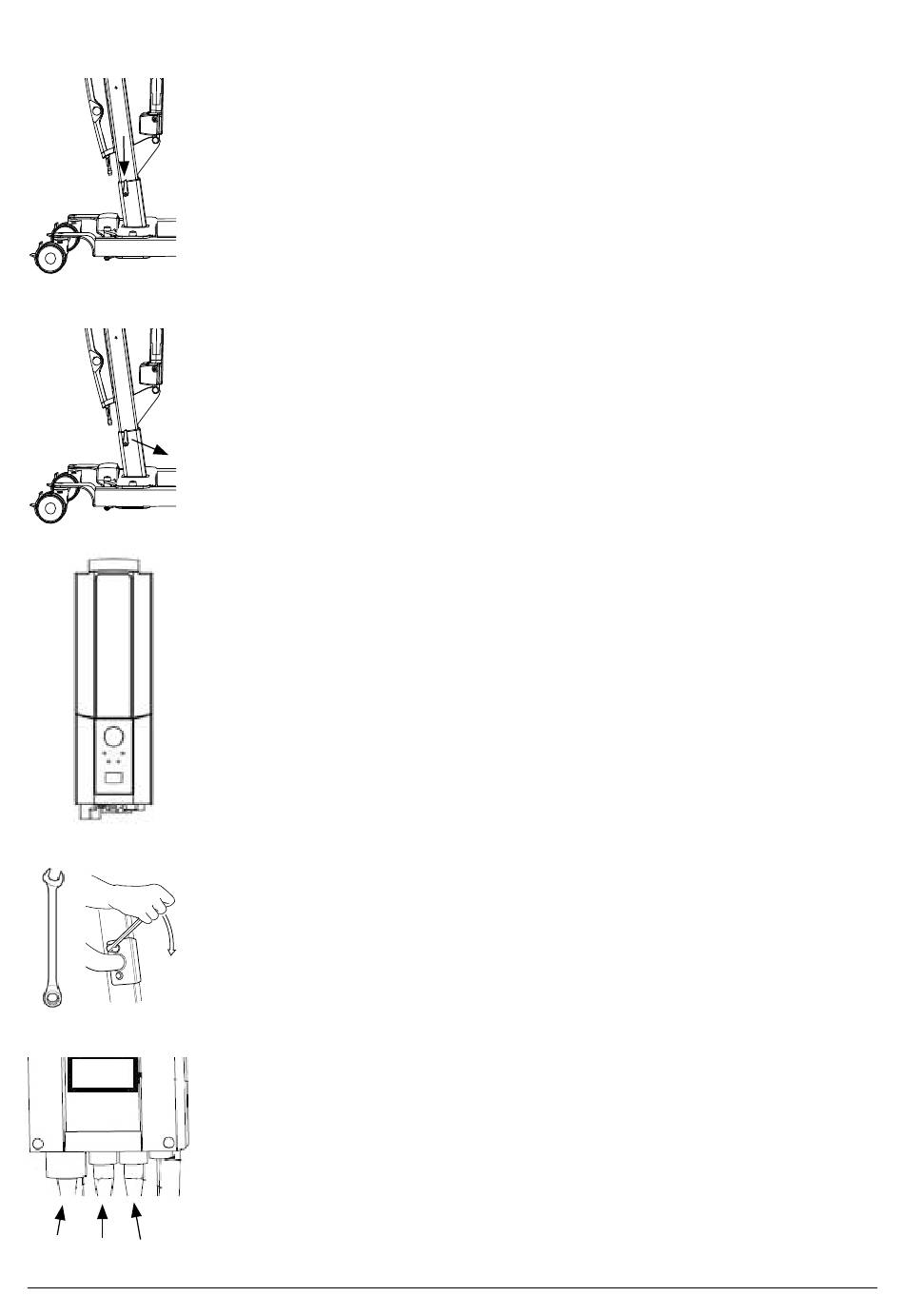

Insert the mast onto the base. There are three alternatives for adjusting the height of the
mast. Secure the mast with the locking handle.
Eva450/Eva600: Place the battery in the mount in the control box.
Mount handlebar with two wrenches.
Connect the cables: The cable for the hand control in outlet HS; the cable for the hoist
motor in outlet M1, and the cable for the base motor in outlet M2.
Release the emergency stop and perform a final inspection (see final inspection).
HS
M1 M2
