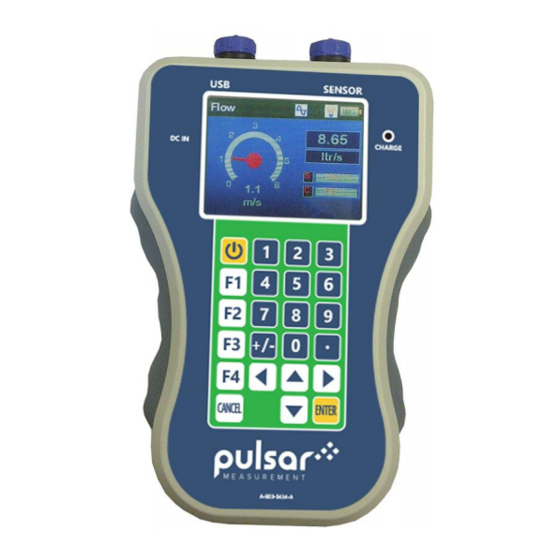

Pulsar FlowPulse Handheld Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FlowPulse Handheld
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FlowPulse Handheld and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pulsar FlowPulse Handheld

Summary of Contents for Pulsar FlowPulse Handheld

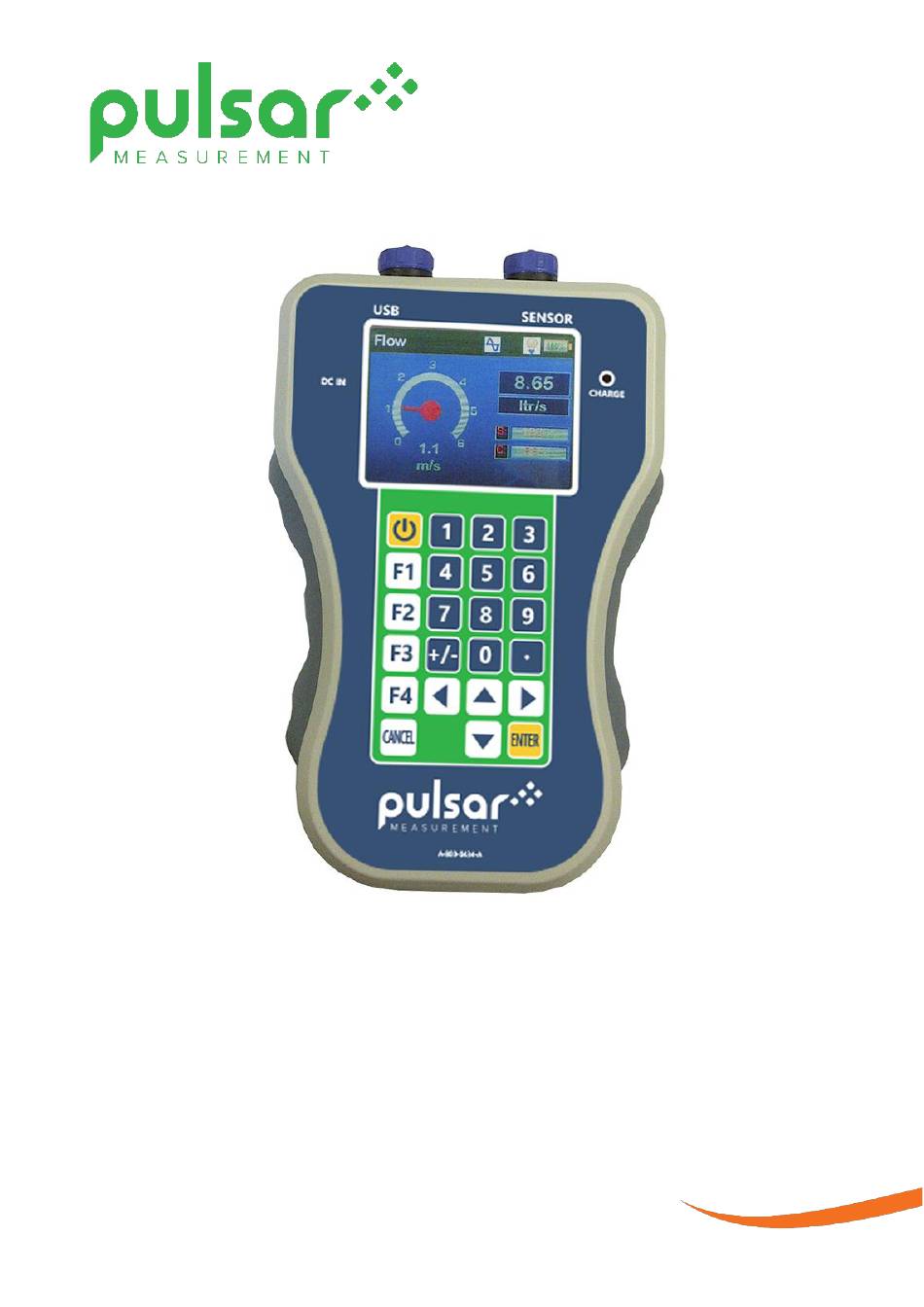

  • Page 1 FlowPulse Handheld Instruction Manual...
  • Page 3 Pulsar Process Measurement Limited. WARRANTY AND LIABILITY Pulsar Measurement guarantee for a period of 2 years* from the date of delivery that it will either exchange or repair any part of this product returned to Pulsar Process Measurement...

  • Page 4: Table Of Contents

    CONTENTS Chapter 1: Start Here… ......................6 About this Manual ....................... 6 About the FlowPulse Handheld Controller ..............7 Functional Description ....................... 7 Product Specification ......................8 EU Certificate of Conformity ..................10 Chapter 2 Connection and Setup ..................11 Unpacking ..........................
  • Page 5 PULSAR MEASUREMENT Totaliser (S) .......................... 30 Accessing the totaliser options..................30 Totaliser Multiplier ......................31 Exporting Log Files to Excel ..................32 Flow Pulse Parameter Files .................... 32 Loading a Parameter File onto Flow Pulse .............. 33 System Information ......................34 Internal Storage .........................

  • Page 6: Chapter 1: Start Here

    There are various parts of the manual that offer additional help or information as shown. Tips TIP: Look f or this ic on throu ghout your Pulsar Measu rem ent manual t o find helpful info rmation and answers to frequently asked que stion s. Additional Information...

  • Page 7: About The Flowpulse Handheld Controller

    PULSAR MEASUREMENT About the FlowPulse Handheld Controller The Flow Pulse Handheld is designed specifically for use with the Flow Pulse sensor. It is a complete, battery-powered, portable platform that complements the Flow Pulse, offering the ability to view traces, perform data logging, as well as to save and program parameters on the Flow Pulse.

  • Page 8: Product Specification

    FlowPulse Handheld INSTRUCTION MANUAL Product Specification PHYSICAL Polycarbonate UL94 V2 rated, with weather-proof Enclosure material/description connectors. Outside dimensions 210 x 125 x 50 mm (8.27 x 4.92 x 1.97”) Weight 0.6kg (1.3lbs) Screen 3.2” TFT LCD Supplied cable length 2 metres (9.8 ft.) minimum...
  • Page 9 Mains charger, 12 VDC@2A In-car charger Power supply DC 12-18V 3.5W @12V not charging Power Consumption 15W @12V when charging Pulsar Measurement operates a policy of constant development and improvement and reserve the right to amend technical details, as necessary.

  • Page 10: Eu Certificate Of Conformity

    FlowPulse Handheld INSTRUCTION MANUAL EU Certificate of Conformity...

  • Page 11: Chapter 2 Connection And Setup

    Power-up the Flow Pulse Handheld and verify each cable core by measuring its voltage. Important Information Please ensure that when carrying the FlowPulse and FlowPulse Handheld that the cable is held out of the way as it is a trip hazard.
  • Page 12 INSTRUCTION MANUAL For reference when connecting the FlowPulse Handheld to the FlowPulse the connections on both the Flow Pulse and the FlowPulse Handheld are shown below. The table describes the connections between the two. The FlowPulse connector to the FlowPulse Handheld above and the Terminal...

  • Page 13: Dimensions

    PULSAR MEASUREMENT Dimensions 50mm (1.97”) 2mm (0.08”) 124mm (4.88”) 2mm (0.08”) SENSOR DC IN CHARGE...

  • Page 14: Key Guide

    FlowPulse Handheld INSTRUCTION MANUAL Key Guide DESCRIPTION Hold down the power key to switch the device on or off Toggle trace on/off Stop file replay (only during file replay session) Toggle continuous data logging on/off Cancel Sleep/Wake logging (when device is awake)

  • Page 15: Connecting To A Flow Pulse

    PULSAR MEASUREMENT Connecting to a Flow Pulse The FlowPulse Handheld can be connected to any existing Flow Pulse. Flow monitoring, diagnostic trace and normal data logging functions are supported. However, the following features will only be supported by Flow Pulse firmware 1.2.4 and later:...

  • Page 16: Chapter 3 How To Use The Handheld Controller

    FlowPulse Handheld INSTRUCTION MANUAL CHAPTER 3 HOW TO USE THE HANDHELD CONTROLLER Safety Precaution The device contains Li-ion rechargeable batteries that are potentially hazardous, and may pose a fire-risk when mishandled or subject to temperatures beyond the specified maximum. Never attempt to operate, recharge, or subject the device to temperature beyond 60°C or below -20°C (-4°F - 140°F).

  • Page 17: User Interface Structure

    PULSAR MEASUREMENT The FlowPulse Handheld has an internal temperature sensor that monitors board temperature and will power-down the Flow Pulse Handheld and taper charging rate when temperature rises beyond the specified threshold. Important Information Due to the risk of the batteries igniting, under no circumstances should the Flow Pulse Handheld be permanently powered from the charger or any other external power source.

  • Page 18: Flow Window

    FlowPulse Handheld INSTRUCTION MANUAL Flow Window The main window is the Flow window. This page displays both the flow velocity and the associated flow rate. The expected mA output on the Flow Pulse and the name of site for data logging are also shown.

  • Page 19: Diagnostic Trace Window

    PULSAR MEASUREMENT Diagnostic Trace Window Trace Flow The Trace window displays the diagnostic trace from the Flow Pulse. The red dot on the trace indicates the amount of flow perceived by the sensor. Use F1 key to enable or disable traces from the Flow Pulse. Trace function is enabled by default upon connection.

  • Page 20: Record Window

    FlowPulse Handheld INSTRUCTION MANUAL Record Window Record Flow Smp 250 The Record window shows the recently reported flow. Only the most recent 300 flow readings are displayed. The ‘Flow’ axis on the chart is in units of the set volumetric flow rate, which is litres per second by default.
  • Page 21 PULSAR MEASUREMENT Settings-1 Sensitivity Parameter: Cur Value: New Value: Info: Sensitivity. Higher value increases sensitivity. Increase only if required by application. Min: 0, Max: 10 The “Manual Param” function (illustration of “Manual Param” screen above) allows the setting of parameters using parameter addresses. This is useful for setting less frequently used parameters or any parameters that are not listed on the menu.

  • Page 22: Settings 1 - Flowpulse

    FlowPulse Handheld INSTRUCTION MANUAL Settings 1 – FlowPulse Relay / Manual Device Setup Modbus Output Alarm Param Info AlmMode Mode Pipe I.D. Min mA ModbusID LoSet Sensitivity Max mA Baudrate HiSet mA Trim Damping Parity RelMode Min Flow Cal Factor...

  • Page 23: Settings 2 Screen - Handheld Controller

    PULSAR MEASUREMENT Settings 2 Screen – Handheld Controller Settings-2 SYSTEM: CONTROLLER: 1-Data Logger 1-Norm Bright 10 2- System 2- Dim Bright 10 3-Tools 3- Auto Dim 90 4-Manual Paramet 4- Time 10:47 5- Date 04-05-2017 5-Device Info 6- Region 1...

  • Page 24: Connecting To A Computer

    This is like connecting a USB drive, and therefore no additional software installation is required. Upon connection, a ‘Pulsar 4GB’ drive will appear as a USB drive on the PC. The user may transfer any saved data file directly to the PC.

  • Page 25: Data Logging

    PULSAR MEASUREMENT The “Date” should be set using the format specified by the region. REGION DATE FORMAT DDMMYY MMDDYY DDMMYY YYMMDD The “Region” setting influences the decimal symbol, date display format, and default volumetric units. This only affects user interface and has no impact on sensor operation.

  • Page 26: Sleep/Wake Logging

    FlowPulse Handheld INSTRUCTION MANUAL Settings-2 Site ID Parameter: SITE 1 Cur Value: SITE 1 The site name determines the folder in which the log files will be stored, allowing organisation of log files by site name. The data logging icon is displayed whenever data logging is in progress.
  • Page 27 If the “Sleep Time” is more than 10 seconds and the “Wake Time” is more than 20 seconds, the FlowPulse Handheld will be powered down during sleep mode. However, if these two requirements are not met, neither unit will be powered off during sleep mode.

  • Page 28: Replaying Log Files

    FlowPulse Handheld and press the F2 key to cancel. Replaying Log Files The log files can be replayed on the FlowPulse Handheld, or transferred to a computer via USB for replay using FlowPulse-PC (version 1.2.4 or later required).

  • Page 29: Charting Log Files

    PULSAR MEASUREMENT Charting Log Files Charting the log files is a quick method of viewing the whole log file at once. The charting function displays an entire length of “Record” at a time before giving the option to either cancel the display or display the next “Record”...

  • Page 30: Totaliser (R)

    FlowPulse Handheld INSTRUCTION MANUAL Totaliser (R) This displays the current value of the resettable totaliser which appears during run mode. The resettable totaliser can be reset whilst in Run mode by pressing the F4 key when you are in the totaliser screen. The below pop-...

  • Page 31: Totaliser Multiplier

    PULSAR MEASUREMENT Totaliser Multiplier This can be used if the totaliser increments by too large or too small amount, enter the factor by which the actual flow rate is multiplied by before incrementing the totaliser. E.g., if flow rate is being calculated and displayed in litres /second and it is desired to increment the totaliser in cubic metres select 13 = *1000.

  • Page 32: Exporting Log Files To Excel

    FlowPulse Handheld INSTRUCTION MANUAL Exporting Log Files to Excel Log files can be transported to a computer via USB, they can then be displayed on Flow Pulse-PC 1.2.4 or later. From “Tools” menu, select “Export Data to CSV”, then choose the .flg files to convert.

  • Page 33: Loading A Parameter File Onto Flow Pulse

    PULSAR MEASUREMENT To specifically generate a parameter file for the sensor, press the F2 key to start a data logging session. This will generate a csv parameter file within the site folder. When using Sleep/Wake logging, no new parameter file is generated upon waking.

  • Page 34: System Information

    FlowPulse Handheld Follow these procedures carefully to upgrade the firmware on the handheld controller: 1. Ensure the FlowPulse Handheld has more than 50% battery charge or that the power cable is plugged in and the Flow Pulse Handheld is charging 2.
  • Page 35 PULSAR MEASUREMENT 4. Remove the 6 screws from the back using a number 1 Phillips screwdriver, taking care to avoid damaging the attached rubber washers 5. Lift the back slightly – avoid sudden force as critical cables are connected between the front and back plates 6.
  • Page 36 FlowPulse Handheld INSTRUCTION MANUAL 8. Run FlowPulse PC (do not click connect), go to System menu and select Bootloader Control 9. On the FlowPulse Bootloader window, select the Com Port number and click Connect 10. Click “Load Hex File” and choose the relevant firmware file for the Handheld.

  • Page 37: Chapter 4 Parameter Listing And Descriptions

    Parameter Access Frequently used parameters are accessible via the Setting-2 menu. All parameters for the FlowPulse Handheld are accessible via the “Manual Param” option on the Setting-2 menu. For service access, select “Manual Param” on the Setting-2 menu, and set p88 to the access code.

  • Page 38: Configuration Parameters

    FlowPulse Handheld INSTRUCTION MANUAL Configuration Parameters Data Logger PARAMETER ADDR OPTIONS DEF. NOTES Time duration Data Interval 2 – 3600 between logs, in seconds. Time duration before a new file is created during logging, in hours. Note: A new file is File Interval 1 –...

  • Page 39: System

    PULSAR MEASUREMENT System PARAMETER ADDR OPTIONS DEF. NOTES Brightness level when Norm Bright 1 – 10 a key is pressed. Higher is brighter Brightness level when the screen is dimmed. Higher is brighter. Dim Bright 0 – 7 Set to 0 to turn off screen when dimming is activated.
  • Page 40 FlowPulse Handheld INSTRUCTION MANUAL Note: This does not affect FlowPulse. Device Info These parameters are read only, and are usually only updated by the device. PARAMETER ADDR DEF. NOTES The serial number is equal to: Controller Serial Number 96 - 97...
  • Page 41 PULSAR MEASUREMENT Service Parameters These parameters are service only parameters, and should only be changed with specific advice from a Pulsar engineer. PARAMETER ADDR DEF. NOTES 0 – USB off 1 – SD card only USB Function 2 – SD + Serial port...

  • Page 42: Chapter 5 Troubleshooting

    FlowPulse Handheld INSTRUCTION MANUAL CHAPTER 5 TROUBLESHOOTING Flow Pulse Diagnostic Please refer to the Flow Pulse Instruction Manual regarding information on using and interpreting the diagnostic trace. Troubleshooting the Handheld Controller Sensor not connected POSSIBLE CAUSES ACTION Ensure that the Flow Pulse sensor is powered, either independently or by the controller.
  • Page 43 The sensor draws majority of its power during Abnormal power operation. Verify that there is no abnormal power consumption consumption caused by a faulty sensor. Important Information If you experience any issues with our equipment, then please contact your local Pulsar Distributor for assistance.

  • Page 44: Chapter 6 Disposal

    FlowPulse Handheld INSTRUCTION MANUAL CHAPTER 6 DISPOSAL Incorrect disposal can cause adverse effects to the environment. Dispose of the device components and packaging material in accordance with regional environmental regulations including regulations for electrical \ electronic products. Transducers Remove power, disconnect the Transducer, cut off the electrical cable and dispose of cable and Transducer in accordance with regional environmental regulations for electrical \ electronic products.
  • Page 45 S U P P O R T @ P U L S A R M E A S U R E M E N T . C O M Copyright © 2020 Pulsar Measurement Ltd. Registered Address: 1 Chamberlain Square CS, Birmingham B3 3AX Registered No.: 3345604 England &...
